P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-977
< DTC/CIRCUIT DIAGNOSIS >
[MR EXCEPT FOR NISMO RS MODELS]
C
D
E
F
G
H
I
J
K
L
M
A
EC
N
P
O
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
DTC Logic
INFOID:0000000012198473
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.
PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
• Perform “DTC CONFIRMATION PROCEDURE” when the fuel level is between 1/4 and 3/4 full, and
vehicle is placed on flat level surface.
• Always perform test at a temperature of 5 to 60
°C (41 to 140°F).
• Cool the vehicle so that engine coolant temperature becomes same level as ambient temperature.
Do you have CONSULT
YES
>> GO TO 2.
NO
>> GO TO 4.
2.
PERFORM DTC CONFIRMATION PROCEDURE A
With CONSULT
1. Turn ignition switch ON.
2. Check that the following condition are met.
FUEL T/TMP SE: 0 - 35
°C (32 - 95°F)
3. Start engine and wait at least 60 seconds.
4. Check 1st trip DTC.
IS 1st trip DTC detected?
YES
>> Proceed to
.
NO
>> GO TO 3.
3.
PERFORM DTC CONFIRMATION PROCEDURE B
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT.
5. Touch “START”.
6. Start engine and let it idle until “TESTING” on CONSULT changes to “COMPLETED”. (It will take approxi-
mately 10 seconds.)
If “TESTING” is not displayed after 5 minutes, retry from step 2.
7. Touch “SELF-DIAG RESULTS”.
Which is displayed on CONSULT screen?
DTC No.
CONSULT screen terms
(Trouble diagnosis content)
DTC detecting condition
Possible cause
P0443
PURG VOLUME CONT/V
(Evaporative emission system
purge control valve circuit)
A
The canister purge flow is detected dur-
ing the vehicle is stopped while the en-
gine is running, even when EVAP
canister purge volume control solenoid
valve is completely closed.
• EVAP control system pressure sensor
• EVAP canister purge volume control
solenoid valve
(The valve is stuck open.)

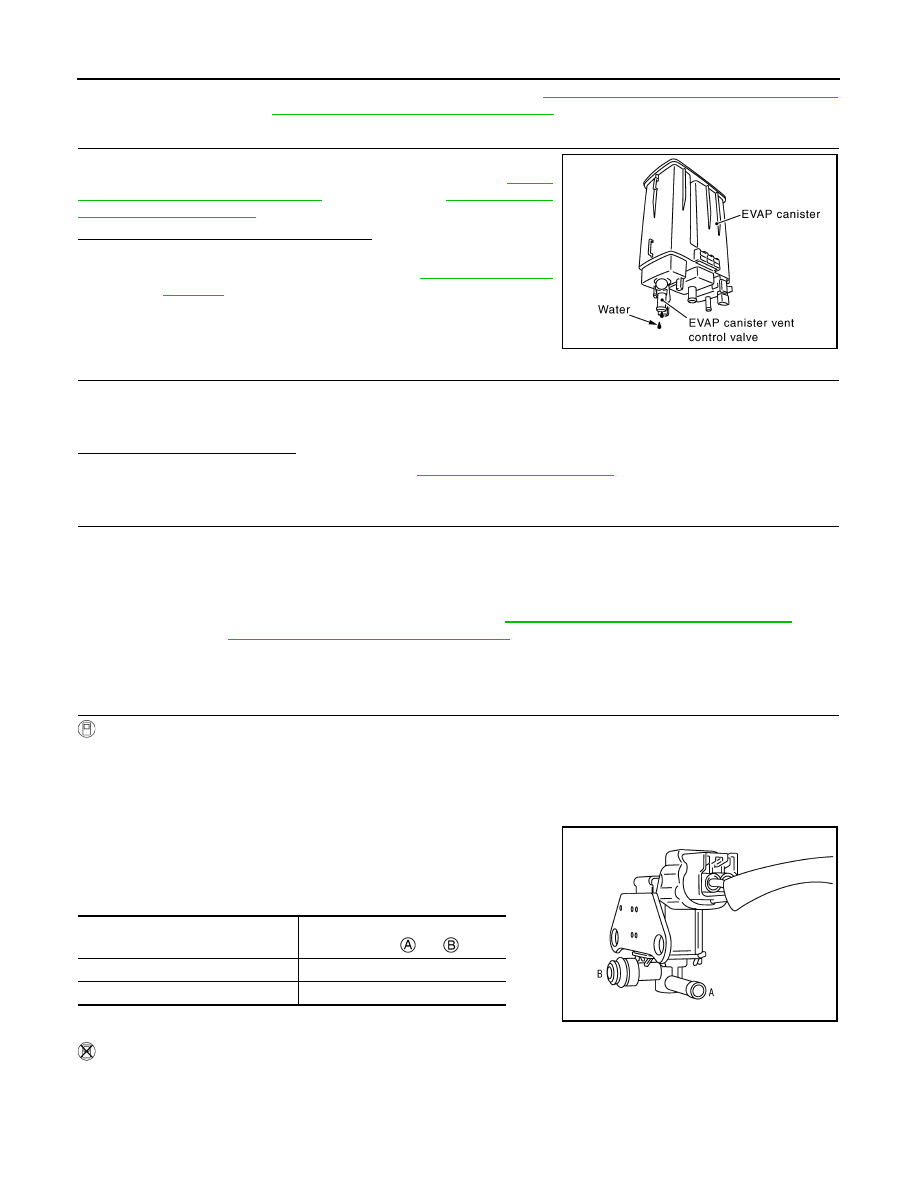

• EVAP canister vent control valve
• EVAP canister
• Hoses
(Hoses are connected incorrectly or
clogged.)
B
The canister purge flow is detected dur-
ing the specified driving conditions, even
when EVAP canister purge volume con-
trol solenoid valve is completely closed.
