P0441 EVAP CONTROL SYSTEM

EC-973

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Function Check

INFOID:0000000012198471

1.

PERFORM COMPONENT FUNCTION CHECK

Without CONSULT

1. Lift up drive wheels.

2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.

3. Turn ignition switch OFF, wait at least 10 seconds.

4. Turn ignition switch ON.

5. Turn ignition switch OFF, wait at least 10 seconds.

6. Start engine and wait at least 70 seconds.

7. Set voltmeter probes to ECM harness connector terminals under the following conditions.

8. Check EVAP control system pressure sensor value at idle speed and note it.

9. Establish and maintain the following conditions for at least 1 minute.

10. Verify that EVAP control system pressure sensor value stays 0.1 V less than the value at idle speed (mea-

sured at step 6) for at least 1 second.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-973, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198472

1.

CHECK EVAP CANISTER

1. Turn ignition switch OFF.

2. Check EVAP canister for cracks.
Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 2.

YES-2 >> Without CONSULT: GO TO 3.

NO

>> Replace EVAP canister. Refer to

FL-27, "2WD : Removal and Installation"

 (2WD models),

FL-30,

"AWD : Removal and Installation"

 (AWD models).

2.

CHECK PURGE FLOW

With CONSULT

1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP ser-

vice port and install vacuum gauge. For the location of EVAP service port, refer to

EC-650, "EVAPORA-

TIVE EMISSION SYSTEM : System Description"

.

2. Start engine and let it idle.

3. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT.

4. Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG VOL CONT/V” opening and check vacuum

existence.

ECM

Connector

+

–

Terminal

E19

121

148

Air conditioner switch

ON

Head lamp switch

ON

Rear window defogger switch

ON

Engine speed

Approx. 3,000 rpm

Gear position

Any position other than P, N or R

EC-974

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0441 EVAP CONTROL SYSTEM

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 4.

3.

CHECK PURGE FLOW

 Without CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Stop engine.

3. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP ser-

vice port and install vacuum gauge. For the location of EVAP service port, refer to

EC-650, "EVAPORA-

TIVE EMISSION SYSTEM : System Description"

.

4. Start engine and let it idle.

Do not depress accelerator pedal even slightly.

5. Check vacuum gauge indication before 60 seconds pass after starting engine.

6. Rev engine up to 2,000 rpm after 100 seconds pass after starting engine.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 4.

4.

CHECK EVAP PURGE LINE

1. Turn ignition switch OFF.

2. Check EVAP purge line for improper connection or disconnection.

Refer to

EC-1252, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair EVAP purge line.

5.

CHECK EVAP PURGE HOSE AND PURGE PORT

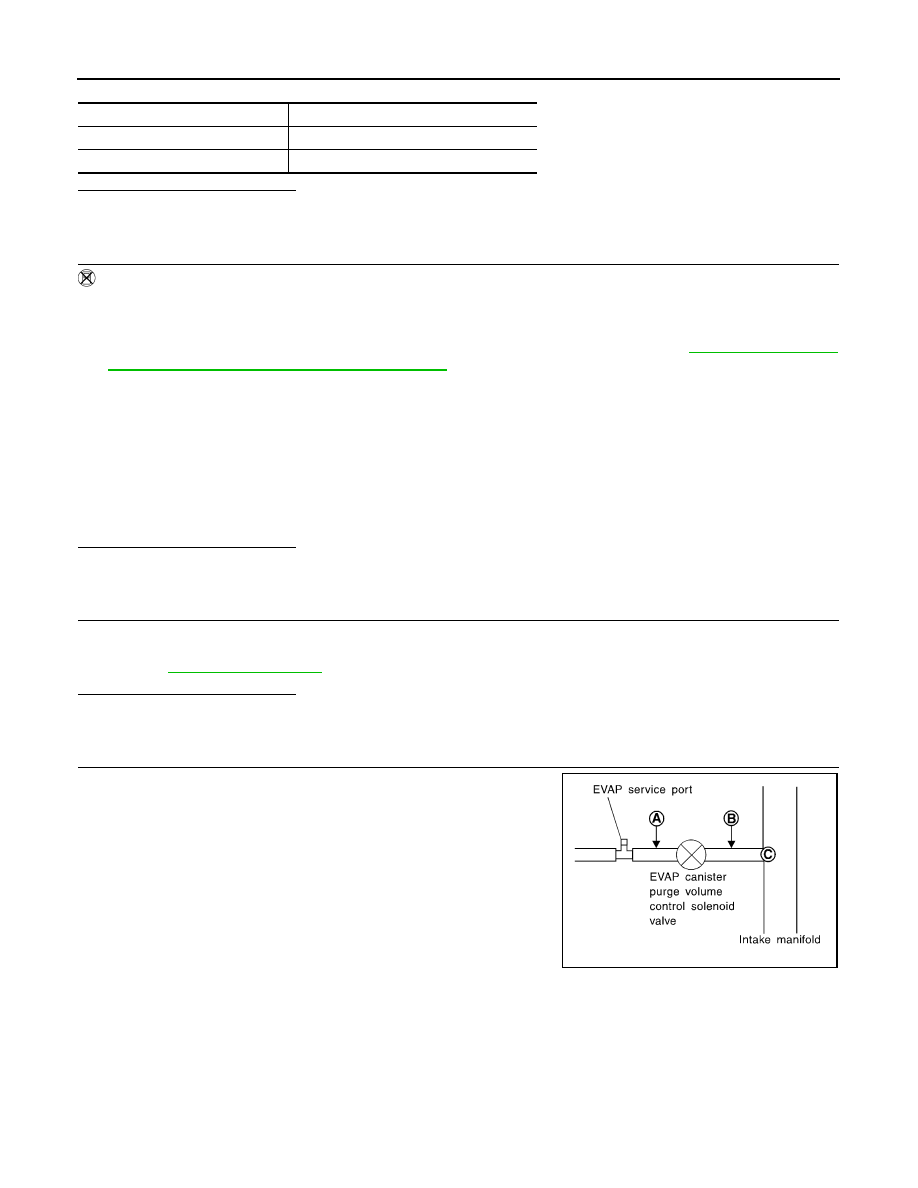

1. Disconnect purge hoses connected to EVAP service port A and

EVAP canister purge volume control solenoid valve B.

2. Blow air into each hose and EVAP purge port C.

PURG VOL CONT/V

Vacuum

100%

Existed

0%

Not existed

Vacuum should not exist.

Vacuum should exist.

SEF367U

P0441 EVAP CONTROL SYSTEM

EC-975

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3. Check that air flows freely.
Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 6.

YES-2 >> Without CONSULT: GO TO 7.

NO

>> Repair or clean hoses and/or purge port.

6.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT

1. Start engine.

2. Perform “PURG VOL C/V” in “ACTIVE TEST” mode with CONSULT. Check that engine speed varies

according to the valve opening.

Does engine speed vary according to the valve opening?

YES

>> GO TO 8.

NO

>> GO TO 7.

7.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Check EVAP canister purge volume control solenoid valve. Refer to

EC-980, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace EVAP canister purge volume control solenoid valve. Refer to

EC-600, "ENGINE CON-

TROL SYSTEM : Component Parts Location"

.

8.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1. Disconnect EVAP control system pressure sensor harness connector.

2. Check that water is not inside connectors.
Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-27, "2WD : Removal and Installation"

(2WD models),

FL-30, "AWD : Removal and Installation"

 (AWD models).

9.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR FUNCTION

Check EVAP control system pressure sensor function. Refer to

EC-1005, "DTC Logic"

 for DTC P0452,

EC-

1008, "DTC Logic"

 for DTC P0453.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-27, "2WD : Removal and Installation"

(2WD models),

FL-30, "AWD : Removal and Installation"

 (AWD models).

10.

CHECK RUBBER TUBE FOR CLOGGING

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Clean the rubber tube using an air blower.

11.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check EVAP canister vent control valve. Refer to

EC-986, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Replace EVAP canister vent control valve. Refer to

FL-27, "2WD : Removal and Installation"

(2WD models),

FL-30, "AWD : Removal and Installation"

 (AWD models).

SEF368U

EC-976

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0441 EVAP CONTROL SYSTEM

12.

CHECK EVAP PURGE LINE

Inspect EVAP purge line (pipe and rubber tube). Check for evidence of leakage.

Refer to

EC-650, "EVAPORATIVE EMISSION SYSTEM : System Description"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Repair EVAP purge line.

13.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.
