Nissan Juke F15. Manual - part 448

COMPONENT PARTS

EC-605

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Electric throttle control actuator

EC-606, "Electric Throttle Control Actuator"

Throttle control motor

Throttle position sensor

Ignition coil with power transistor

EC-607, "Ignition Coil With Power Transistor"

Fuel injector

EC-608, "Fuel Injector"

High pressure fuel pump

EC-608, "High Pressure Fuel Pump"

Fuel rail pressure sensor

EC-609, "Fuel Rail Pressure Sensor"

Low pressure fuel pump

EC-609, "Low Pressure Fuel Pump"

Mass air flow sensor

EC-609, "Mass Air Flow Sensor (With Intake Air Temperature Sen-
sor 1)"

Intake air temperature sensor 1

Turbocharger

EC-609, "Turbocharger"

Electric wastegate control actuator

Turbocharger bypass control solenoid valve

Turbocharger boost sensor

EC-610, "Turbocharger Boost Sensor (With Intake Air Tempera-
ture Sensor 2)"

Intake air temperature sensor 2

Engine coolant temperature sensor

EC-611, "Engine Coolant Temperature Sensor 1"

,

EC-612, "Engine Coolant Temperature Sensor 2"

Crankshaft position sensor

EC-612, "Crankshaft Position Sensor (POS)"

Camshaft position sensor

EC-612, "Camshaft Position Sensor (PHASE)"

Intake valve timing control solenoid valve

EC-613, "Intake Valve Timing Control Solenoid Valve"

Exhaust valve timing control position sensor

EC-613, "Exhaust Valve Timing Control Position Sensor"

Exhaust valve timing control solenoid valve

EC-613, "Exhaust Valve Timing Control Solenoid Valve"

Air fuel ratio (A/F) sensor 1

EC-614, "Air Fuel Ratio (A/F) Sensor 1"

Heated oxygen sensor 2

EC-615, "Heated Oxygen Sensor 2"

Knock sensor

EC-616, "Knock Sensor"

Engine oil pressure sensor

EC-616, "Engine Oil Pressure Sensor"

Engine oil temperature sensor

EC-616, "Engine Oil Temperature Sensor"

Cooling fan

EC-617, "Cooling Fan"

EVAP canister purge volume control solenoid valve

EC-617, "EVAP Canister Purge Volume Control Solenoid Valve"

Battery current sensor

EC-618, "Battery Current Sensor (With Battery Temperature Sen-
sor)"

Battery temperature sensor

Malfunction indicator lamp (MIL)

EC-619, "Malfunction Indicator lamp (MIL)"

Oil pressure warning lamp

EC-619, "Oil Pressure Warning Lamp"

Refrigerant pressure sensor

EC-619, "Refrigerant Pressure Sensor"

Stop lamp switch

EC-620, "Stop Lamp Switch & Brake Pedal Position Switch"

Brake pedal position switch

Clutch pedal position switch (M/T models)

EC-620, "Clutch Pedal Position Switch"

ASCD steering switch

EC-620, "ASCD Steering Switch"

Information display

EC-620, "Information Display"

G sensor

EC-614, "G Sensor"

Manifold absolute pressure sensor

EC-619, "Manifold Absolute Pressure Sensor"

Engine oil pressure control solenoid valve

EC-616, "Engine Oil Pressure Control Solenoid Valve"

Intake valve timing intermediate lock control solenoid valve

EC-613, "Intake Valve Timing Intermediate Lock Control Solenoid
Valve"

EGR pressure sensor

EC-614, "EGR Pressure Sensor"

Component

Reference

EC-606

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

COMPONENT PARTS

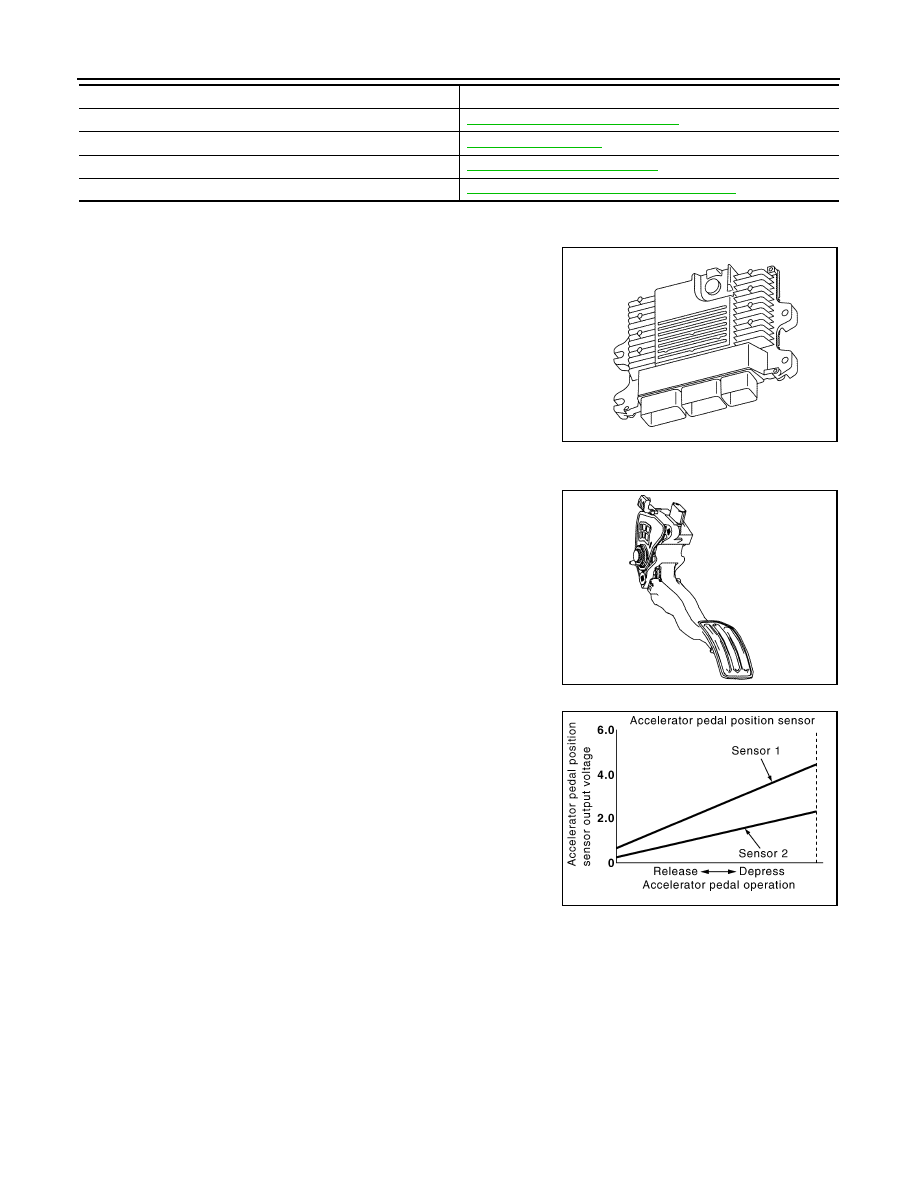

ECM

INFOID:0000000012198149

The ECM consists of a microcomputer and connectors for signal

input and output and for power supply. The ECM controls the engine.

Accelerator Pedal Position Sensor

INFOID:0000000012198150

The accelerator pedal position sensor is installed on the upper end

of the accelerator pedal assembly. The sensor detects the accelera-

tor position and sends a signal to the ECM.

Accelerator pedal position sensor has two sensors. These sensors

are a kind of potentiometers which transform the accelerator pedal

position into output voltage, and emit the voltage signal to the ECM.

In addition, these sensors detect the opening and closing speed of

the accelerator pedal and feed the voltage signals to the ECM. The

ECM judges the current opening angle of the accelerator pedal from

these signals and controls the throttle control motor based on these

signals.

Idle position of the accelerator pedal is determined by the ECM

receiving the signal from the accelerator pedal position sensor. The

ECM uses this signal for the engine operation such as fuel cut.

Electric Throttle Control Actuator

INFOID:0000000012198151

OUTLINE

EGR volume control valve

EC-614, "EGR Volume Control Valve"

Electric wastegate control actuator

EC-609, "Turbocharger"

Multi-way control valve

EC-611, "Multi-way Control Valve"

Intake manifold runner control valve

EC-614, "Intake Manifold Runner Control Valve"

Component

Reference

JPBIA4618ZZ

JPBIA4615ZZ

PBIB1741E

COMPONENT PARTS

EC-607

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

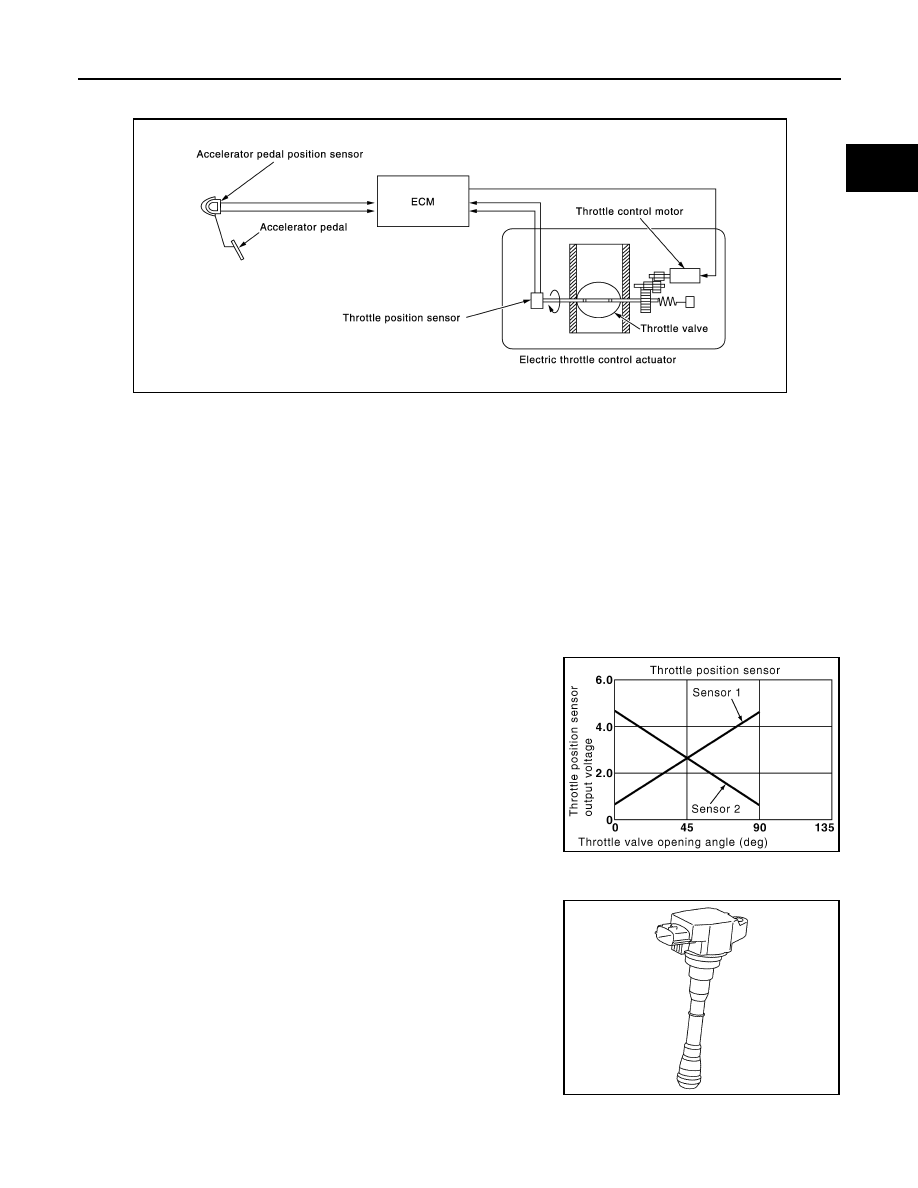

Electric throttle control actuator consists of throttle body, throttle valve, throttle control motor and throttle posi-

tion sensor.

THROTTLE CONTROL MOTOR RELAY

Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle

control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends

an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition

switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not

provided to the ECM.

THROTTLE CONTROL MOTOR

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.

The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-

back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in

response to driving condition.

THROTTLE POSITION SENSOR

The throttle position sensor responds to the throttle valve movement.

The throttle position sensor has two sensors. These sensors are a

kind of potentiometers which transform the throttle valve position into

output voltage, and emit the voltage signal to the ECM. In addition,

these sensors detect the opening and closing speed of the throttle

valve and feed the voltage signals to the ECM. The ECM judges the

current opening angle of the throttle valve from these signals and the

ECM controls the throttle control motor to make the throttle valve

opening angle properly in response to driving condition.

Ignition Coil With Power Transistor

INFOID:0000000012198152

The ignition signal from the ECM is sent to and amplified by the

power transistor. The power transistor turns ON and OFF the ignition

coil primary circuit. This ON/OFF operation induces the proper high

voltage in the coil secondary circuit.

JSBIA0270GB

PBIB0145E

JPBIA4613ZZ

EC-608

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

COMPONENT PARTS

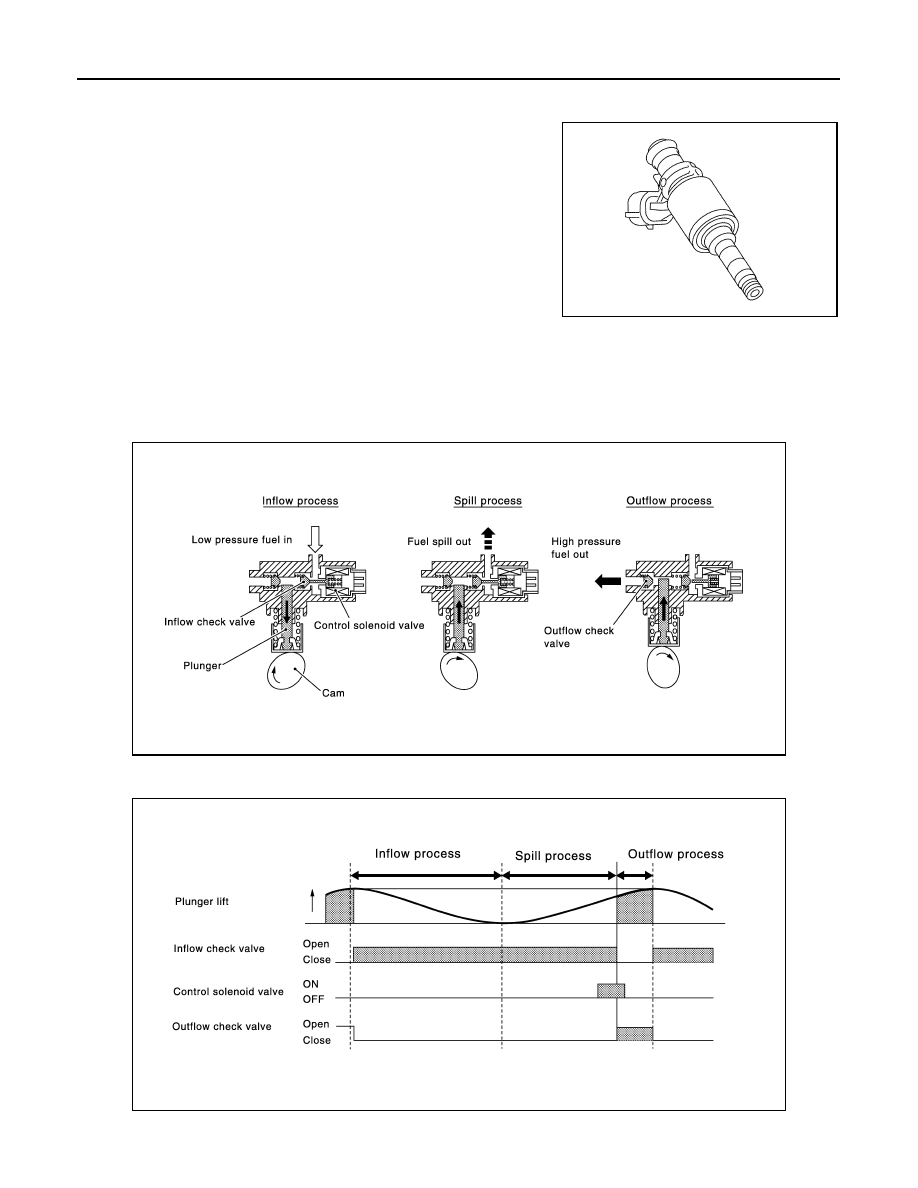

Fuel Injector

INFOID:0000000012198153

For the fuel injector, a high pressure fuel injector is used and this

enables a high-pressure fuel injection at a high voltage within a short

time. The ECM is equipped with an injector driver unit and actuates

the fuel injector at a high voltage (approximately 65 V at the maxi-

mum).

High Pressure Fuel Pump

INFOID:0000000012198154

The high pressure fuel pump is activated by the exhaust camshaft.

ECM controls the high pressure fuel pump control solenoid valve built into the high pressure fuel pump and

adjusts the amount of discharge by changing the suction timing of the low pressure fuel.

Operating Description

Operating Chart

JSBIA1612ZZ

JSBIA0285GB

JSBIA0286GB
