PREPARATION

EC-597

< PREPARATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PREPARATION

PREPARATION

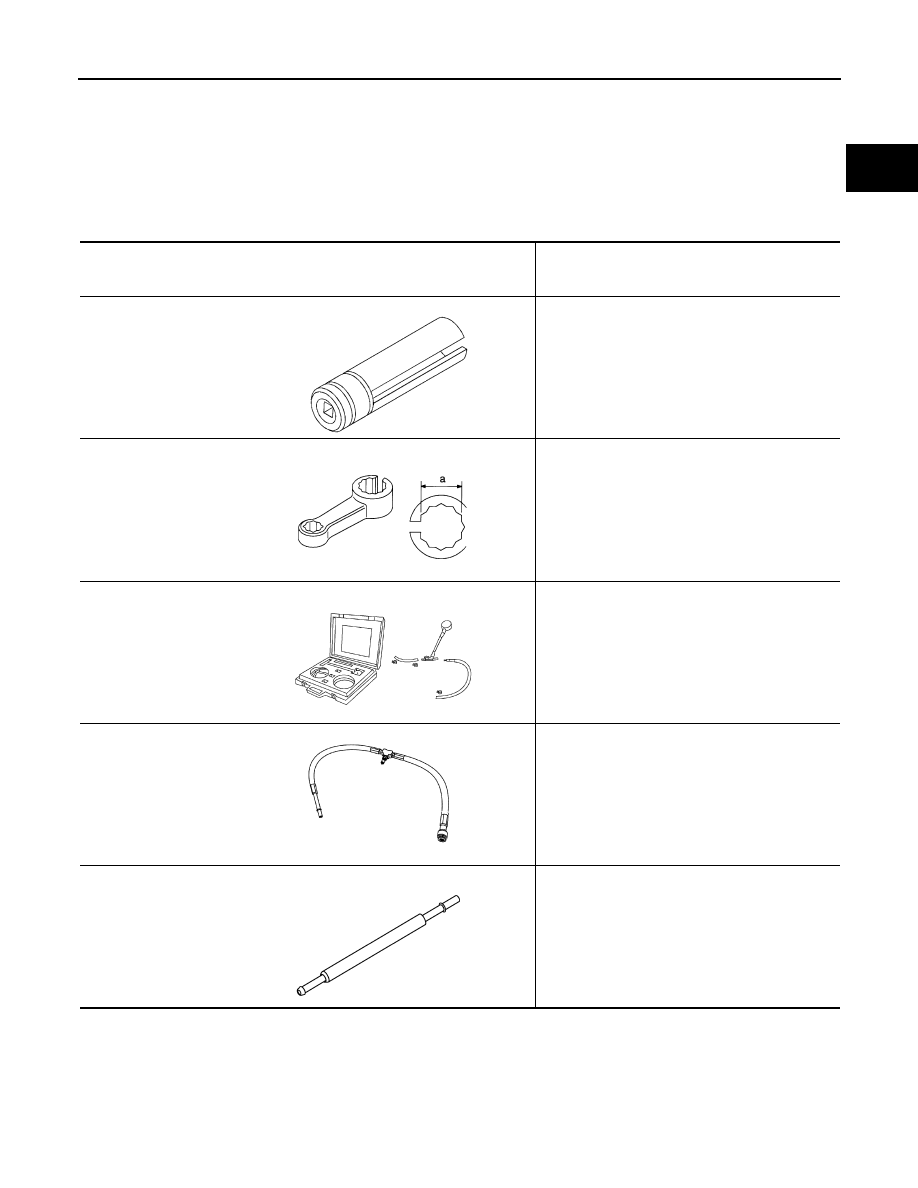

Special Service Tools

INFOID:0000000012198145

NOTE:

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number
(TechMate No.)
Tool name

Description

KV10117100
Heated oxygen sensor
wrench

Loosening or tightening heated oxygen sensor 2
(AWD) and air fuel ratio sensor 1
For 22 mm (0.87 in) width hexagon nut

KV10114400
Heated oxygen sensor
wrench

Loosening or tightening heated oxygen sensor 2
(2WD models)
a: For 22 mm (0.87 in) width hexagon nut

(J-44321)
Fuel pressure gauge
kit

Checks fuel pressure

(J-44321-6)
Fuel pressure adapter

Connects fuel pressure gauge to quick connector
type fuel lines.

KV10120000
Fuel tube adapter

Measuring fuel pressure

S-NT379

S-NT636

LEC642

LBIA0376E

JSBIA0410ZZ

EC-598

< PREPARATION >

[MR EXCEPT FOR NISMO RS MODELS]

PREPARATION

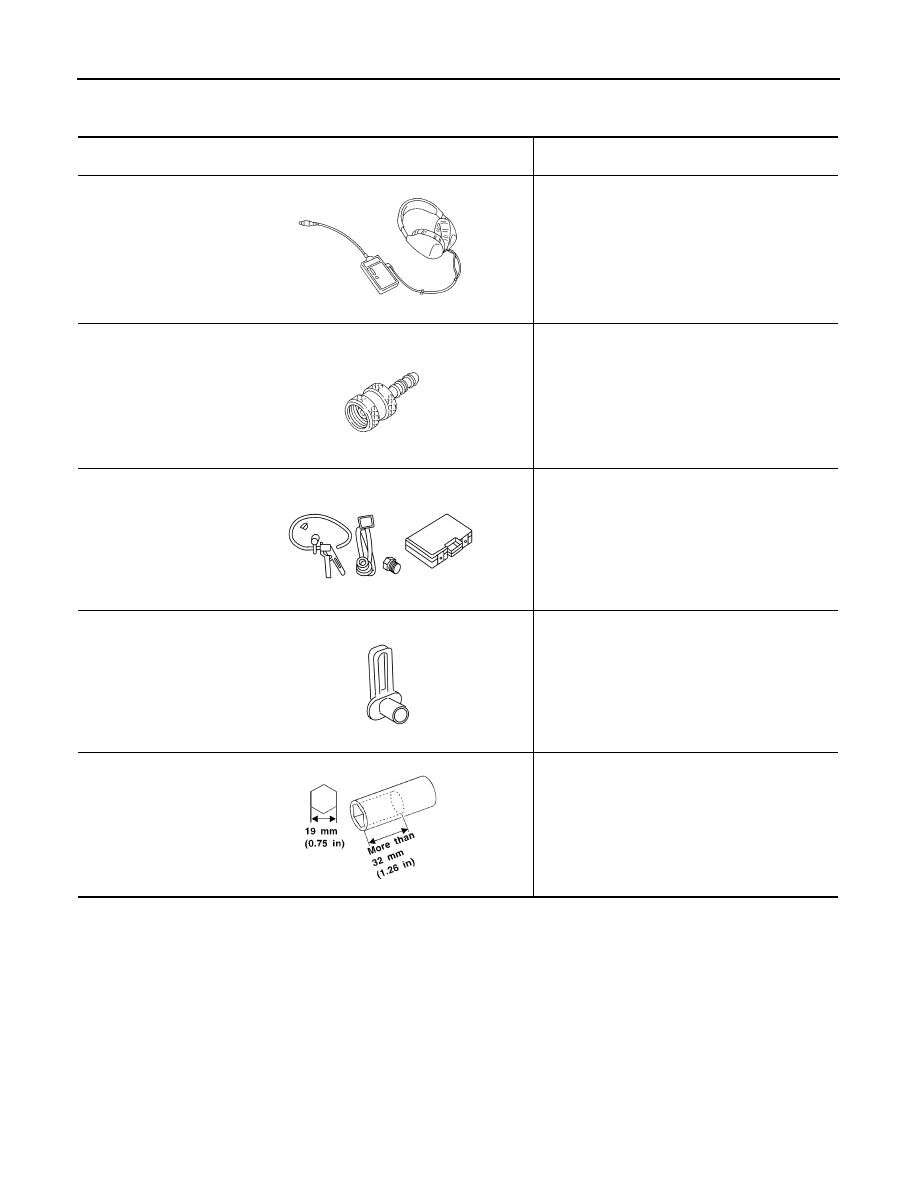

Commercial Service Tools

INFOID:0000000012198146

Tool name
(TechMate No.)

Description

Leak detector
i.e.: (J-41416)

Locates the EVAP leak

EVAP service port
adapter
i.e.: (J-41413-OBD)

Applies positive pressure through EVAP service
port

Fuel filler cap adapter
i.e.: (J-42909)

Checks fuel tank vacuum relief valve opening
pressure

Quick connector re-
lease

Removing fuel tube quick connectors in engine
room
(Available in SEC. 164 of PARTS CATALOG: Par
No. 16441 6N210)

Socket wrench

Removing and installing engine coolant tempera-
ture sensor

S-NT703

S-NT704

ALBIA1353ZZ

PBIC0198E

S-NT705

PREPARATION

EC-599

< PREPARATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

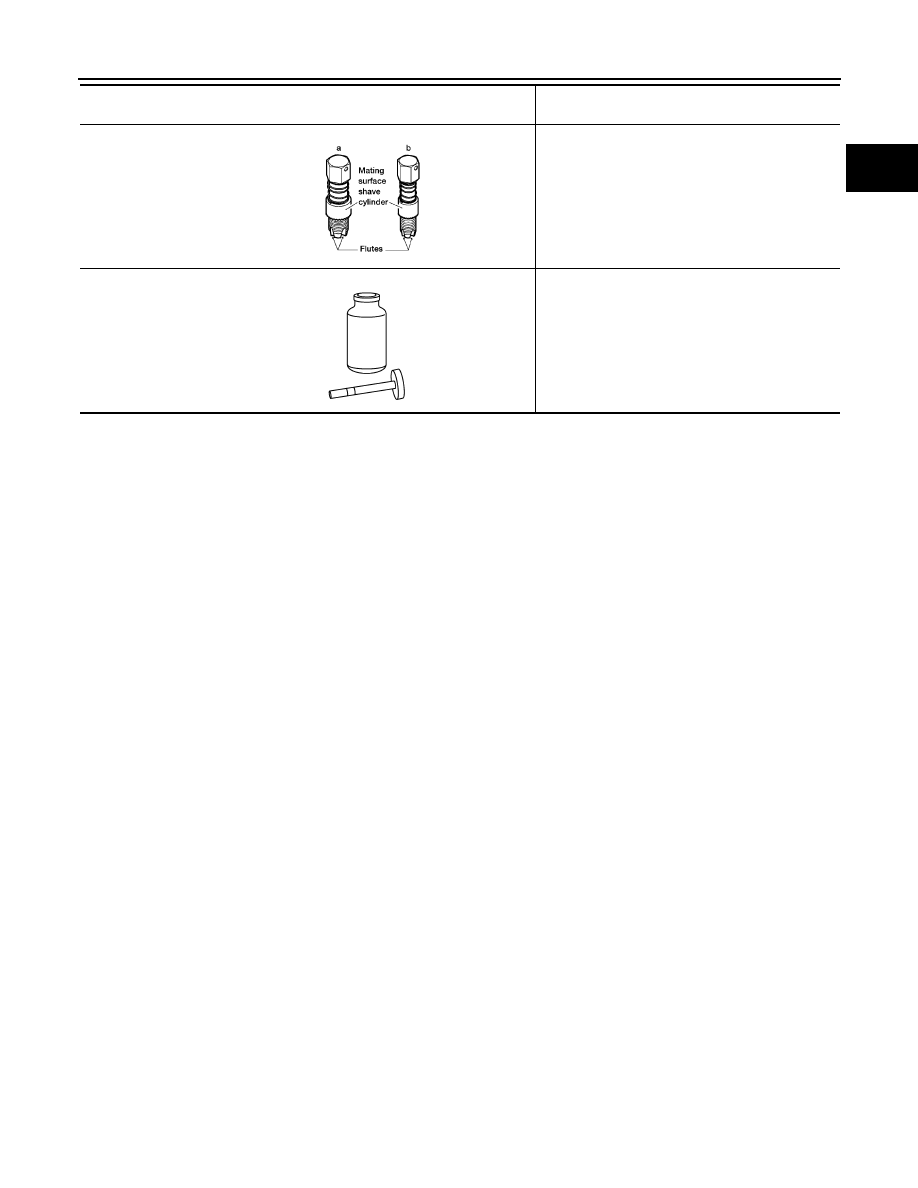

Oxygen sensor thread
cleaner

Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant
i.e.: (Permatex

TM



133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name
(TechMate No.)

Description

AEM488

S-NT779

EC-600

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

ENGINE CONTROL SYSTEM

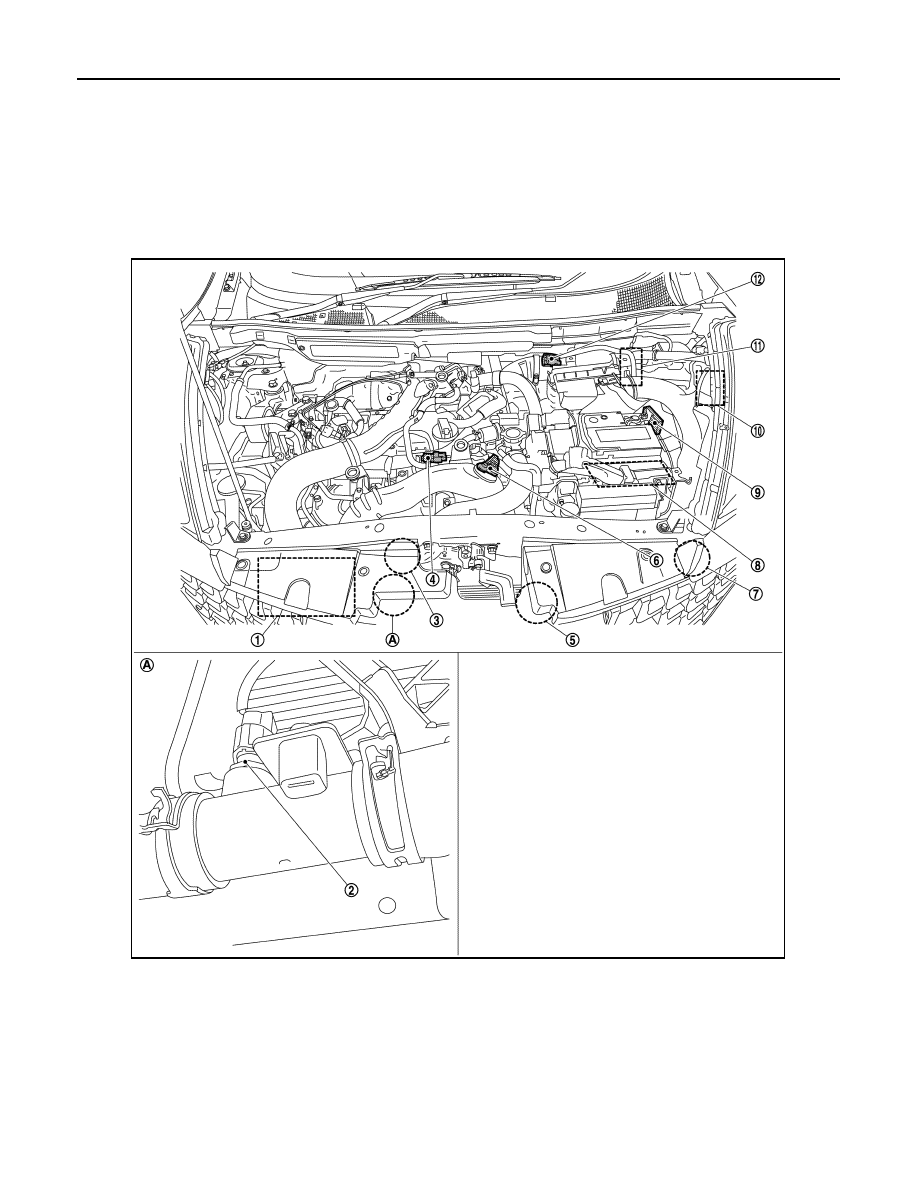

ENGINE CONTROL SYSTEM : Component Parts Location

INFOID:0000000012198147

ENGINE ROOM COMPARTMENT

ENGINE COMPARTMENT

1.

Inter cooler

2.

Engine coolant temperature sensor 2 3.

Cooling fan control module

4.

EVAP canister purge volume control
solenoid valve

5.

Cooling fan motor

6.

Turbocharger boost sensor

7.

Refrigerant pressure sensor

8.

ECM

9.

Battery current sensor

10. IPDM E/R

11.

TCM

12.

Mass air flow sensor

JSBIA6007ZZ
