POSITIVE CRANKCASE VENTILATION

EC-589

< PERIODIC MAINTENANCE >

[MR FOR NISMO RS MODELS]

POSITIVE CRANKCASE VENTILATION

Inspection

INFOID:0000000012198133

CHECK PCV VALVE

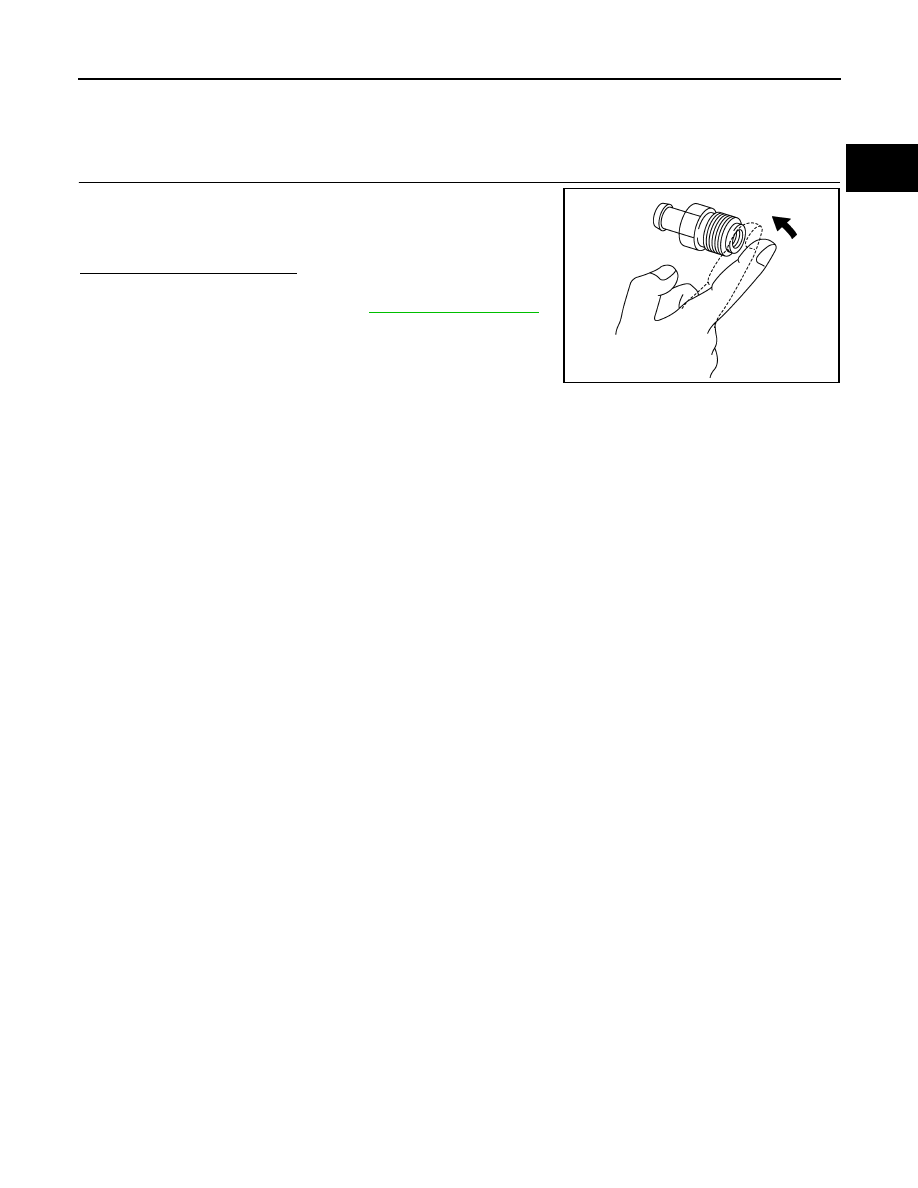

With engine running at idle, remove PCV valve from rocker cover. A

properly working valve makes a hissing noise as air passes through

it. A strong vacuum should be felt immediately when a finger is

placed over valve inlet.
Is the inspection result normal?

YES

>> INSPECTION END

>> Replace PCV valve. Refer to

EM-60, "Exploded View"

PBIB1589E

EC-590

< REMOVAL AND INSTALLATION >

[MR FOR NISMO RS MODELS]

ECM

REMOVAL AND INSTALLATION

ECM

Removal and Installation

INFOID:0000000012198134

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

EC-157, "Description"

REMOVAL

1. Remove fusible link bracket. Keep a service area.
2. Disconnect ECM harness connectors. Refer to

PG-6, "Harness Connector"

3. Remove ECM mounting nuts, and then remove ECM.

INSTALLATION

Install in the reverse order of removal.

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-591

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR FOR NISMO RS MODELS]

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000012198135

*: Under the following conditions
• A/C switch: OFF
• Electric load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000012198136

*: Under the following conditions
• A/C switch: OFF
• Electric load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000012198137

Mass Air Flow Sensor

INFOID:0000000012198138

*: Engine is warmed up to normal operating temperature and running under no load.

Transmission

Condition

Specification

CVT

No load* (in P or N position)

650

± 50 rpm

M/T

No load* (in Neutral position)

600

± 50 rpm

Transmission

Condition

Specification

CVT

No load* (in P or N position)

± 2° BTDC

M/T

No load* (in Neutral position)

± 2° BTDC

Condition

Specification (Using CONSULT or GST)

At idle

5 – 35 %

At 2,500 rpm

5 – 35 %

Supply voltage

Battery voltage (11 – 14 V)

Output voltage at idle

0.9 – 1.2V*

Mass air flow (Using CONSULT or GST)

1.0 – 4.0 g/s at idle*

2.0 – 10.0 g/s at 2,500 rpm*

EC-592

< PRECAUTION >

[MR EXCEPT FOR NISMO RS MODELS]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012198139

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012198140

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precautions For Xenon Headlamp Service

INFOID:0000000012198141

WARNING:

Comply with the following warnings to prevent any serious accident.

• Disconnect the battery cable (negative terminal) or the power supply fuse before installing, remov-

ing, or touching the xenon headlamp (bulb included). The xenon headlamp contains high-voltage

generated parts.

• Never work with wet hands.

• Check the xenon headlamp ON-OFF status after assembling it to the vehicle. Never turn the xenon

headlamp ON in other conditions. Connect the power supply to the vehicle-side connector.
