>> Replace malfunctioning ignition coil with power transistor. Refer to

EM-60, "Exploded View"

.

2.

CHECK IGNITION COIL WITH POWER TRANSISTOR-II

CAUTION:

Do the following procedure in the place where ventilation is good without the combustible.

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Remove fuel pump fuse in IPDM E/R to release fuel pressure.

NOTE:

Do not use CONSULT to release fuel pressure, or fuel pressure applies again during the following proce-

dure.

4. Start engine.

5. After engine stalls, crank it two or three times to release all fuel pressure.

6. Turn ignition switch OFF.

7. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils. Refer

to

EM-60, "Exploded View"

.

8. Remove ignition coil and spark plug of the cylinder to be checked. Refer to .0

EM-60, "Exploded View"

9. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.

10. Connect spark plug and harness connector to ignition coil.

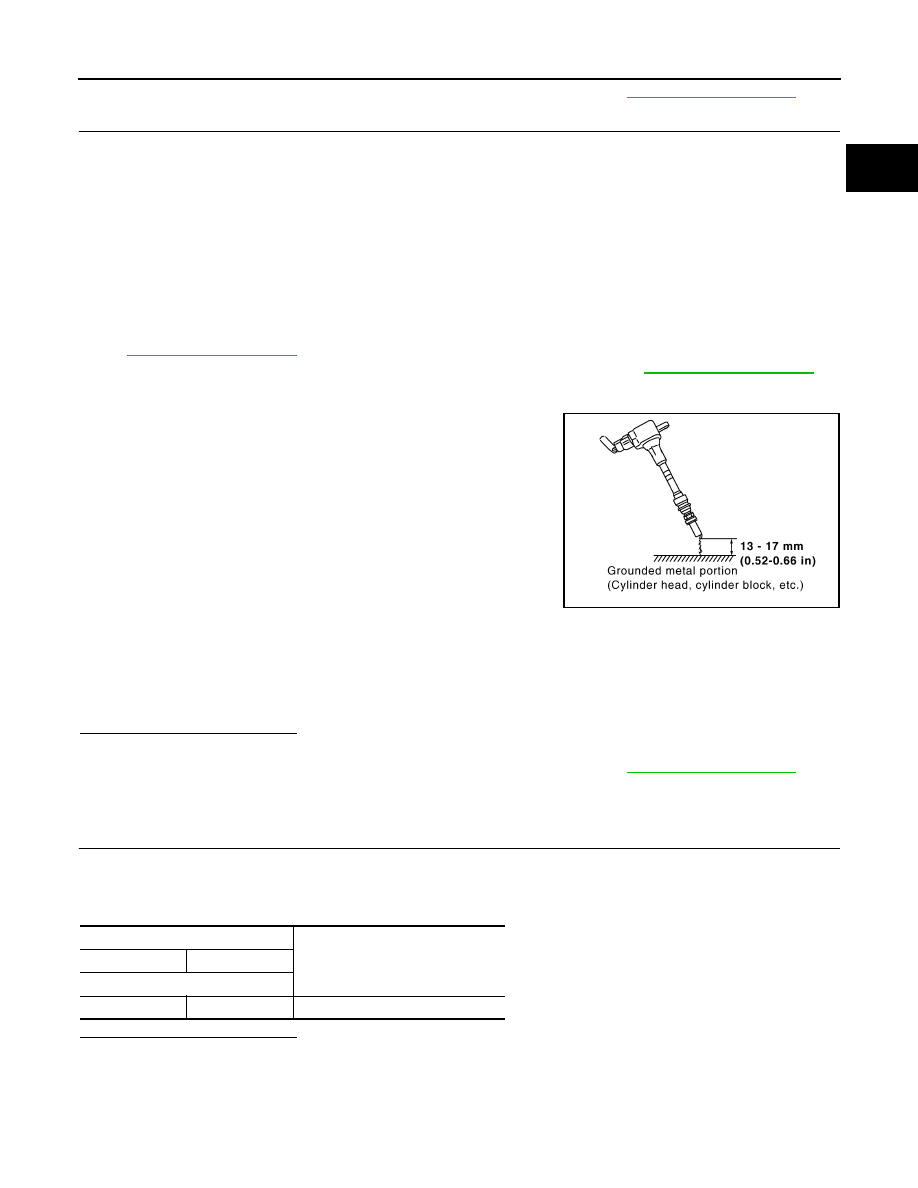

11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -

0.66 in) between the edge of the spark plug and grounded metal

portion as shown in the figure.

12. Crank engine for about three seconds, and check whether spark

is generated between the spark plug and the grounded metal

portion.

CAUTION:

• During the operation, always stay 0.5 cm (19.7 in) away

from the spark plug and the ignition coil. Be careful not to

get an electrical shock while checking, because the elec-

trical discharge voltage becomes 20 kV or more.

• It might cause to damage the ignition coil if the gap of more than 17 mm (0.66 in) is taken.

NOTE:

When the gap is less than 13 mm (0.52 in), the spark might be generated even if the coil is mal-

functioning.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning ignition coil with power transistor. Refer to

EM-60, "Exploded View"

.

Component Inspection (Condenser)

INFOID:0000000012198101

1.

CHECK CONDENSER

1. Turn ignition switch OFF.

2. Disconnect condenser harness connector.

3. Check resistance between condenser terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace Condenser.

Spark should be generated.

JMBIA0066GB

Condenser

Resistance

+

−

Terminal

1

2

Above 1 M

Ω [at 25°C (77°F)]

EC-558

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

ELECTRICAL LOAD SIGNAL

ELECTRICAL LOAD SIGNAL

Description

INFOID:0000000012198102

The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred via

the CAN communication line.

Component Function Check

INFOID:0000000012198103

1.

CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION

With CONSULT

1. Turn ignition switch ON.

2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

3. Select “LOAD SIGNAL” and check indication as per the following conditions.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Proceed to

EC-558, "Diagnosis Procedure"

.

2.

CHECK LIGHTING SWITCH FUNCTION

With CONSULT-III

Check “LOAD SIGNAL” indication as per the following conditions.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Proceed to

EC-558, "Diagnosis Procedure"

.

3.

CHECK HEATER FAN CONTROL SWITCH FUNCTION

With CONSULT

Select “HEATER FAN SW” and check indication as per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-558, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198104

1.

INSPECTION START

Confirm the malfunctioning circuit (rear window defogger, headlamp or heater fan). Refer to

EC-558, "Compo-

nent Function Check"

.

Which circuit is related to the incident?

Rear window defogger>>GO TO 2.

Headlamp>>GO TO 3.

Heater fan>>GO TO 4.

Monitor item

Condition

Indication

LOAD SIGNAL

Rear window defogger switch

ON

ON

OFF

OFF

Monitor item

Condition

Indication

LOAD SIGNAL

Lighting switch

ON at 2nd posi-
tion

ON

OFF

OFF

Monitor item

Condition

Indication

HEATER FAN
SW

Heater fan control switch

ON

ON

OFF

OFF

ELECTRICAL LOAD SIGNAL

EC-559

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

CHECK REAR WINDOW DEFOGGER SYSTEM

Check the rear window defogger system. Refer to

DEF-18, "Work Flow"

.

>> INSPECTION END

3.

CHECK HEADLAMP SYSTEM

Check the headlamp system. Refer to

EXL-47, "Work Flow"

.

>> INSPECTION END

4.

CHECK HEATER FAN CONTROL SYSTEM

Check the heater fan control system. Refer to

HAC-45, "Work Flow"

.

>> INSPECTION END

EC-560

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

COOLING FAN

COOLING FAN

Component Function Check

INFOID:0000000012198105

1.

CHECK COOLING FAN FUNCTION

With CONSULT

1. Turn ignition switch ON.

2. Perform “FAN DUTY CONTROL” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

3. Check that cooling fan speed varies according to the percentage.

Without CONSULT

1. Activate IPDM E/R auto active test and check cooling fan motors operation. Refer to

PCS-12, "Diagnosis

Description"

.

2. Check that cooling fan operates.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-560, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198106

1.

CHECK COOLING FAN CONTROL MODULE POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect cooling fan control nodule harness connector.

3. Turn ignition switch ON.

4. Check the voltage between cooling fan control nodule harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK COOLING FAN CONTROL MODULE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect cooling fan relay harness connector.

3. Check the continuity between cooling fan control nodule harness connector and cooling fan relay harness

connector.

4. Also check harness for short to ground.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK COOLING FAN RELAY POWER SUPPLY CIRCUIT

1. Disconnect IPDM E/R harness connector.

2. Check the continuity between cooling fan relay harness connector and IPDM E/R harness connector.

+

−

Voltage

Cooling fan control module

Connector

Terminal

E203

3

Ground

Battery voltage

+

−

Continuity

Cooling fan control module

Cooling fan relay

Connector

Terminal

Connector

Terminal

E203

3

E204

3

Existed
