P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-361

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

7. Touch “SELF-DIAG RESULT”.
Which is displayed on CONSULT?

OK

>> INSPECTION END

NG

>> Proceed to

EC-361, "Diagnosis Procedure"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE A

With GST

1. Turn ignition switch ON.

2. Check the voltage between ECM harness connector and ground.

3. Start the engine and wait at least 60 seconds.

4. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-361, "Diagnosis Procedure"

.

NO

>> GO TO 5.

5.

PERFORM DTC CONFIRMATION PROCEDURE

With GST

1. Start the engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Start the engine and let it idle for at least 20 seconds.

4. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-361, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012197899

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect EVAP canister purge volume control solenoid valve harness connector.

3. Turn ignition switch ON.

4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and

IPDM E/R harness connector.

+

−

Voltage

ECM

Connector

Terminal

F25

15

Ground

3.1 - 4.0 V

+

−

Voltage

EVAP canister purge volume

control solenoid valve

Connector

Terminal

F106

2

Ground

Battery voltage

EC-362

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

4. Also check harness for short to ground.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

3.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and

ECM harness connector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1. Disconnect EVAP control system pressure sensor harness connector.

2. Check connectors for water.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-27, "2WD : Exploded View"

(2WD),

FL-30, "AWD : Exploded View"

(AWD).

5.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Check the EVAP control system pressure sensor. Refer to

EC-363, "Component Inspection"

.

Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 6.

YES-2 >> Without CONSULT: GO TO 7.

NO

>> Replace EVAP control system pressure sensor. Refrt to

FL-27, "2WD : Exploded View"

(2WD),

FL-

30, "AWD : Exploded View"

(AWD).

6.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT

1. Turn ignition switch OFF.

2. Reconnect harness connectors disconnected.

3. Start the engine.

4. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT. Check that

engine speed varies according to the valve opening.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 7.

+

−

Continuity

EVAP canister purge volume

control solenoid valve

IPDM E/R

Connector

Terminal

Connector

Terminal

F106

2

E14

35

Existed

+

−

Continuity

EVAP canister purge volume

control solenoid valve

ECM

Connector

Terminal

Connector

Terminal

F106

1

F26

95

Existed

Water should not exist.

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-363

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

7.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Check the EVAP canister purge volume control solenoid valve. Refer to

EC-363, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace EVAP canister purge volume control solenoid valve. Refer to

EM-29, "Exploded View"

.

8.

CHECK RUBBER TUBE FOR CLOGGING

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Clean the rubber tube using an air blower.

9.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check the EVAP canister vent control valve. Refer to

EC-370, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace EVAP canister vent control valve. Refer to

FL-27, "2WD : Exploded View"

(2WD),

FL-30,

"AWD : Exploded View"

(AWD).

10.

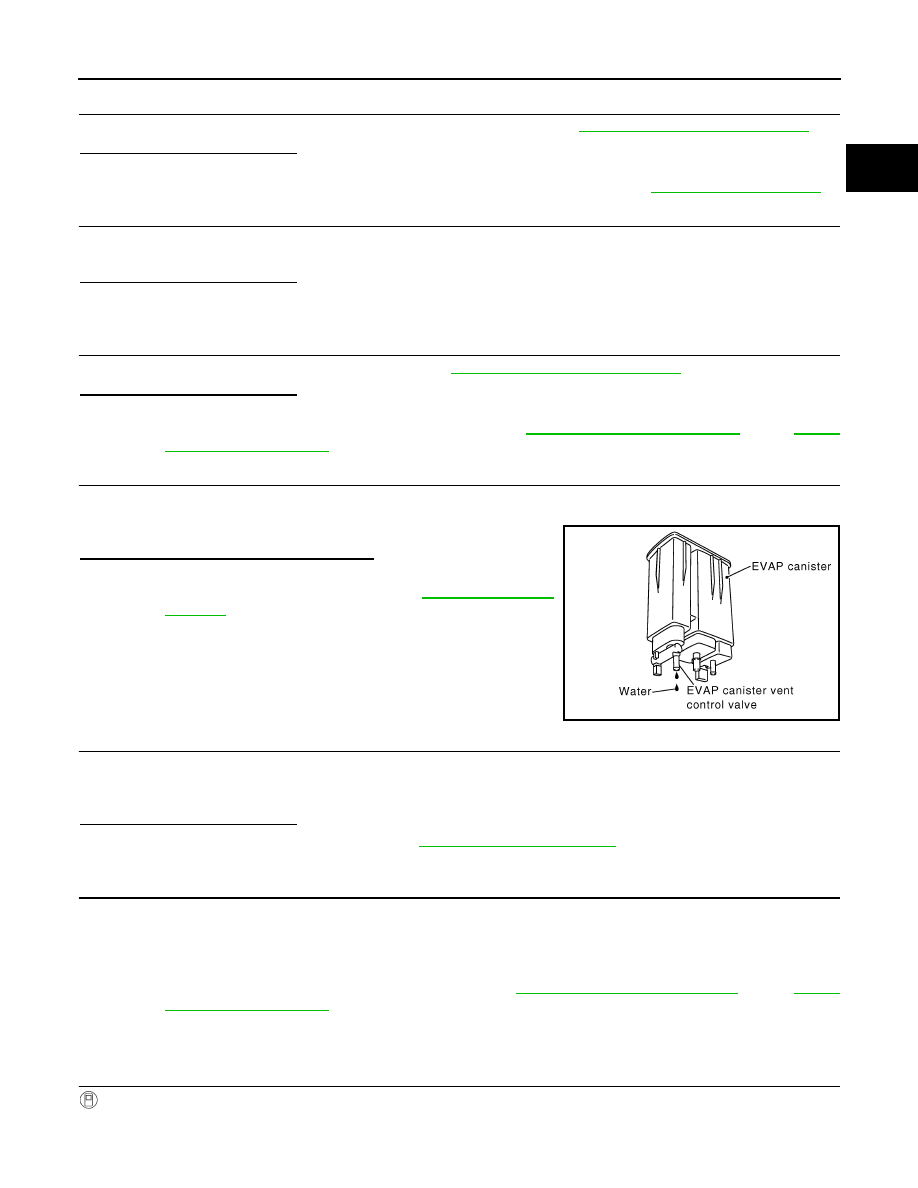

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached.

2. Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?

YES

>> GO TO 11.

NO

>> Check intermittent incident. Refer to

GI-45, "Intermittent

Incident"

.

11.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 1.9 kg (4.2 lb).
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> GO TO 12.

12.

DETECT MALFUNCTIONING PART

Check the following.

• EVAP canister for damage

• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister. Refer to

FL-27, "2WD : Exploded View"

(2WD),

FL-30,

"AWD : Exploded View"

(AWD).

Component Inspection

INFOID:0000000012197900

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

PBIB1213E

EC-364

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

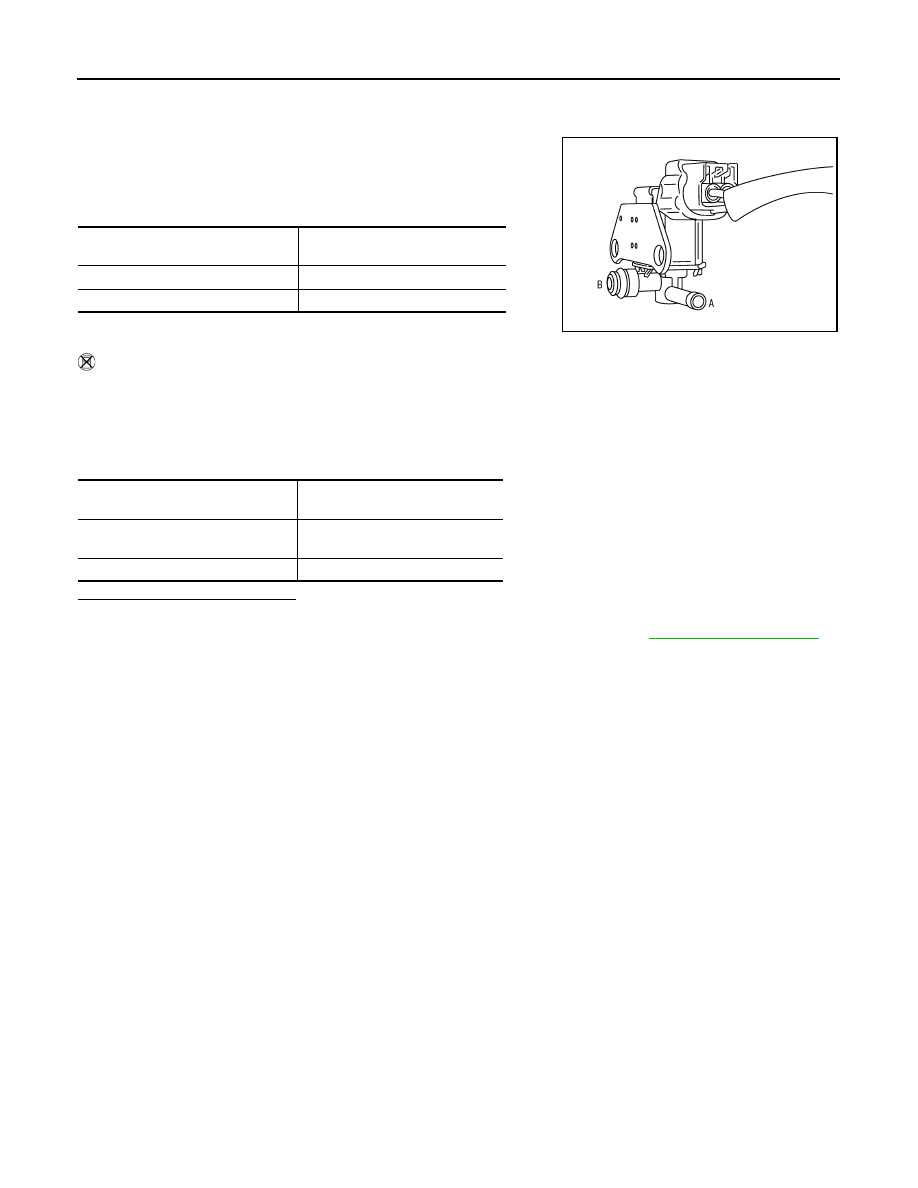

3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4. Start the engine.

5. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

6. Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG

VOL C/V” opening and check air passage continuity of EVAP

canister purge volume control solenoid valve as per the follow-

ing conditions.

Without CONSULT

1. Turn ignition switch OFF.

2. Disconnect EVAP canister purge volume control solenoid valve harness connector.

3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4. Check air passage continuity of EVAP canister purge volume control solenoid valve as per the following

conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace EVAP canister purge volume control solenoid valve. Refer to

EM-29, "Exploded View"

.

Condition

(PURG VOL C/V value)

Air passage continuity

between (A) and (B)

100%

Existed

0%

Not existed

PBIA9668J

Condition

Air passage continuity

between (A) and (B)

12 V direct current supply between
terminals 1 and 2

Existed

No supply

Not existed
