P0441 EVAP CONTROL SYSTEM

EC-357

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4. Start engine and wait at least 70 seconds.

5. Set voltmeter probes to ECM harness connector terminals as per the following.

6. Check EVAP control system pressure sensor value at idle speed and note it.

7. Establish and maintain the following conditions for at least 1 minute.

8. Verify that EVAP control system pressure sensor value stays 0.1 V less than the value at idle speed (mea-

sured at step 6) for at least 1 second.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-357, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012197897

1.

CHECK EVAP CANISTER

1. Turn ignition switch OFF.

2. Check EVAP canister for cracks.
Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 2.

YES-2 >> Without CONSULT: GO TO 3.

NO

>> Replace EVAP canister. Refer to

FL-27, "2WD : Removal and Installation"

(2WD),

FL-30, "AWD :

Removal and Installation"

(AWD).

2.

CHECK PURGE FLOW

WITH CONSULT

1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP ser-

vice port.

2. Start engine and let it idle.

3. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

4. Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG VOL CONT/V” opening and check vacuum

existence.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 4.

3.

CHECK PURGE FLOW

WITHOUT CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Stop engine.

ECM

Connector

+

–

Terminal

F25

15

12

Air conditioner switch

ON

Headlamp switch

ON

Rear window defogger switch

ON

Engine speed

Approx. 3,000 rpm

Gear position

Any position other than P, N or R

PURG VOL CONT/V

Vacuum

100%

Existed

0%

Not existed

EC-358

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0441 EVAP CONTROL SYSTEM

3. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP ser-

vice port and install vacuum gauge. For the location of EVAP service port, refer to

EC-66, "EVAPORATIVE

EMISSION SYSTEM : System Description"

.

4. Start engine and let it idle.

Never depress accelerator pedal even slightly.

5. Check vacuum gauge indication before 60 seconds pass after starting engine.

6. Rev engine up to 2,000 rpm after 100 seconds pass after starting engine.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 4.

4.

CHECK EVAP PURGE LINE

1. Turn ignition switch OFF.

2. Check EVAP purge line for improper connection or disconnection.

Refer to

EC-586, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair EVAP purge line.

5.

CHECK EVAP PURGE HOSE AND PURGE PORT

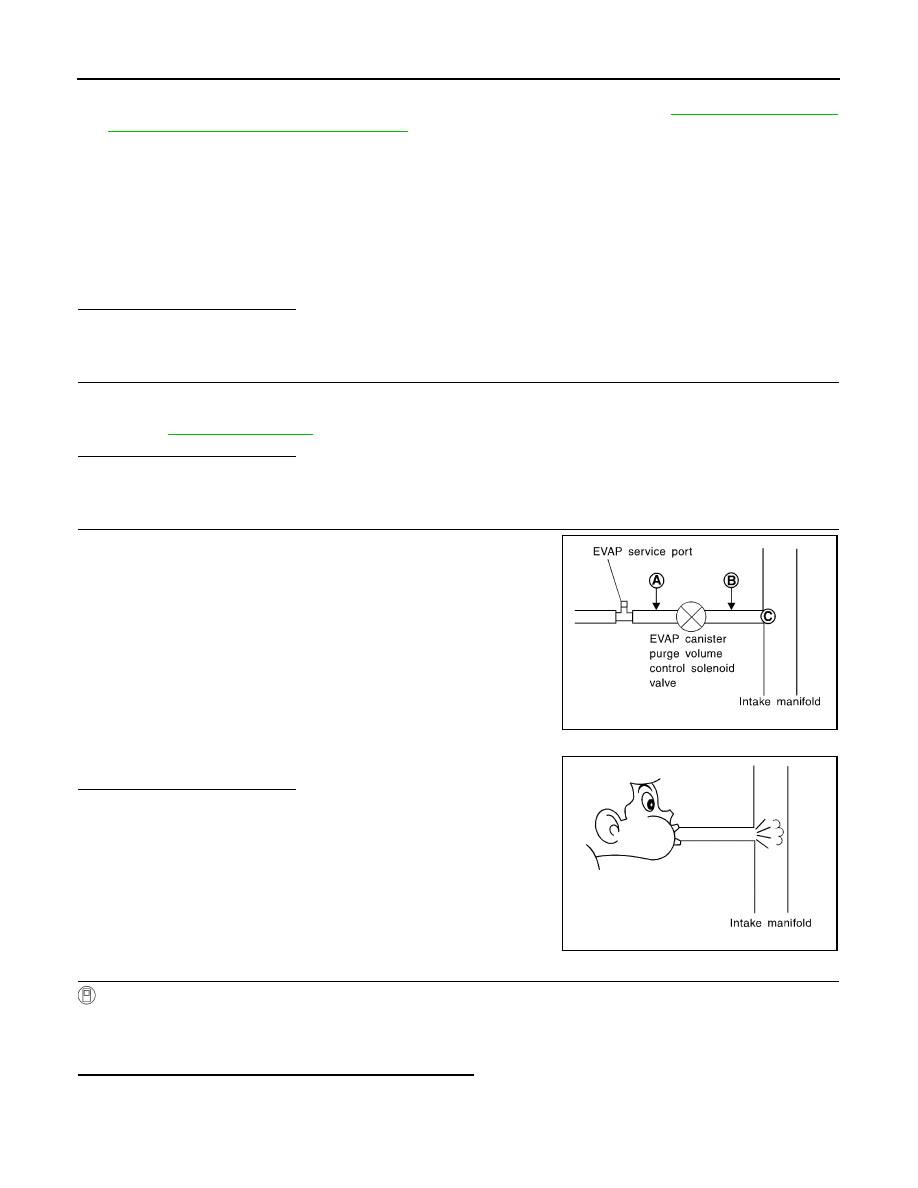

1. Disconnect purge hoses connected to EVAP service port (A)

and EVAP canister purge volume control solenoid valve (B).

2. Blow air into each hose and EVAP purge port (C).

3. Check that air flows freely.
Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 6.

YES-2 >> Without CONSULT: GO TO 7.

NO

>> Repair or clean hoses and/or purge port.

6.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

WITH CONSULT

1. Start engine.

2. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT. Check that

engine speed varies according to the valve opening.

Does engine speed vary according to the valve opening?

YES

>> GO TO 8.

NO

>> GO TO 7.

Vacuum should not exist.

Vacuum should exist.

SEF367U

SEF368U

P0441 EVAP CONTROL SYSTEM

EC-359

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

7.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Check the EVAP canister purge volume control solenoid valve. Refer to

EC-363, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace EVAP canister purge volume control solenoid valve. Refer to

FL-27, "2WD : Exploded

View"

.

8.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1. Disconnect EVAP control system pressure sensor harness connector.

2. Check that water is not inside connectors.
Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-27, "2WD : Exploded View"

(2WD),

FL-30, "AWD : Exploded View"

(AWD).

9.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR FUNCTION

Refer to

EC-380, "DTC Logic"

 for DTC P0452,

EC-383, "DTC Logic"

 for DTC P0453.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-27, "2WD : Exploded View"

(2WD),

FL-30, "AWD : Exploded View"

(AWD).

10.

CHECK RUBBER TUBE FOR CLOGGING

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Clean the rubber tube using an air blower.

11.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check the EVAP canister vent control valve. Refer to

EC-370, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Replace EVAP canister vent control valve. Refer to

FL-27, "2WD : Exploded View"

(2WD),

FL-30,

"AWD : Exploded View"

(AWD).

12.

CHECK EVAP PURGE LINE

Inspect EVAP purge line (pipe and rubber tube). Check for evidence of leaks.

Refer to

EC-587, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Repair or replace malfunctioning part.

13.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 14.

14.

CHECK INTERMITTENT INCIDENT

Perform

GI-45, "Intermittent Incident"

.

>> INSPECTION END

EC-360

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

DTC Logic

INFOID:0000000012197898

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

• Perform DTC CONFIRMATION PROCEDURE when the fuel is between 1/4 and 3/4 full, and vehicle is

placed on flat level surface.

• Always perform test at a temperature of 5 to 60

°C (41 to 140°F).

• Cool the vehicle so that engine coolant temperature becomes same level as ambient temperature.
Do you have CONSULT

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

PERFORM DTC CONFIRMATION PROCEDURE A

With CONSULT

1. Turn ignition switch ON.

2. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

3. Check that the following condition are met.

FUEL T/TMP SE: 0 - 35

°C (32 - 95°F)

4. Start the engine and wait at least 60 seconds.

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-361, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE B

With CONSULT

1. Start the engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode of

“ENGINE” using CONSULT.

5. Touch “START”.

6. Start the engine and let it idle until “TESTING” on CONSULT changes to “COMPLETED”. (It will take

approximately 10 seconds.)

If “TESTING” is not displayed after 5 minutes, retry from step 2.

DTC No.

Trouble diagnosis name

(Trouble diagnosis con-

tent)

DTC detecting condition

Possible cause

P0443

PURG VOLUME CONT/
V
(EVAP canister purge
volume control solenoid
valve)

A

The canister purge flow is detected during
the vehicle is stopped while the engine is
running, even when EVAP canister purge
volume control solenoid valve is completely
closed.

• EVAP control system pressure sensor
• EVAP canister purge volume control sole-

noid valve
(The valve is stuck open.)

• EVAP canister vent control valve
• EVAP canister
• Hoses

(Hoses are connected incorrectly or
clogged.)

B

The canister purge flow is detected during
the specified driving conditions, even when
EVAP canister purge volume control sole-
noid valve is completely closed.
