FRONT DOOR LOCK

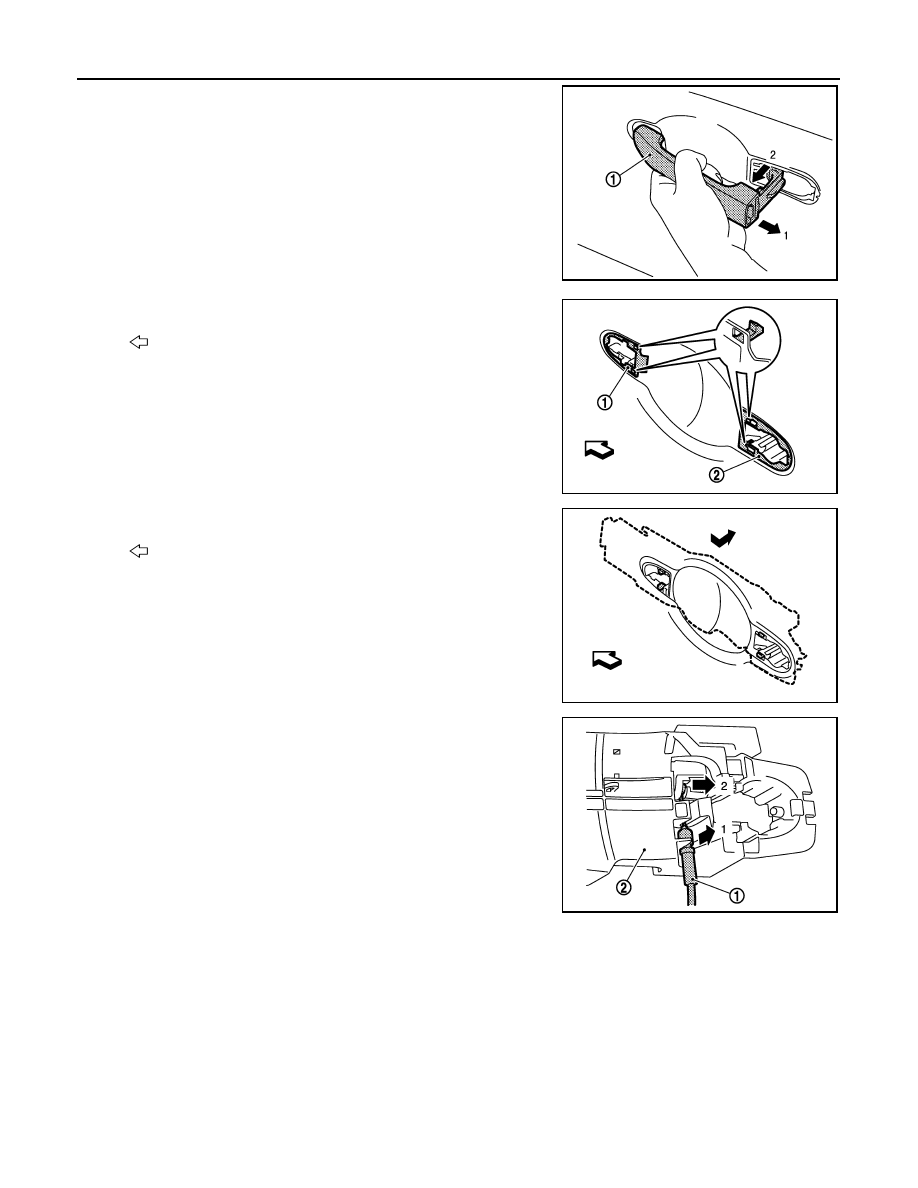

8. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

9. Remove front gasket (1) and rear gasket (2).

10. Slide outside handle bracket toward rear of vehicle to remove.

11. Disconnect outside handle cable (1) from outside handle bracket

(2).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When installing key rod, rotate key rod holder until a click is felt.

• Check that door lock cables are normally engaged with inside handle and outside handle.

• After installation, check door open/close, and lock/unlock operation.

JMKIA0524ZZ

: Vehicle front

JMKIA5889ZZ

: Vehicle front

JMKIA5890ZZ

JMKIA5891ZZ

REAR DOOR LOCK

DLK-161

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR LOCK

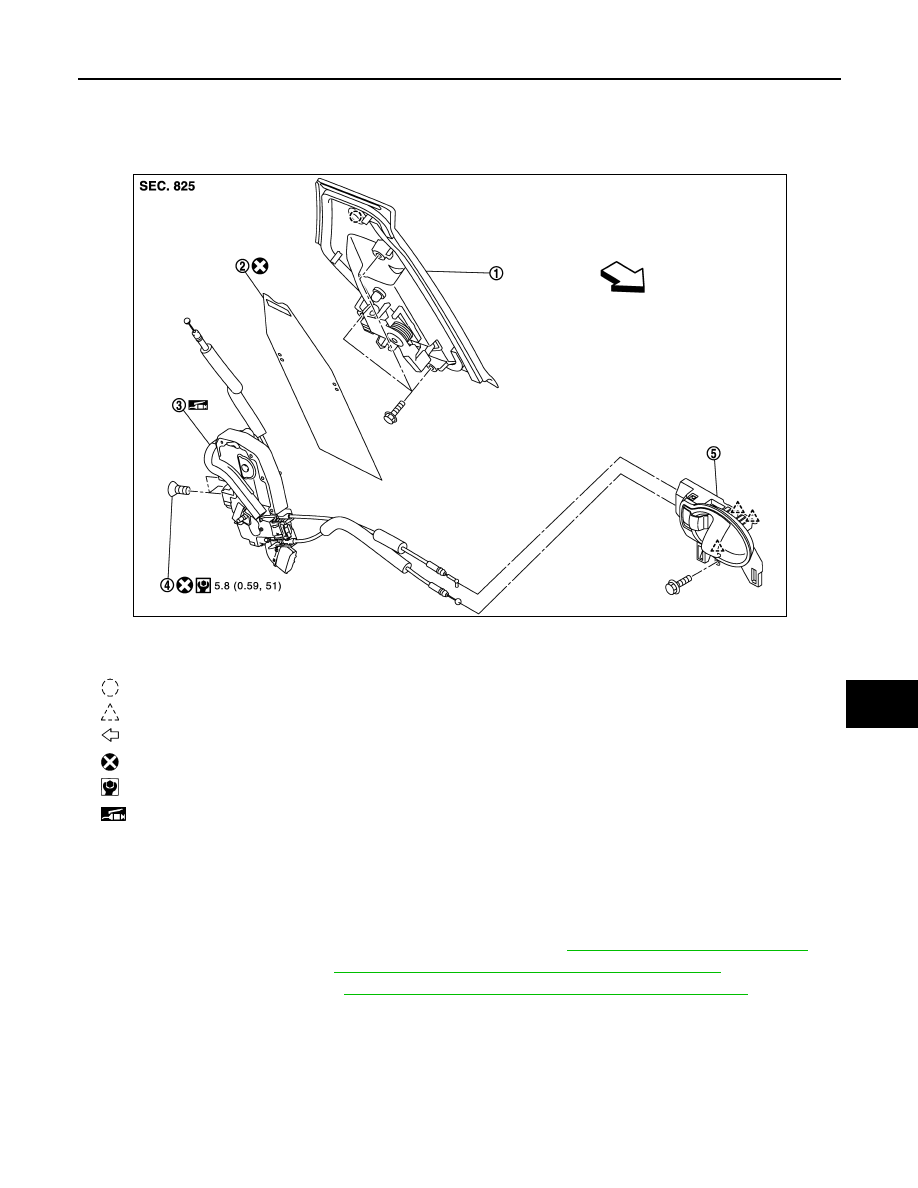

Exploded View

INFOID:0000000012196738

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000012196739

REMOVAL

1. Remove rear door glass and rear door lower sash (rear). Refer to

GW-21, "Removal and Installation"

.

2. Remove inside handle. Refer to

DLK-162, "INSIDE HANDLE : Removal and Installation"

.

3. Remove outside handle. Refer to

DLK-162, "OUTSIDE HANDLE : Removal and Installation"

.

4. Remove door lock assembly TORX bolts.
5. Disconnect door lock actuator connector, and then remove door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.

• Check door open/close, lock/unlock operation after installation.

1.

Outside handle assembly

2.

Rear door sealing screen

3.

Door lock assembly

4.

TORX bolt

5.

Inside handle

: Clip

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIA5893GB

DLK-162

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

• Check door lock assembly for poor lubrication. Apply body

grease to door lock if necessary.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000012196740

REMOVAL

1. Remove rear door finisher. Refer to

INT-16, "Removal and Installation"

.

2. Remove upper side of sealing screen.

NOTE:

Cut the butyl tape so that some parts of the butyl tape do not remain on the sealing screen, if the sealing

screen is reused.

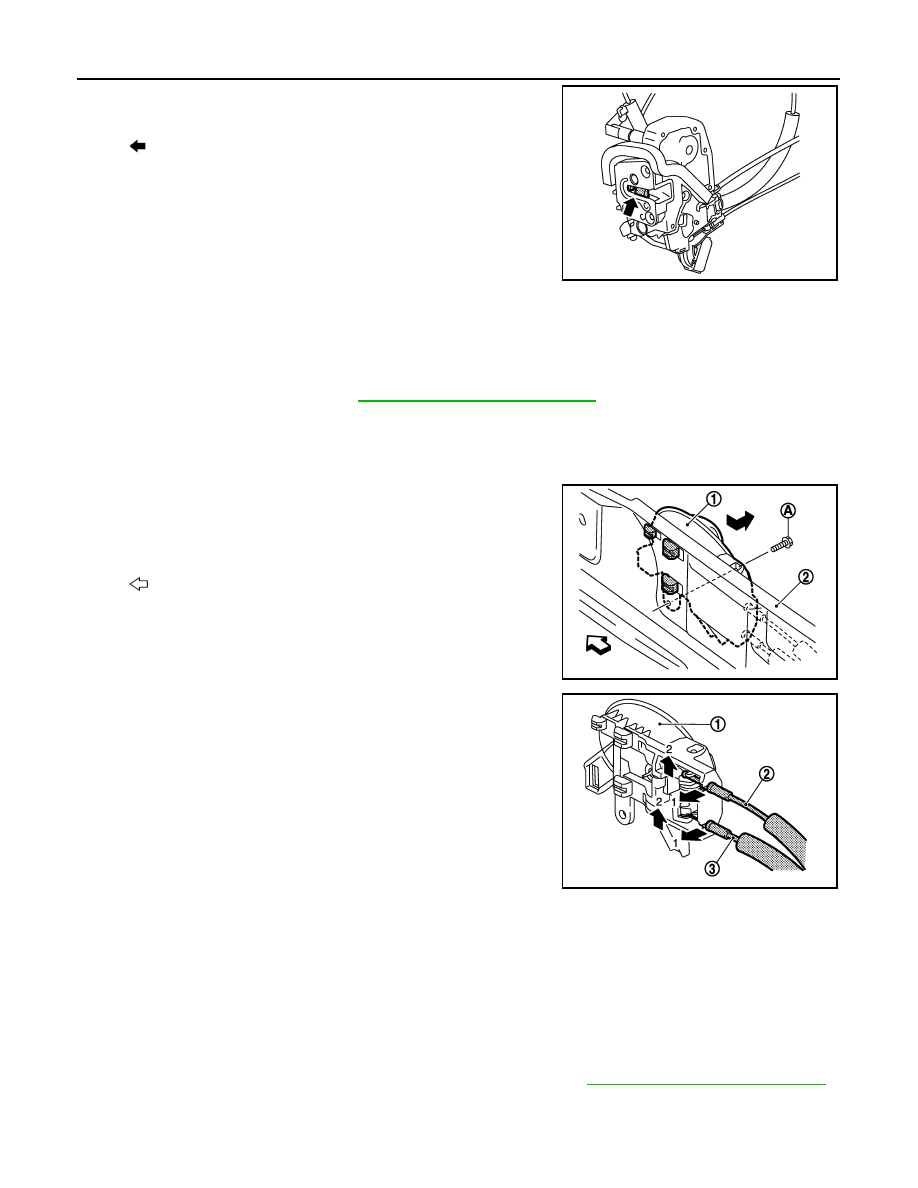

3. Remove inside handle mounting bolt (A).
4. Disengage inside handle (1) from door panel (2) while sliding

inside handle toward vehicle rear, and then separate inside han-

dle.

5. Disengage inside handle cable (3) and lock knob cable (2), and

then remove inside handle (1).

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000012196741

REMOVAL

1. Remove rear door finisher and rear door corner cover inner. Refer to

INT-16, "Removal and Installation"

.

2. Remove rear door sealing screen.

: Grease up point

JMKIA5892ZZ

: Vehicle front

JMKIA5884ZZ

JMKIA5885ZZ

REAR DOOR LOCK

DLK-163

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

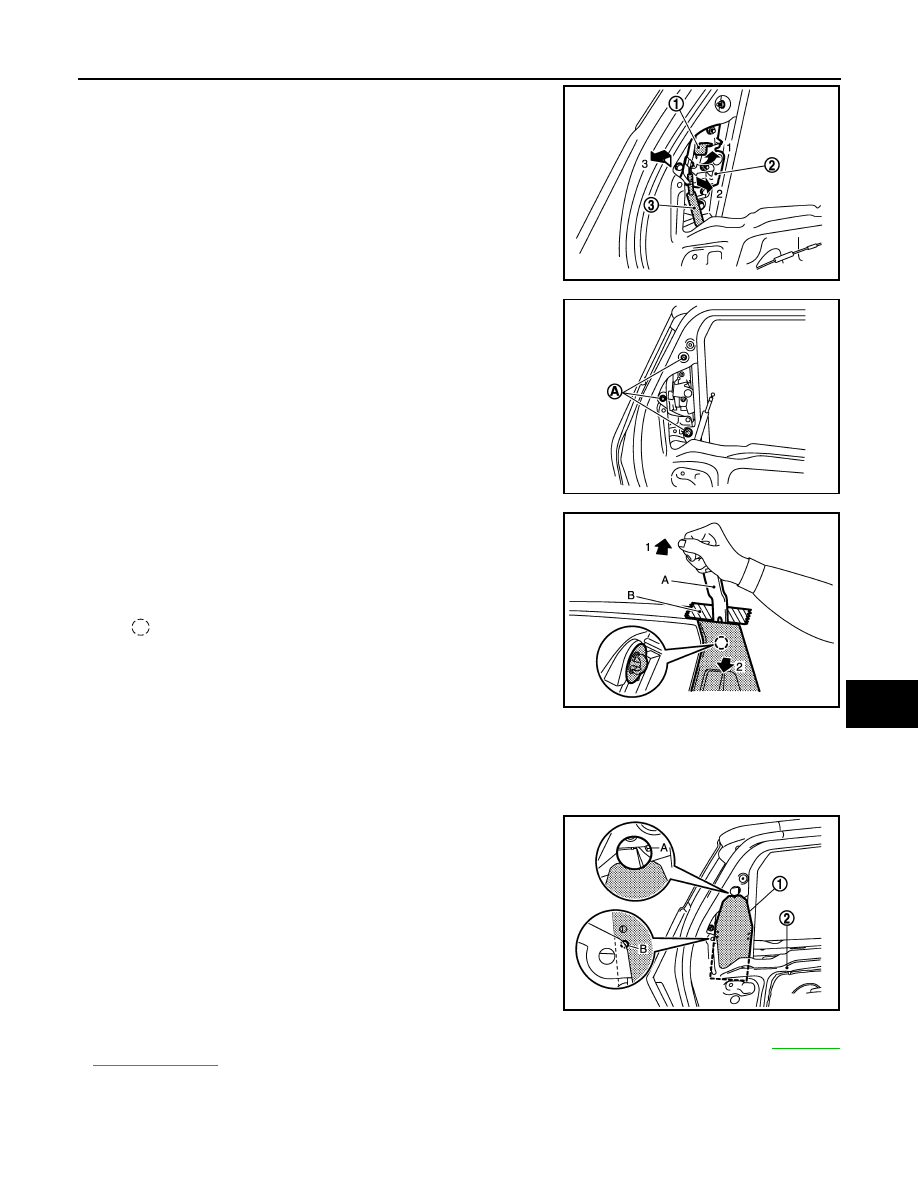

3. Rotate stopper (1) upward.
4. Disengage outside handle cable (2), and then remove outside

handle cable from outside handle assembly (3).

5. Remove outside handle assembly mounting bolts (A).

6. Disengage mounting clips using a remover tool (A), and then

remove outside handle assembly.

CAUTION:

Apply protective tape (B) on the door panel to protect the

painted surface from damage.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse rear door sealing screen. Always replace it with a new one when it is removed.

When installing rear door sealing screen, install it according to the following procedure.

- Put lower portion of rear door sealing screen (1) into inside of

door panel (2).

- Perform positioning according to the following procedure,

and then install rear door sealing screen.

• Align upper portion of rear door sealing screen to hole (A) of

door panel as shown in the figure.

• Align hole of rear door sealing screen to edge (B) of door

panel as shown in the figure.

• Be careful to position outside handle cable normally when installing it. For details, refer to

DLK-161,

"Exploded View"

.

• Check door open/close, lock/unlock operation after installation.

JMKIA5894ZZ

JMKIA5895ZZ

: Clip

JMKIA5896ZZ

JMKIA5897ZZ
