Nissan Juke F15. Manual - part 238





DLK-132

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

Installation

Install in the reverse order of removal.

FRONT FENDER

DLK-133

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

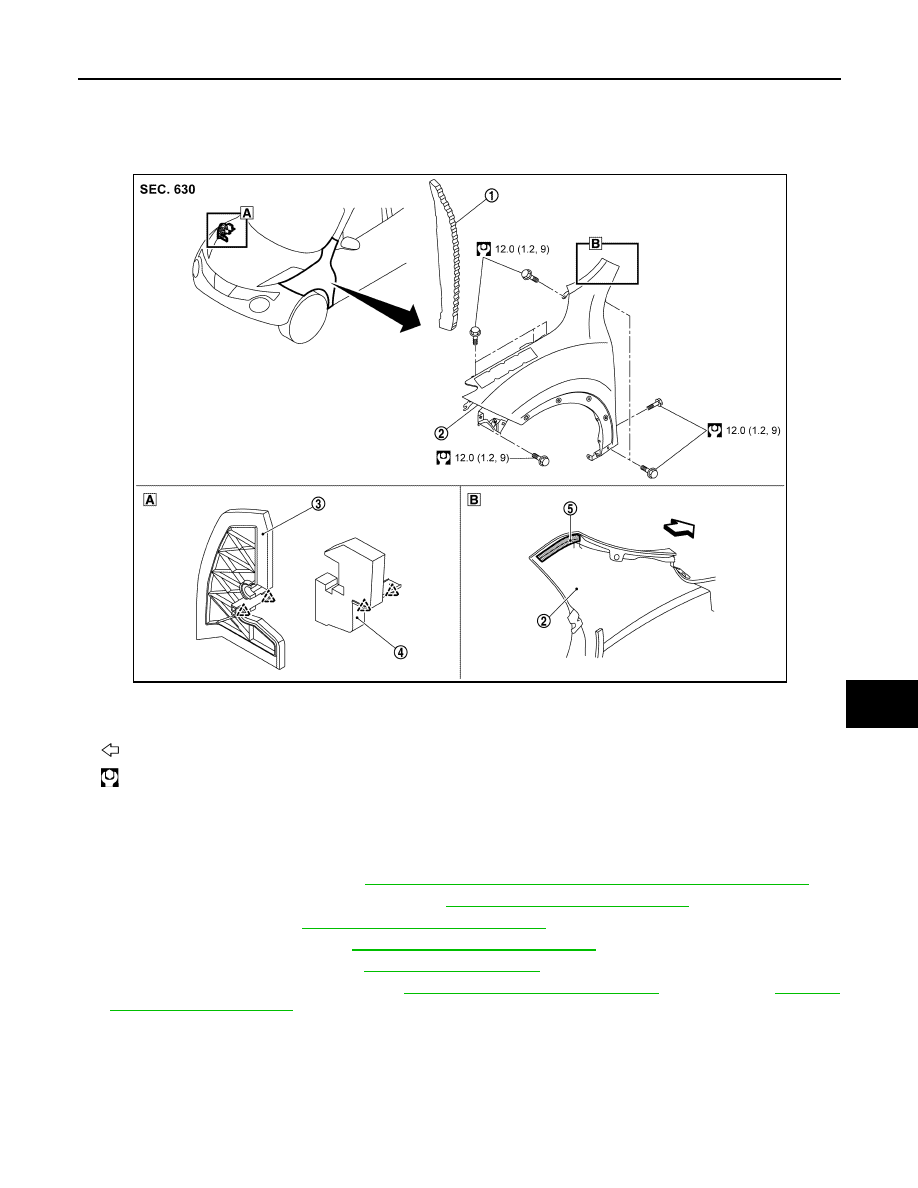

FRONT FENDER

Exploded View

INFOID:0000000012196708

Removal and Installation

INFOID:0000000012196709

REMOVAL

1. Remove front fillet molding. Refer to

EXT-36, "FRONT FILLET MOLDING : Removal and Installation"

.

2. Remove front bumper fascia assembly. Refer to

EXT-17, "Removal and Installation"

.

3. Remove sill cover. Refer to

EXT-33, "Removal and Installation"

.

4. Remove fender protector. Refer to

EXT-31, "Removal and Installation"

.

5. Remove front fender cover. Refer to

EXT-31, "Exploded View"

.

6. Remove front combination lamp. Refer to

EXL-100, "Removal and Installation"

 (xenon type) or

EXL-211,

"Removal and Installation"

 (halogen type).

7. Remove mounting bolts of front fender assembly.

1.

Front fender seal

2.

Front fender assembly

3.

Front fender upper insulator

4.

Front fender seal

5.

Front fender stiffener

: Vehicle front

: N·m (kg-m, ft-lb)

JMKIB4300ZZ

DLK-134

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT FENDER

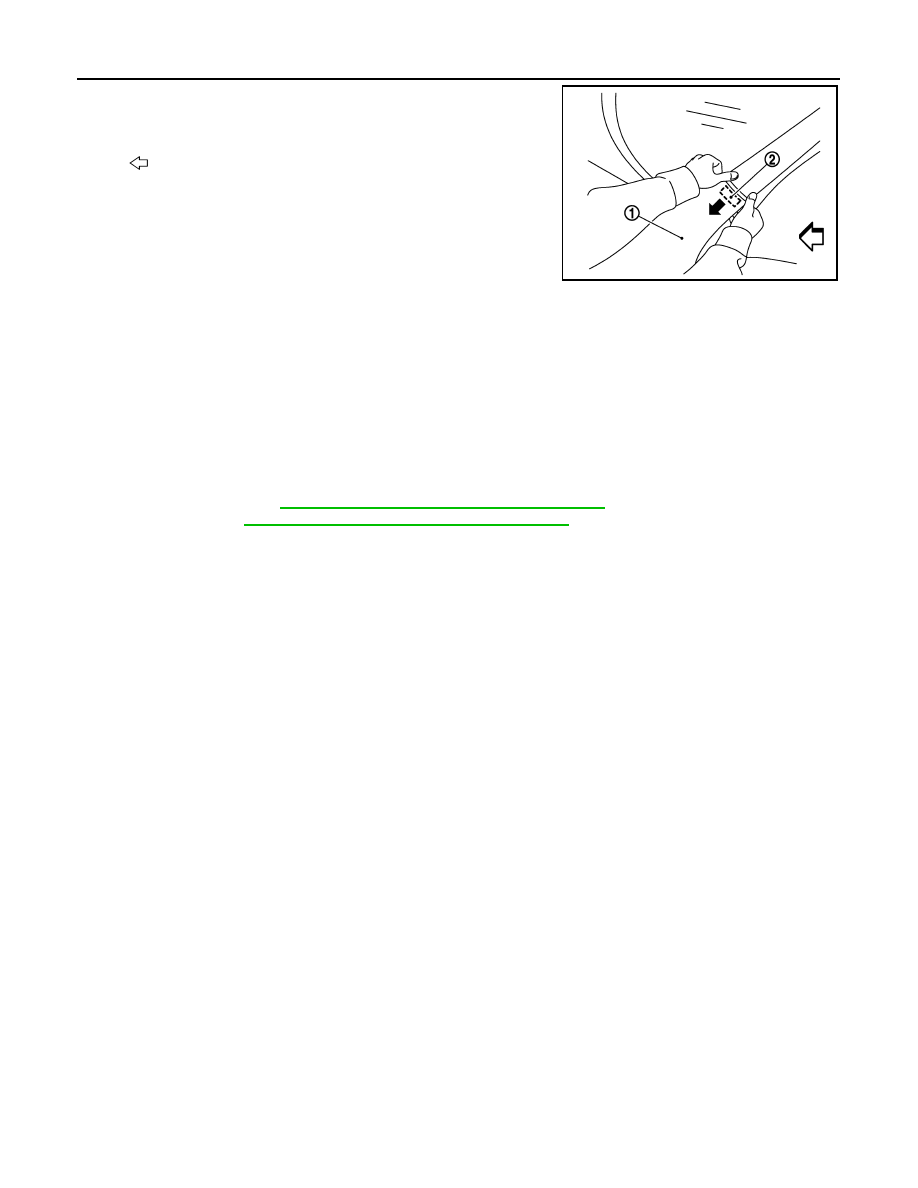

8. Remove front fender stiffener (2) from the vehicle body while

carefully pulling upper portion of front fender (1) toward vehicle

outside.

9. Remove front fender assembly.

CAUTION:

An viscous urethane foam is installed on the back surface of front fender. When removing the

front fender, be careful to not deform the front fender while performing the procedure and remov-

ing the viscous urethane foam a little at a time.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

• After installation, adjust the following part.

- Hood assembly: Refer to

DLK-125, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-137, "DOOR ASSEMBLY : Adjustment"

.

: Vehicle front

JMKIA5633ZZ

FRONT DOOR

DLK-135

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

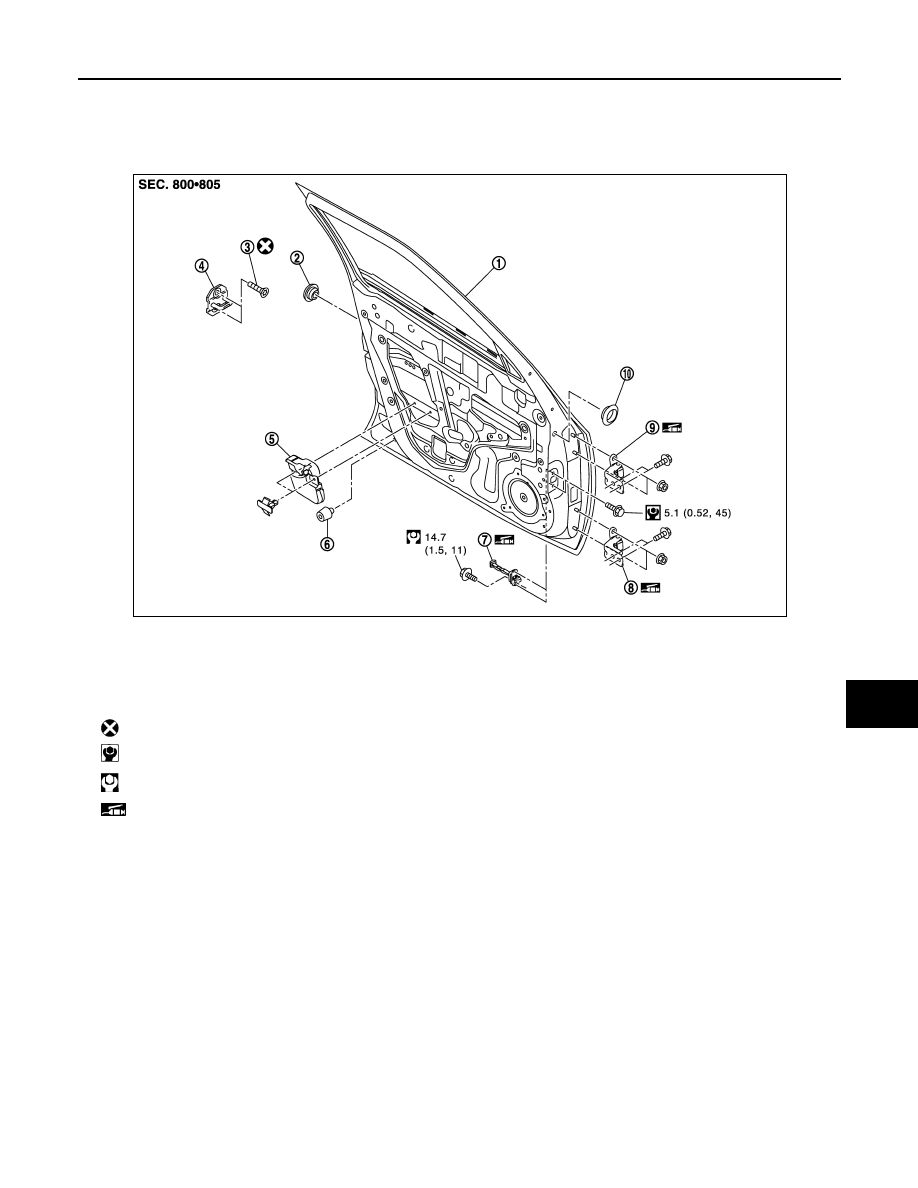

FRONT DOOR

Exploded View

INFOID:0000000012196710

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000012196711

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

CAUTION:

• Perform work with 2 workers, because of its heavy weight.

• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Front door panel

2.

Grommet

3.

TORX bolt

4.

Door striker

5.

Door pad

6.

Bumper rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

10. Grommet

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIA5877GB
