DLK-76

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR REQUEST SWITCH

3.

CHECK DOOR REQUEST SWITCH GROUND CIRCUIT

Check continuity between malfunctioning front door request switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK DOOR REQUEST SWITCH

Refer to

DLK-76, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning front door request switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000012196640

1.

CHECK DOOR REQUEST SWITCH

1. Turn ignition switch OFF.

2. Disconnect malfunctioning front door request switch connector.

3. Check continuity between malfunctioning front door request switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning front door request switch.

Front door request switch

Ground

Continuity

Connector

Terminal

Driver side

D34

1

Existed

Passenger side

D15

2

Front door request switch

Condition

Continuity

Terminal

1

2

Door request switch

Pressed

Existed

Released

Not existed

DOOR SWITCH

DLK-77

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

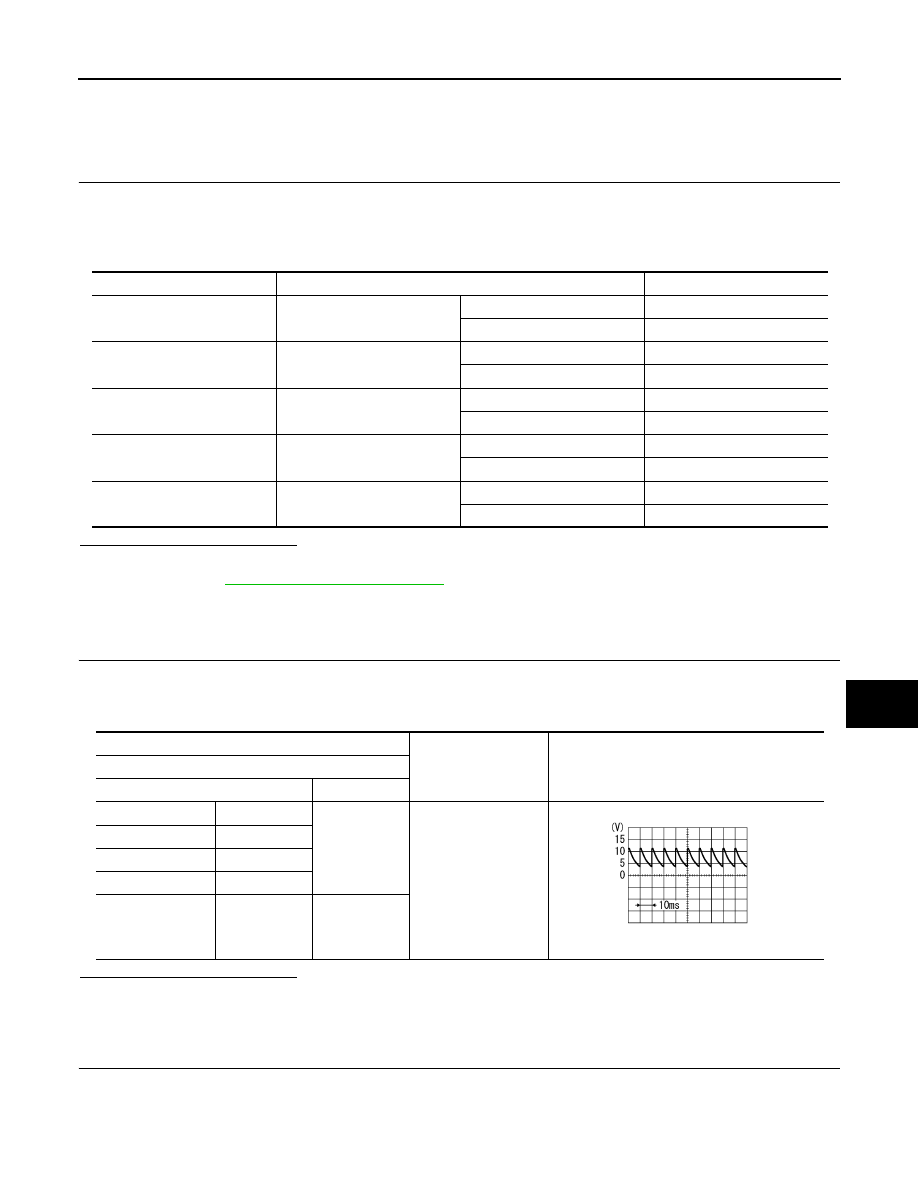

DOOR SWITCH

Component Function Check

INFOID:0000000012196641

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, “DOOR SW-BK” in “DATA

MONITOR” mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-77, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012196642

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES-1 >> Back door: GO TO 3.

YES-2 >> Other door: GO TO 4.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between door switch harness connector and BCM harness connector.

Monitor item

Condition

Status

DOOR SW-DR

Driver side door

Open

On

Closed

Off

DOOR SW-AS

Passenger side door

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

DOOR SW-BK

Back door

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Driver side

B48

2

Ground

7.0 - 8.0 V

Passenger side

B49

Rear LH

B71

Rear RH

B53

Back door

D106

3

PKIB4960J

DLK-78

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR SWITCH

3. Check continuity between door switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK BACK DOOR LOCK ASSEMBLY CIRCUIT

Check continuity between back door lock assembly harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK DOOR SWITCH

Refer to

DLK-78, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning door switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000012196643

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check continuity between door switch terminals.

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Driver side

B48

2

B10

47

Existed

Passenger side

B49

45

Rear LH

B71

48

Rear RH

B53

46

Back door

D106

3

43

Door switch

Ground

Continuity

Connector

Terminal

Driver side

B48

Not existed

Passenger side

B49

Rear LH

B71

Rear RH

B53

Back door

D106

3

Back door switch

Ground

Continuity

Connector

Terminal

D106

4

Existed

DOOR SWITCH

DLK-79

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunction door switch.

Door switch

Condition

Continuity

Terminal

Driver side

2

Ground part of door

switch

Door switch

Pressed

Existed

Released

Not existed

Passenger side

Pressed

Existed

Released

Not existed

Rear LH

Pressed

Existed

Released

Not existed

Rear RH

Pressed

Existed

Released

Not existed

Back door

3

4

Back door lock as-

sembly

Lock

Existed

Unlock

Not existed
