ENGINE COOLANT

CO-43

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

6. Fill with coolant to "MAX" line of reservoir tank.

7. Install the cowl top extension. Refer to

EXT-30, "Removal and Installation"

.

8. Install the radiator cap.
9. Perform the following operation for warming up the engine.

 When using CONSULT

1. Start the engine, and set the heater control temperature to "FULL HOT".

2. Use CONSULT “WORK SUPPORT” mode to perform “ENGINE COOLANT BYPASS VALVE”. Refer

to

EC-667, "CONSULT Function"

.

NOTE:

CONSULT can be used to open the bypass valve on the multi-way control valve.

-

Check that there is no coolant leakage from the drain plug and heater hose connections.

 When not using CONSULT

1. Start the engine and set the heater control temperature to "FULL HOT".

2. Warm up the engine until the bypass valve on the multi-way control valve opens. The warm-up time

should be approximately 10 minutes at 3,000 rpm.

-

Check that the bypass valve on the multi-way control valve is open by touching the radiator hose

(lower) with a hand and checking that warm water is flowing.

CAUTION:

Be careful that coolant does not overheat.

-

Check that there is no coolant leakage from the drain plug and heater hose connections.

10. Stop the engine.
11. When the engine is cold (approximately 50

°C or less), remove the radiator cap and check the coolant

level. If the level is low, fill with coolant again until it fills the radiator cap neck, and then repeat operation

from step 7.

CAUTION:

Never spill coolant on any electrical equipment (such as the alternator) during the operation.

12. When the coolant level stabilizes, fill with coolant up to the "MAX" line of reservoir tank.

CHECK WATER FLOW SOUND

CAUTION:

Prior to check, be sure to close windows, doors, and hood, and turn off radio and other electrical

loads.
1. Allow the engine to cool (to approximately 50

°C or less).

2. Set the temperature of the heater control to "FULL HOT".
3. Start engine. Perform the following cycle three times. Keep the engine speed at 1,000 rpm for approxi-

mately 30 seconds and then increase it gradually to 3,000 rpm.

4. During the operation described above in step 3, check for water flow sound from heater core.
5. If water flow sounds are heard, fill with coolant to the radiator cap neck at a speed of 3 L/min or less (like

pouring water with a kettle), and then repeat the operations from step 7 of "Filling Engine Coolant" to step

4 of "How to Check Water Flow Sound".

CAUTION:

• Filling with coolant at a high speed may allow air to mix with coolant. Be sure to fill with coolant

slowly, observing the speed specified above.

• Never spill coolant on any electrical equipment (such as the alternator) during the operation.

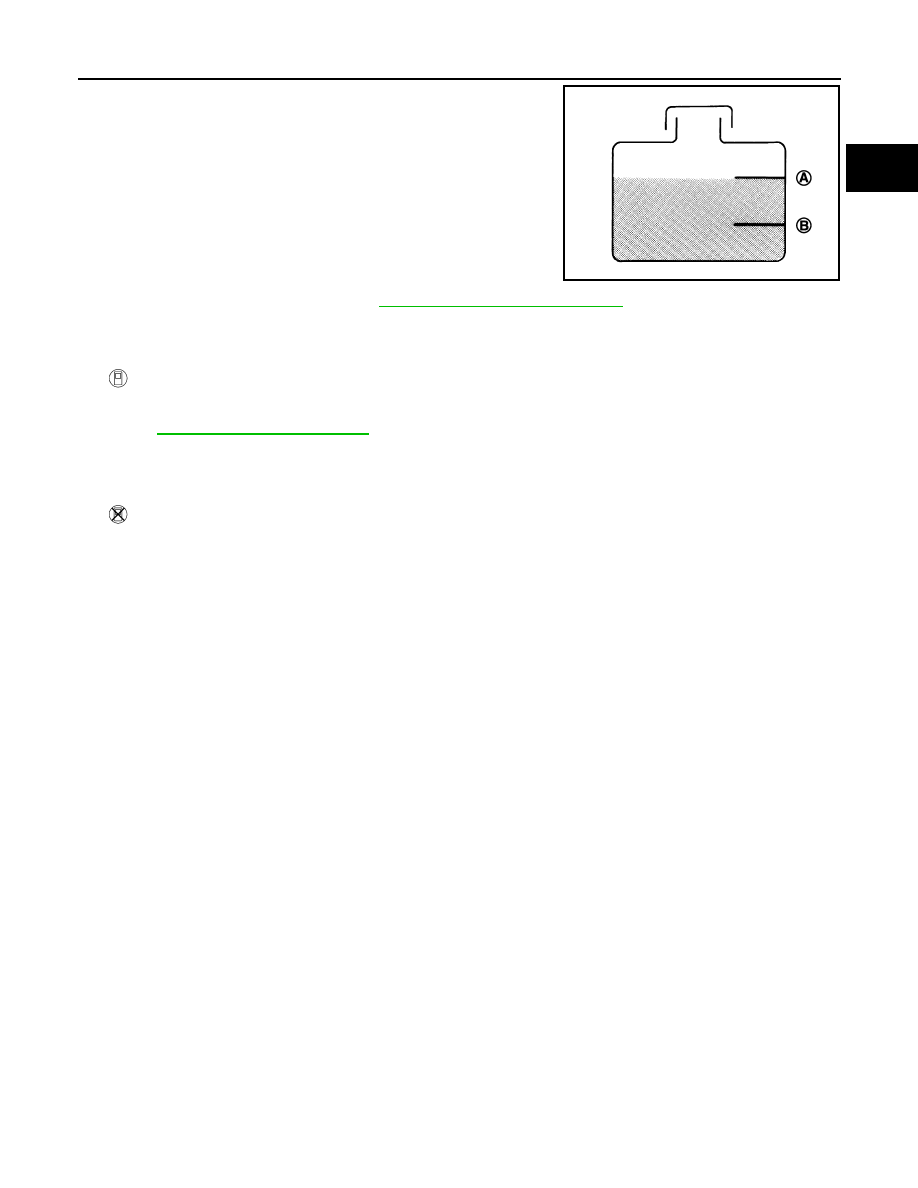

A

:  MAX

B

:  MIN

JPBIA0102ZZ

CO-44

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

ENGINE COOLANT

Flushing

INFOID:0000000012197556

1. Install radiator drain plug.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

• If water drain plugs on cylinder block are removed, close and tighten them. Refer to

EM-72, "Setting"

.

2. Remove air duct (suction side), air cleaner cover assembly and air cleaner body assembly. Refer to

EM-

27, "Exploded View"

.

3. Disconnect vacuum hose break booster side, and remove vacuum tube from clamp.

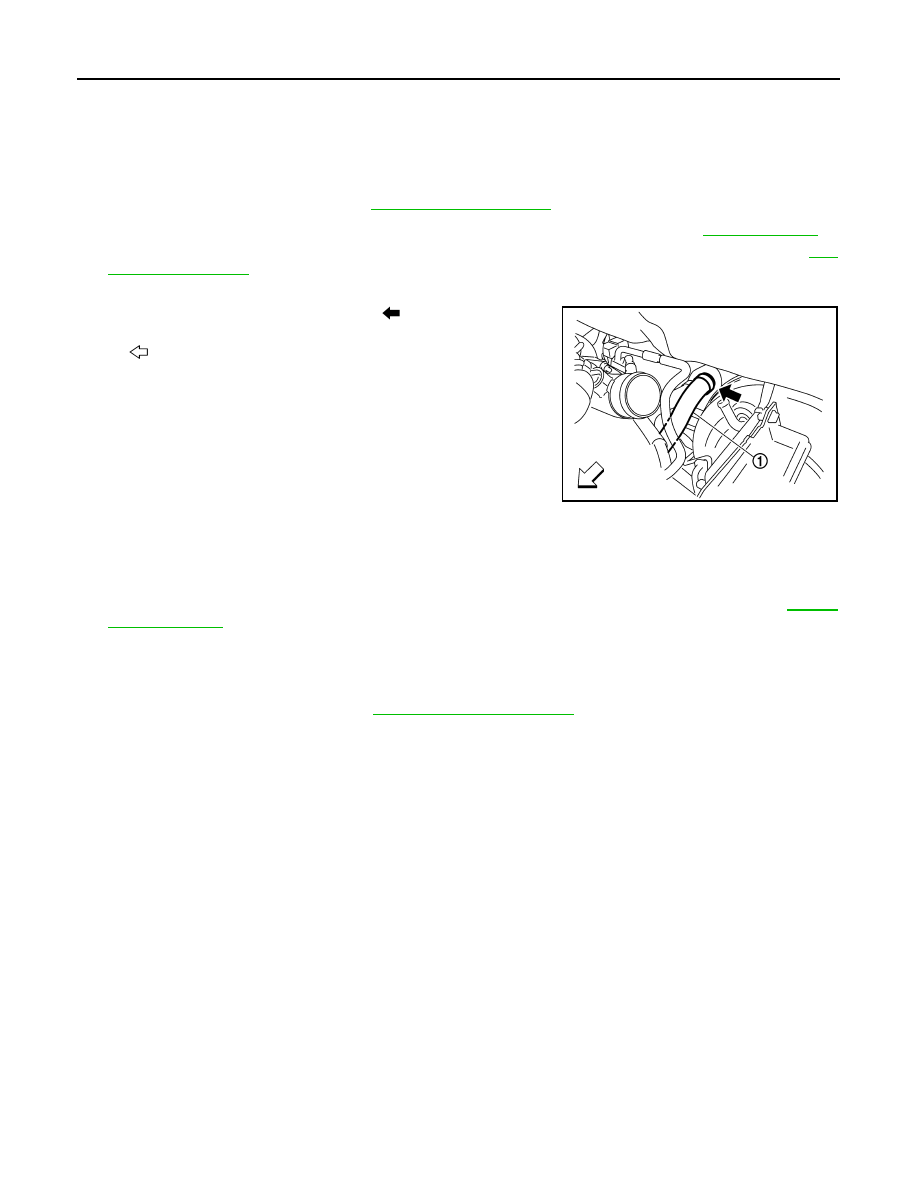

4. Disconnect heater hose (1) at position (

) in the figure.

• Enhance heater as high as possible.

5. Fill radiator and reservoir tank with water and reinstall radiator cap.

• When engine coolant overflows disconnected heater hose, connect heater hose, and continue filling the

engine coolant.

6. Connect vacuum hose, and install vacuum tube.
7. Install air duct (suction side), air cleaner cover assembly and air cleaner body assembly. Refer to

EM-27,

"Exploded View"

.

8. Run the engine and warm it up to normal operating temperature.
9. Rev the engine two or three times under no-load.
10. Stop the engine and wait until it cools down.
11. Drain water from the system. Refer to

CO-40, "Draining and Filling"

.

12. Repeat steps 1 through 9 until clear water begins to drain from radiator.

Radiator drain plug

: Refer to

CO-46, "Exploded View"

.

: Vehicle front

JPBIA4453ZZ

RADIATOR CAP

CO-45

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

RADIATOR CAP

Radiator Cap Inspection

INFOID:0000000012197557

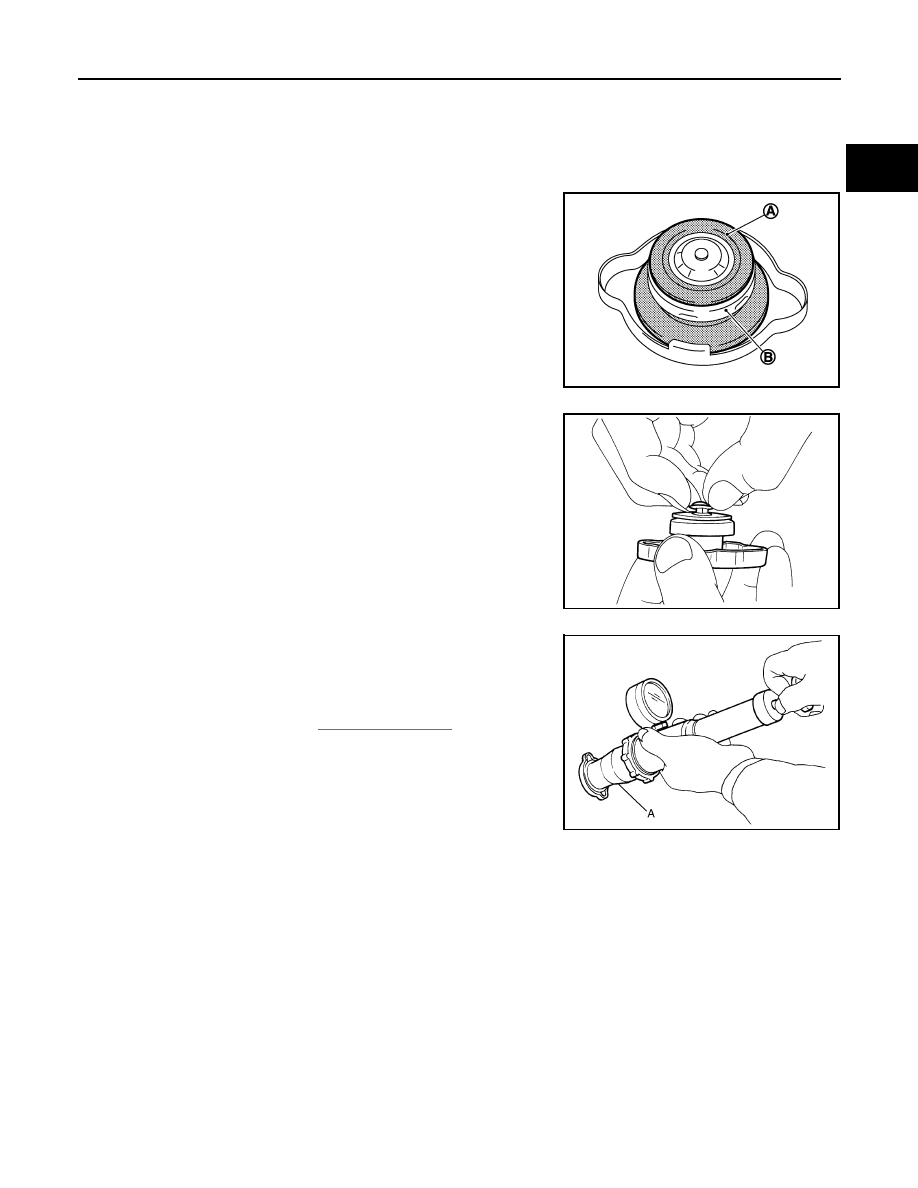

• Visually check valve seat of the radiator cap vacuum valve for dirt and damage.

CAUTION:

Check valve seat (A) visually in vertical position. If the valve

seat is excessively extended so that lower metal plunger (B) is

not visible, replace the radiator cap.

• Move the vacuum valve and check for smooth opening and clos-

ing.

• Connect radiator cap tester (commercial service tool) (A) and

apply pressure to check opening pressure of the pressure regulat-

ing valve.

• Be sure to apply water or LLC to the cap seals when connecting

the radiator cap to the radiator cap tester.

• Replace radiator cap if vacuum valve is malfunctioning or if the

valve opening pressure is outside (is lower than) the limit.

JPBIA0108ZZ

SMA967B

Standard

: Refer to

CO-58, "Radiator"

.

Limit

JPBIA0109ZZ

CO-46

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

RADIATOR

REMOVAL AND INSTALLATION

RADIATOR

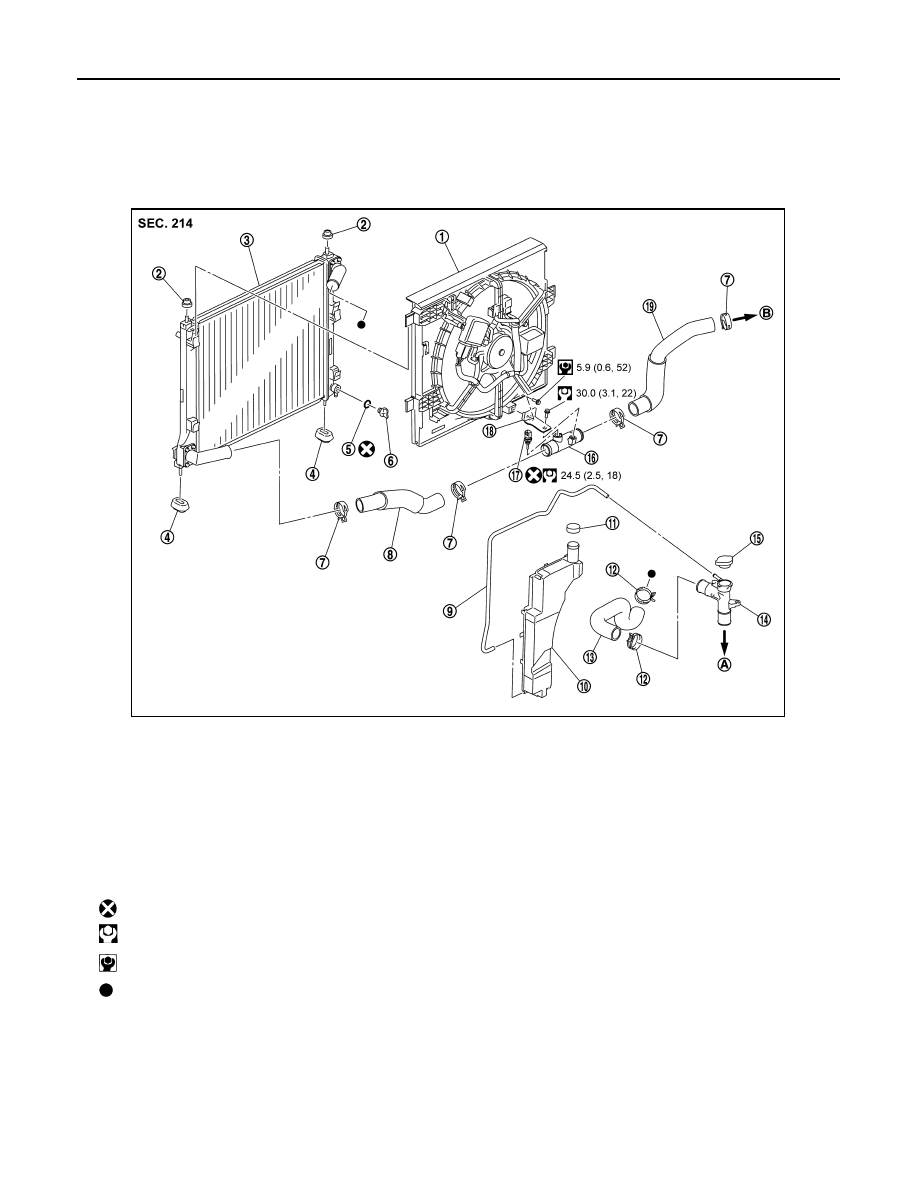

Exploded View

INFOID:0000000012197558

Removal and Installation

INFOID:0000000012197559

REMOVAL

WARNING:

• Never remove radiator cap when engine is hot. Serious burns may occur from high-pressure engine

coolant escaping from engine cooling system.

1.

Cooling fan assembly

2.

Mounting rubber (upper)

3.

Radiator

4.

Mounting rubber (lower)

5.

O-ring

6.

Drain plug

7.

Hose clamp

8.

Radiator hose (lower) (LH)

9.

Reservoir tank hose

10. Reservoir tank

11. Reservoir tank cap

12. Hose clamp

13. Radiator hose (upper)

14. Water outlet adapter

15. Radiator cap

16. Radiator hose pipe

17. Engine coolant temperature sensor

18. Bracket

19. Radiator hose (lower) (RH)
A.

To multi-way control valve

B.

To water inlet

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

 : Indicates that the parts is connected at points with symbols in actual vehicle.

JSBIA5700GB
