OVERHEATING CAUSE ANALYSIS

CO-39

< SYMPTOM DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

Malfunction
other than
the cooling
system

—

Engine overload

High-load driving

High engine speed with no
load

Driving in low gear for a
long period of time

Extreme continuous high-
speed driving

Power train system mal-
function

—

Size of installed wheel or
tire

Dragging of brakes

Ignition timing

Obstruction of outside air
inflow

Blocked bumper opening

—

—

Blocked radiator grille

Installation of bumper cov-
er

Blocked by mud or foreign
substance

Clogged radiator fins

—

Clogged condenser fan

Obstruction of outside air
inflow path

Blocked due to installation
of fog lamps

Symptom

Inspection item

CO-40

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

ENGINE COOLANT

PERIODIC MAINTENANCE

ENGINE COOLANT

Inspection

INFOID:0000000012197554

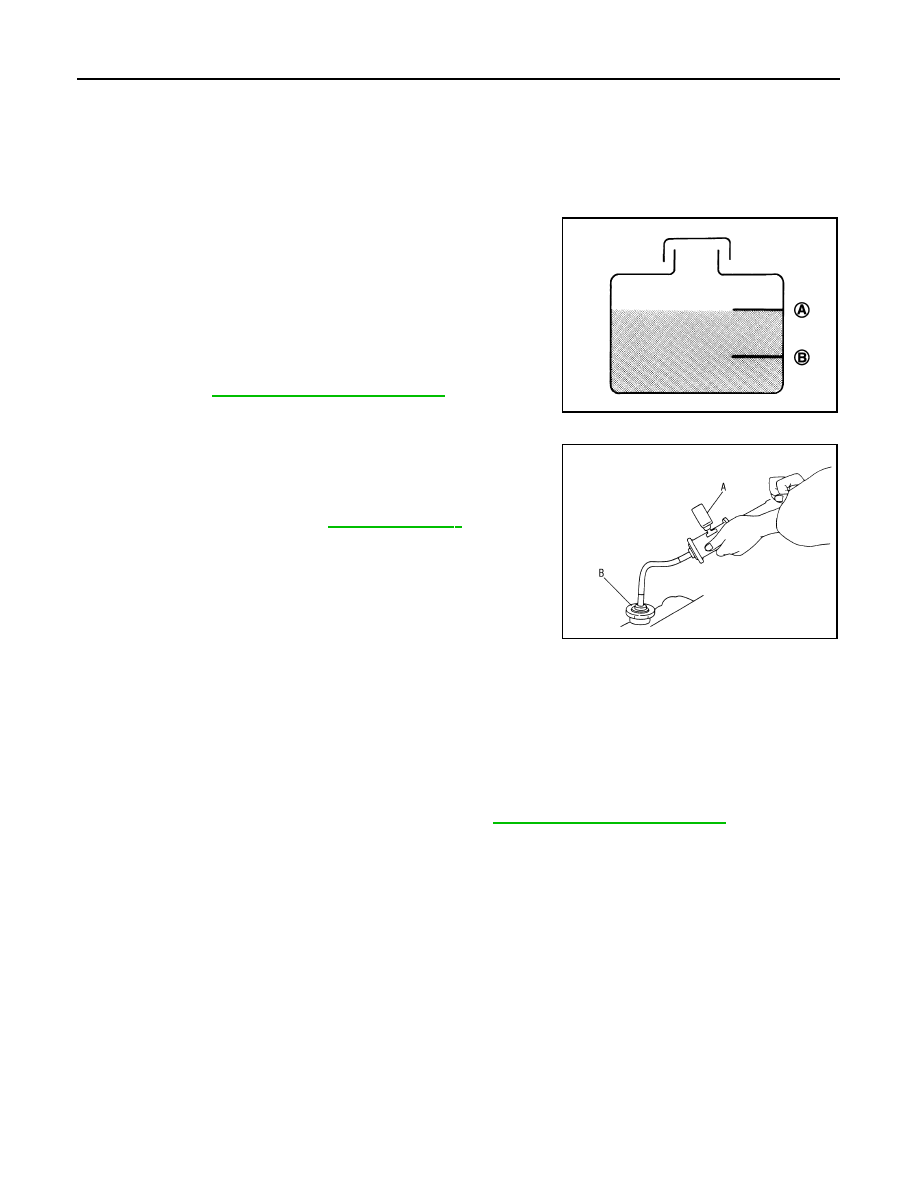

LEVEL

• Check that the reservoir tank engine coolant level is within the

“MIN” to “MAX” when the engine is cool.

• Adjust the engine coolant level if necessary.

CAUTION:

Refill Genuine NISSAN Long Life Antifreeze/Coolant (blue) or

equivalent in its quality mixed with water (distilled or deminer-

alized). Refer to

MA-11, "Fluids and Lubricants"

.

LEAKAGE

• To check for leakage, apply pressure to the cooling system with the

radiator cap tester (commercial service tool) (A) and the radiator

cap tester adapter (commercial service tool) (B).

WARNING:

Never remove radiator cap when engine is hot. Serious burns

may occur from high-pressure engine coolant escaping from

engine cooling system.

CAUTION:

Higher test pressure than specified may cause radiator dam-

age.

NOTE:

If a case that engine coolant decreases, replenish radiator with engine coolant.

• If anything is found, repair or replace damaged parts.

Draining and Filling

INFOID:0000000012197555

CAUTION:

• Never apply additive agent like anti-leakage sealant. Doing so may cause coolant passage clog.

• When refilling use Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality

mixed with water (distilled or demineralized). Refer to

MA-11, "Fluids and Lubricants"

.

• Never dilute using water.

DRAINING

WARNING:

Never open the radiator cap or drain plug when the engine is hot. Hot liquid may spray out, causing

serious injury.

CAUTION:

• Never spill coolant on the drive belt while working.

• Be sure to perform this operation when coolant temperature is cold.
1. Turn the ignition switch ON, wait for 10 seconds or more, and then turn it OFF again.
2. Connect drain hose.

A :  MAX
B :  MIN

JPBIA0102ZZ

Testing pressure: Refer to

CO-58, "Radiator"

.

PBIC5121J

ENGINE COOLANT

CO-41

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

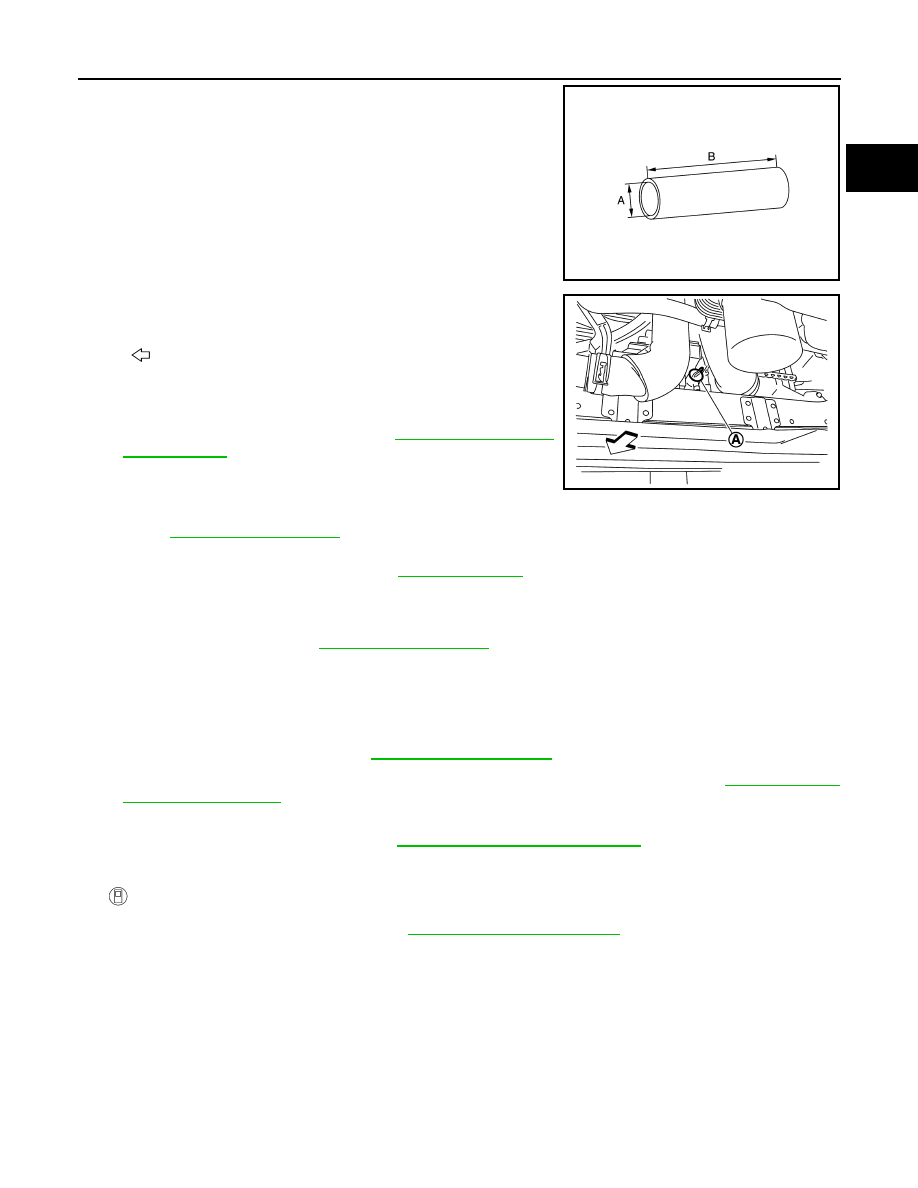

• Use a general-purpose hose with the dimensions show in the

figure.

3. Open radiator drain plug (A) at the bottom of radiator, and then

remove radiator cap.

CAUTION:

Perform this step when engine is cold.

• When draining all of engine coolant in the system, open water

drain plugs on cylinder block. Refer to

EM-287, "Disassembly

and Assembly"

.

4. Remove reservoir tank if necessary, and drain engine coolant and clean reservoir tank before installing.

Refer to

CO-46, "Exploded View"

.

5. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,

flush the engine cooling system. Refer to

CO-44, "Flushing"

.

6. Disconnect drain hose.

REFILLING

1. Install reservoir tank. Refer to

CO-46, "Exploded View"

.

2. Install the radiator drain plug.

• Replace the drain plug O-ring with a new one.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

• If water drain plugs on cylinder block are removed, close and tighten them. Refer to

EM-287, "Disas-

sembly and Assembly"

.

3. Check that each hose clamp is firmly tightened.
4. Remove the cowl top extension. Refer to

EXT-30, "Removal and Installation"

.

5. Perform the following procedure for draining the air from piping.

 If using CONSULT

1. Turn the ignition switch ON again and use CONSULT “WORK SUPPORT” mode to perform “ENGINE

COOLANT BYPASS VALVE”. Refer to

EC-667, "CONSULT Function"

.

CAUTION:

Never start engine.

NOTE:

CONSULT can be used to open the bypass valve on the multi-way control valve.

A

:

φ 8  mm (0.31 in)

B

: 300 mm (11.81 in)

JPBIA4770ZZ

: Vehicle front

JPBIA4452ZZ

Radiator drain plug

: Refer to

CO-46, "Exploded View"

.

CO-42

< PERIODIC MAINTENANCE >

[MR EXCEPT FOR NISMO RS MODELS]

ENGINE COOLANT

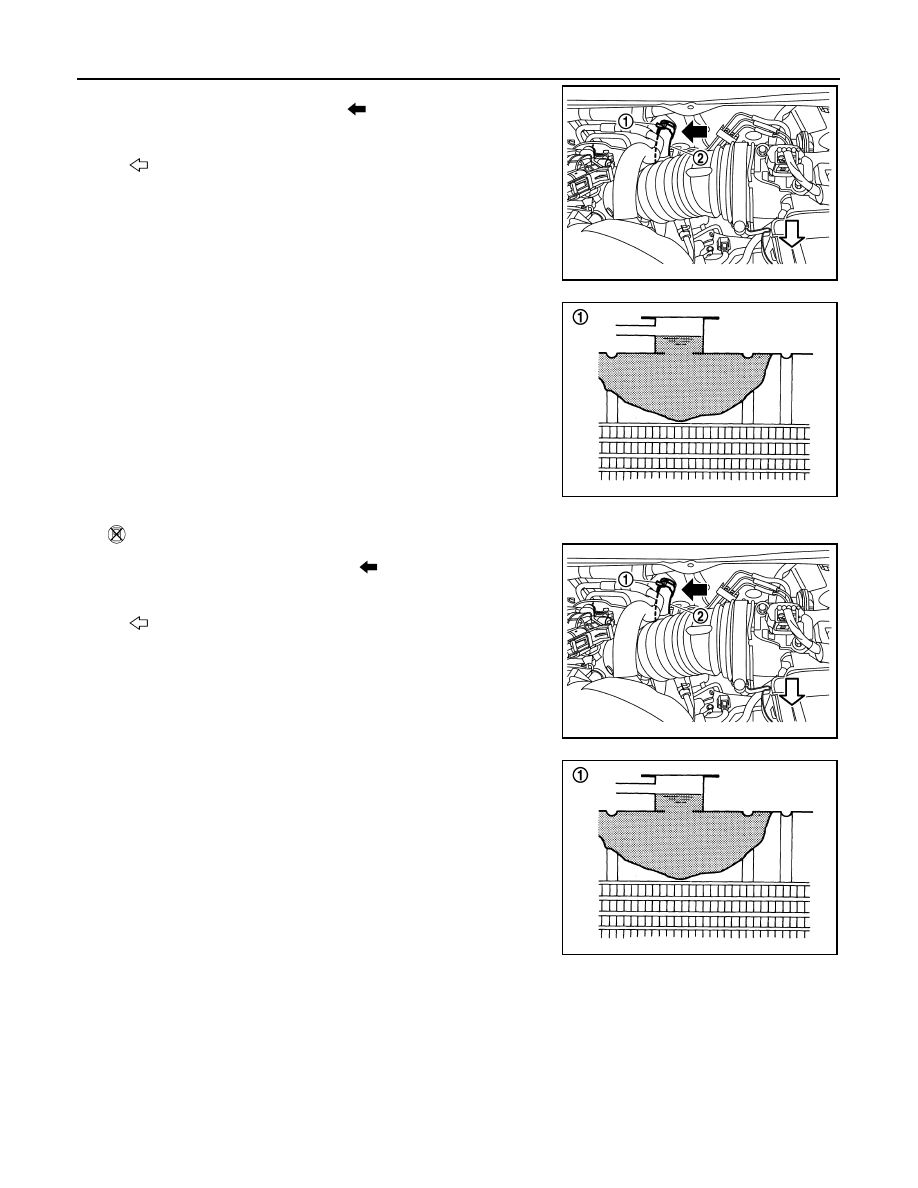

2. Separate the hose clamp (1) and heater hose (2) at the

position shown in the figure (

), and hold the end of the

hose at the same height.

3. Fill with coolant at a speed of 3 L/min or less (like pouring

water with a kettle) until it fills the radiator cap (1) neck.

-

If coolant comes out from the heater hose when filling with

coolant, connect the heater hose and continue filling with

coolant.

CAUTION:

•

Filling with coolant at a high speed may allow air to

mix with coolant. Be sure to fill with coolant slowly,

observing the above speed.

•

Never spill coolant on any electrical equipment (such

as the alternator) during the operation.

 When not using CONSULT

1. Separate the hose clamp (1) and heater hose (2) at the

position as shown in the figure (

), and hold the end of the

hose at the same height.

2. Fill with coolant at a speed of 3 L/min or less (like pouring

water with a kettle) until it fills the radiator cap (1) neck.

-

If coolant comes out from the heater hose while adding

coolant, connect the heater hose and continue adding cool-

ant.

CAUTION:

•

Filling with coolant at a high speed may allow air to

mix with coolant. Be sure to fill with coolant slowly,

observing the above speed.

•

Never spill coolant on any electrical equipment (such

as the alternator) during the operation.

: Vehicle front

JSBIA5750ZZ

JPBIA0819ZZ

: Vehicle front

JSBIA5750ZZ

JPBIA0819ZZ
