BODY ALIGNMENT

BRM-85

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

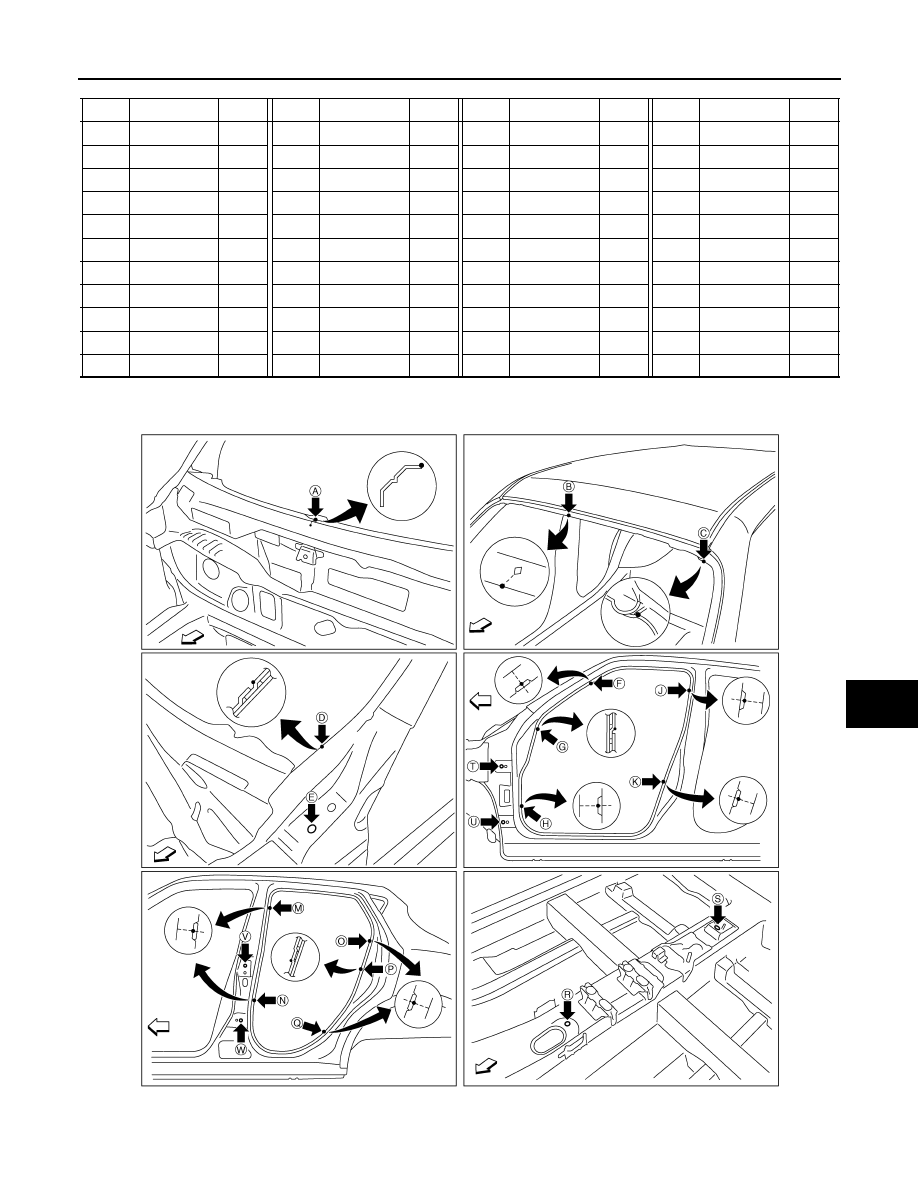

MEASUREMENT POINTS

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - E

724 (28.50)*

H - h

1406 (55.35)

N - n

1423 (56.02)

R - J

1394 (54.88)*

B - E

1028 (40.47)*

H - j

1829 (72.01)*

N - o

1585 (62.40)*

R - K

1072 (42.20)*

C - d

1290 (50.79)*

H - k

1663 (65.47)*

N - p

1554 (61.18)*

S - M

1094 (43.07)*

C - e

1423 (56.02)*

J - j

1257 (49.49)

N - q

1506 (59.29)*

S - N

786 (30.94)*

F - f

1222 (48.11)

J - k

1463 (57.60)*

O - o

1326 (52.20)

S - O

1248 (49.13)*

F - h

1569 (61.77)*

K - k

1425 (56.10)

O - q

1518 (59.76)*

S - P

1126 (44.33)*

F - j

1386 (54.57)*

M - m

1248 (49.13)

P - p

1397 (55.00)

S - Q

905 (35.63)*

F - k

1519 (59.80)*

M - n

1451 (57.13)*

Q - q

1444 (56.85)

T - V

1128 (44.41)*

G - g

1359 (53.50)

M - o

1441 (56.73)*

R - F

1104 (43.46)*

T - W

1105 (43.50)*

G - j

1630 (64.17)*

M - p

1486 (58.50)*

R - G

885 (34.84)*

U - V

1204 (47.40)*

G - k

1616 (63.62)*

M - q

1578 (62.13)*

R - H

720 (28.35)*

U - W 1091 (42.95)*

JSKIA1997ZZ

BRM-86

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

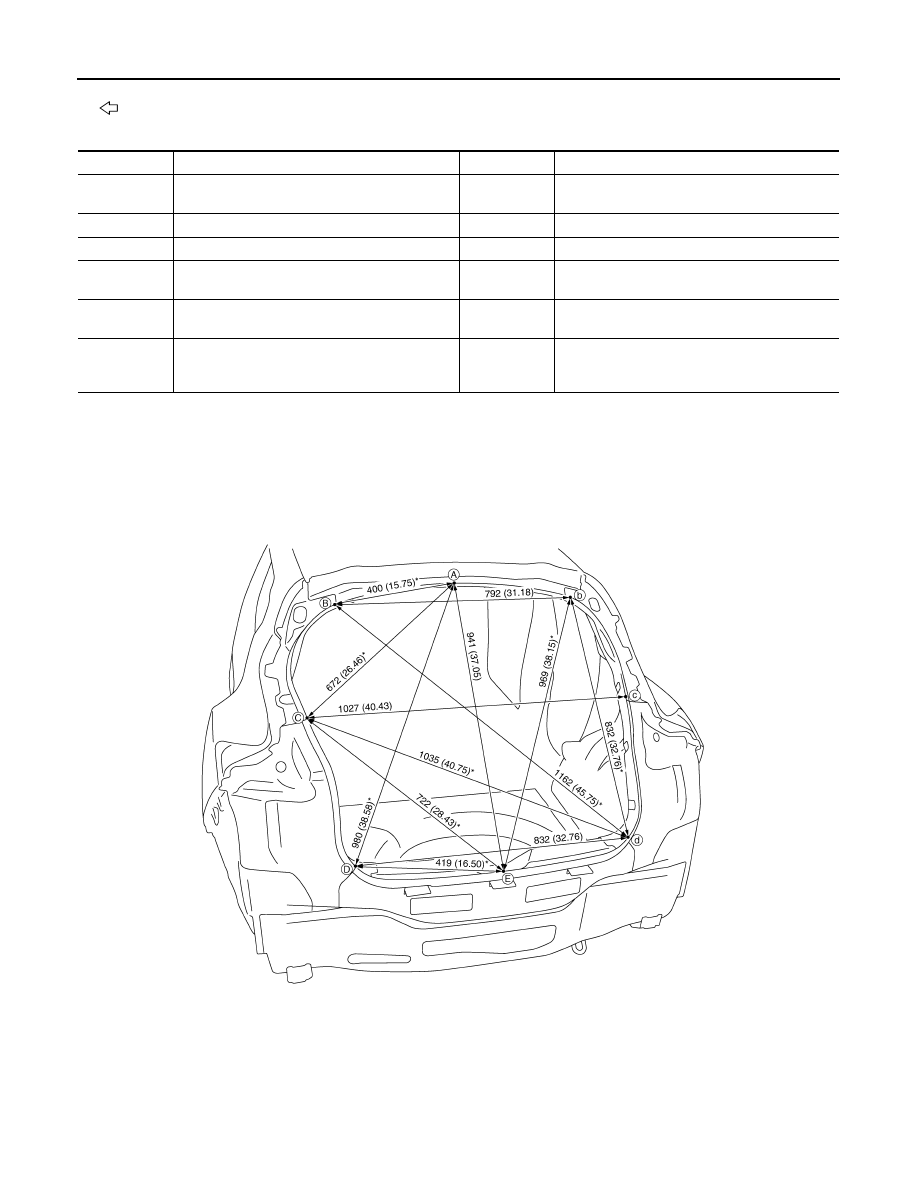

Rear Body

INFOID:0000000012199869

MEASUREMENT

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

MEASUREMENT POINTS

: Vehicle front

Point

Material

Point

Material

A

Cowl top flange end of center positioning mark

J, j, K, k, M, M,
N, n

Center pillar indent

B

Roof flange end of center positioning mark

O, o, Q, q

Rear fender indent

C, c

Outer side body joggle

P, p

Outer rear wheelhouse joggle

D, d, G, g

Upper inner front pillar joggle

R

Trans control reinforcement hole center of center
positioning mark

φ16 (0.63)

E, e

Hood hinge installing hole center

φ12 (0.47)

S

Parking brake reinforcement hole center of cen-
ter positioning mark

φ12 (0.47)

F, f, H, h

Front pillar indent

T, t, U, u, V, v,
W, w

Door hinge installing hole center
T, t, U, u, W, w:

φ12 (0.47)

V, v:

φ9 (0.35)

Unit: mm (in)

JSKIA1998GB

BODY ALIGNMENT

BRM-87

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

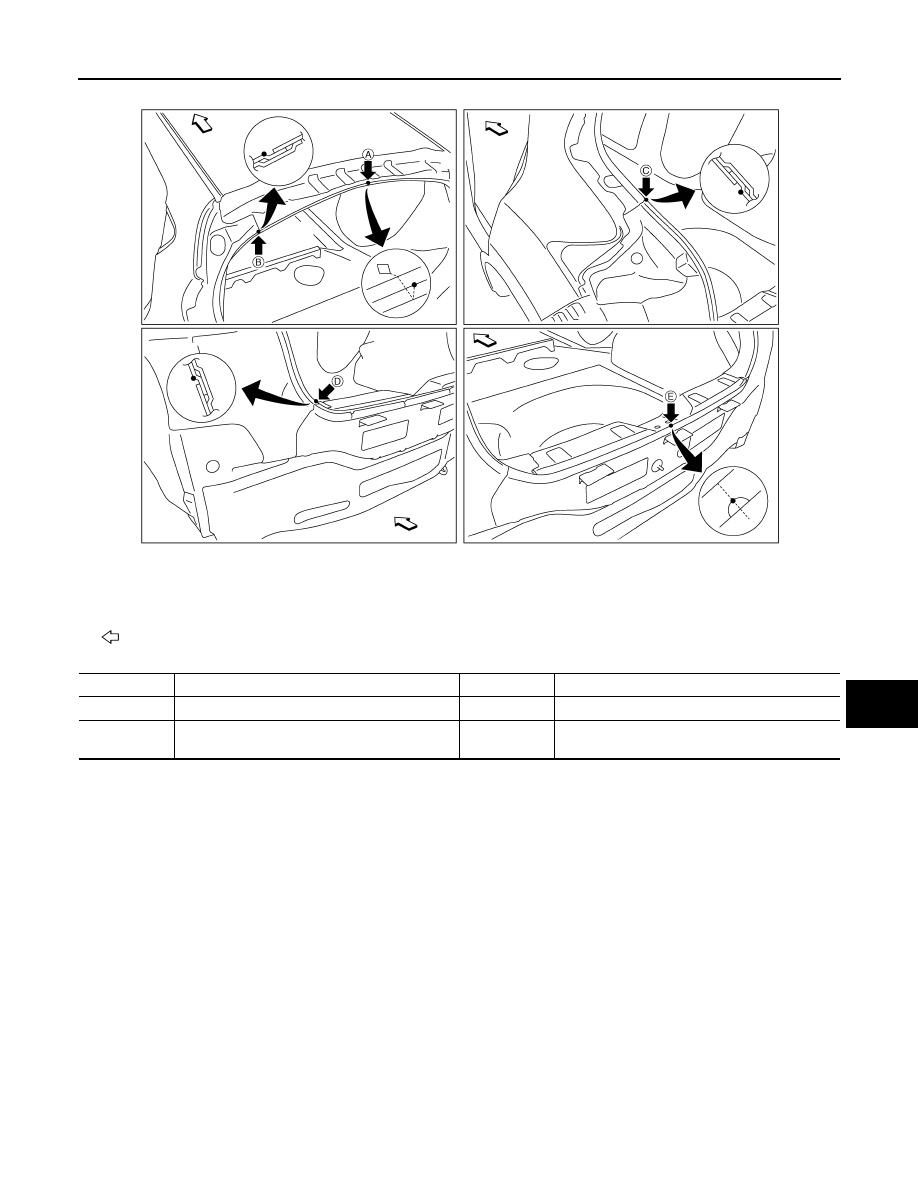

: Vehicle front

JSKIA1999ZZ

Point

Material

Point

Material

A

Roof flange end of center positioning mark

C, c, D, d

Rear combination lamp base joggle

B, b

Rear fender extension joggle

E

Upper rear panel indent of center positioning
mark

BRM-88

< SERVICE DATA AND SPECIFICATIONS (SDS)

LOCATION OF PLASTIC PARTS

LOCATION OF PLASTIC PARTS

Precautions for Plastics

INFOID:0000000012199870

CAUTION:

• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat

and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Location of Plastic Parts

INFOID:0000000012199871

EXTERIOR

Except for NISMO and NISMO RS

Abbre-

viation

Material name

Heat resisting

temperature

°C (°F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

ABS

Acrylonitrile Butadiene Styrene

80 (176)

Avoid gasoline and solvents.

—

AES

Acrylonitrile Ethylene Styrene

80 (176)

↑

—

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

PVC

Poly Vinyl Chloride

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Poisonous gas is emitted
when burned.

TPO

Thermoplastic Olefine

80 (176)

↑

Flammable

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Avoid gasoline and solvents.

—

PMMA

Poly Methyl Methacrylate

85 (185)

↑

—

EVAC

Ethylene Vinyl Acetate

90 (194)

↑

—

PP

Polypropylene

90 (194)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable, avoid bat-
tery acid.

PUR

Polyurethane

90 (194)

Avoid gasoline and solvents.

—

UP

Unsaturated Polyester

90 (194)

↑

Flammable

ASA

Acrylonitrile Styrene Acrylate

100 (212)

↑

Flammable

PPE

Poly Phenylene Ether

110 (230)

↑

—

TPU

Thermoplastic Urethane

110 (230)

↑

—

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120 (248)

↑

Flammable

PC

Polycarbonate

120 (248)

↑

—

POM

Poly Oxymethylene

120 (248)

↑

Avoid battery acid.

PA

Polyamide

140 (284)

↑

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140 (284)

↑

—

PAR

Polyarylate

180 (356)

↑

—

PET

Polyethylene terephthalate

180 (356)

↑

—

PEI

Polyetherimide

200 (392)

↑

—
