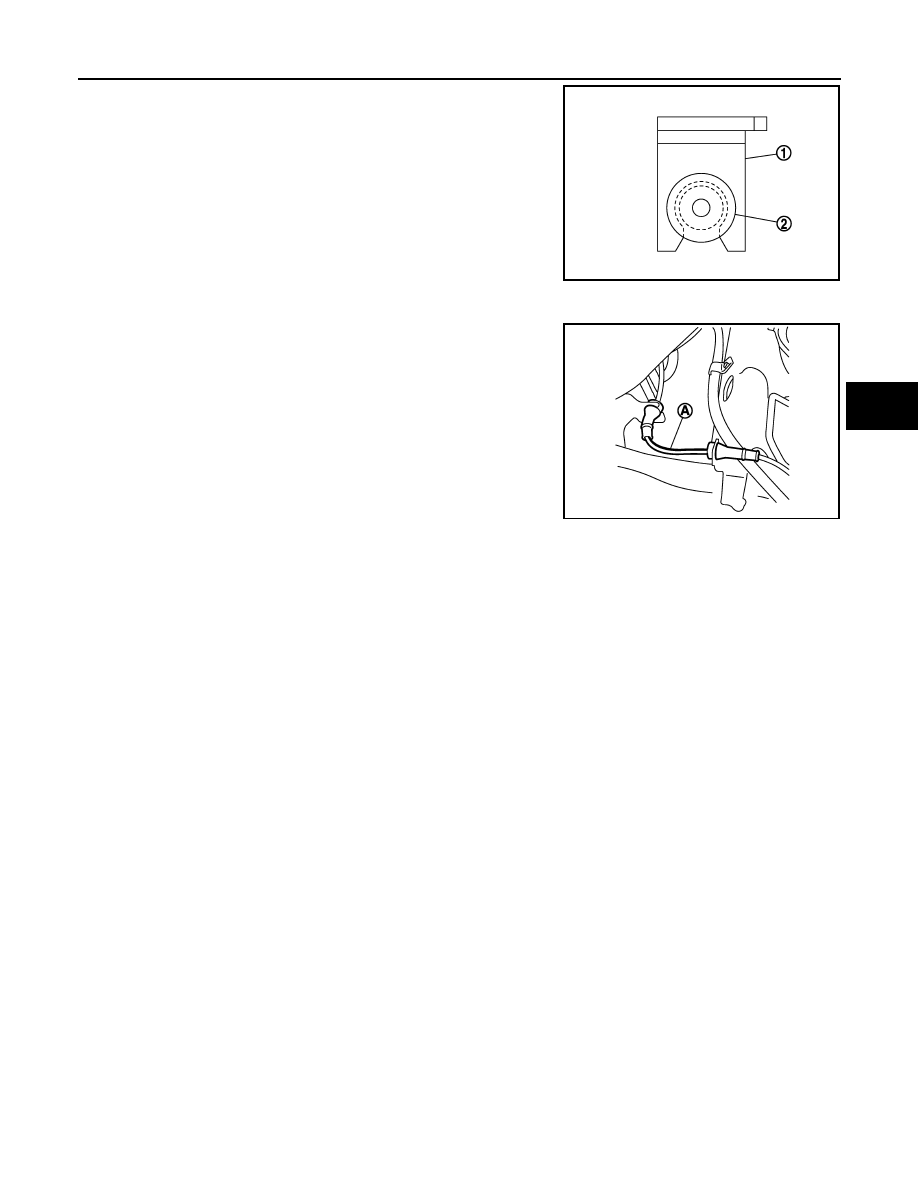

• Never twist rear wheel sensor harness when installing rear wheel

sensor. Check that grommet (2) is fully inserted to bracket (1).

Check that rear wheel sensor harness is not twisted after installa-

tion.

CAUTION:

Check that the identification line (A) of the rear wheel sensor

is faced upward.

JPFIC0209ZZ

JPFIC0198ZZ

BRC-152

< REMOVAL AND INSTALLATION >

[WITH VDC]

SENSOR ROTOR

SENSOR ROTOR

FRONT SENSOR ROTOR
FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000012199757

REMOVAL

Replace wheel hub as an assembly when replacing because sensor rotor cannot be disassembled.

• Except NISMO RS: Refer to

FAX-66, "Removal and Installation"

.

• NISMO RS: Refer to

FAX-11, "Removal and Installation"

.

INSTALLATION

Replace wheel hub as an assembly when replacing because sensor rotor cannot be disassembled.

• Except NISMO RS: Refer to

FAX-66, "Removal and Installation"

.

• NISMO RS: Refer to

FAX-11, "Removal and Installation"

.

REAR SENSOR ROTOR
REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000012199758

REMOVAL

2WD

Replace wheel hub as an assembly when replacing because sensor rotor cannot be disassembled. Refer to

RAX-7, "Removal and Installation"

.

AWD

1. Remove drive shaft. Refer to

RAX-19, "Removal and Installation"

.

2. Remove sensor rotor from drive shaft. Refer to

RAX-20, "WHEEL SIDE : Disassembly and Assembly"

.

INSTALLATION

Note the following, and install in the reverse order of the removal.

• Never reuse sensor rotor. (AWD)

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-153

< REMOVAL AND INSTALLATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

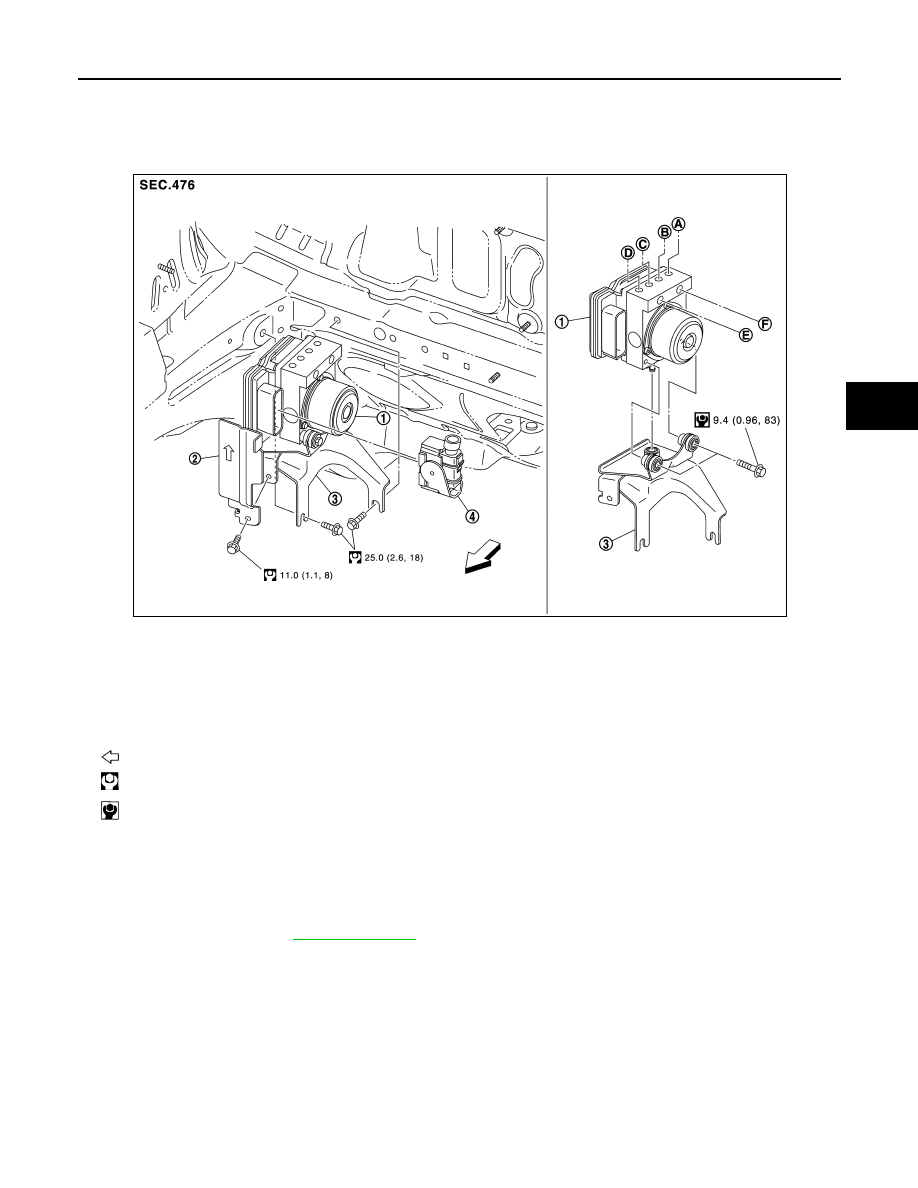

Exploded View

INFOID:0000000012199759

Removal and Installation

INFOID:0000000012199760

REMOVAL

1. Disconnect battery cable from negative terminal.
2. Drain brake fluid. Refer to

BR-12, "Draining"

.

3. Remove bracket A.

1.

ABS actuator and electric unit (con-
trol unit)

2.

Bracket A

3.

Bracket B

4.

ABS actuator and electric unit (con-
trol unit) harness connector

A. To front LH caliper

B. To rear RH caliper

C. To rear LH caliper

D. To front RH caliper

E. To master cylinder secondary side

F.

To master cylinder primary side

: Vehicle front

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSFIA0655GB

BRC-154

< REMOVAL AND INSTALLATION >

[WITH VDC]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

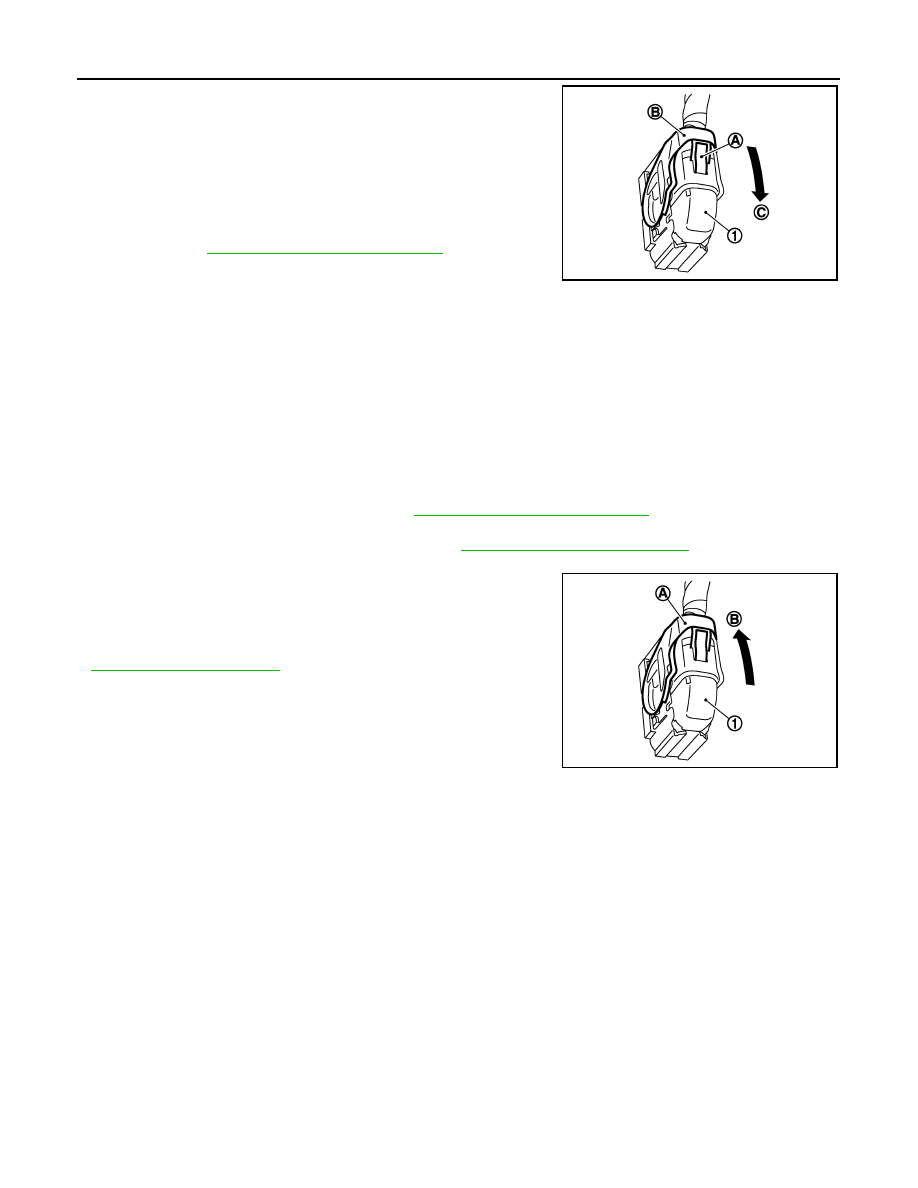

4. Disconnect ABS actuator and electric unit (control unit) harness

connector (1), follow the procedure described below.

a. Push the pawl (A).
b. Move the lever (B) in the direction (C) until locked.
c.

Disconnect ABS actuator and electric unit (control unit) harness

connector.

5. Loosen flare nut of brake tube using a flare nut wrench, and then

remove brake tube from ABS actuator and electric unit (control

unit). Refer to

BR-23, "FRONT : Exploded View"

.

6. Remove ABS actuator and electric unit (control unit) and bracket

B.

CAUTION:

• Never remove and never install ABS actuator and electric unit (control unit) by holding harness

connector.

• Be careful not to drop ABS actuator and electric unit (control unit) and apply excessive impact to

it.

7. Remove bracket B and bushing from ABS actuator and electric unit (control unit).

INSTALLATION

Note the following, and install in the reverse order of removal.

• When replacing with a new ABS actuator and electric unit (control unit), never remove the protector of the

brake tube mounting hole until right before the brake tube is installed.

• When installing brake tube, tighten to the specified torque using a crowfoot and torque wrench so that flare

nut and brake tube are not damaged. Refer to

BR-23, "FRONT : Exploded View"

.

• Never remove and install ABS actuator and electric unit (control unit) by holding actuator harness.

• Bleed air from brake piping after installation. Refer to

BR-13, "Bleeding Brake System"

.

• Never apply excessive impact to actuator, such as by dropping it.

• After installing the ABS actuator and electric unit (control unit) har-

ness connector (1), move the lever (A) in the direction (B) to

secure the locking.

• Perform steering angle sensor neutral position adjustment when

ABS actuator and electric unit (control unit) is replaced. Refer to

BRC-63, "Work Procedure"

.

JPFIC0194ZZ

JPFIC0195ZZ
