WIPER AND WASHER SYSTEM

JRLWF5347GB

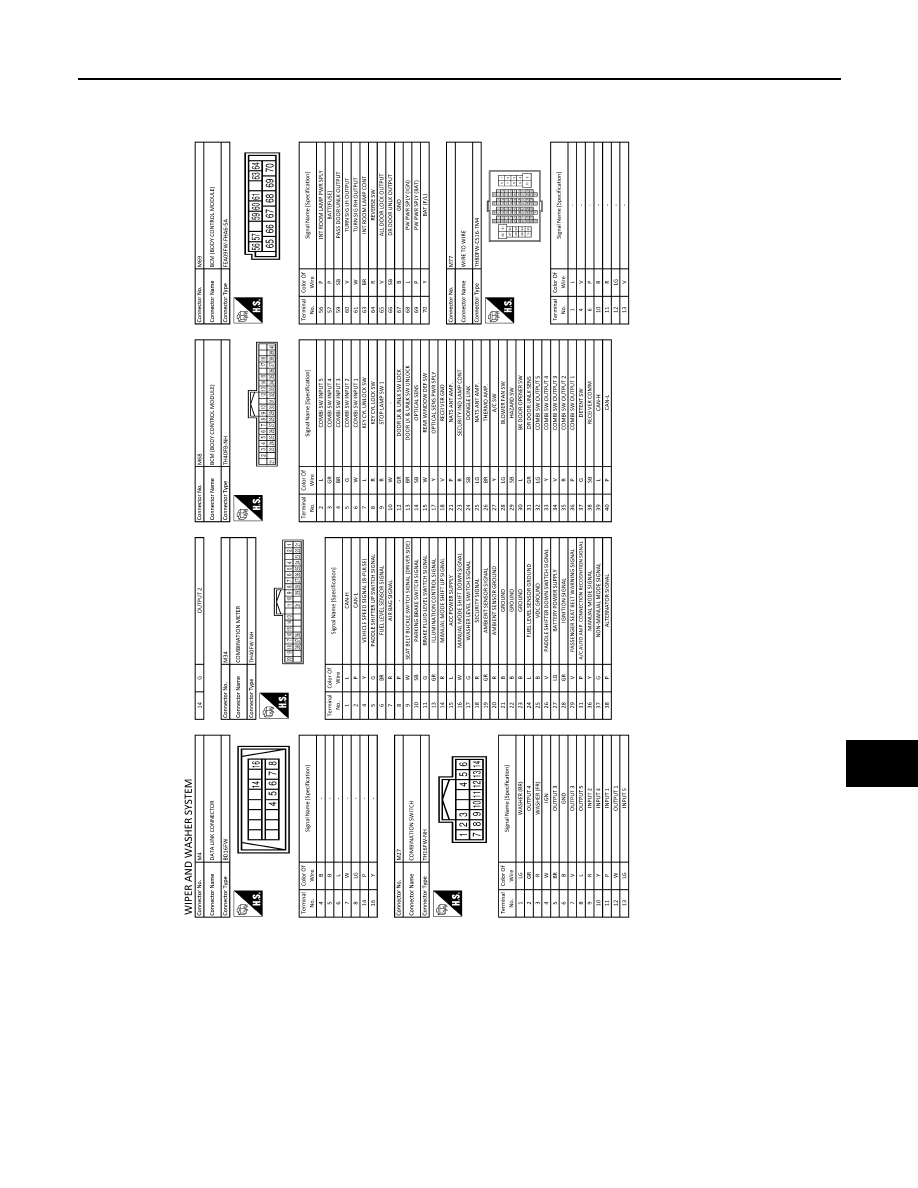

WIPER AND WASHER SYSTEM

WW-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

JRLWF5348GB

WW-26

< WIRING DIAGRAM >

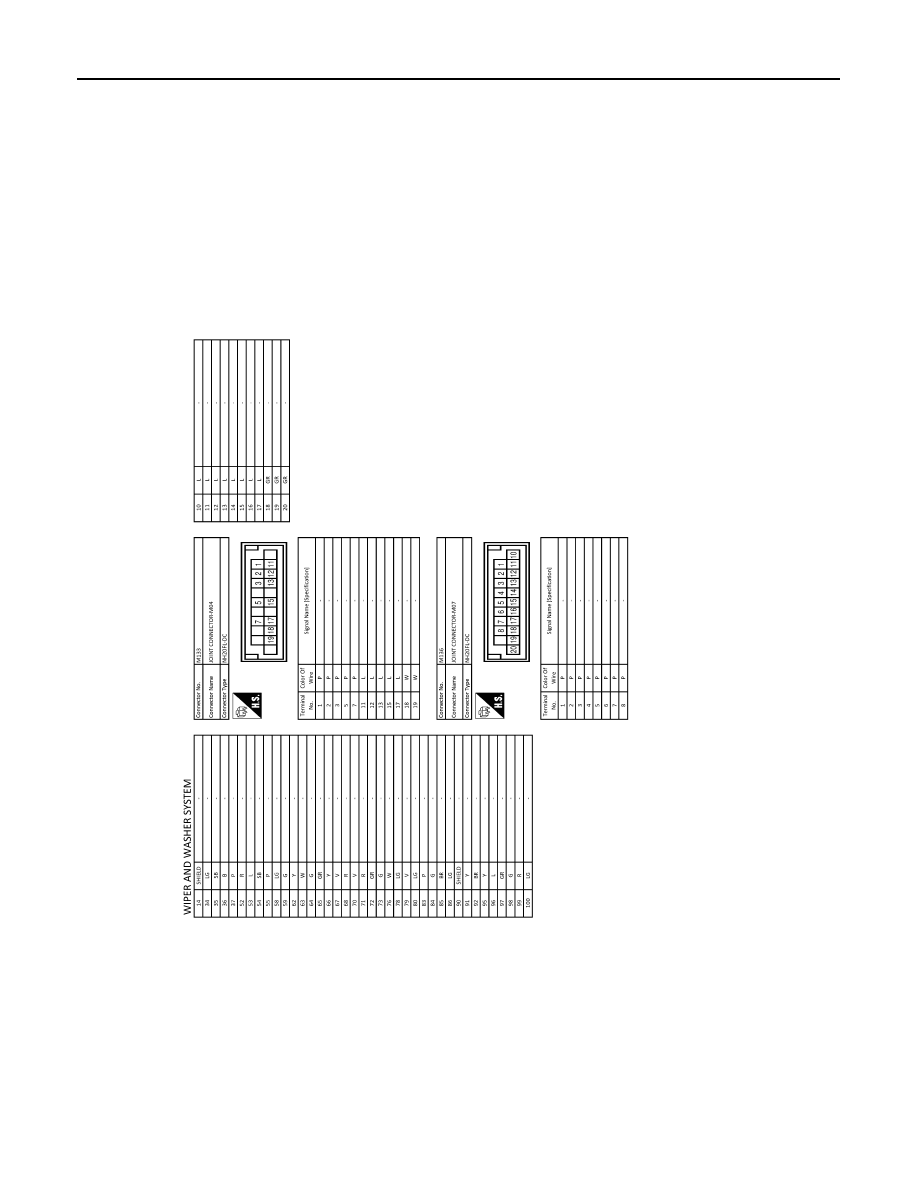

WIPER AND WASHER SYSTEM

JRLWF5349GB

DIAGNOSIS AND REPAIR WORK FLOW

WW-27

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

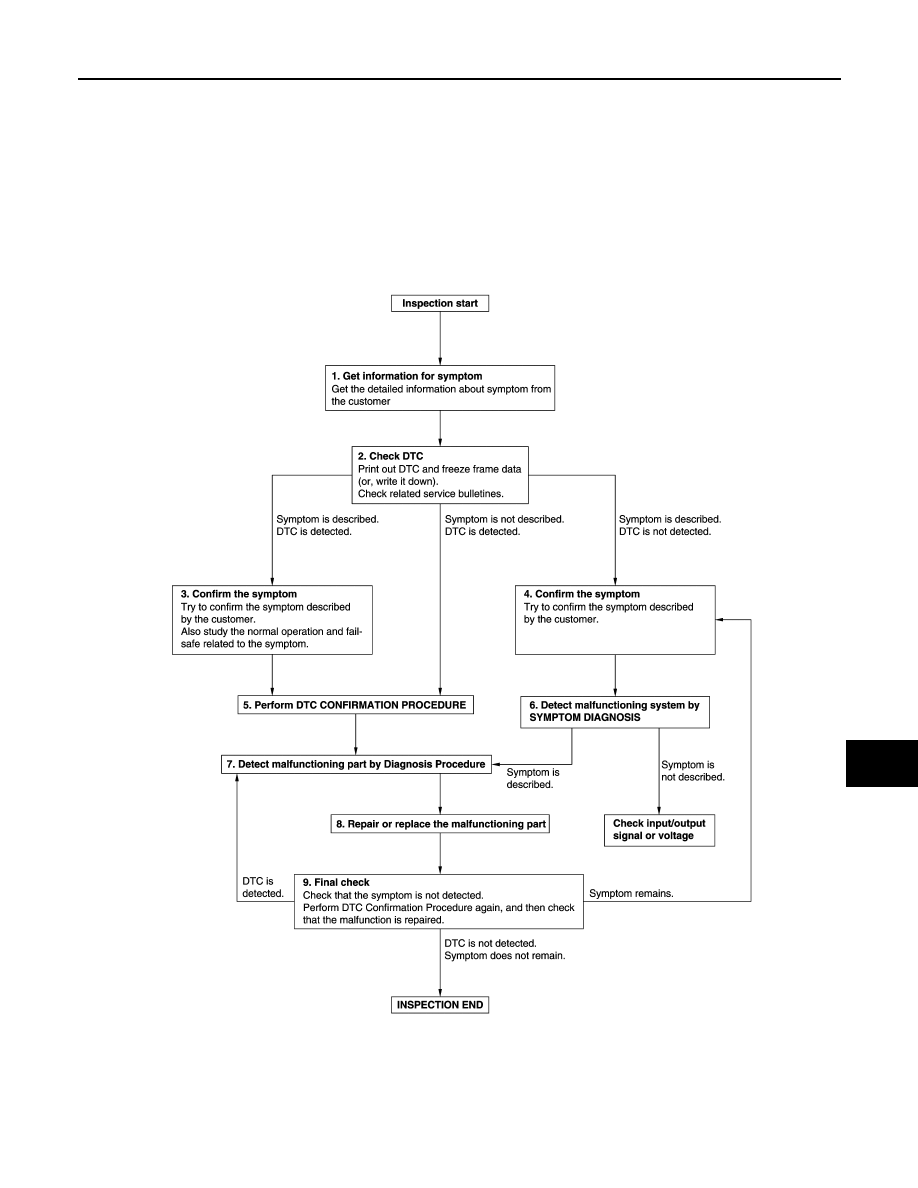

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000012197051

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB
