WW-20

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 second
intervals.

Fog

Operates the front fog lamp relay.

Test item

Operation

Description

BCM, IPDM E/R

WW-21

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000012197049

ECU

Reference

BCM

BCS-39, "Reference Value"

BCS-60, "Fail-safe"

BCS-61, "DTC Inspection Priority Chart"

BCS-62, "DTC Index"

IPDM E/R

PCS-17, "Reference Value"

PCS-23, "Fail-safe"

PCS-24, "DTC Index"

WW-22

< WIRING DIAGRAM >

WIPER AND WASHER SYSTEM

WIRING DIAGRAM

WIPER AND WASHER SYSTEM

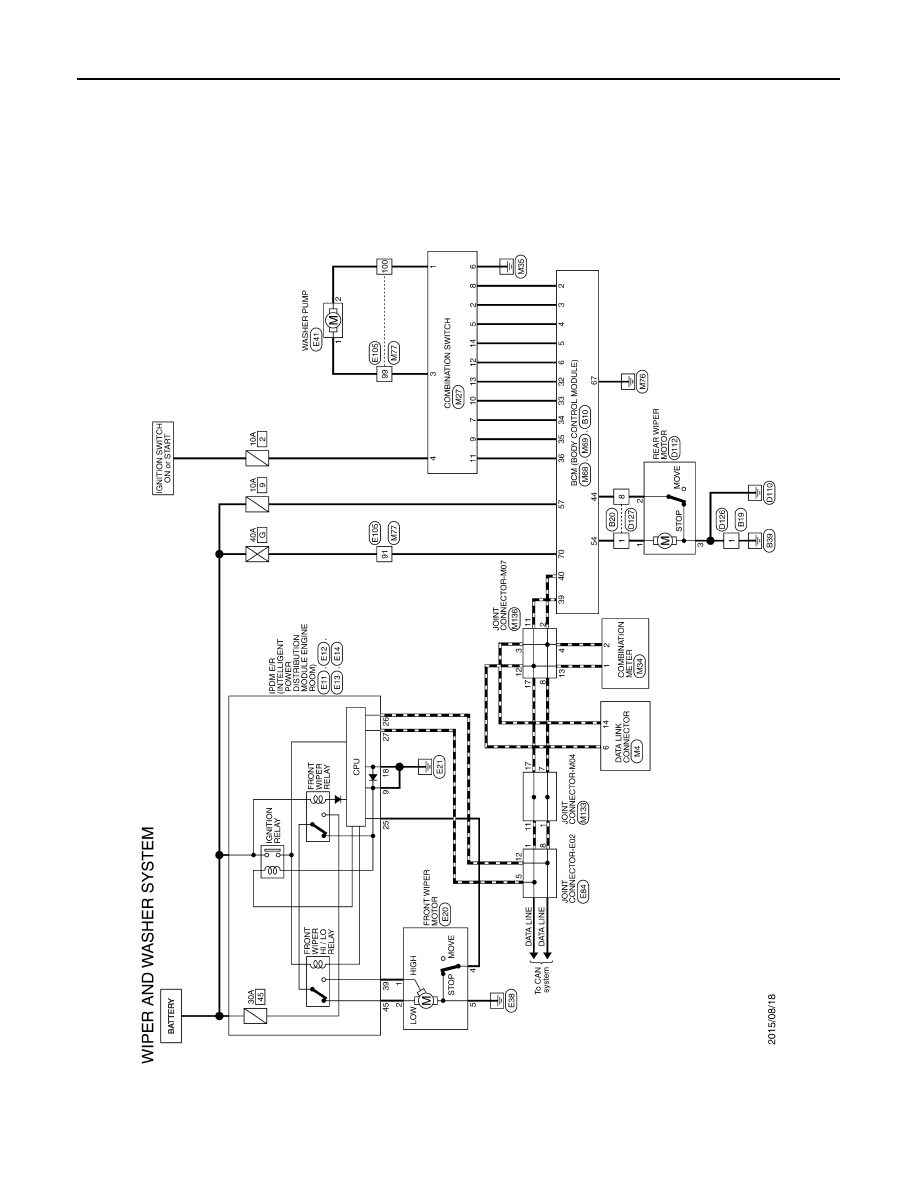

Wiring Diagram - WIPER AND WASHER SYSTEM -

INFOID:0000000012197050

JRLWF5345GB

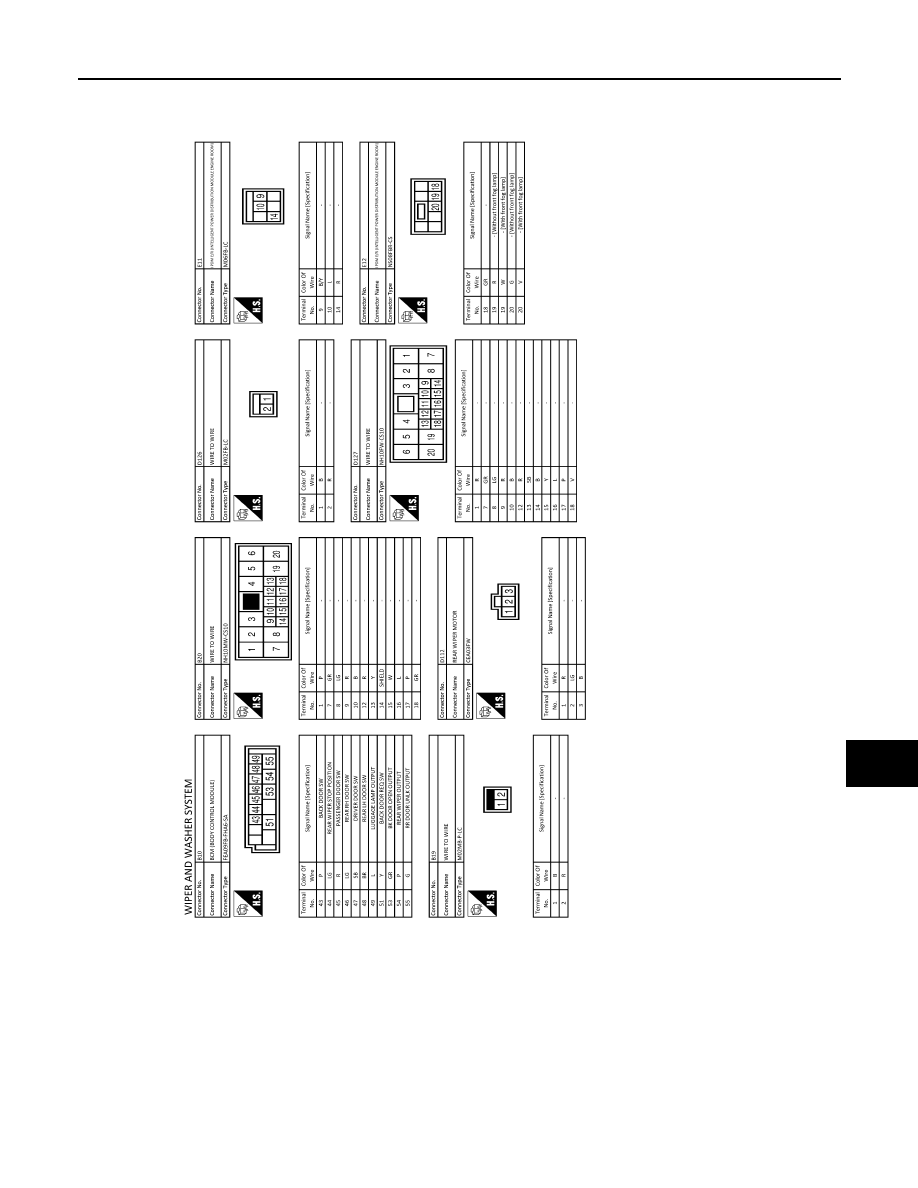

WIPER AND WASHER SYSTEM

WW-23

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

JRLWF5346GB
