WCS

COMBINATION METER

WCS-29

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ENGINE SPEED
[B2267]

• If TCM continuously transmits abnormal engine speed signals for 2 seconds or

more (CVT models).

• If ECM continuously transmits abnormal engine speed signals for 2 seconds or

more (M/T models).

MWI-51,
"Diagnosis
Procedure"

WATER TEMP
[B2268]

If ECM continuously transmits abnormal engine coolant temperature signals for 60
seconds or more.

MWI-52,
"Diagnosis
Procedure"

Display contents of CONSULT

Diagnostic item is detected when...

Refer to

WCS-30

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000012201479

ECU

Reference

BCM

BCS-39, "Reference Value"

BCS-60, "Fail-safe"

BCS-61, "DTC Inspection Priority Chart"

BCS-62, "DTC Index"

WCS

WARNING CHIME SYSTEM

WCS-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

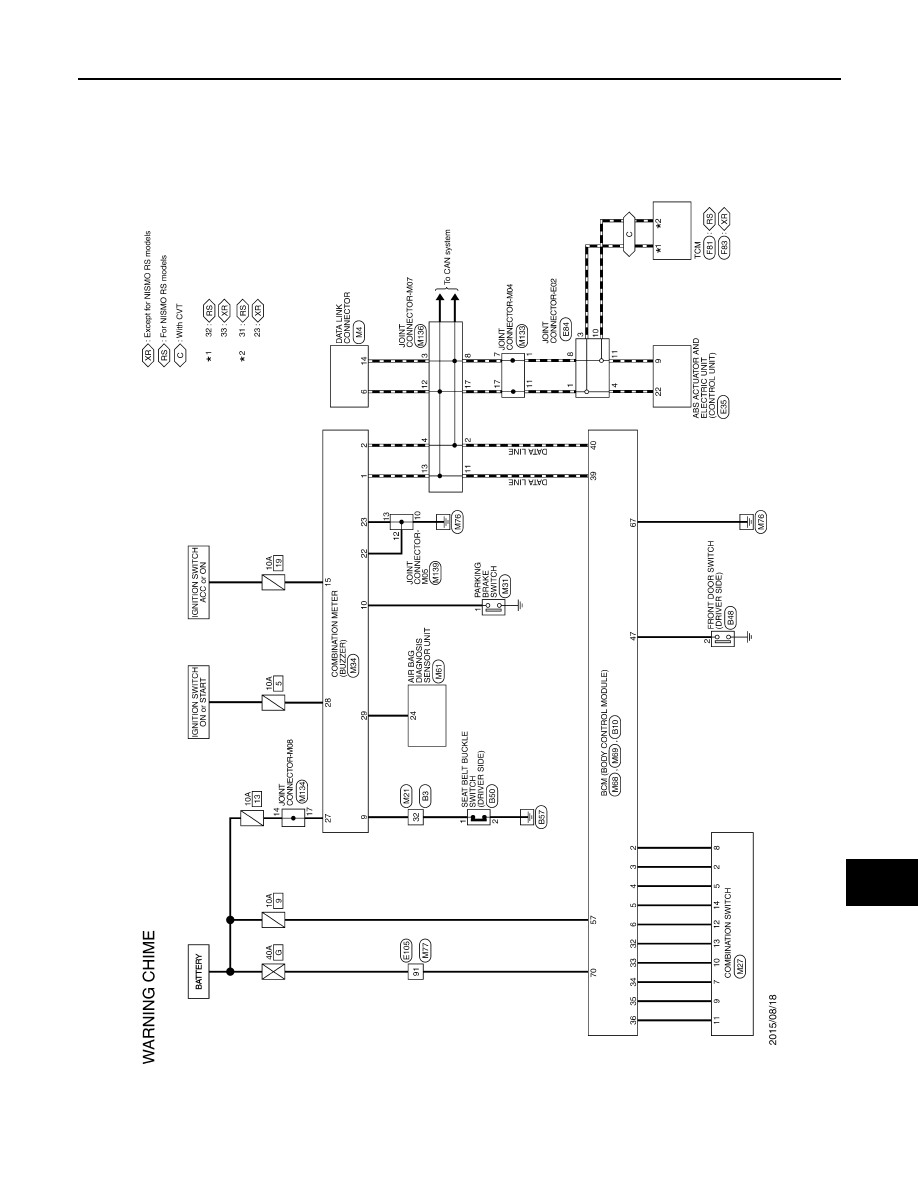

WIRING DIAGRAM

WARNING CHIME SYSTEM

Wiring Diagram

INFOID:0000000012201480

JRNWF0721GB

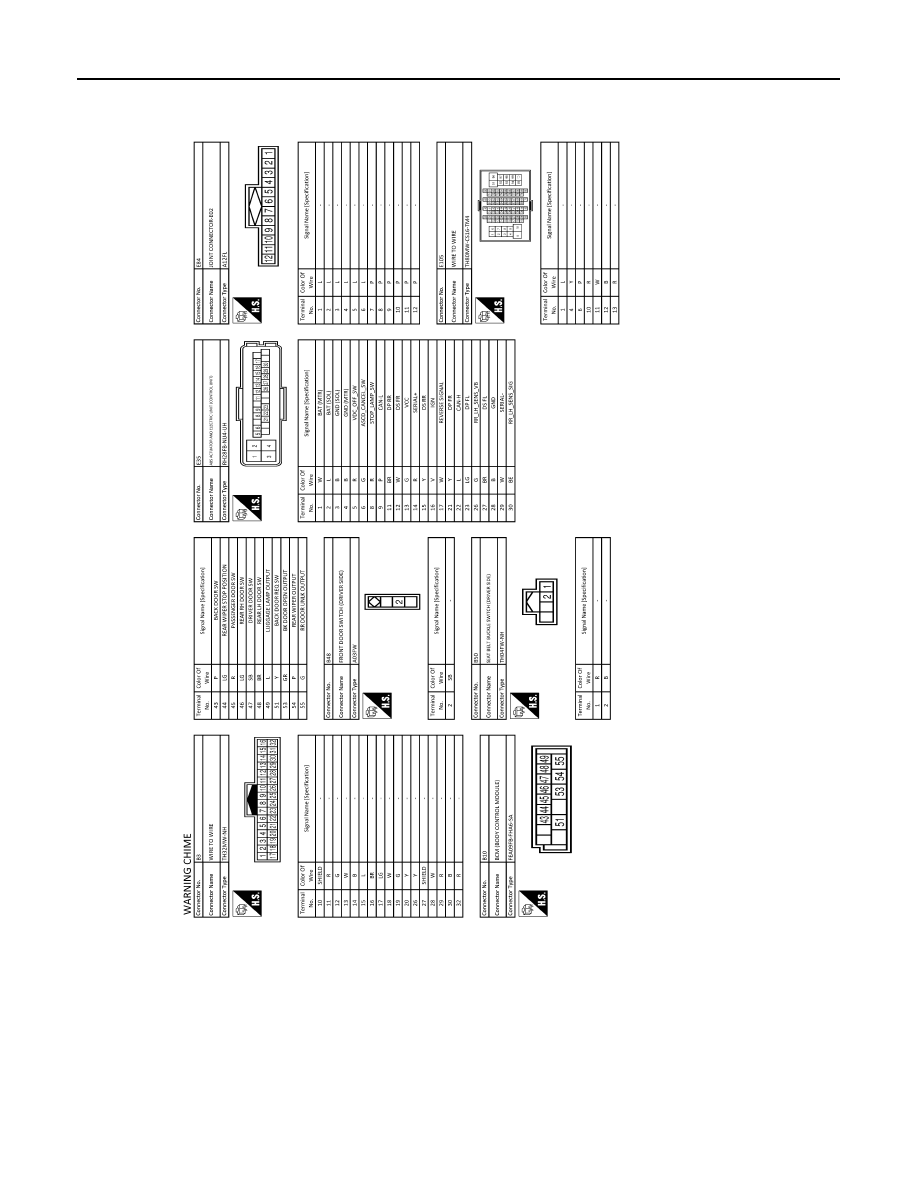

WCS-32

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

JRNWF0722GB
