Nissan Juke F15. Manual - part 1358





WCS

COMBINATION METER

WCS-21

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000012926224

VALUES ON THE DIAGNOSIS TOOL

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Input value of vehicle speed signal
(CAN communication signal)
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Output value of vehicle speed signal
(CAN communication signal)
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

ODO OUTPUT
[km/h or mph]

Ignition switch
ON

Output value of odometer signal (CAN
communication signal)

TACHO METER
[rpm]

Ignition switch
ON

Engine running

Input value of engine speed signal
(CAN communication signal)
NOTE:
8191.875 is displayed when the mal-
function signal is received

FUEL METER
[L]

Ignition switch
ON

Input value of fuel level sensor signal

W TEMP METER
[

°C]

Ignition switch
ON

Input value of engine coolant tempera-
ture signal (CAN communication sig-
nal)
NOTE:
215 is displayed when the malfunction
signal is input

FUEL CAP W/L

Ignition switch
ON

Fuel filler cap warning display ON

On

Fuel filler cap warning display OFF

Off

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

VDC/TCS IND

Ignition switch
ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

SLIP IND

Ignition switch
ON

VDC warning lamp ON

On

VDC warning lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

DOOR W/L

Ignition switch
ON

Door open warning lamp ON

On

Door open warning lamp OFF

Off

HI-BEAM IND

Ignition switch
ON

High-beam indicator lamp ON

On

High-beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

WCS-22

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

FR FOG IND

Ignition switch
ON

Front fog lamp indicator lamp ON

On

Front fog lamp indicator lamp OFF

Off

LIGHT IND

Ignition switch
ON

Tail lamp indicator lamp ON

On

Tail lamp indicator lamp OFF

Off

OIL W/L

Ignition switch
ON

Oil pressure warning lamp ON

On

Oil pressure warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction indicator lamp ON

On

Malfunction indicator lamp OFF

Off

GLOW IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

C-ENG2 W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CRUISE IND

Ignition switch
ON

CRUISE indicator lamp ON

On

CRUISE indicator lamp OFF

Off

SET IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CVT IND

Ignition switch
ON

CVT indicator ON

On

CVT indicator OFF

Off

4WD W/L

Ignition switch
ON

AWD warning lamp ON

On

AWD warning lamp OFF

Off

4WD LOCK IND

Ignition switch
ON

AWD mode indicator lamp (AWD-V) ON

On

AWD mode indicator lamp (AWD-V) OFF

Off

FUEL W/L

Ignition switch
ON

During low fuel warning indication

On

Other than the above

Off

AIR PRES W/L

Ignition switch
ON

Low tire pressure warning lamp ON

On

Other than the above

Off

KEY G/Y W/L

Ignition switch
ON

During Intelligent Key system malfunction
indication

On

Other than the above

Off

KEY KNOB W/L

Ignition switch
ON

SHIFT P warning lamp ON

On

SHIFT P warning lamp OFF

Off

EPS W/L

Ignition switch
ON

EPS warning lamp ON

On

EPS warning lamp OFF

Off

DPF W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

Monitor Item

Condition

Value/Status

WCS

COMBINATION METER

WCS-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

LCD

Ignition switch
LOCK or ACC

Engine start operation indicator lamp ON
(CVT models)

B&P N

Ignition switch
ON

Engine start operation indicator lamp ON
(CVT models)

B&P I

Ignition switch
LOCK or ACC

Engine start operation indicator lamp ON
(M/T models)

C&P N

Ignition switch
ON

Engine start operation indicator lamp ON
(M/T models)

C&P I

Ignition switch
LOCK

During P position warning indication

SFT P

Ignition switch
LOCK

During Intelligent Key low battery warning
indication

BATT

Ignition switch
ON

During take away warning indication

NO KY

Ignition switch
ON

During ACC warning indication

LK WN

SHIFT IND

Ignition switch
ON

Shift position indicator P display

P

Shift position indicator R display

R

Shift position indicator N display

N

Shift position indicator D display

D

Shift position indicator M1 display

M1

Shift position indicator M2 display

M2

Shift position indicator M3 display

M3

Shift position indicator M4 display

M4

Shift position indicator M5 display

M5

Shift position indicator M6 display

M6

Shift position indicator M7 display

M7

Shift position indicator M8 display

M8

O/D OFF SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

M RANGE SW

Ignition switch
ON

Selector lever in manual mode position

On

Other than the above

Off

NM RANGE SW

Ignition switch
ON

Selector lever in manual mode position

Off

Other than the above

On

AT SFT UP SW

Ignition switch
ON

Selector lever in + position

On

Other than the above

Off

AT SFT DWN SW

Ignition switch
ON

Selector lever in – position

On

Other than the above

Off

ST SFT UP SW

Ignition switch
ON

Paddle shifter switch up operation

On

Other than the above

Off

ST SFT DWN SW

Ignition switch
ON

Paddle shifter switch up operation

On

Other than the above

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Driver seat belt not fastened

On

Driver seat belt fastened

Off

Monitor Item

Condition

Value/Status

WCS-24

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

NOTE:

Some items are not available according to vehicle specification.

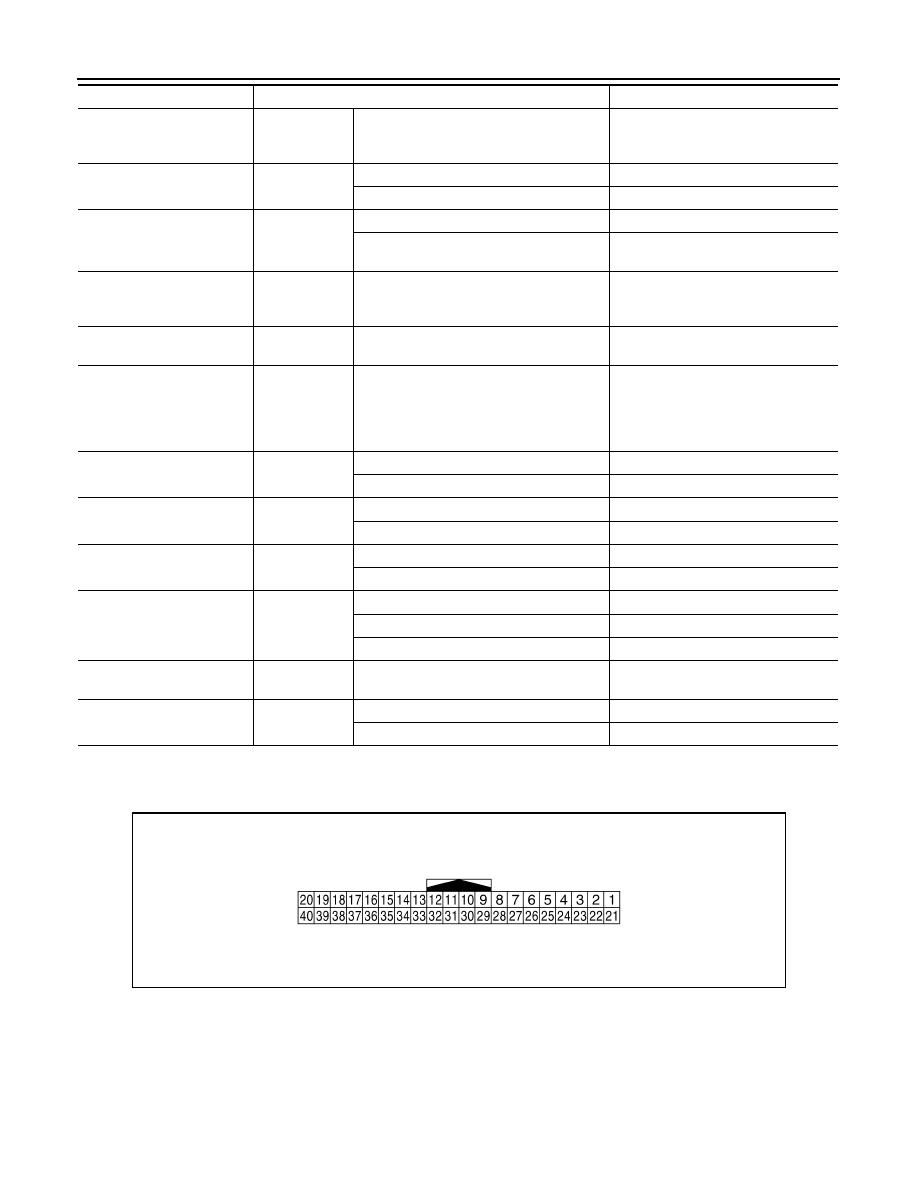

TERMINAL LAYOUT

PHYSICAL VALUES

BRAKE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

A/C AMP CONN

Ignition switch
ON

Other than the following

On

Receives A/C auto amp. connection recog-
nition signal

Off

PASS BUCKLE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

DISTANCE
[km]

Ignition switch
ON

Distance to empty calculated by com-
bination meter

OUTSIDE TEMP
[

°C or °F]

Ignition switch
ON

Input value of ambient sensor signal
(CAN communication signal)
NOTE:
This may not match the indicated value
on the information display.

FUEL LOW SIG

Ignition switch
ON

During low fuel warning indication

On

Other than above

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

ASCD SPD BLNK

Ignition switch
ON

Set vehicle speed indicator blinking

On

Set vehicle speed indicator not blinking

Off

ASCD STATUS

Ignition switch
ON

ASCD and speed limiter system OFF

Off

ASCD system ON

ASCD

ASCD set vehicle speed

CRUISE

ASCD REQ SPD
[km/h or Off]

Ignition switch
ON

While driving

Same value as ASCD or speed limiter
set vehicle speed

TPMS PRESS L

Ignition switch
ON

Low tire pressure warning display ON

On

Low tire pressure warning display OFF

Off

Monitor Item

Condition

Value/Status

JSNIA0623ZZ
