CONTROL CABLE

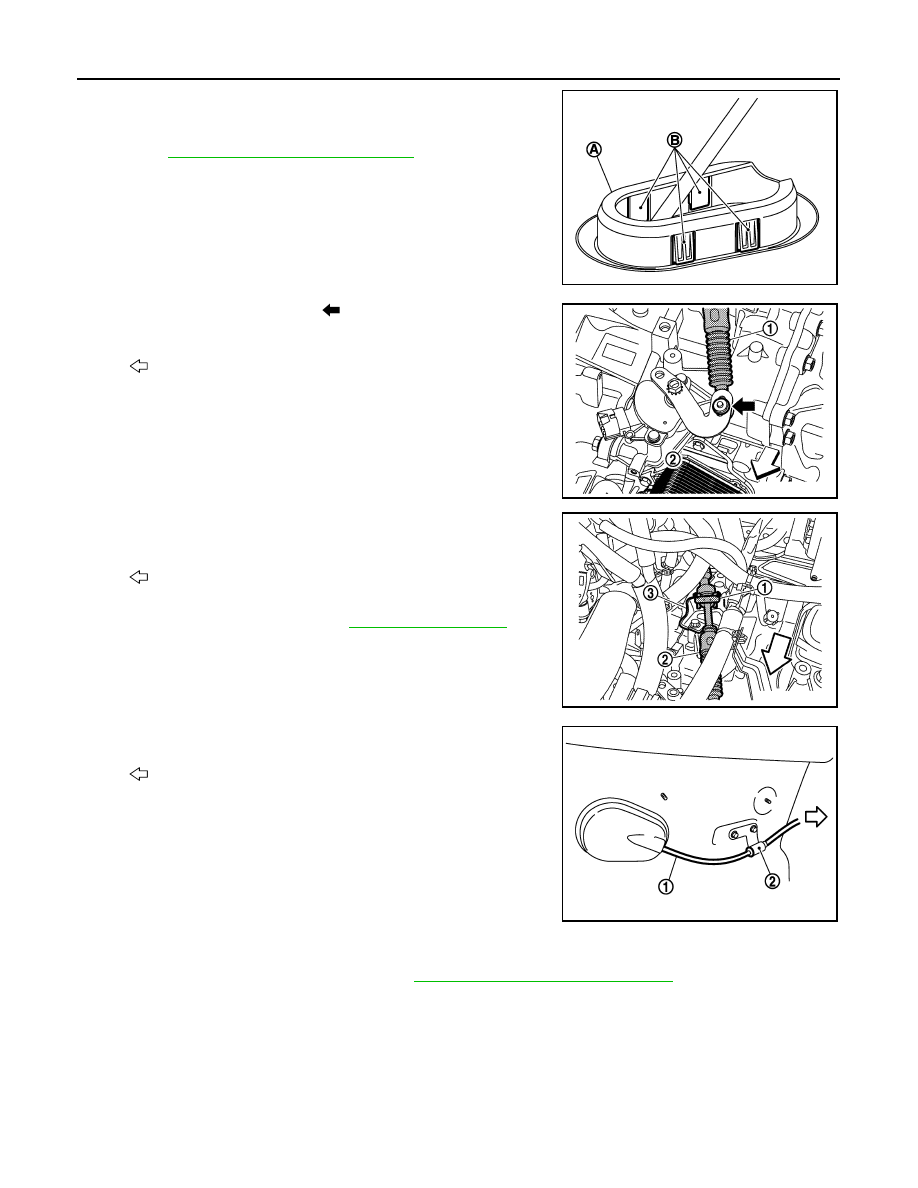

4. Disengage the pawls (B) of the grommet (A), and pull down-

wards to remove.

5. Remove the battery and battery mounting bracket assembly.

Refer to

PG-105, "Removal and Installation"

.

6. Remove the control cable nut (

) and remove the control cable

(1) from the manual lever (2).

7. Remove the lock plate (1) and remove the control cable (2) from

bracket (3).

8. Remove center muffler from the mounting rubber and lower the

center muffler downward. Refer to

EX-5, "Exploded View"

.

9. Remove heat plate.

10. Remove the control cable (1) from the bracket (2).

11. Remove the control cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.

• After installing control cable, adjust it. Refer to

TM-551, "Inspection and Adjustment"

.

JSDIA1809ZZ

: Vehicle front

JSDIA6039ZZ

: Vehicle front

JSDIA5184ZZ

:Vehicle front

JPDIA0107ZZ

CONTROL CABLE

TM-551

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

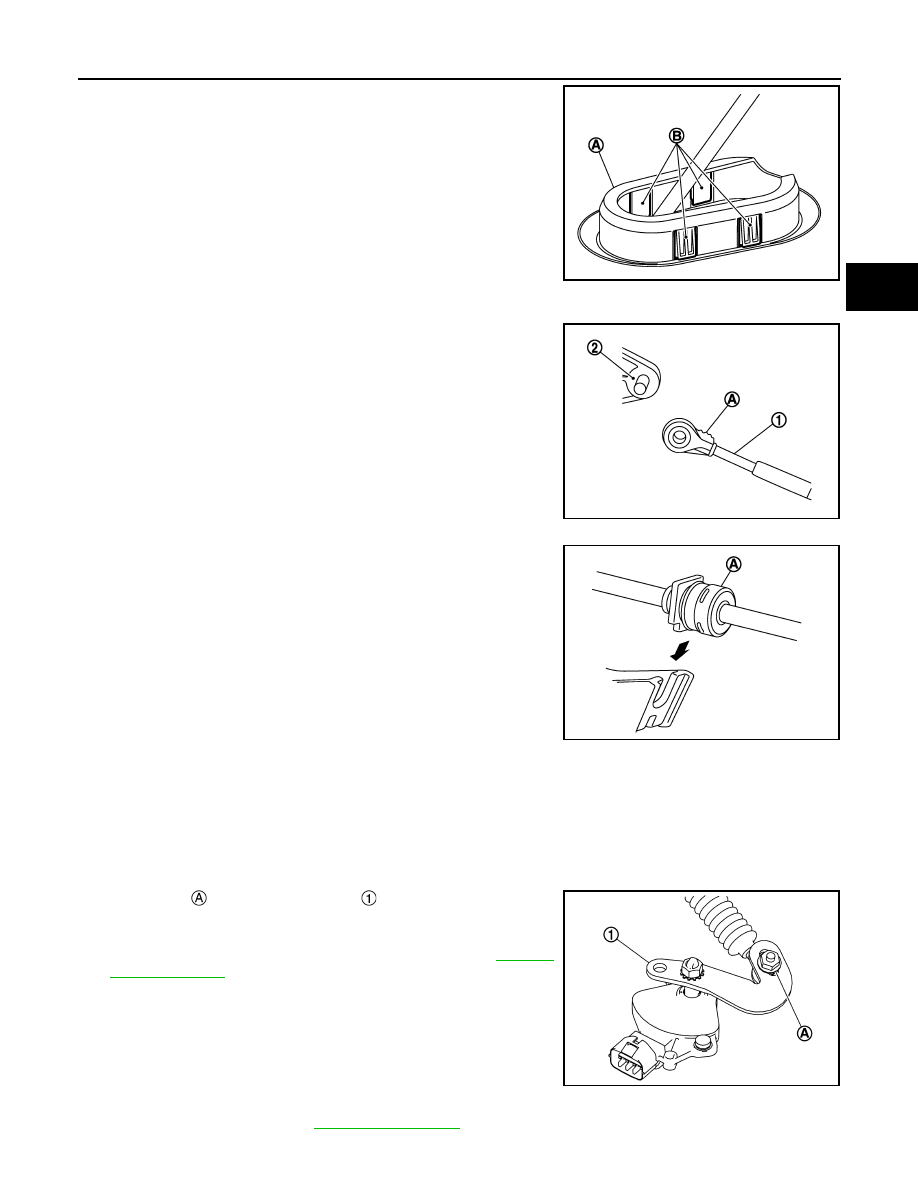

• From below the vehicle, press the grommet (A) into place until the

pawls (B) make a click sound.

CAUTION:

• Place the grommet on the floor, then fasten it in place from

below the vehicle.

• Check that pulling down on the grommet does not discon-

nect it.

• Pay attention to the following when connecting the control cable to the CVT shift selector.

1. When connecting the control cable (1) to the CVT shift selector

assembly (2), face the grooved surface of the rib (A) up and

insert the control cable until it stops.

2. Install the socket (A) onto the CVT shift selector.

CAUTION:

• Place the socket onto the CVT shift lever, then fasten it in

place from above.

• Check that the pulling on the socket does not disconnect

it.

Inspection and Adjustment

INFOID:0000000012201243

ADJUSTMENT OF CONTROL CABLE

1. Shift the selector lever to the “P” position.

CAUTION:

Rotate the wheels at least a quarter turn and be certain the Park position mechanism is fully

engaged.

2. Loosen nut   and set manual lever   to the “P” position.

CAUTION:

Never apply force to the manual lever.

3. Tighten the nut to the specified torque. Refer to

TM-549,

"Exploded View"

.

CAUTION:

In tightening, fix the manual lever.

INSPECTION AFTER INSTALLATION

Check the CVT position. Refer to

TM-439, "Inspection"

.

JSDIA1809ZZ

JSDIA1624ZZ

JSDIA1810ZZ

JSDIA5177ZZ

TM-552

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

PADDLE SHIFTER

PADDLE SHIFTER

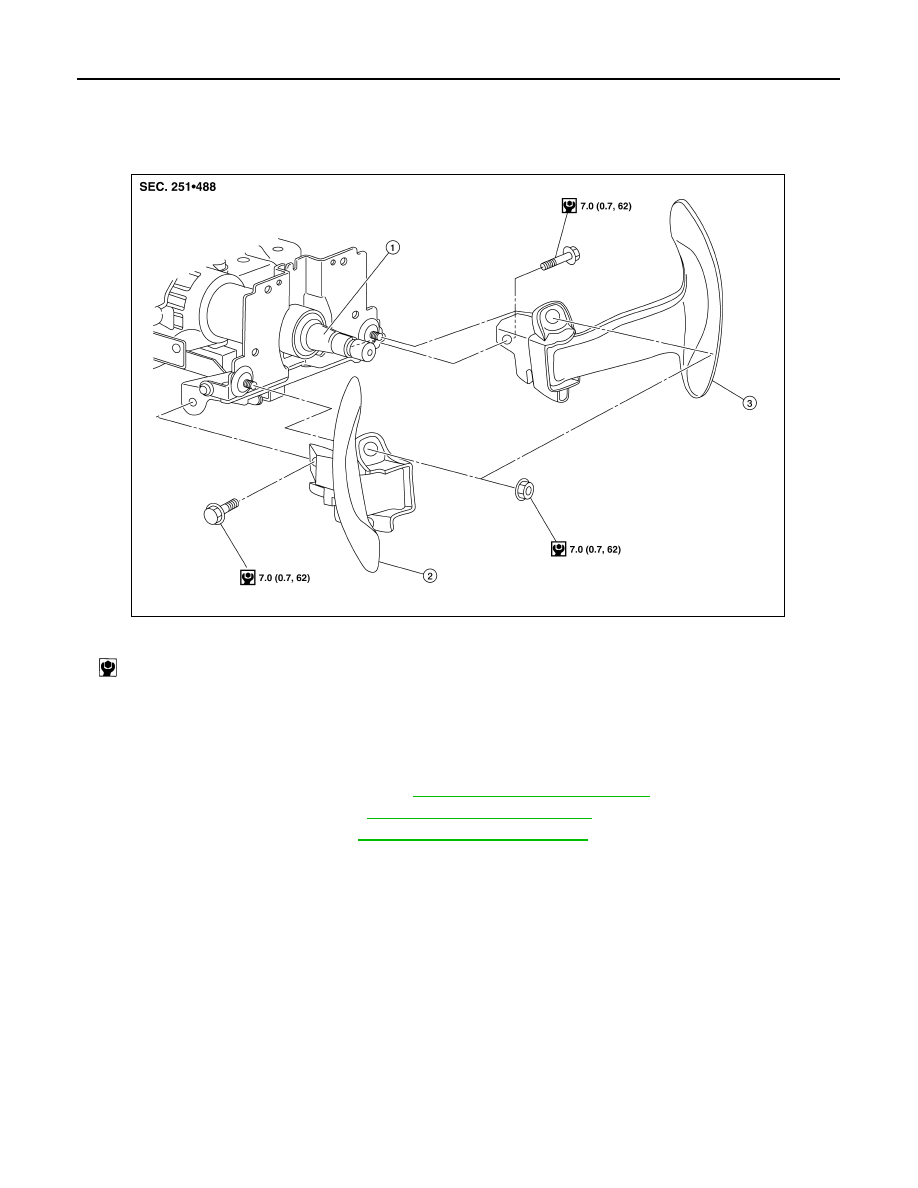

Exploded View

INFOID:0000000012201244

Removal and Installation

INFOID:0000000012201245

REMOVAL

1. Park the vehicle on a level surface.
2. Remove the driver air bag module. Refer to

SR-12, "Removal and Installation"

.

3. Remove the steering wheel. Refer to

ST-9, "Removal and Installation"

.

4. Remove the column cover. Refer to

IP-13, "Removal and Installation"

.

1.

Steering column assembly

2.

Paddle shifter (shift-down switch)

3.

Paddle shifter (shift-up switch)

: N·m (kg-m, in-lb)

AWDIA0557GB

PADDLE SHIFTER

TM-553

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

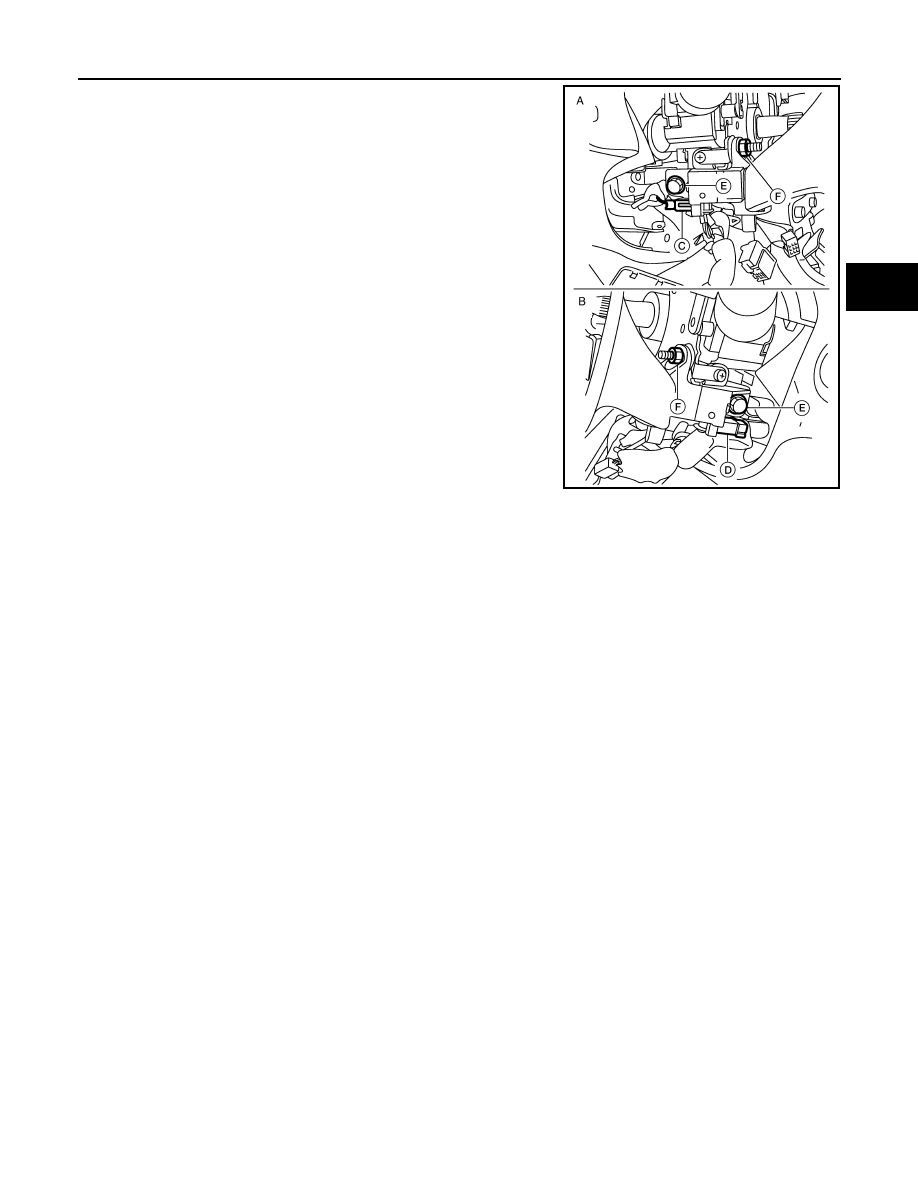

5. Remove the paddle shifter connector (C) and (D) from paddle

shifter.

6. Remove the paddle shifter mounting bolts (E) and nuts (F).
7. Remove the paddle shifter from the steering column assembly.

INSTALLATION

Installation is in the reverse order of removal.

A

: Side of paddle shifter (shift-down switch)

B

: Side of paddle shifter (shift-up switch)

AWDIA0563ZZ
