CVT SHIFT SELECTOR

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

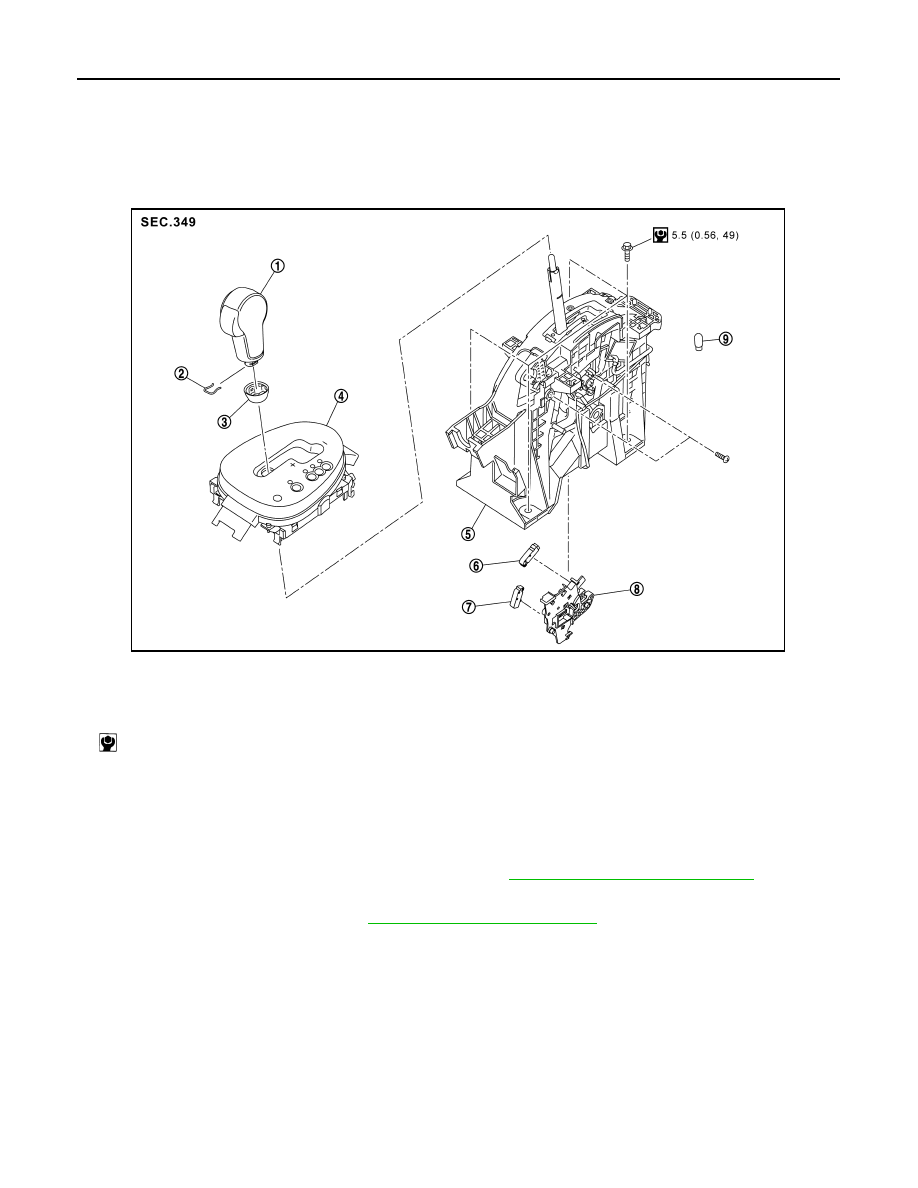

Exploded View

INFOID:0000000012201237

Removal and Installation

INFOID:0000000012201238

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.
1. Disconnect battery cable from negative terminal. Refer to

PG-105, "Removal and Installation"

.

2. Shift the selector lever to “N” position.
3. Remove the center console. Refer to

IP-24, "Removal and Installation"

.

4. Disconnect the CVT shift selector connector.
5. Shift the selector lever to “P” position.

1.

Selector lever knob

2.

Lock pin

3.

Knob cover

4.

Position indication panel

5.

CVT shift selector assembly

6.

Detent switch

7.

Park position switch

8.

Shift lock unit

9.

Position indicator bulb

:N·m (kg-m, in-lb)

JSDIA6663GB

CVT SHIFT SELECTOR

TM-547

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

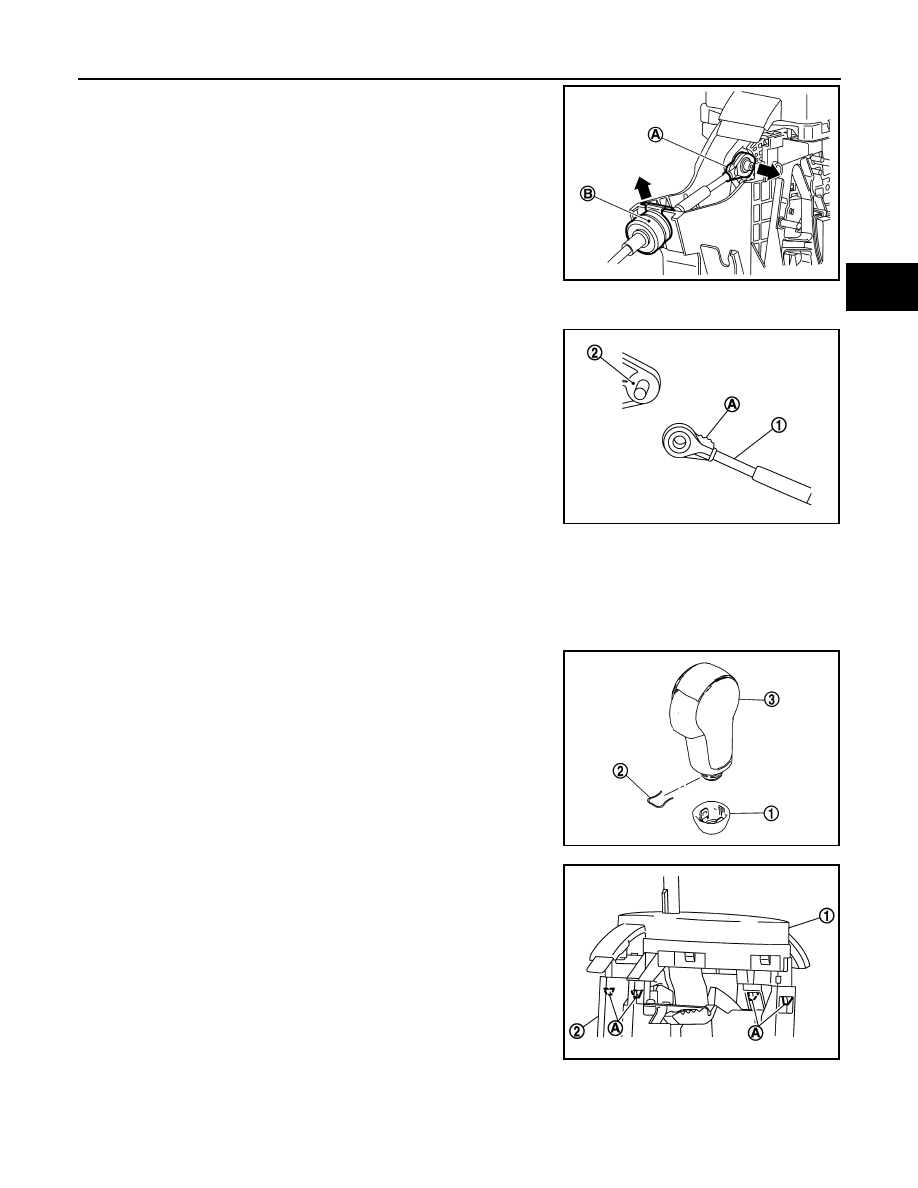

6. Disconnect the tip (A) of control cable and remove socket (B)

from the CVT shift selector assembly.

7. Remove the CVT shift selector assembly mounting bolts.
8. Remove the CVT shift selector assembly from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.

• When connecting the control cable (1) to the CVT shift selector

assembly (2), face the grooved surface of the rib (A) up and insert

the control cable until it stops.

Disassembly and Assembly

INFOID:0000000012201239

DISASSEMBLY

CAUTION:

Confirm the installation condition of wiring before disassembly.
1. Slide the selector lever knob cover (1) down.

CAUTION:

Never damage the knob cover.

2. Pull out the lock pin (2).
3. Pull the selector lever knob (3) and knob cover upwards to

remove them.

4. Remove the position lamp.

5. Disengage the hooks (A) (4 locations), and lift up the position

indication panel (1) to separate it from the CVT shift selector

assembly (2).

CAUTION:

Never damage the CVT shift selector assembly.

JSDIA4220ZZ

JSDIA1624ZZ

JSDIA2401ZZ

JSDIA1802ZZ

TM-548

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CVT SHIFT SELECTOR

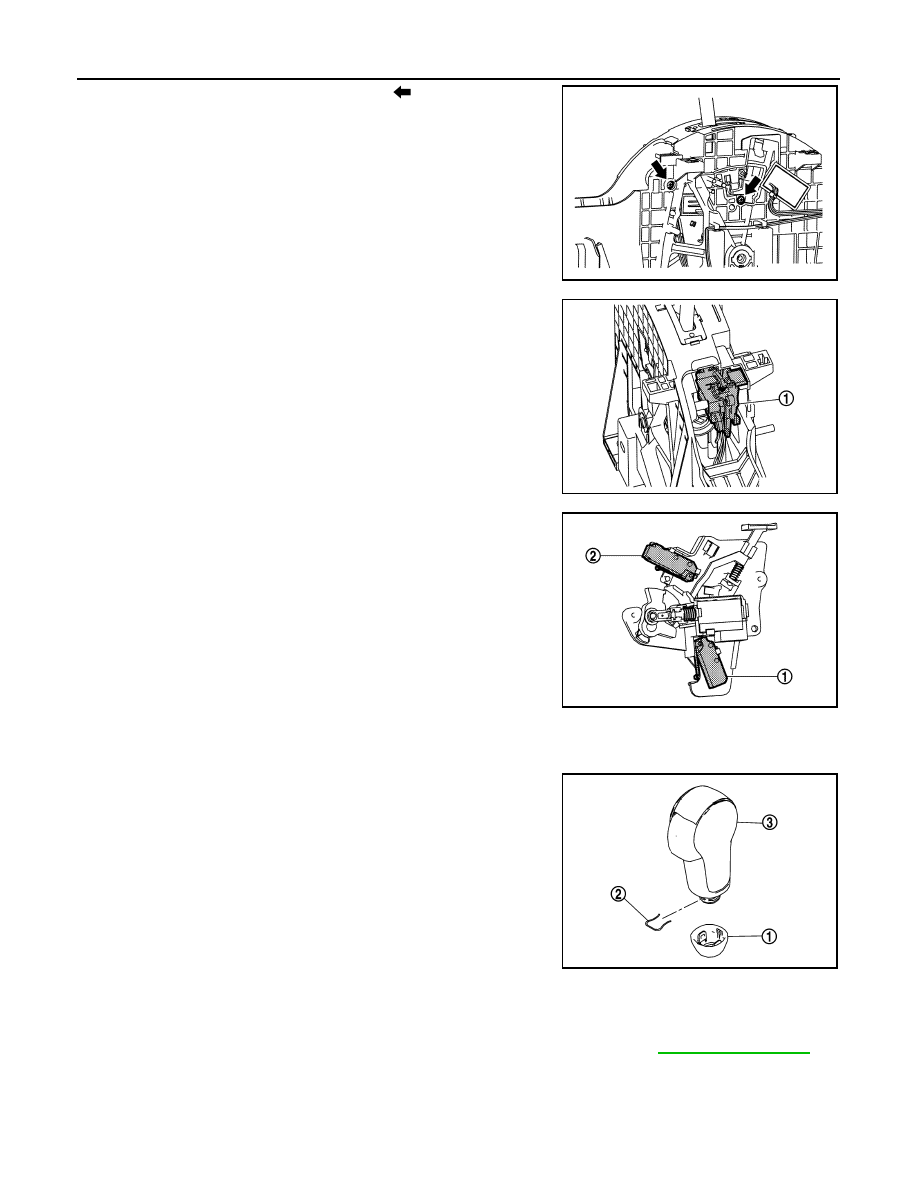

6. Remove shift lock unit mounting screws (

).

7. Remove the shift lock unit (1) from the CVT shift selector assem-

bly.

8. Disconnect shift lock solenoid harness connector, park position

switch harness connector, and detent switch harness connector.

9. Remove park position switch (1) and detent switch (2) from shift

lock unit.

CAUTION:

Never damage pawls.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

• Follow the procedure below and place the selector knob onto the CVT shift selector.

1. Install the lock pin (2) onto the selector lever knob (3).

2. Install the knob cover (1) onto the selector lever knob.

3. Press the selector lever knob onto the selector lever until it

clicks.

CAUTION:

• When pressing the selector lever knob onto the selector

lever, never press the selector lever knob button.

• Never strike the selector lever knob to press it into place.

Inspection

INFOID:0000000012201240

INSPECTION AFTER INSTALLATION

Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-439, "Adjustment"

.

JSDIA6479ZZ

JSDIA6480ZZ

JSDIA6481ZZ

JSDIA2401ZZ

CONTROL CABLE

TM-549

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL CABLE

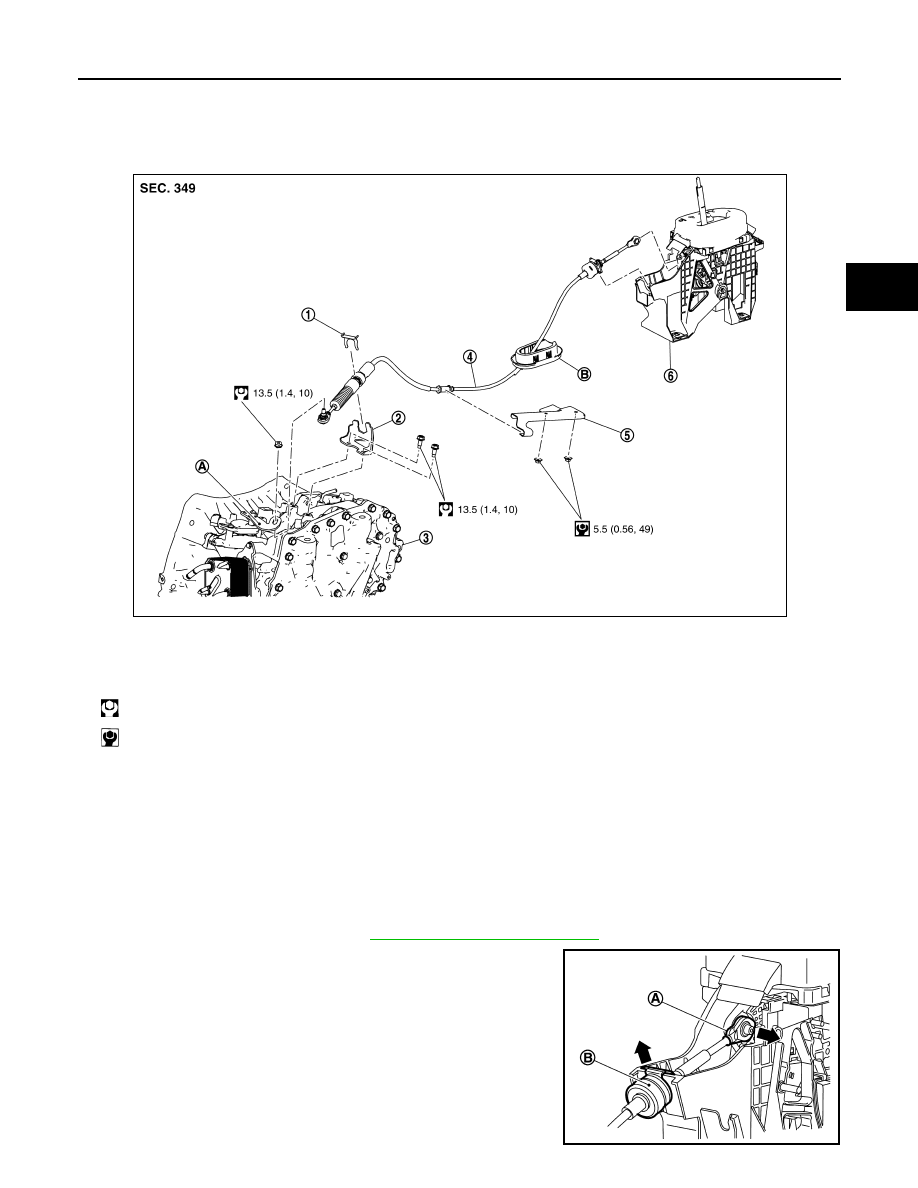

Exploded View

INFOID:0000000012201241

Removal and Installation

INFOID:0000000012201242

CAUTION:

Always apply the parking brake before performing removal and installation.

REMOVAL

1. Apply the parking brake.

CAUTION:

Make sure the vehicle cannot move with the parking brake applied.

2. Remove the center console. Refer to

IP-24, "Removal and Installation"

.

3. Disconnect the tip (A) of control cable and remove socket (B)

from the CVT shift selector assembly.

1.

Lock plate

2.

Bracket

3.

Transaxle assembly

4.

Control cable

5.

Bracket

6.

CVT shift selector assembly

A: Manual lever

B: Grommet

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSDIA6076GB

JSDIA4220ZZ
