TM-430

< BASIC INSPECTION >

[CVT: RE0F10D]

ADDITIONAL SERVICE WHEN REPLACING TCM

2. Turn ignition switch ON.
Does the shift position indicator display “P” at the same time when turning ON the ignition switch?

YES

>> GO TO 6.

NO

>> Check harness between battery and TCM harness connector terminal. Refer to

TM-507, "Diagno-

sis Procedure"

.

6.

WRITE TCM DATA (VEHICLE SPECIFICATIONS)

With CONSULT

1. Select “Programming”.

2. Perform programming according to the CONSULT display.

>> WORK END

7.

DETECT MALFUNCTIONING ITEM

Check the following items:

• Harness between the TCM and the ROM assembly inside the transaxle assembly is open or shorted.

• Disconnected, loose, bent, collapsed, or otherwise abnormal connector housing terminals
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

TM-431

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

Description

INFOID:0000000012201125

Perform the following work after the transaxle assembly is replaced. For work procedure, refer to

TM-431,

"Work Procedure"

.

WRITING TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, after replacing transaxle assembly, it is necessary to write new data in TCM.

ERASING OF CVT FLUID DEGRADATION LEVEL DATA

• TCM records the degradation level of the CVT fluid calculated from the vehicle driving status. Therefore, if

the transaxle assembly is replaced, it is necessary to erase the CVT fluid degradation level data recorded by

TCM.

Work Procedure

INFOID:0000000012201126

1.

CHECK THE SERIAL NUMBER

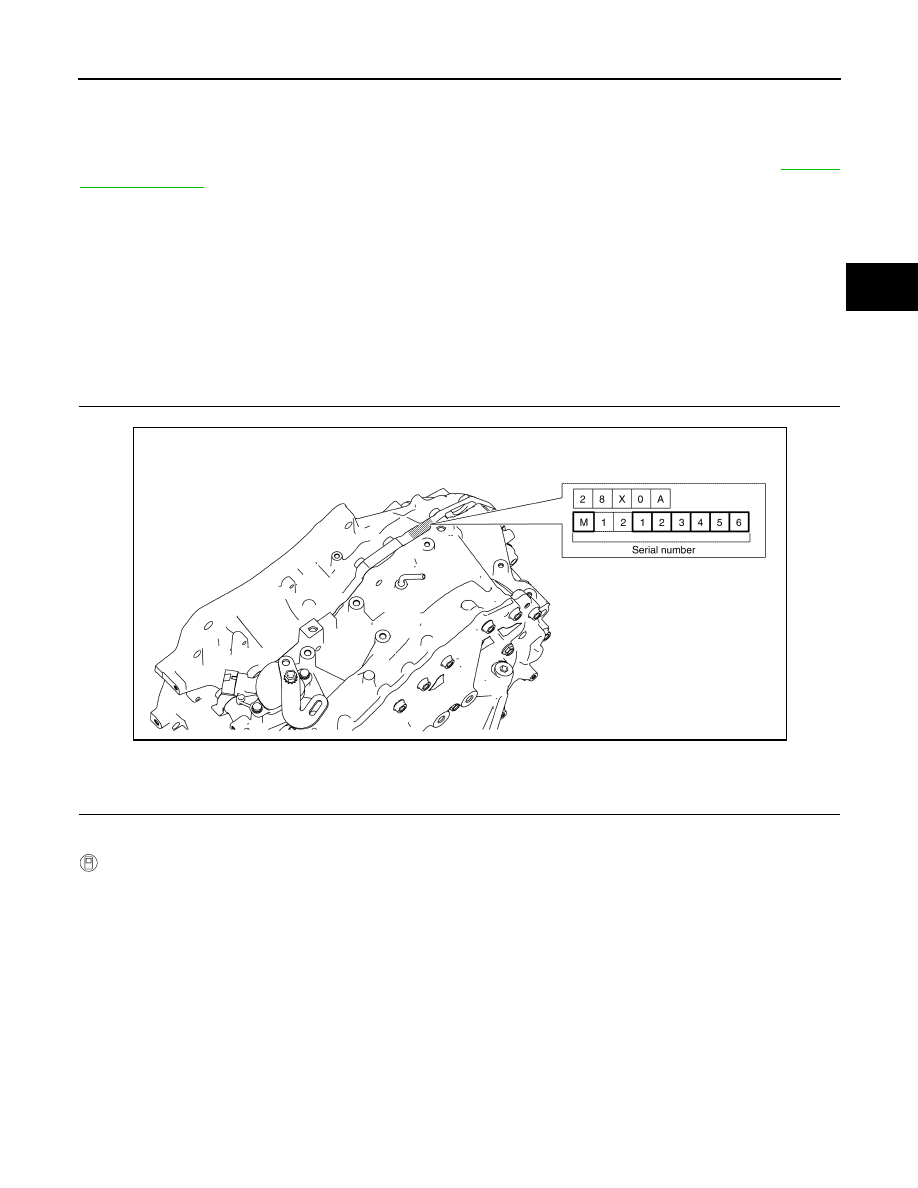

Write down the serial number of new transaxle assembly.

>> GO TO 2.

2.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:

Write data of new solenoid in TCM according to the following instructions:

With CONSULT

CAUTION:

When the work is interrupted, obtain data again from the supplied CD.

1. Shift the selector lever to the P position.

2. Turn ignition switch OFF and wait for 10 seconds.

3. Turn ignition switch ON.

4. Insert the supplied CD into CONSULT.

5. Select “Work Support” in “TRANSMISSION”.

6. Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.

7. Check that the serial number displayed on CONSULT screen and those written in the memo agree.

8. Write data in TCM according to the instructions on the CONSULT screen.

NOTE:

When writing is complete, the shift position indicator of the combination meter displays P.

>> GO TO 3.

JSDIA6075GB

TM-432

< BASIC INSPECTION >

[CVT: RE0F10D]

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

3.

ERASE CVT FLUID DEGRADATION LEVEL DATA

With CONSULT

1. Select “WORK SUPPORT” in “TRANSMISSION”.

2. Select “CONFORM CVTF DETERIORTN”.

3. Touch “Clear”.

>> WORK END

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEM-

BLY

TM-433

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE AS-
SEMBLY

Description

INFOID:0000000012201127

When replacing TCM and transaxle assembly as a set, perform the following work. For work procedure, refer

to

TM-433, "Work Procedure"

.

TCM PROGRAMMING

• Since vehicle specifications are not yet written in a new TCM, it is necessary to write them with CONSULT.

CAUTION:

When replacing TCM, save TCM data on CONSULT before removing TCM.

WRITING TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, after replacing TCM and transaxle assembly, it is necessary to write new data in TCM.

Work Procedure

INFOID:0000000012201128

1.

SAVE TCM DATA (VEHICLE SPECIFICATIONS)

With CONSULT

1. Turn ignition switch OFF.

2. Connect all of disconnected connectors.

3. Turn ignition switch ON.

4. Select “Re/programming, Configuration”.

5. Select “AT/CVT”.

NOTE:

If “AT/CVT” is not displayed and TCM data cannot be saved on CONSULT, GO TO 2.

6. Select “Programming”.

7. Save TCM data on CONSULT according to the CONSULT display.

>> GO TO 2.

2.

REPLACE TCM AND TRANSAXLE ASSEMBLY

1. Turn ignition switch OFF and wait for 10 seconds.

2. Replace TCM and transaxle assembly. Refer to

TM-554, "Removal and Installation"

 (TCM),

TM-577,

"Removal and Installation"

 (Transaxle assembly).

CAUTION:

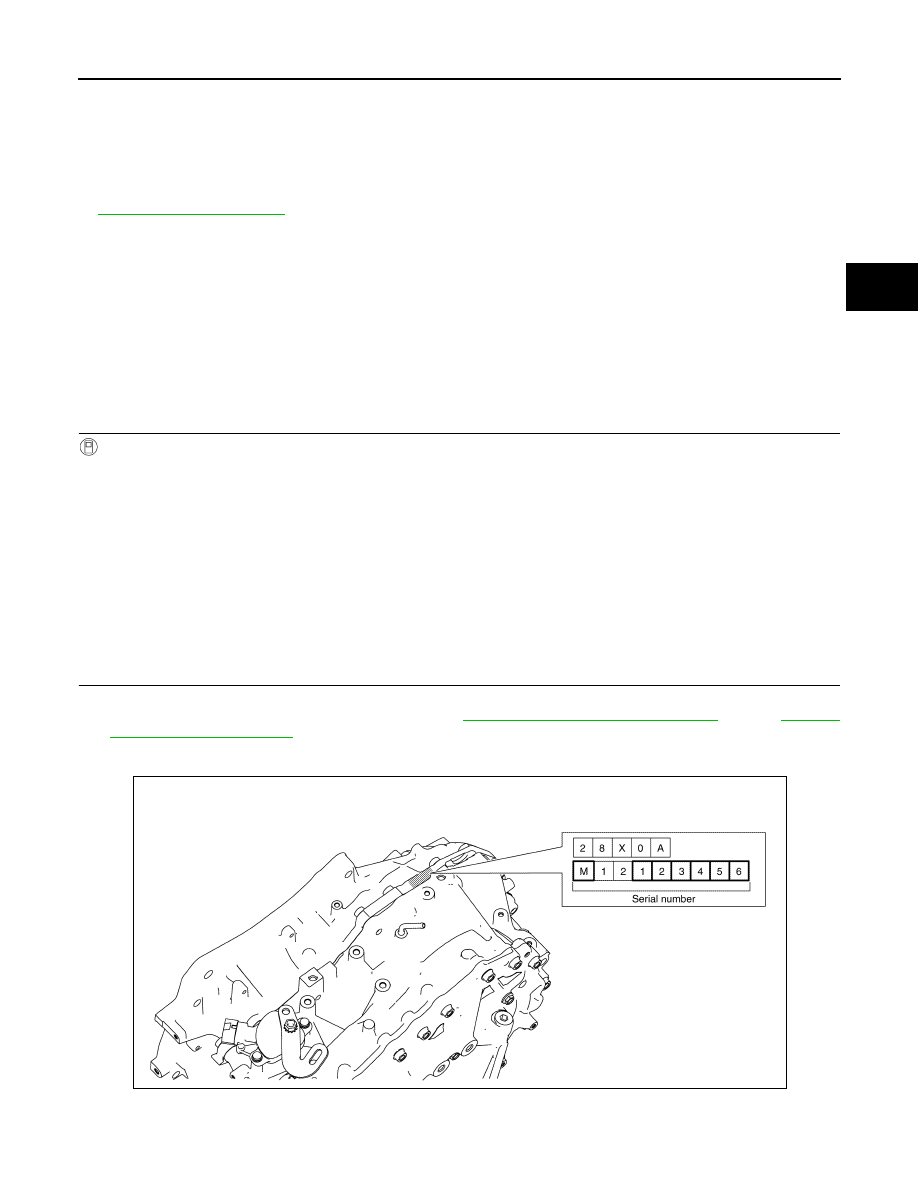

Write down the serial number of new transaxle assembly.

>> GO TO 3.

JSDIA6075GB
