< WIRING DIAGRAM >

[CVT: RE0F10D]

CVT CONTROL SYSTEM

JRDWC6630GB

CVT SHIFT LOCK SYSTEM

TM-423

< WIRING DIAGRAM >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

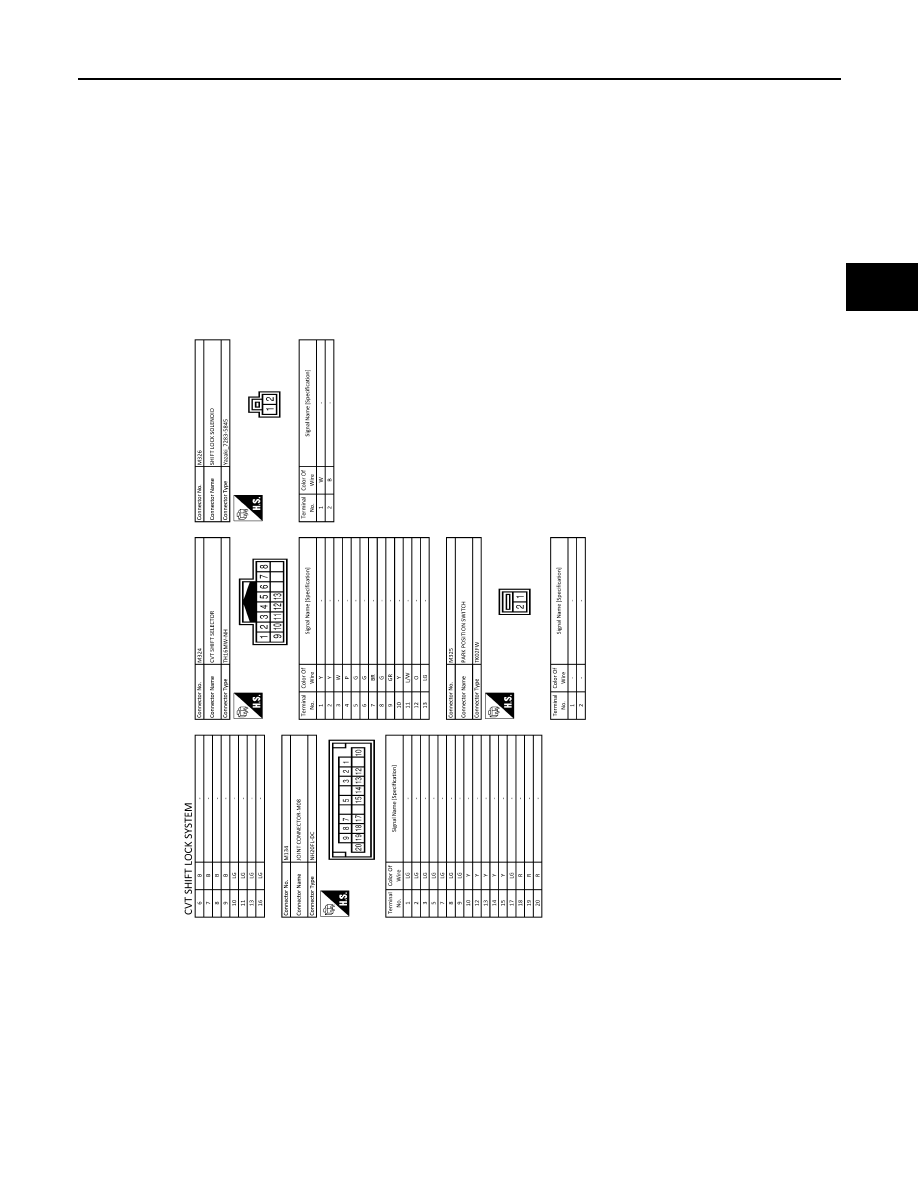

CVT SHIFT LOCK SYSTEM

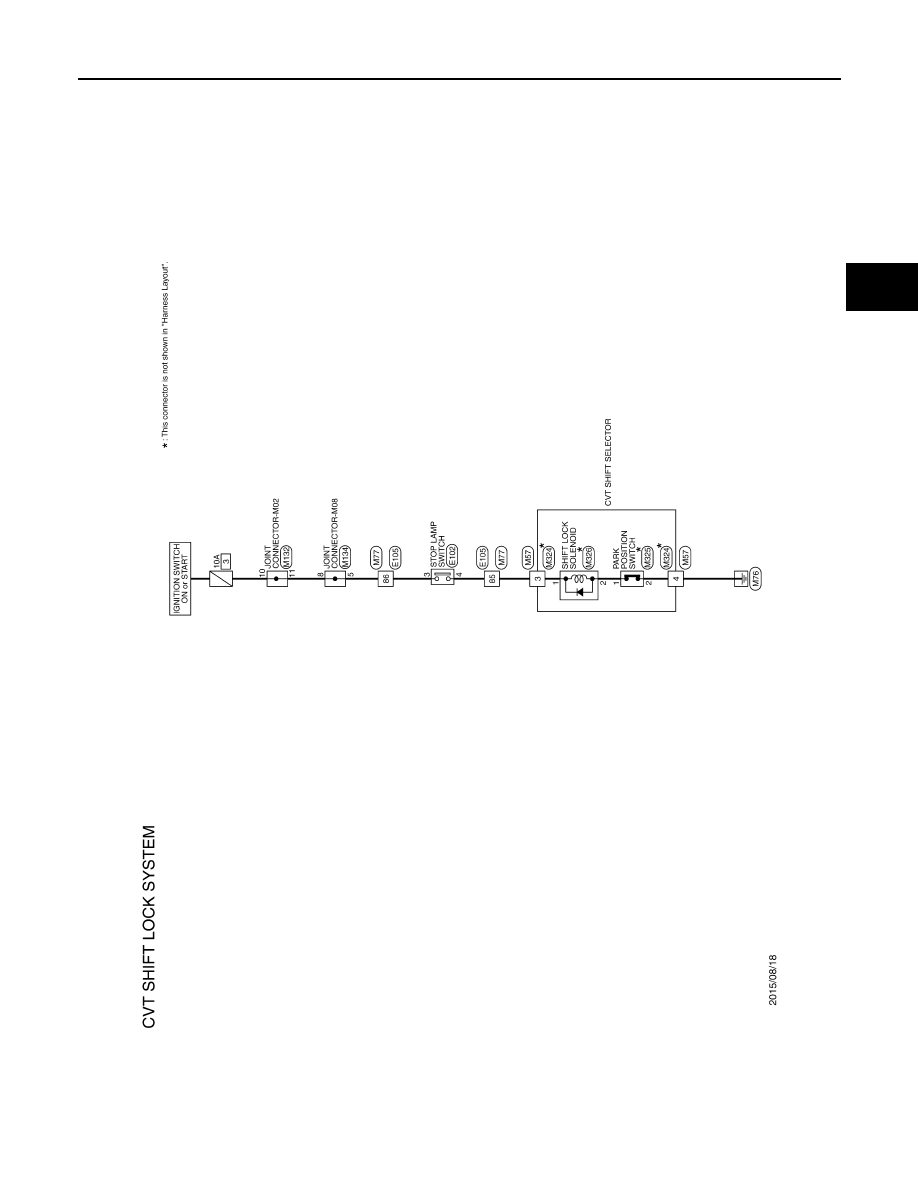

Wiring Diagram

INFOID:0000000012201120

JRDWC6639GB

TM-424

< WIRING DIAGRAM >

[CVT: RE0F10D]

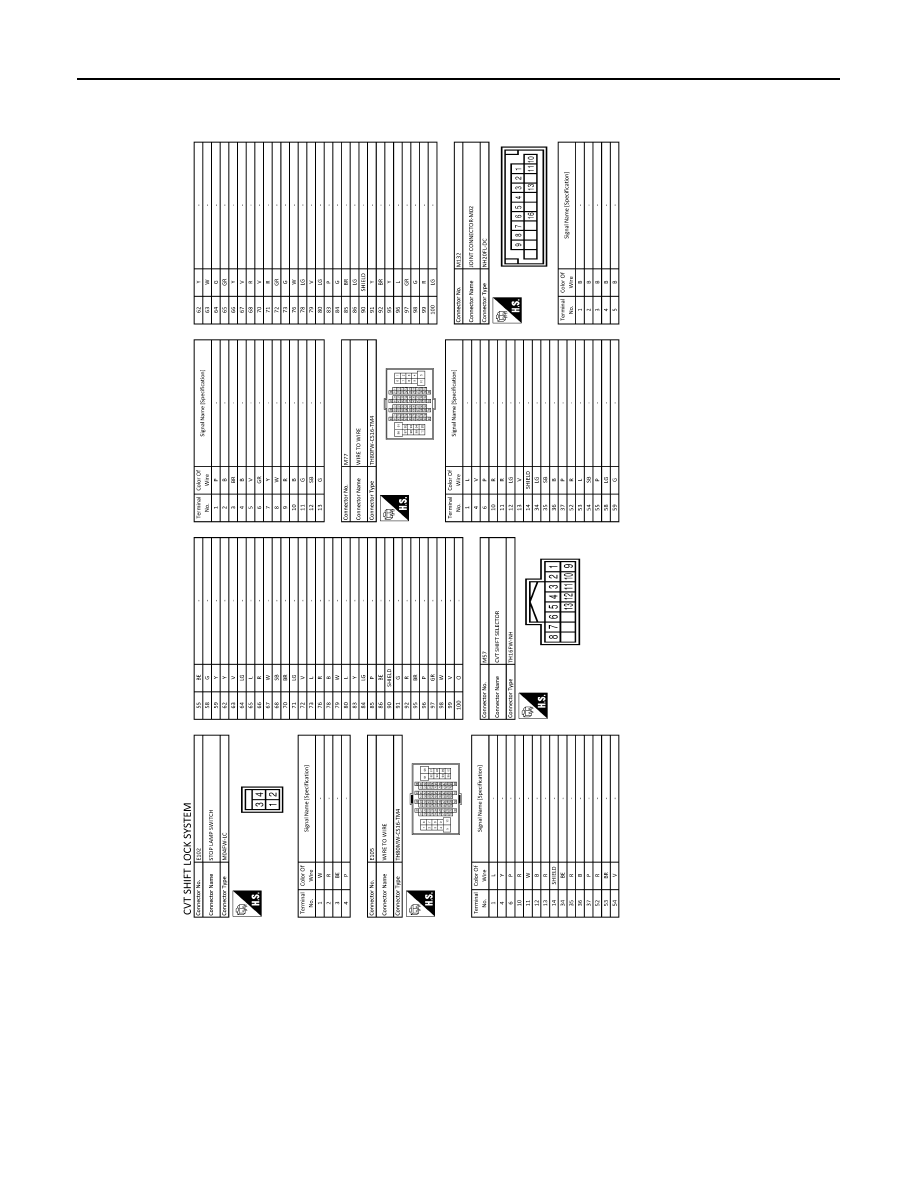

CVT SHIFT LOCK SYSTEM

JRDWC6640GB

CVT SHIFT LOCK SYSTEM

TM-425

< WIRING DIAGRAM >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

JRDWC6641GB
