TM-202

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

TCM

DTC Inspection Priority Chart

INFOID:0000000012200903

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

P1723

A malfunction is detected in primary pulley speed sensor side

• Acceleration is slow
• Re-start is slow after vehicle is stop by strong decel-

eration

• Manual mode is not activated
• Lock-up is not performed

A malfunction is detected in secondary pulley speed sensor

• Start  is  slow
• Acceleration is slow
• Re-start is slow after vehicle is stop by strong decel-

eration

• Manual mode is not activated
• Lock-up is not performed

P1726

—

Acceleration is slow

P1740

—

• Selector shock is large
• Lock-up is not performed

P1777

A malfunction is detected in low side (when vehicle is stopped)

• Vehicle speed is not increased
• Lock-up is not performed

A malfunction is detected in high side (during driving)

• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

U0100

—

• Start  is  slow
• Acceleration is slow
• Vehicle speed is not increased

U1000

—

• Start  is  slow
• Acceleration is slow
• Vehicle speed is not increased

U1010

—

• Start  is  slow
• Acceleration is slow
• Vehicle speed is not increased

DTC

Condition

Vehicle behavior

Priority

Detected items (DTC)

Reference

1

P1709 INCOMPLETED DATA WRITING

TM-285, "DTC Logic"

U0100 LOST COMM (ECM A)

TM-235, "DTC Logic"

U1000 CAN COMM CIRCUIT

TM-236, "DTC Logic"

U1010 CONTROL UNIT (CAN)

TM-237, "DTC Logic"

2

P0725 ENGINE SPEED

TM-254, "DTC Logic"

P1705 TP SENSOR

TM-284, "DTC Logic"

P1726 THROTTLE CONTROL SIG

TM-290, "DTC Logic"

TCM

TM-203

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DTC Index

INFOID:0000000012200904

NOTE:

If multiple malfunction codes are detected at the same time, check each code according to the "DTC check pri-

ority list".

TM-202, "DTC Inspection Priority Chart"

.

3

P0703 BRAKE SWITCH B

TM-238, "DTC Logic"

P0705 T/M RANGE SENSOR A

TM-241, "DTC Logic"

P0710 FLUID TEMP SENSOR A

TM-244, "DTC Logic"

P0715 INPUT SPEED SENSOR A

TM-248, "DTC Logic"

P0720 OUTPUT SPEED SENSOR

TM-251, "DTC Logic"

P0740 TORQUE CONVERTER

TM-255, "DTC Logic"

P0745 PC SOLENOID A

TM-260, "DTC Logic"

P0778 PC SOLENOID B

TM-266, "DTC Logic"

P0826 UP/DOWN SHIFT SWITCH

TM-268, "DTC Logic"

P0840 FLUID PRESS SEN/SW A

TM-274, "DTC Logic"

P1701 TCM

TM-281, "DTC Logic"

P1722 VEHICLE SPEED

TM-287, "DTC Logic"

P1740 SLCT SOLENOID

TM-291, "DTC Logic"

P1777 STEP MOTOR

TM-293, "DTC Logic"

4

P0744 TORQUE CONVERTER

TM-258, "DTC Logic"

P0746 PC SOLENOID A

TM-262, "DTC Logic"

P0776 PC SOLENOID B

TM-264, "DTC Logic"

P0841 FLUID PRESS SEN/SW A

TM-277, "DTC Logic"

P0868 FLUID PRESS LOW

TM-279, "DTC Logic"

P1723 SPEED SENSOR

TM-288, "DTC Logic"

P1778 STEP MOTOR

TM-296, "DTC Logic"

Priority

Detected items (DTC)

Reference

DTC

Items

(CONSULT screen terms)

Reference

“ENGINE” with CONSULT or

GST

*

“TRANSMISSION” with

CONSULT

—

P0703

BRAKE SWITCH B

TM-238

P0705

P0705

T/M RANGE SENSOR A

TM-241

P0710

P0710

FLUID TEMP SENSOR A

TM-244

P0715

P0715

INPUT SPEED SENSOR A

TM-248

P0720

P0720

OUTPUT SPEED SENSOR

TM-251

—

P0725

ENGINE SPEED

TM-254

P0740

P0740

TORQUE CONVERTER

TM-255

P0744 P0744

TORQUE

CONVERTER

TM-258

P0745

P0745

PC SOLENOID A

TM-260

P0746

P0746

PC SOLENOID A

TM-262

P0776

P0776

PC SOLENOID B

TM-264

P0778

P0778

PC SOLENOID B

TM-266

—

P0826

UP/DOWN SHIFT SWITCH

TM-268

P0840

P0840

FLUID PRESS SEN/SW A

TM-274

—

P0841

FLUID PRESS SEN/SW A

TM-277

TM-204

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10B]

TCM

*: These numbers are prescribed by SAE J2012.

—

P0868

FLUID PRESS LOW

TM-279

—

P1701

TCM

TM-281

—

P1705

TP SENSOR

TM-284

—

P1709

INCOMPLETED DATA WRITING

TM-285

—

P1722

VEHICLE SPEED

TM-287

—

P1723

SPEED SENSOR

TM-288

—

P1726

THROTTLE CONTROL SIG

TM-290

P1740

P1740

SLCT SOLENOID

TM-291

P1777

P1777

STEP MOTOR

TM-293

P1778

P1778

STEP MOTOR

TM-296

U0100

U0100

LOST COMM (ECM A)

TM-235

—

U1000

CAN COMM CIRCUIT

TM-236

—

U1010

CONTROL UNIT (CAN)

TM-237

DTC

Items

(CONSULT screen terms)

Reference

“ENGINE” with CONSULT or

GST

*

“TRANSMISSION” with

CONSULT

CVT CONTROL SYSTEM

TM-205

< WIRING DIAGRAM >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

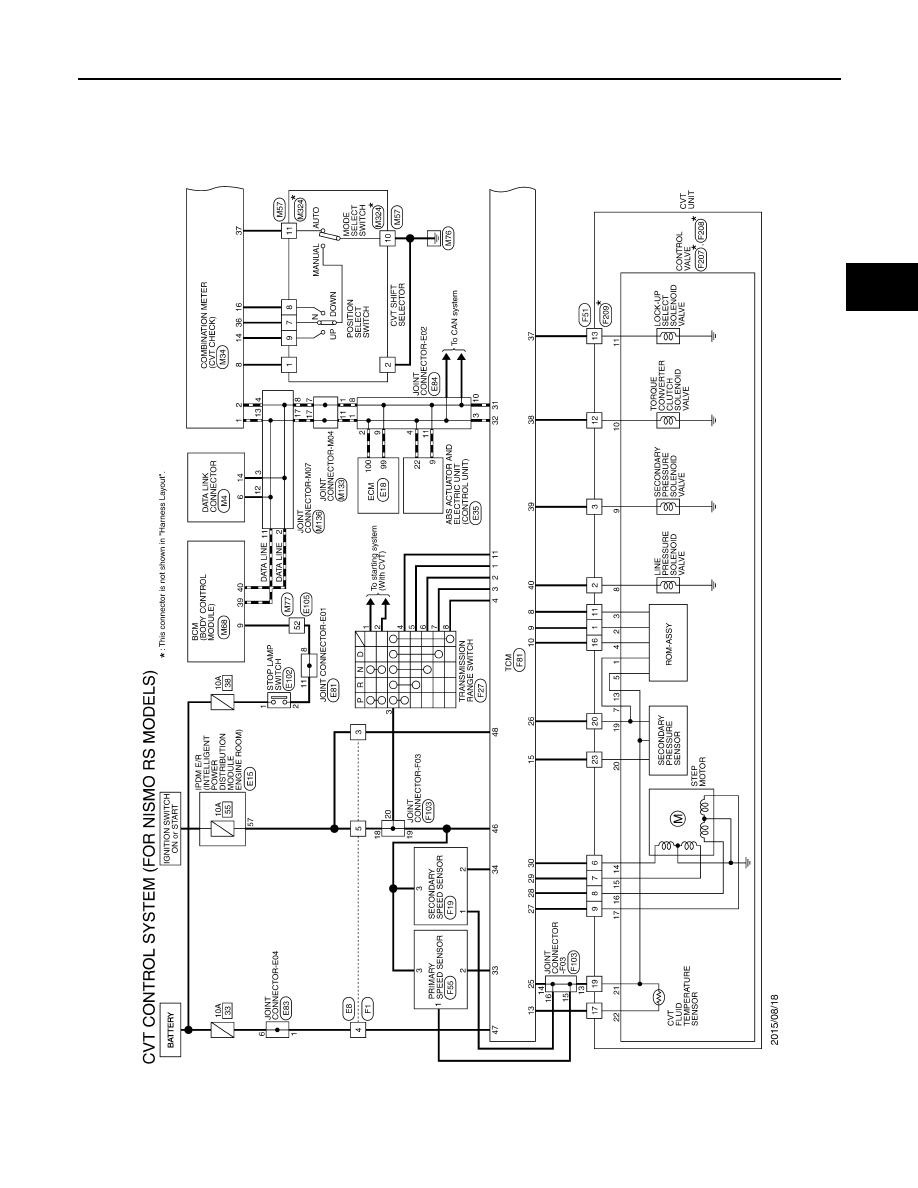

WIRING DIAGRAM

CVT CONTROL SYSTEM

Wiring Diagram

INFOID:0000000012200905

JRDWC6631GB
