TM-174

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

STRUCTURE AND OPERATION

Primary pulley

It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and the steel
belt (the steel plates are placed continuously and the belt is guided with the multilayer steel rings on both
sides). The groove width changes according to wrapping radius of steel belt and pulley from low status
to overdrive status continuously with non-step. It is controlled with the oil pressures of primary pulley and
secondary pulley.

Secondary pulley

Steel belt

Manual shaft

When the manual shaft is in the P position, the parking rod that is linked to the manual shaft rotates the
parking pole. When the parking pole rotates, it engages with the parking gear, fixing the parking gear.
As a result, the secondary pulley that is integrated with the parking gear is fixed.

Parking rod

Parking pawl

Parking gear

Output gear

The deceleration gears are composed of 2 stages: primary deceleration (output gear, idler gear pair) and
secondary deceleration (reduction gear, final gear pair). All of these gears are helical gears.

Idler gear

Reduction gear

Differential

Torque converter regulator
valve

Adjusts the feed pressure to the torque converter to the optimum pressure corresponding to the driving
condition.

Pressure regulator valve

Adjusts the discharge pressure from the oil pump to the optimum pressure (line pressure) corresponding
to the driving condition.

Torque converter clutch
control valve

Adjusts the torque converter engage and disengage pressures.

Shift control valve

Controls the line pressure that is applied to the primary pulley according to the stroke difference between
the step motor and primary pulley.

Secondary valve

Reduces the line pressure and adjusts the secondary pressure.

Clutch regulator valve

Adjusts the clutch operating pressure according to the driving conditions.

Manual valve

Distributes the clutch operation pressure to each circuit according to the selector lever position.

Select control valve

Engages when selected. Adjusts the forward clutch pressure and reverse brake pressure.

Select switch valve

Performs switching control of the torque converter clutch solenoid valve control pressure when lock-up
is engaged/disengaged, and when the forward/reverse clutches (forward clutch and reverse brake) are
engaged/disengaged.

Step motor

• Step motor changes step by turning 4 coils ON or OFF according to signal from TCM.
• By changing step, step motor controls outward flow and inward flow of line pressure to primary pulley,

determines the primary pulley position, and controls gear ratio.

Part name

Function

SYSTEM

TM-175

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM

CVT CONTROL SYSTEM

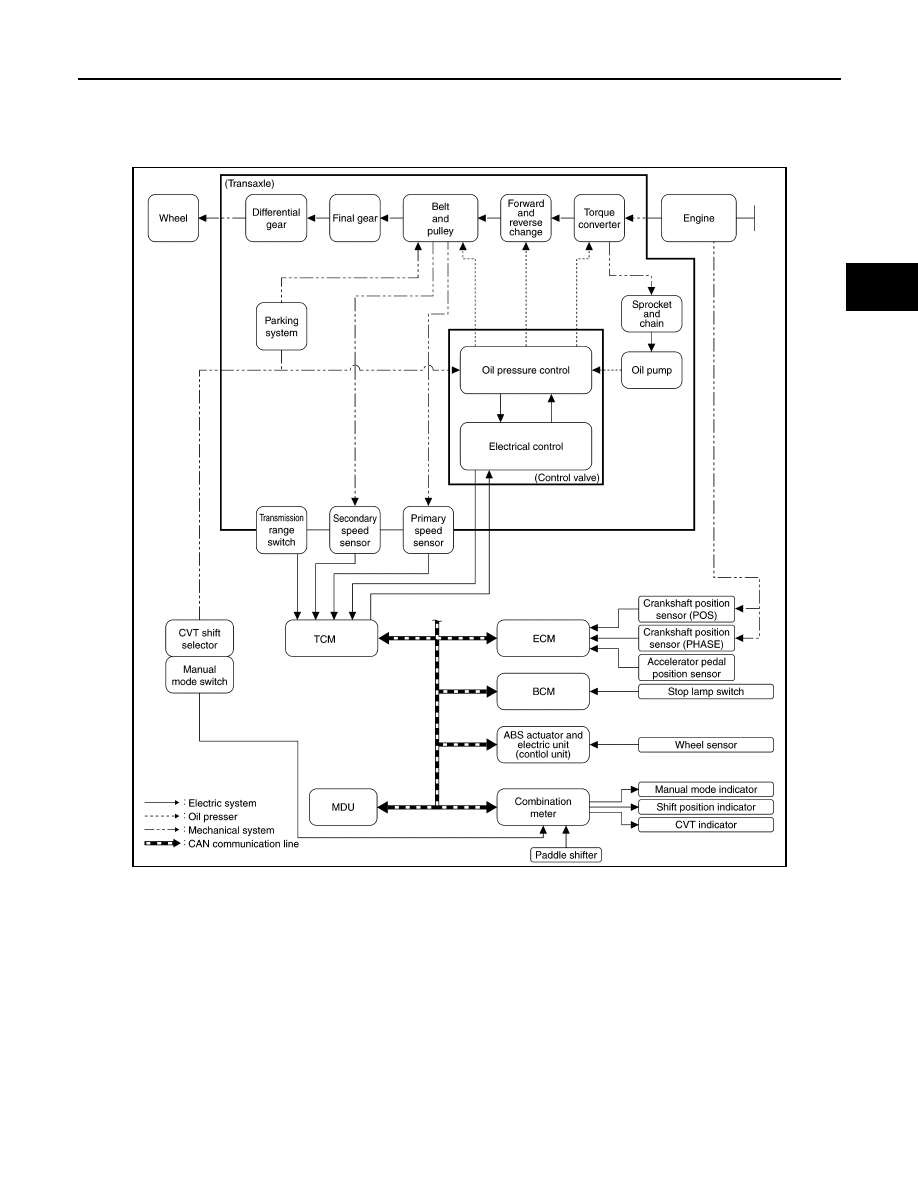

CVT CONTROL SYSTEM : System Description

INFOID:0000000012200878

JSDIA6363GB

TM-176

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

SYSTEM

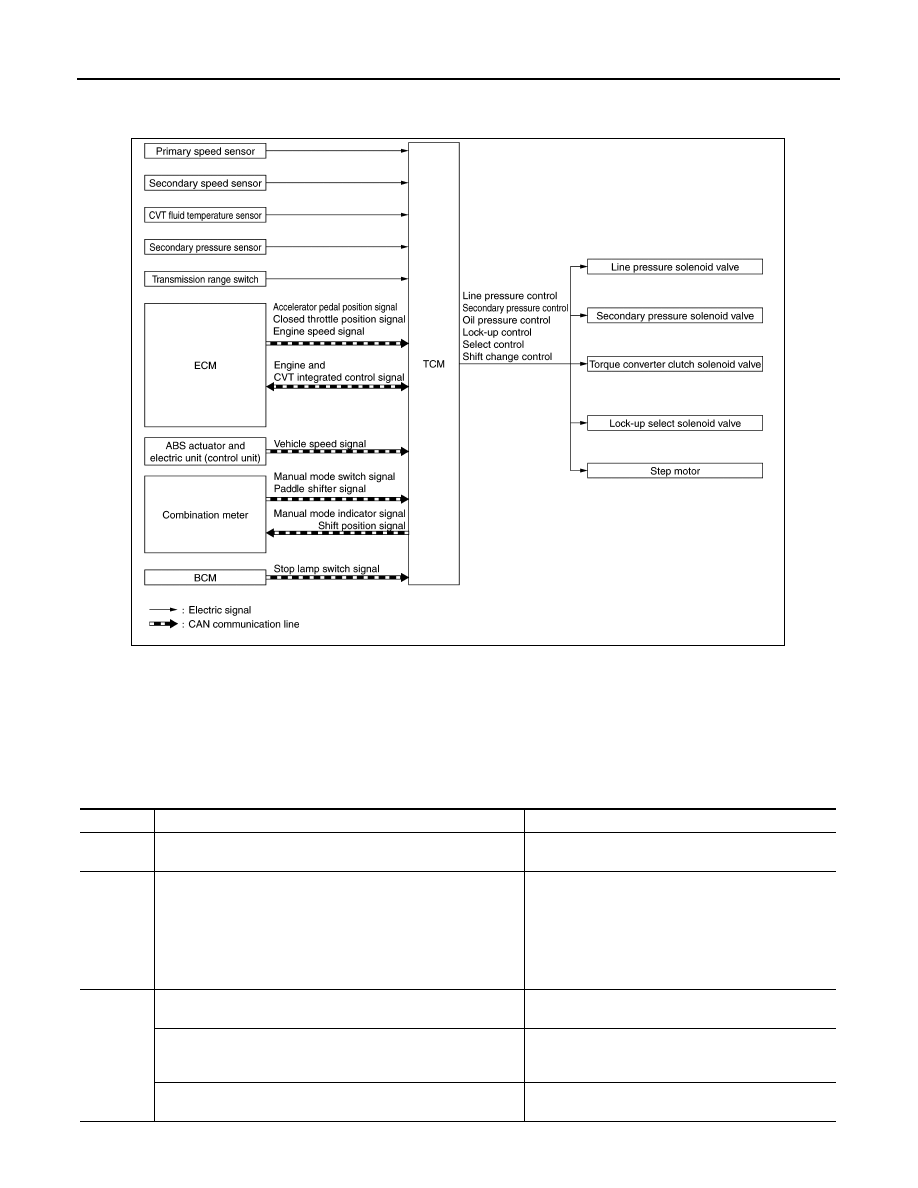

CVT CONTROL SYSTEM : System Diagram

INFOID:0000000012200879

CVT CONTROL SYSTEM : Fail-Safe

INFOID:0000000012200880

The TCM has an electrical fail-safe mode. In this mode TCM is operator even if there is an error in a main

electronic control input/output signal circuit.

DESCRIPTION

When a malfunction is detected in each sensor, switch, solenoid or others, this function provides control to

minimize reduction of drivability so that durability of transmission assembly can be acquired.

JSDIA5166GB

DTC

Condition

Vehicle behavior

P0703

—

• Start  is  slow
• Acceleration is slow

P0705

—

• Position indicator on combination meter is not dis-

played

• Selector shock is large
• Start  is  slow
• Acceleration at high load state is slow
• Manual mode is not activated
• Lock-up is not performed

P0710

Engine coolant temperature when engine starts is 10

°C (50°F) or

more

Start is slow

Engine coolant temperature when engine starts is 10

°C (50°F) or

less

• Start  is  slow
• Acceleration is slow
• Vehicle speed is not increased

Engine coolant temperature when engine starts is

−35°C (−31°F)

or less

Vehicle speed is not increased

SYSTEM

TM-177

< SYSTEM DESCRIPTION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P0715

—

• Acceleration is slow
• Re-start is slow after vehicle is stop by strong decel-

eration

• Manual mode is not activated
• Lock-up is not performed

P0720

—

• Start  is  slow
• Acceleration is slow
• Re-start is slow after vehicle is stop by strong decel-

eration

• Manual mode is not activated
• Lock-up is not performed

P0725

—

Lock-up is not performed

P0740

—

• Selector shock is large
• Lock-up is not performed

P0744

—

Lock-up is not performed

P0746

A malfunction is detected

• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

Function is excessively reduced after a malfunction is detected

• Start is difficult
• Drive is difficult
• Lock-up is not performed

P0778

—

Vehicle speed is not increased

P0826

—

Manual mode is not activated

P0840

—

• Start  is  slow
• Acceleration is slow

P0841

—

• Start  is  slow
• Acceleration is slow

P0845

—

• Start  is  slow
• Acceleration is slow

P0868

—

• Start  is  slow
• Acceleration is slow

P1701

—

• Start  is  slow
• Acceleration is slow

P1705

—

• Acceleration is slow
• Lock-up is not performed

P1709

—

• Start  is  slow
• Acceleration is slow
• Shift position indicator (P, N) is not displayed, or is

displayed with delay.

P1722

—

Lock-up is not activated in coast state

P1723

A malfunction is detected in primary pulley speed sensor side

• Acceleration is slow
• Re-start is slow after vehicle is stop by strong decel-

eration

• Manual mode is not activated
• Lock-up is not performed

A malfunction is detected in secondary pulley speed sensor

• Start  is  slow
• Acceleration is slow
• Re-start is slow after vehicle is stop by strong decel-

eration

• Manual mode is not activated
• Lock-up is not performed

P1726

—

Acceleration is slow

P1740

—

• Selector shock is large
• Lock-up is not performed

DTC

Condition

Vehicle behavior
