TM-34

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

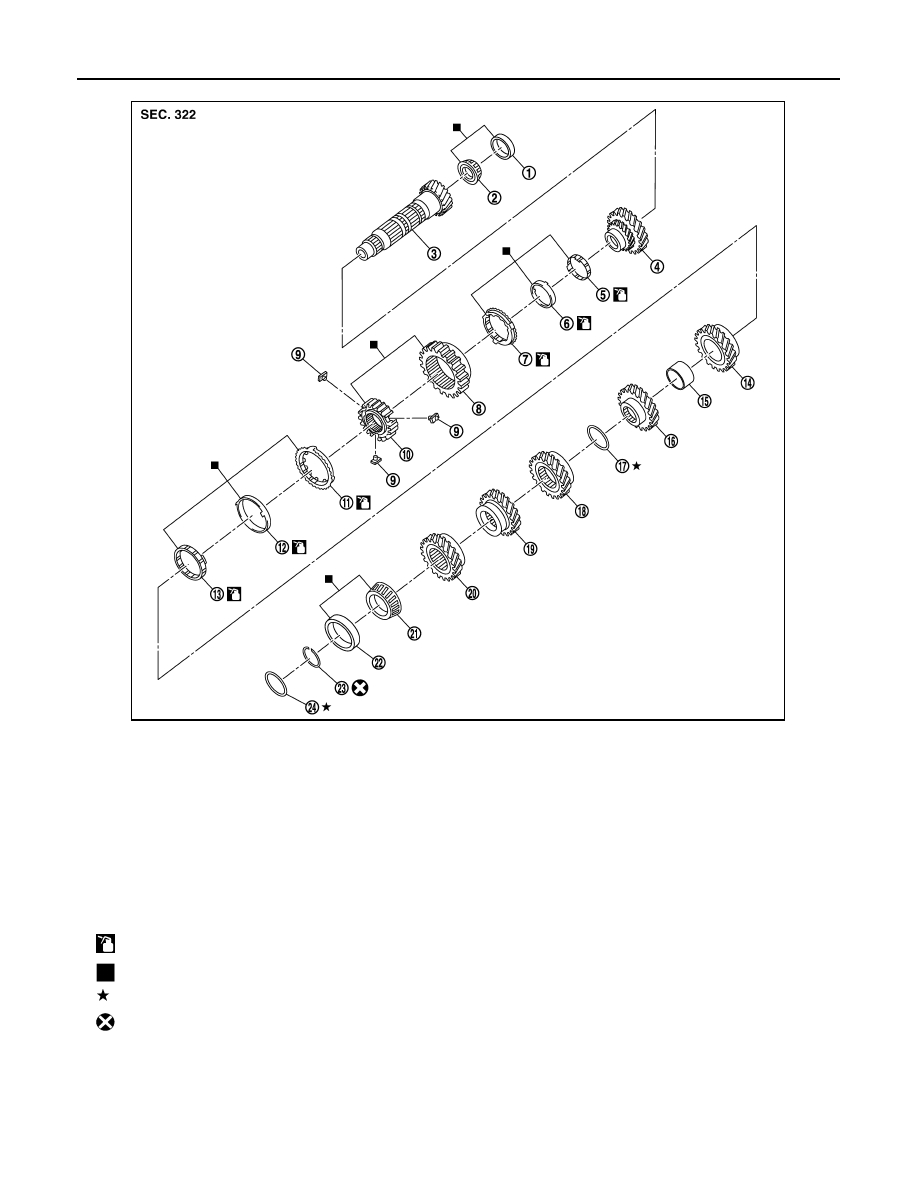

TRANSAXLE ASSEMBLY

1.

Mainshaft front bearing outer
race

2.

Mainshaft front bearing inner race

3.

Mainshaft

4.

1st main gear

5.

1st inner baulk ring

6.

1st synchronizer cone

7.

1st outer baulk ring

8.

1st-2nd coupling sleeve

9.

Insert key

10. 1st-2nd synchronizer hub

11. 2nd outer baulk ring

12. 2nd synchronizer cone

13. 2nd inner baulk ring

14. 2nd main gear

15. Bushing

16. 3rd main gear

17. Mainshaft adjusting shim

18. 4th main gear

19. 5th main gear

20. 6th main gear

21. Mainshaft rear bearing inner race

22. Mainshaft rear bearing outer race 23. Snap ring

24. Mainshaft rear bearing adjusting

shim

 : Apply gear oil.

 : Replace the parts as a set.

 : Select with proper thickness.

 : Always replace after every disassembly.

SFIA3293E

TRANSAXLE ASSEMBLY

TM-35

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT FORK AND FORK ROD

1.

Reverse output gear

2.

Snap ring

3.

Reverse baulk ring

4.

Return spring

5.

Needle bearing

6.

Seal washer

7.

Reverse idler shaft

8.

Spacer

9.

Reverse input gear

10. Lock washer

11. Spring washer

 : Replace the parts as a set.

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

JPDIC0425GB

TM-36

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

FINAL DRIVE

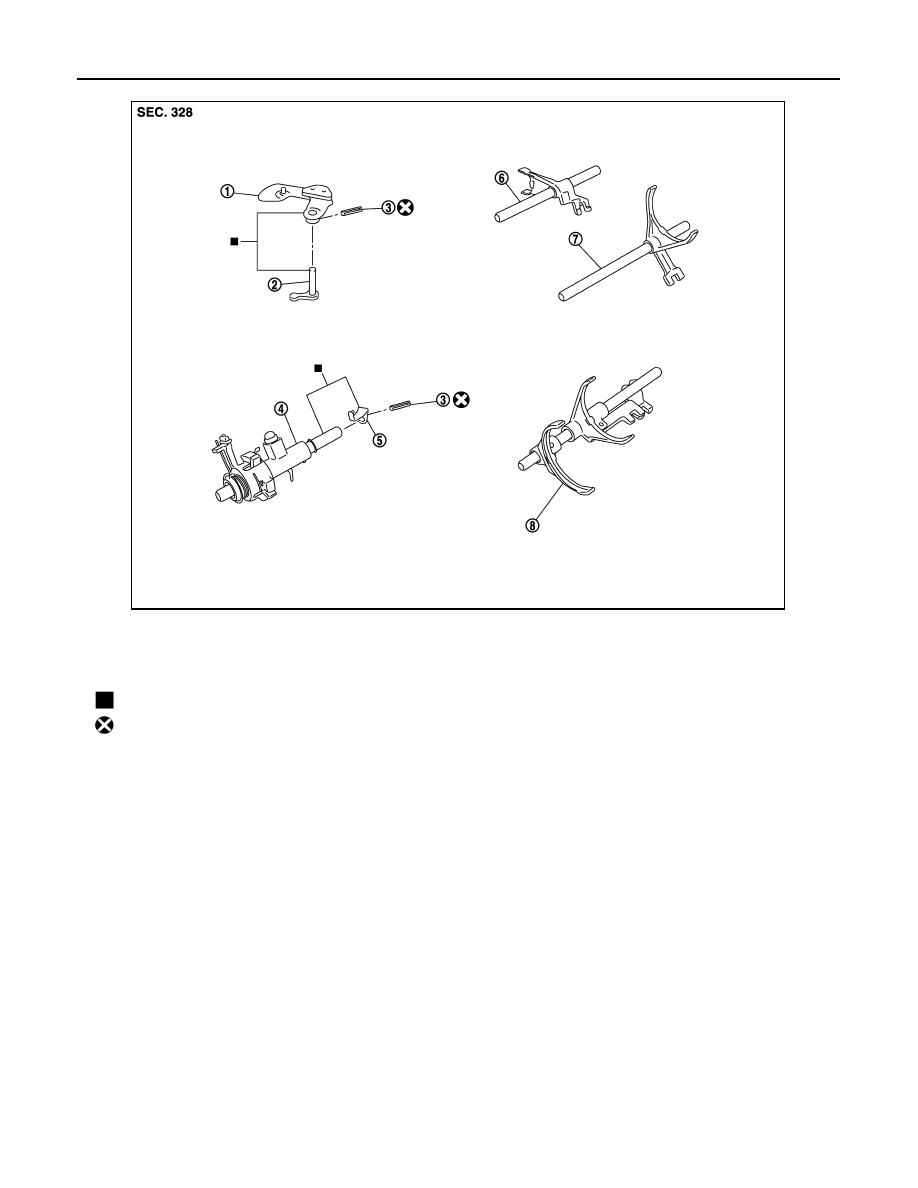

1.

Shifter lever A

2.

Shifter lever B

3.

Retaining pin

4.

Selector

5.

Selector lever

6.

Reverse fork rod

7.

1st-2nd fork rod

8.

Fork rod

 : Replace the parts as a set.

 : Always replace after every disassembly.

JPDIC0603ZZ

TRANSAXLE ASSEMBLY

TM-37

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Disassembly

INFOID:0000000012200776

1. Remove drain plug and gasket from clutch housing, using a socket [Commercial service tool] and then

drain gear oil.

2. Remove filler plug and gasket from transaxle case.
3. Remove selector lever (1) retaining pin with a pin punch to

remove selector lever.

4. Remove bracket (2) and position switch (3) from transaxle case.

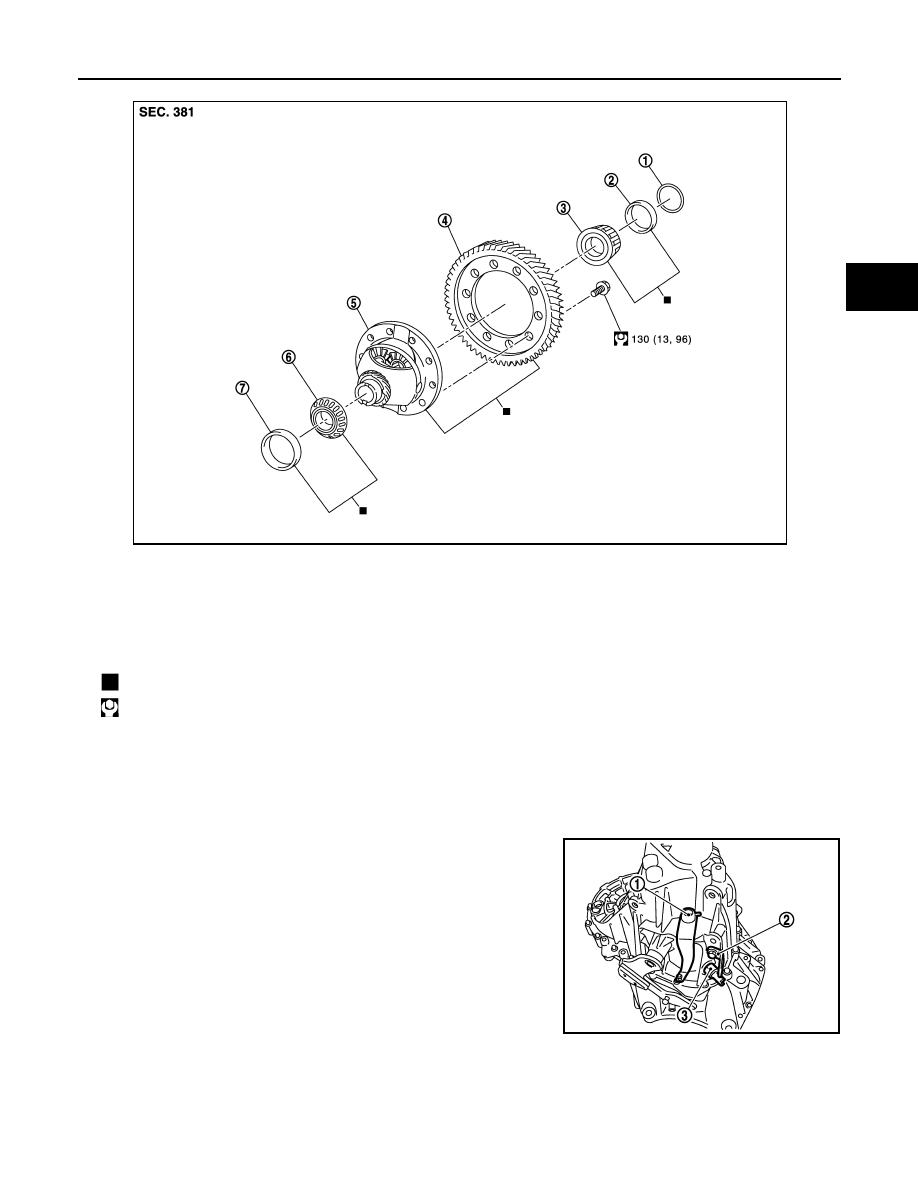

1.

Shim

2.

Differential side bearing outer race
(transaxle case side)

3.

Differential side bearing inner race
(transaxle case side)

4.

Final gear

5.

Differential case

6.

Differential side bearing inner race
(clutch housing side)

7.

Differential side bearing outer race
(clutch housing side)

 : Replace the parts as a set.

 : N·m (kg-m, ft-lb)

JPDIC0424GB
