STR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

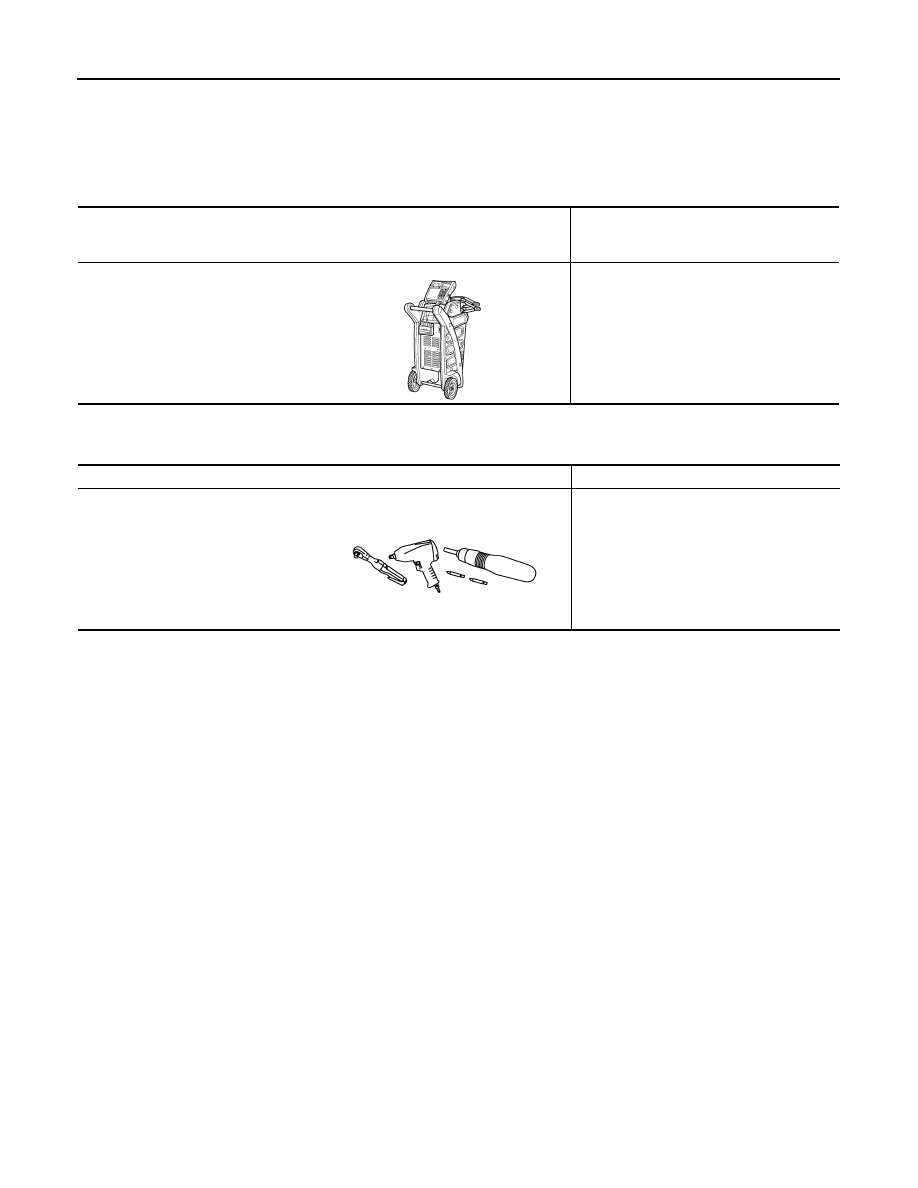

Special Service Tools

INFOID:0000000012201574

Commercial Service Tools

INFOID:0000000012201575

Tool number

(Kent-Moore No.)

Tool name

Description

—
(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnos-
tic station instruction manual.

AWIIA1239ZZ

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

COMPONENT PARTS

STR-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYSTEM DESCRIPTION

COMPONENT PARTS

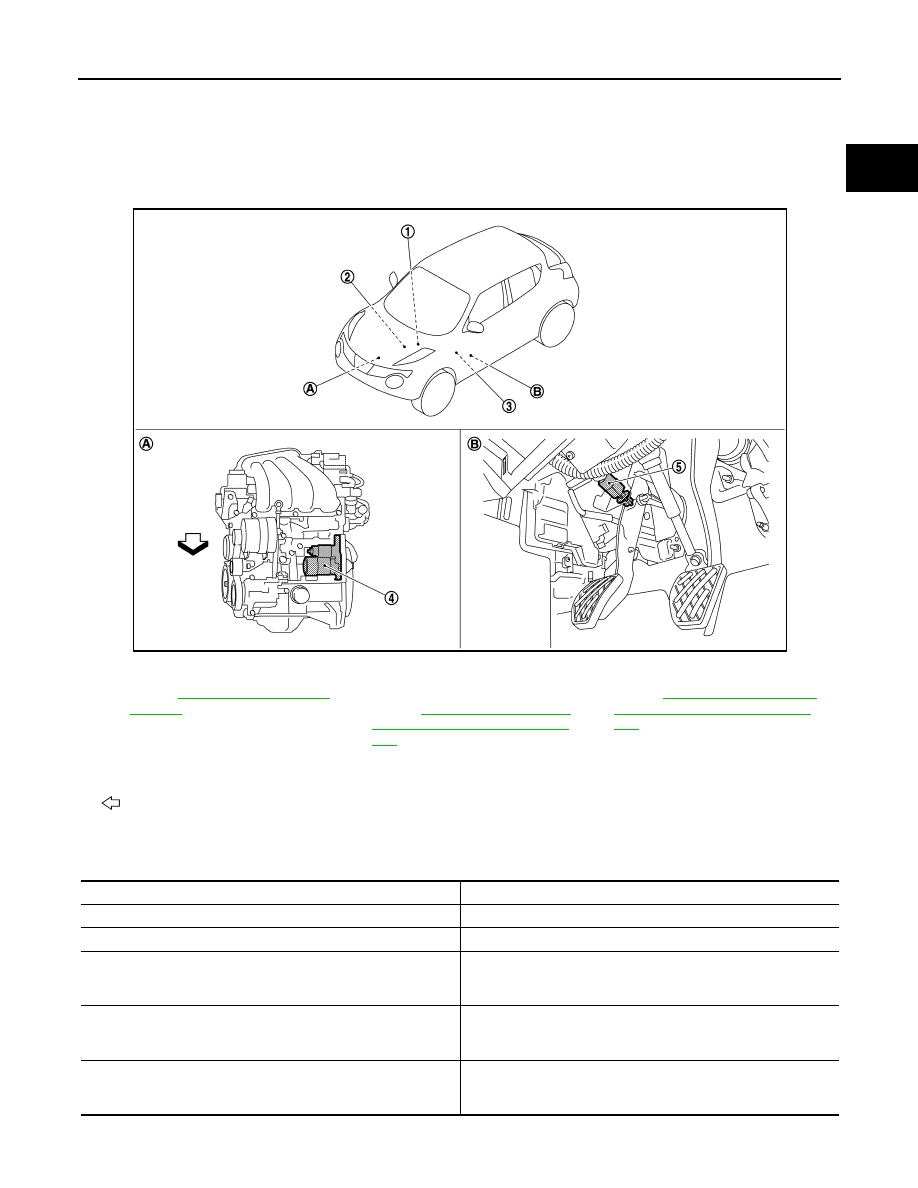

Component Parts Location

INFOID:0000000012201576

Component Description

INFOID:0000000012201577

1.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

.

2.

Transmission range switch (CVT
models)
Refer to

TM-156, "CVT CONTROL

SYSTEM : Component Parts Loca-
tion"

.

3.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

4.

Starter motor

5.

Clutch interlock switch (M/T models)

A.

Engine

B.

Clutch pedal (M/T models)

: Vehicle front

JMBIA3036ZZ

Component part

Description

BCM

BCM controls the starter relay.

IPDM E/R

CPU inside IPDM E/R controls the starter control relay.

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.

Transmission range switch (CVT models)

Transmission range switch supplies power to the starter relay and
starter control relay inside IPDM E/R when the selector lever is
shifted to the “P” or “N” position.

Clutch interlock switch (M/T models)

The switch turns ON and electric power is supplied to the starter
relay and starter control relay inside IPDM E/R when the clutch
pedal is depressed.

STR-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

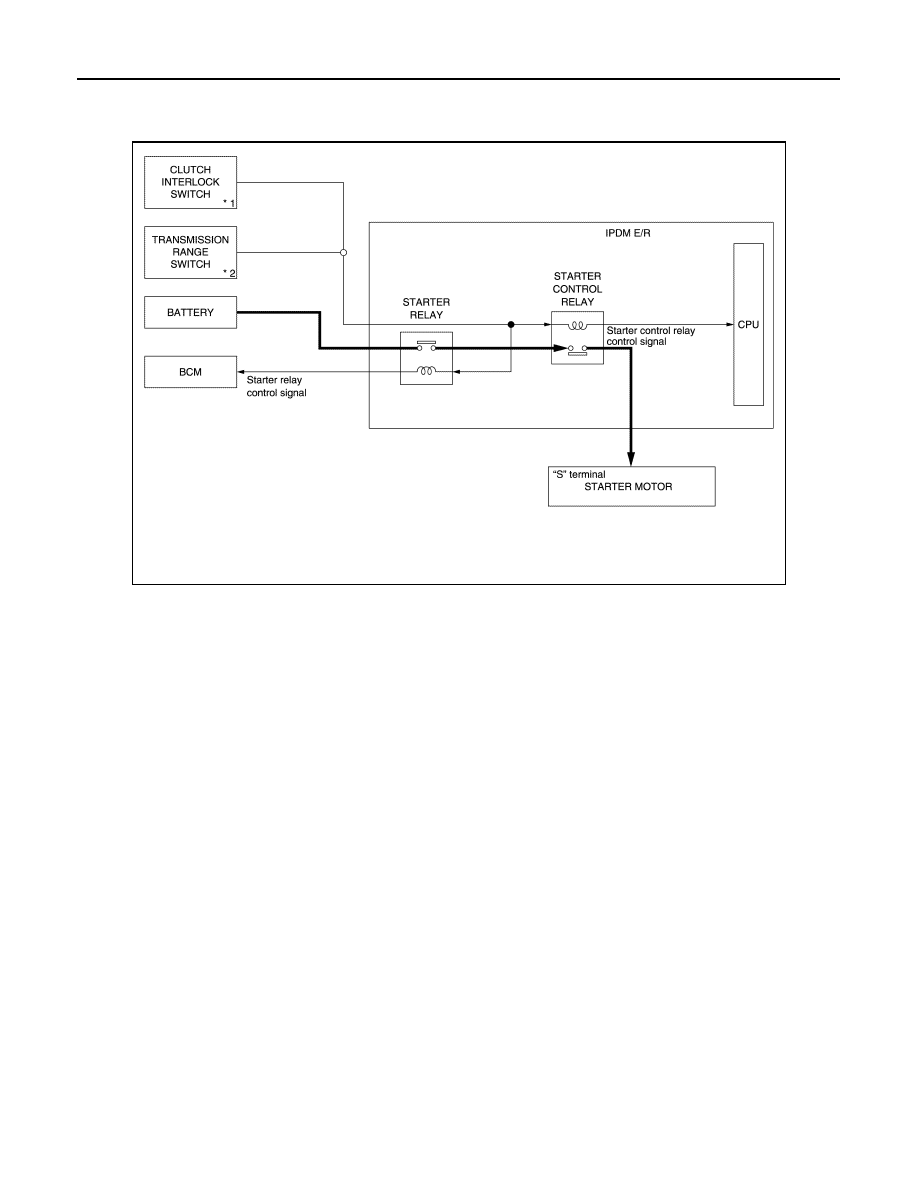

System Diagram

INFOID:0000000012201578

*

1

: M/T models

*

2

: CVT models

System Description

INFOID:0000000012201579

CVT MODELS

• When selector lever is “P” or “N”, power is supplied to starter relay and starter control relay by transmission

range switch. And BCM and IPDM E/R (CPU) detect selector lever P/N condition by the inputted signal.

• When starter operating condition is satisfied, IPDM E/R turns starter control relay ON by starter control relay

control signal.

• When engine cranking condition is satisfied, BCM turns starter relay ON by starter relay control signal.

• Then battery power is supplied to starter motor (“S” terminal) through starter control relay and starter relay.

M/T MODELS

• When the clutch interlock switch is turned ON position (clutch pedal is depressed) power is supplied to

starter relay and starter control relay. And BCM and IPDM E/R (CPU) detect ignition switch position by the

inputted signal.

• When starter operating condition is satisfied, IPDM E/R turns starter control relay ON by starter control relay

control signal.

• When engine cranking condition is satisfied, BCM turns starter relay ON by starter relay control signal.

• Then battery power is supplied to starter motor (“S” terminal) through starter control relay and starter relay.

JMBIA3038GB

STARTING SYSTEM

STR-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

WIRING DIAGRAM

STARTING SYSTEM

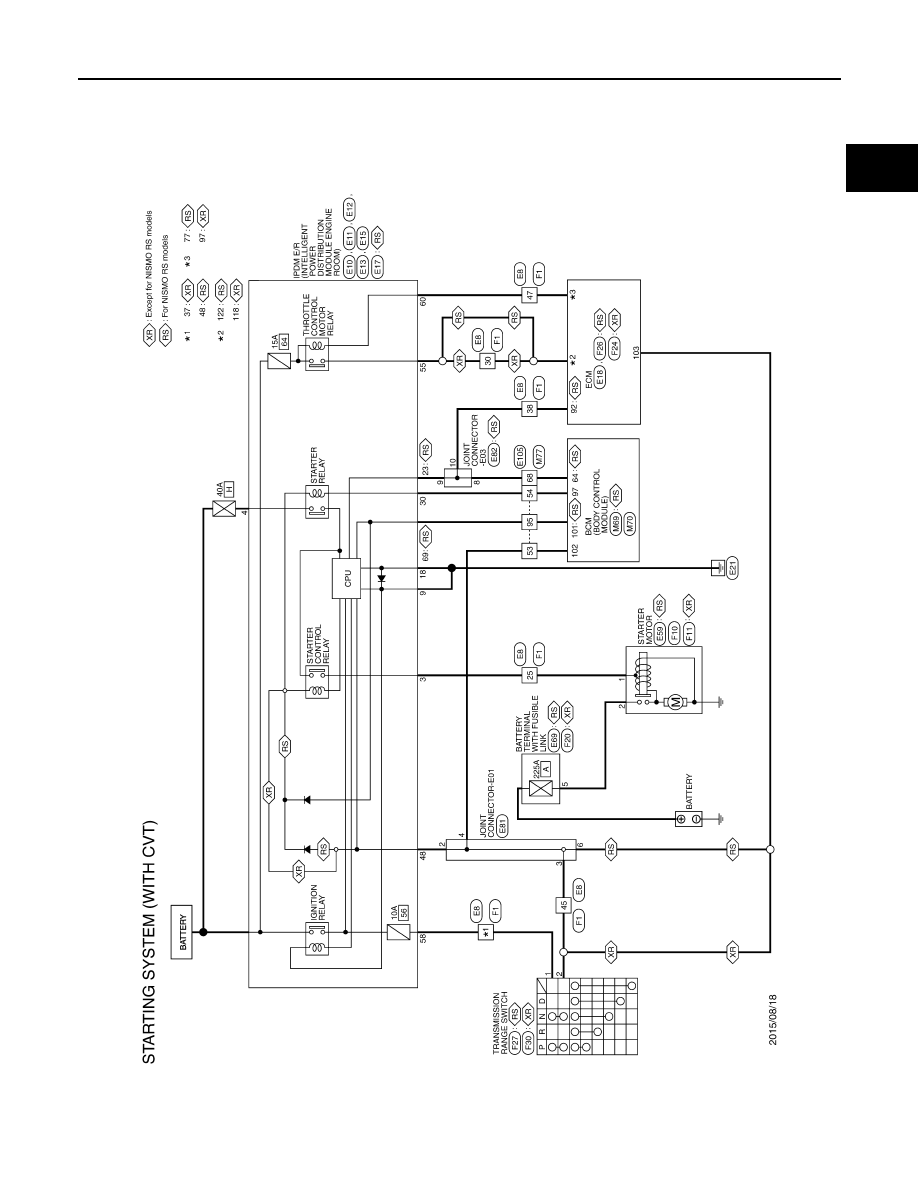

Wiring Diagram (CVT Models)

INFOID:0000000012201580

JRBWD6988GB
