C1127

RR RH OUT ABS SOL

BRC-102, "DTC Logic"

C1130

ENGINE SIGNAL 1

BRC-104, "DTC Logic"

C1140

ACTUATOR RLY

BRC-106, "DTC Logic"

C1143

ST ANG SEN CIRCUIT

BRC-108, "DTC Logic"

C1144

ST ANG SEN SIGNAL

BRC-111, "DTC Logic"

C1145

YAW RATE SENSOR

BRC-84, "DTC Logic"

C1146

SIDE G SEN CIRCUIT

C1155

BR FLUID LEVEL LOW

BRC-113, "DTC Logic"

C1164

CV 1

BRC-117, "DTC Logic"

C1165

CV 2

C1166

SV 1

BRC-119, "DTC Logic"

C1167

SV 2

C1170

VARIANT CODING

BRC-79, "DTC Logic"

C1176

STOP LAMP SW2

BRC-121, "DTC Logic"

U1000

CAN COMM CIRCUIT

BRC-126, "DTC Logic"

U1010

CONTROL UNIT (CAN)

BRC-127, "DTC Logic"

DTC

Display Item

Refer to

BRC-52

< WIRING DIAGRAM >

[WITH VDC]

BRAKE CONTROL SYSTEM

WIRING DIAGRAM

BRAKE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000012199674

JRFWC4132GB

BRAKE CONTROL SYSTEM

BRC-53

< WIRING DIAGRAM >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

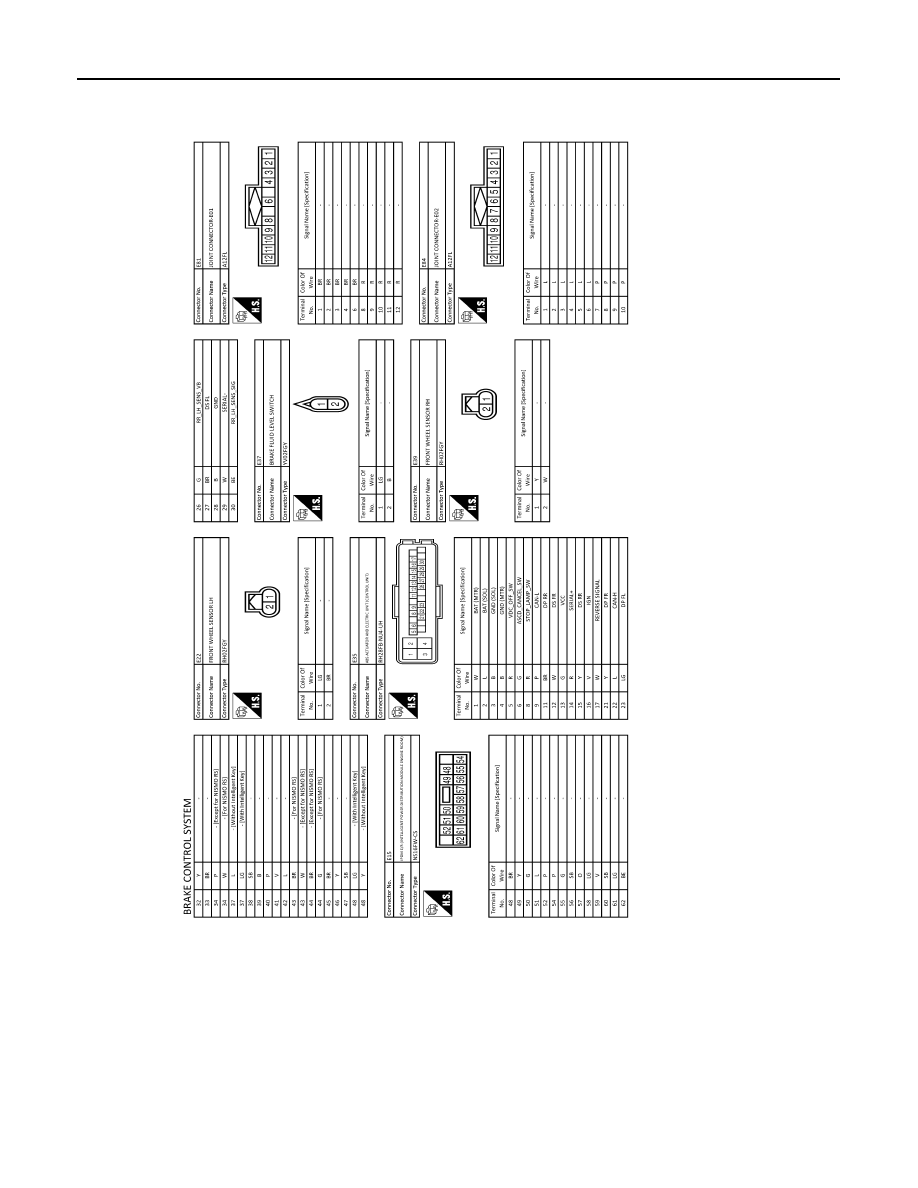

JRFWC4133GB

BRC-54

< WIRING DIAGRAM >

[WITH VDC]

BRAKE CONTROL SYSTEM

JRFWC4134GB
