REAR SEAT

SE-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SEATBACK : Removal and Installation

INFOID:0000000012196886

LH SIDE SEATBACK

Removal

CAUTION:

Remove seatback with seat cushion installed.
1. Temporarily move seat cushion to the position where center anchor of center seat belts can be removed.
2. Remove center anchor mounting bolt of center seat belt. Remove center anchor.
3. Return seat cushion to the normal position.
4. Unlock seatback lock assembly. Tilt seatback toward vehicle front. Remove headrests.
5. Fold seatback toward vehicle front.

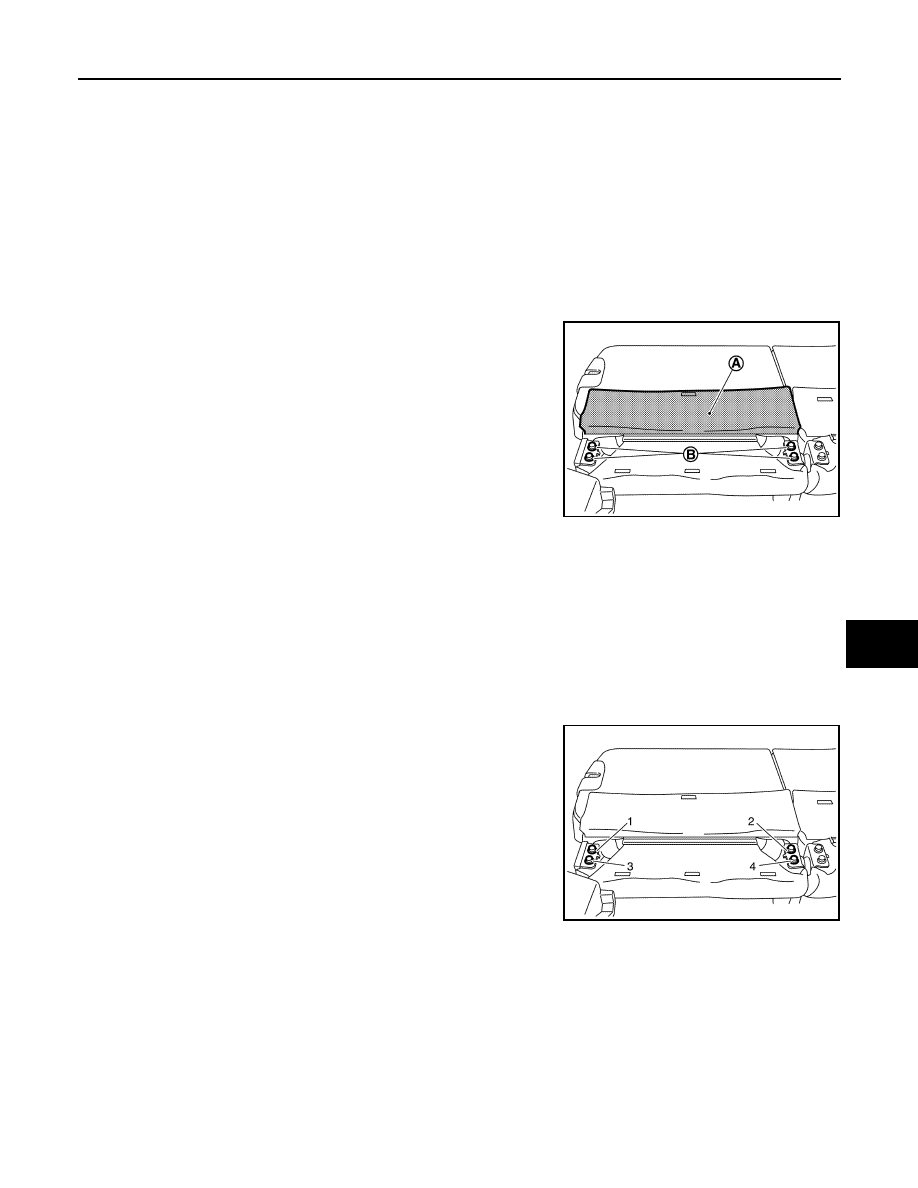

6. Pull up seatback carpet (A). Remove mounting bolts (B) of seat-

back hinge portion.

7. Remove seatback from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Installation

Note the following items, and install in the reverse order of removal.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.

• Install seat cushion to the vehicle, and then install seatback.

• Temporarily tighten bolts, fold up seatback, check that lock and striker do not interfere, and then

tighten bolts.

• When installing seatback, tighten mounting bolts according to

the numerical order (1, 2, 3, and 4 as shown in the figure).

RH SIDE SEATBACK

Removal

CAUTION:

Remove seatback with seat cushion installed.
1. Unlock seatback lock assembly. Tilt seatback toward vehicle front. Remove headrests.
2. Fold seatback toward vehicle front.

JMJIA4836ZZ

JMJIA4837ZZ

SE-34

< REMOVAL AND INSTALLATION >

REAR SEAT

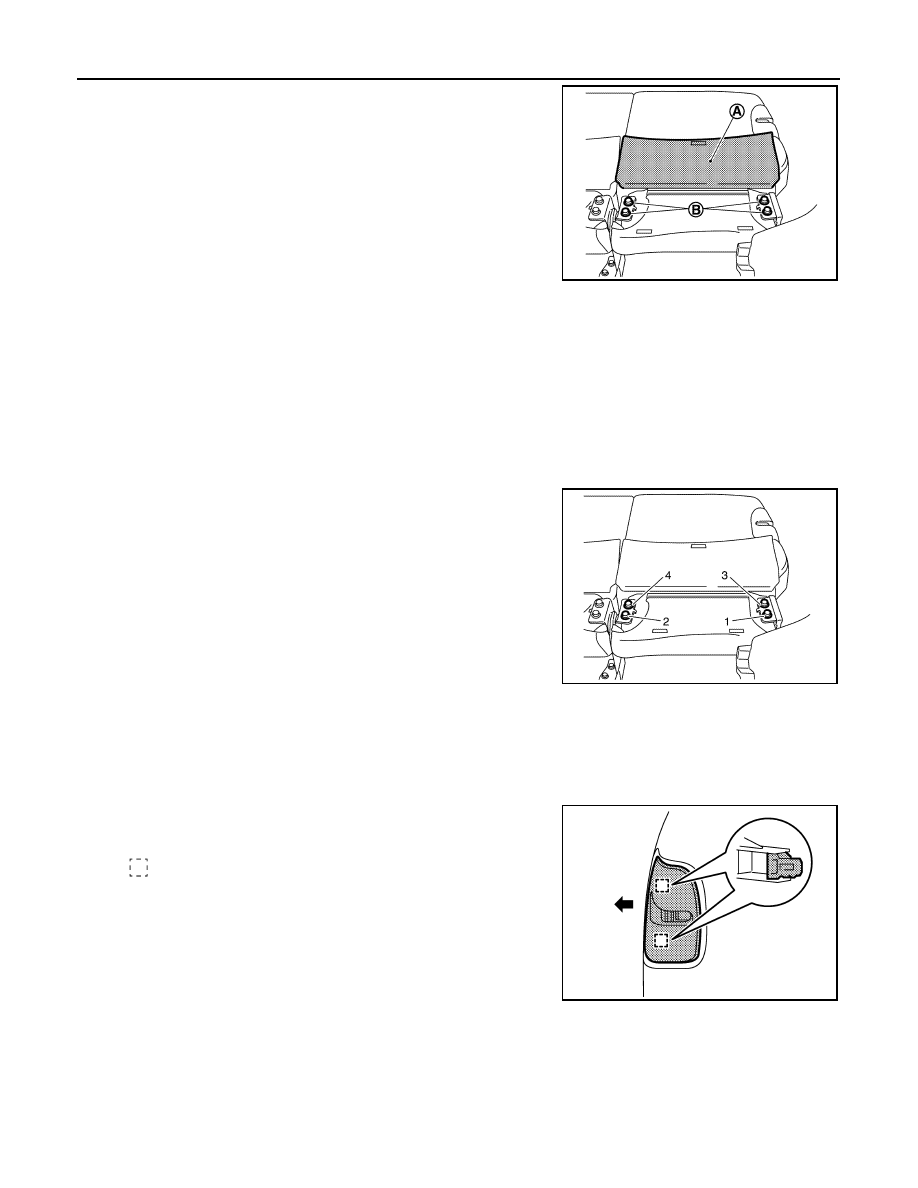

3. Pull up seatback carpet (A). Remove mounting bolts (B) of seat-

back hinge portion.

4. Remove seatback from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Installation

Note the following items, and install in the reverse order of removal.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.

• Install seat cushion to the vehicle, and then install seatback.

• Temporarily tighten bolts, fold up seatback, check that lock and striker do not interfere, and then

tighten bolts.

• When installing seatback, tighten mounting bolts according to

the numerical order (1, 2, 3, and 4 as shown in the figure).

SEATBACK : Disassembly and Assembly

INFOID:0000000012196887

DISASSEMBLY

LH side seatback

1. Remove headrest holder.

1. Pull seat lock cover in direction indicated by the arrow as

shown in the figure. Remove seat lock cover.

JMJIA4838ZZ

JMJIA4839ZZ

: Metal clip

JMJIA4372ZZ

REAR SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

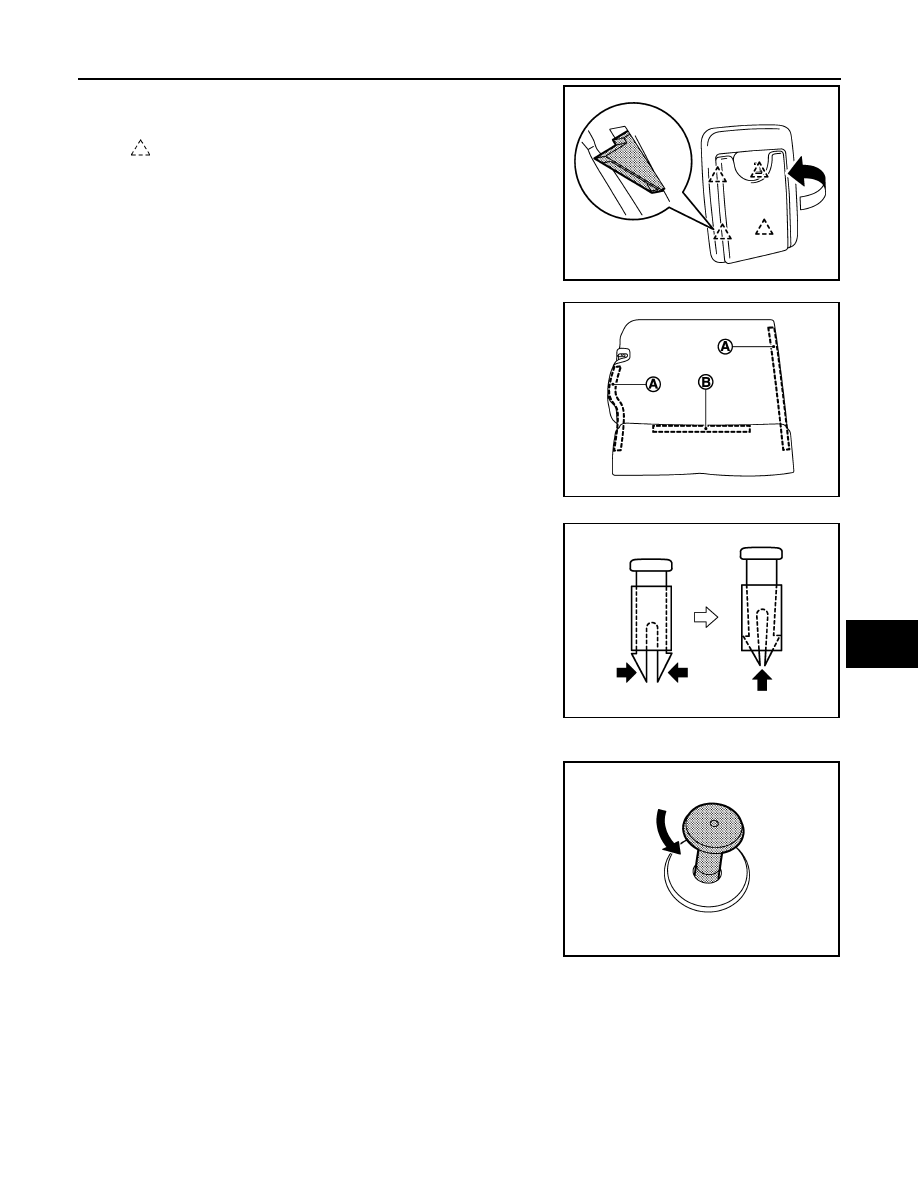

2. Pull tether cover in direction indicated by the arrow as

shown in the figure. Remove tether cover.

3. Open seatback fastener (A) and remove seatback retainer

(B).

4. Use pincers, etc., to press up pawls as shown by the arrows

in the figure, and remove headrest holder from seatback.

CAUTION:

Before installing headrest holder check its orientation.

(front/rear and right/left)

2. Remove seatback lock knob finisher.

1. Rotate seatback lock knob counterclockwise. Remove seat-

back lock knob.

: Pawl

JMJIA4611ZZ

JMJIA4371ZZ

PIIB4084J

JMJIA4374ZZ

SE-36

< REMOVAL AND INSTALLATION >

REAR SEAT

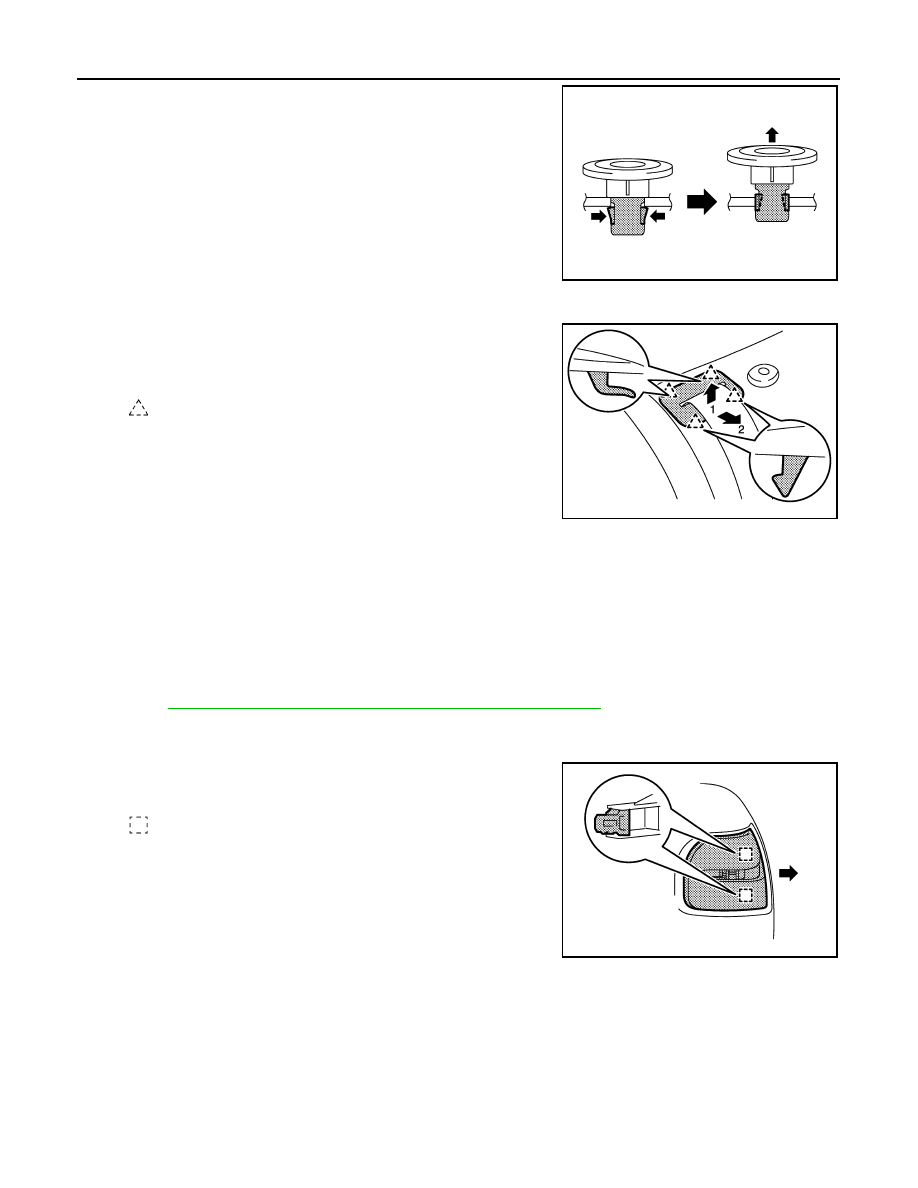

2. Push up seatback lock knob finisher while pressing pawls

indicated by arrows as shown in the figure. Remove seat-

back lock finisher from seatback.

CAUTION:

When installing seatback lock knob finisher, check

front and rear orientation and be careful to install it nor-

mally.

3. Remove center seat belt finisher from seatback.

Lift up front of center seat belt finisher. Disengage front pawls.

Pull center seat belt finisher toward seat front. Disengage rear

pawls.

4. Remove seatback trim and seatback pad from seatback frame
5. Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

6. Remove seatback silencer from seatback frame.
7. Remove seatback lock assembly mounting bolts, and then remove seatback lock assembly from seatback

frame.

8. Remove center seat belt retractor from seatback frame.

Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and Installation"

.

RH side seatback

1. Remove headrest holder.

1. Pull seat lock cover in direction indicated by the arrow as

shown in the figure. Remove seat lock cover.

JMJIA4375ZZ

: Pawl

JMJIA4373ZZ

: Metal clip

JMJIA4370ZZ
