Nissan Juke F15. Manual - part 1077

PWO

POWER SOCKET

PWO-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

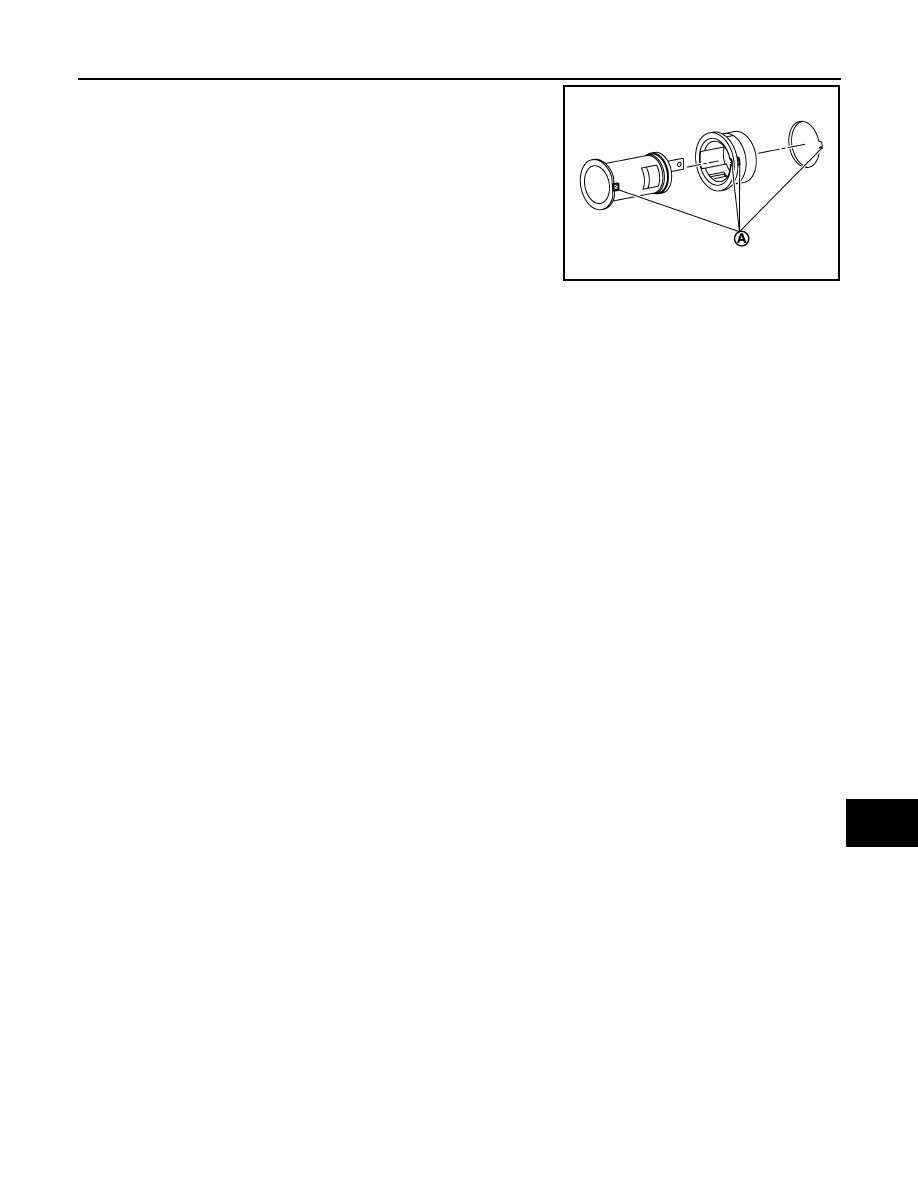

Align the cut outs of inner socket, ring and cluster tray.

A

: Cut out

JSMIA0359ZZ

RAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

RAX

A

B

RAX

N

O

P

CONTENTS

REAR AXLE

2WD

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precautions for Removing Battery Terminal  .............

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tools  ........................................

4

SYMPTOM DIAGNOSIS  ...............................

5

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

5

NVH Troubleshooting Chart  ......................................

5

PERIODIC MAINTENANCE ..........................

6

REAR WHEEL HUB  ............................................

6

Inspection ..................................................................

6

REMOVAL AND INSTALLATION ................

7

REAR WHEEL HUB  ............................................

7

Exploded View  ..........................................................

7

Removal and Installation ...........................................

7

Inspection ..................................................................

8

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ...................................................................

9

Wheel Bearing ...........................................................

9

AWD

PRECAUTION ..............................................

10

PRECAUTIONS ..................................................

10

Precautions for Drive Shaft  .....................................

10

Precautions for Removing Battery Terminal  ...........

10

PREPARATION ...........................................

11

PREPARATION .................................................

11

Special Service Tool ................................................

11

Commercial Service Tools .......................................

11

SYMPTOM DIAGNOSIS  ..............................

13

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ...........................

13

NVH Troubleshooting Chart  ....................................

13

PERIODIC MAINTENANCE  ........................

14

REAR WHEEL HUB AND HOUSING  ...............

14

Inspection ................................................................

14

REAR DRIVE SHAFT ........................................

15

Inspection ................................................................

15

REMOVAL AND INSTALLATION ...............

16

REAR WHEEL HUB AND HOUSING  ...............

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

Inspection ................................................................

17

REAR DRIVE SHAFT ........................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

WHEEL SIDE  .............................................................

20

WHEEL SIDE : Disassembly and Assembly  ...........

20

FINAL DRIVE SIDE ....................................................

23

FINAL DRIVE SIDE : Disassembly and Assembly ....

23

Inspection ................................................................

25

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

26

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

26

RAX-2

Wheel Bearing  ........................................................

26

Drive Shaft  ..............................................................

26

PRECAUTIONS

RAX-3

< PRECAUTION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PRECAUTION

PRECAUTIONS

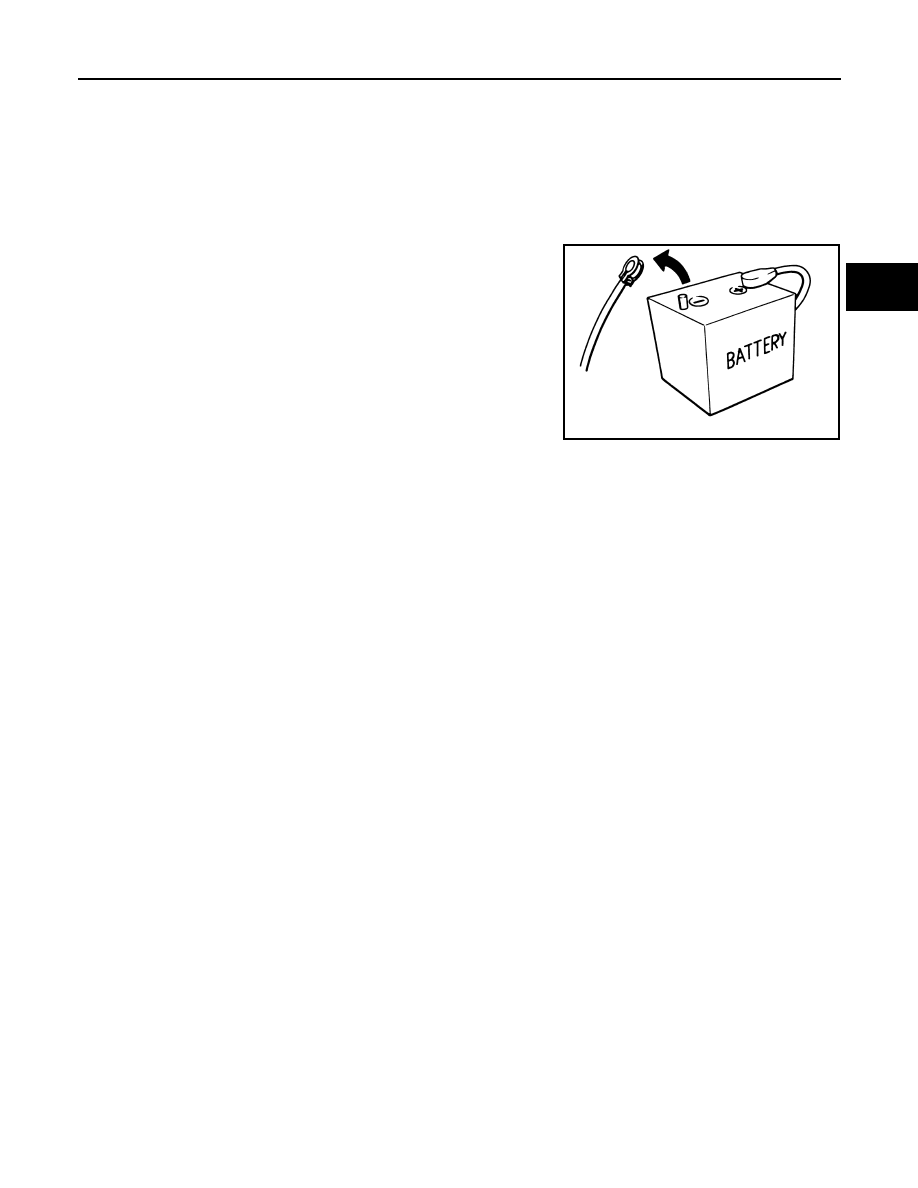

Precautions for Removing Battery Terminal

INFOID:0000000012833627

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H
