PWO

PRECAUTIONS

PWO-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

PWO-4

< WIRING DIAGRAM >

POWER SOCKET

WIRING DIAGRAM

POWER SOCKET

Wiring Diagram

INFOID:0000000012199958

JCMWA6063GB

PWO

POWER SOCKET

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWI5110GB

PWO-6

< REMOVAL AND INSTALLATION >

POWER SOCKET

REMOVAL AND INSTALLATION

POWER SOCKET

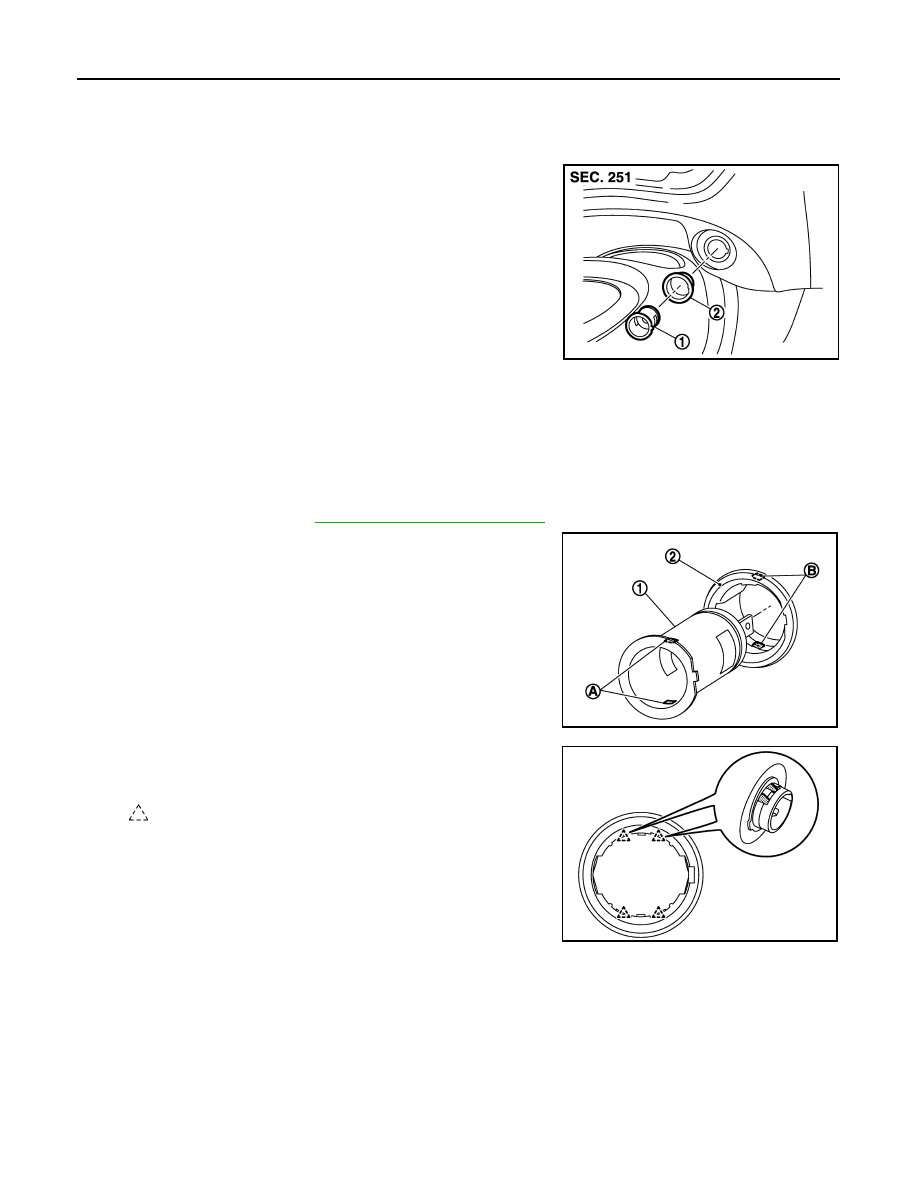

Exploded View

INFOID:0000000012199959

Removal and Installation

INFOID:0000000012199960

REMOVAL

1. Remove cluster tray. Refer to

IP-13, "Removal and Installation"

.

2. Pull out inner socket (1) by pushing the pawl (B) of the ring (2)

from the inner socket hole (square) (A).

3. Press the ring pawl from the back of the cluster tray to remove

the ring.

INSTALLATION

Note the following, and install in the reverse order of removal.

JSMIA0455ZZ

1

: Inner socket

2

:  Ring

JSMIA0357ZZ

: Pawl

JSMIA0358ZZ
