POWER WINDOW SYSTEM

PWC-21

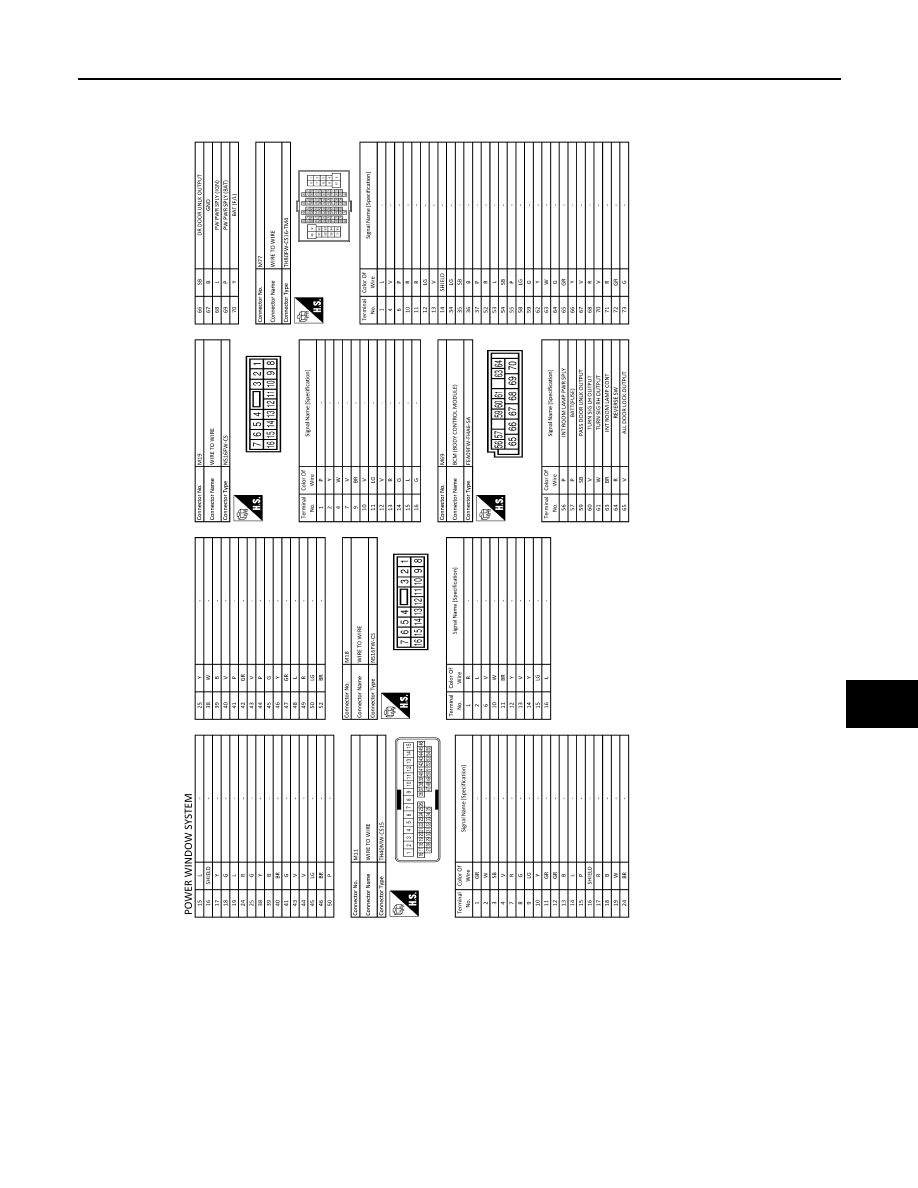

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

JRKWF4435GB

PWC-22

< WIRING DIAGRAM >

POWER WINDOW SYSTEM

JRKWF4436GB

DIAGNOSIS AND REPAIR WORK FLOW

PWC-23

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

WorkFlow

INFOID:0000000012196906

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.

Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3.

3.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-

forming the diagnosis based on possible causes and symptoms.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING PARTS WITH “DTC/CIRCUIT DIAGNOSIS”

Perform the diagnosis with “DTC/CIRCUIT DIAGNOSIS” of the applicable system.

>> GO TO 5.

5.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,

referring to the symptom inspection result in step 2.
Are the malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 3.

PWC-24

< BASIC INSPECTION >

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMI-
NAL

Description

INFOID:0000000012196907

When the battery negative terminal is disconnected, the initialization is necessary for normal operation of

power window system. Refer to

PWC-24, "Work Procedure"

.

CAUTION:

The following specified operations cannot be performed under the non-initialized condition.

• Auto-up operation

• Anti-pinch function

Work Procedure

INFOID:0000000012196908

1.

SYSTEM INITIALIZATION

Perform system initialization. Refer to

PWC-26, "Description"

.

>> GO TO 2.

2.

CHECK ANTI-PINCH FUNCTION

Check anti-pinch function. Refer to

PWC-27, "Description"

.

>> END
