< WIRING DIAGRAM >

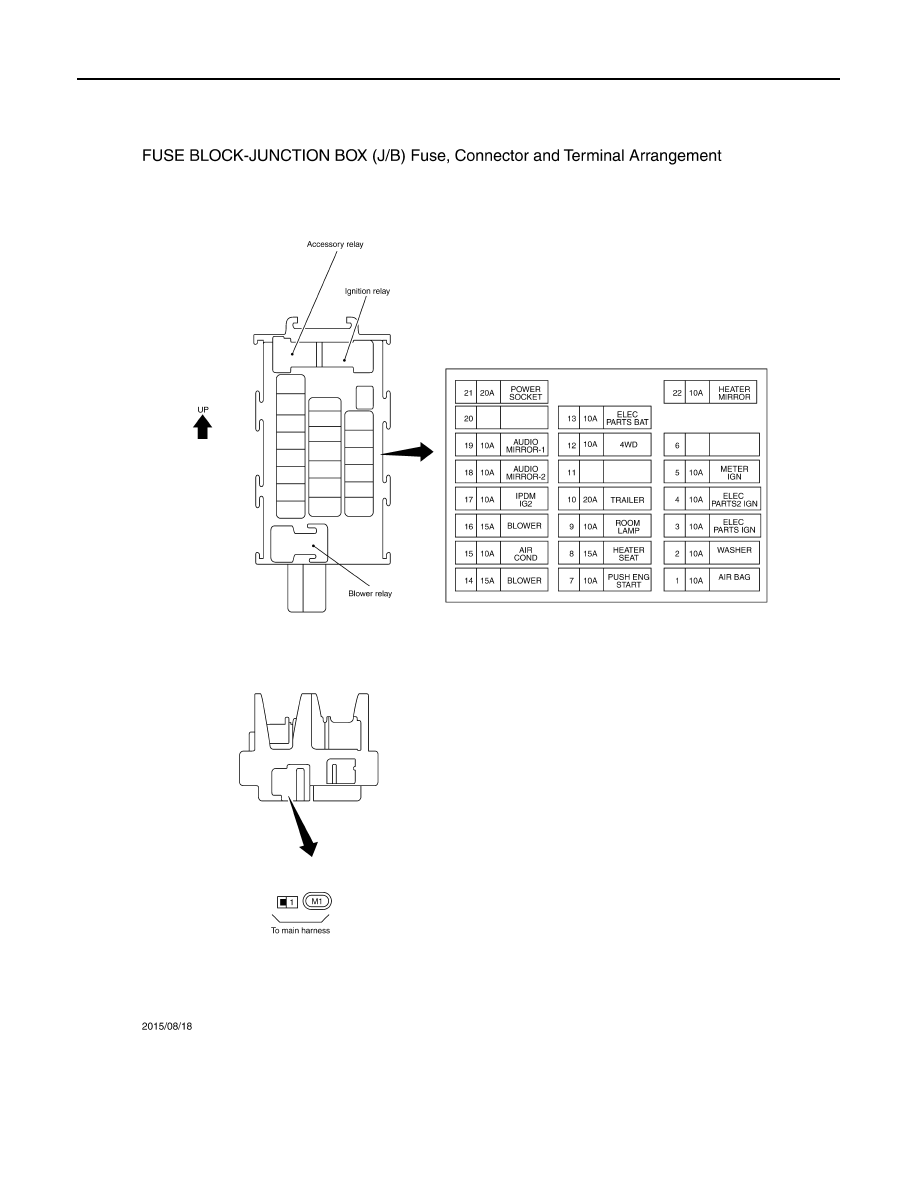

FUSE BLOCK - JUNCTION BOX (J/B)

FUSE BLOCK - JUNCTION BOX (J/B)

Fuse, Connector and Terminal Arrangement

INFOID:0000000012199795

JRMWI5203GB

PG

FUSE, FUSIBLE LINK AND RELAY BOX

PG-81

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSE, FUSIBLE LINK AND RELAY BOX

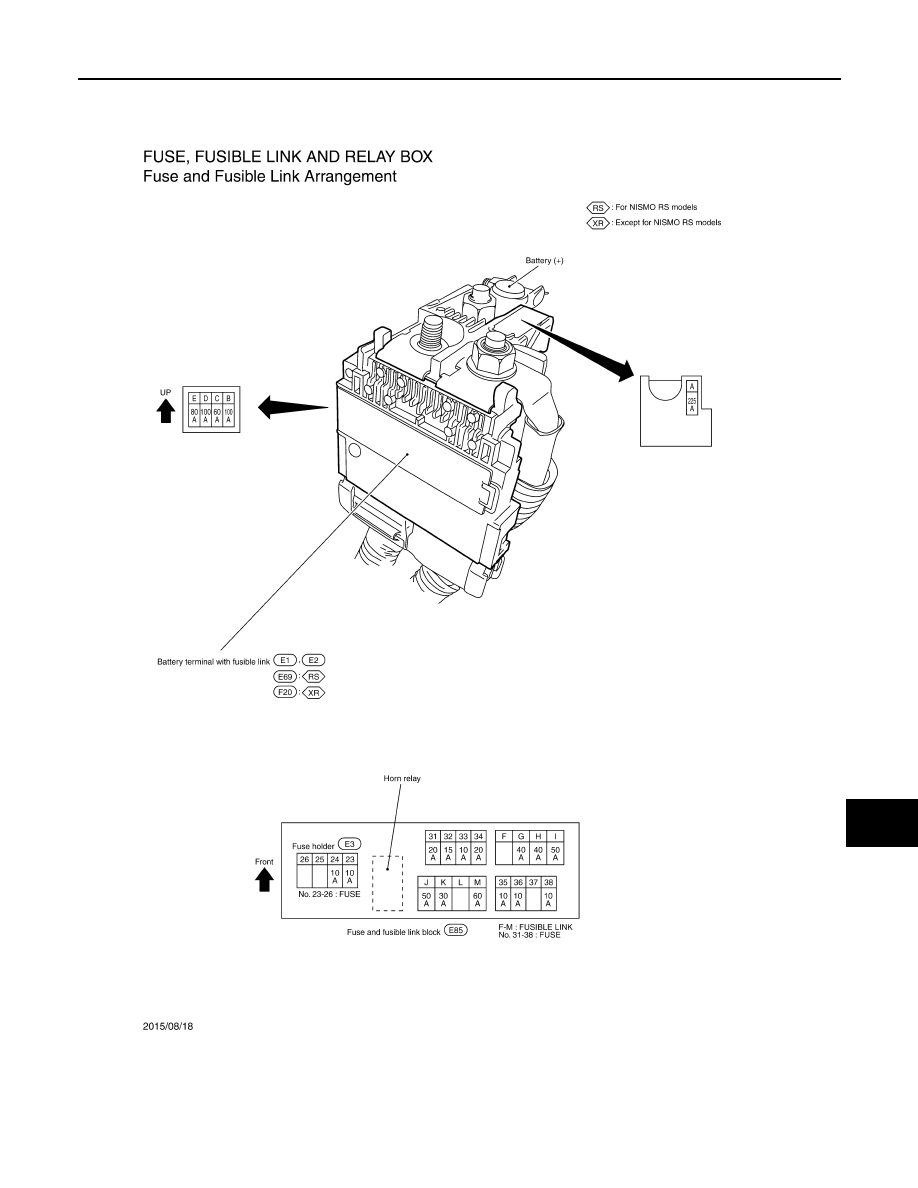

Fuse and Fusible Link Arrangement

INFOID:0000000012199796

JRMWI5204GB

PG-82

< WIRING DIAGRAM >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

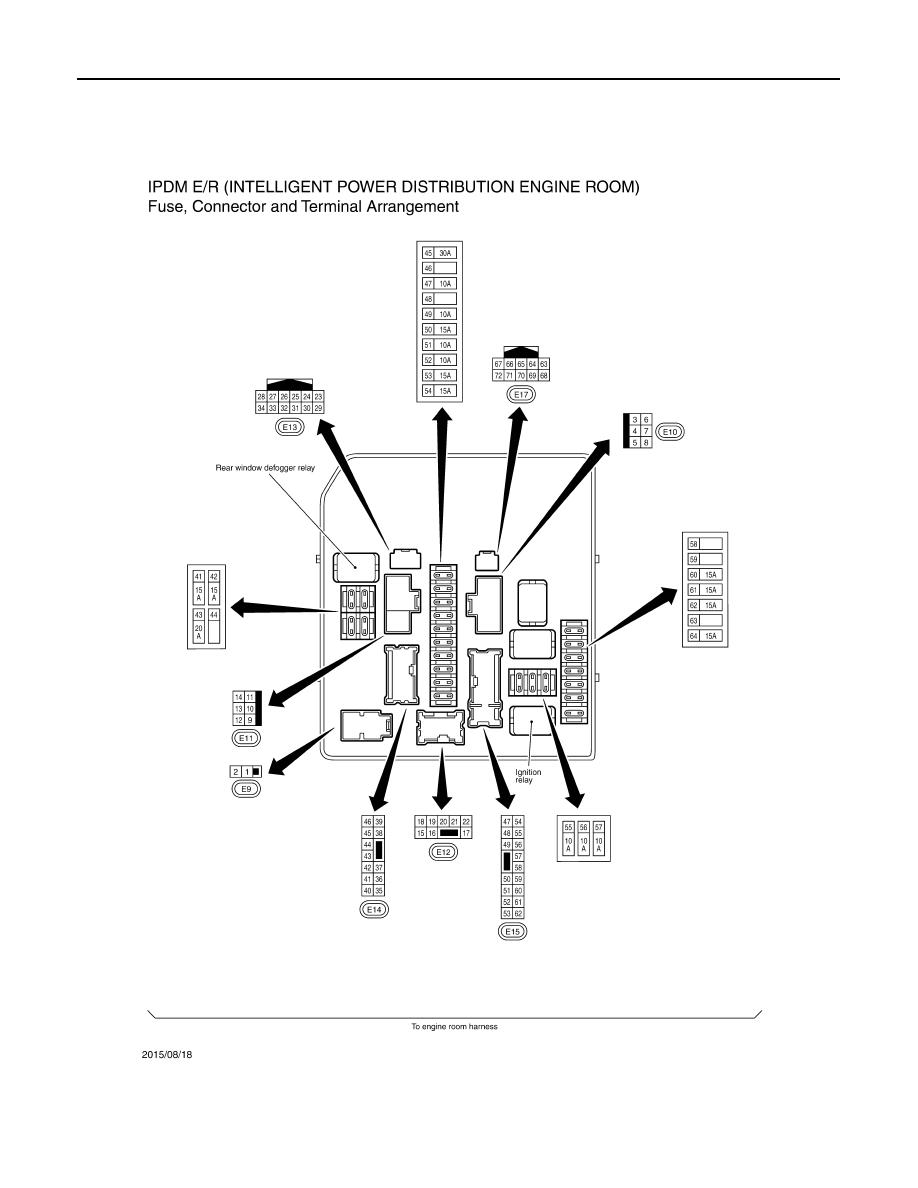

Fuse, Connector and Terminal Arrangement

INFOID:0000000012199797

JRMWI5205GB

PG

HARNESS LAYOUT

PG-83

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS LAYOUT

Outline

INFOID:0000000012199805

JRMIC6912GB
