PRECAUTIONS

BRC-7

< PRECAUTION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

limited slip differential (BLSD) function after the engine is started again. In this case, perform self-diagnosis,

check self-diagnosis results, and erase memory.

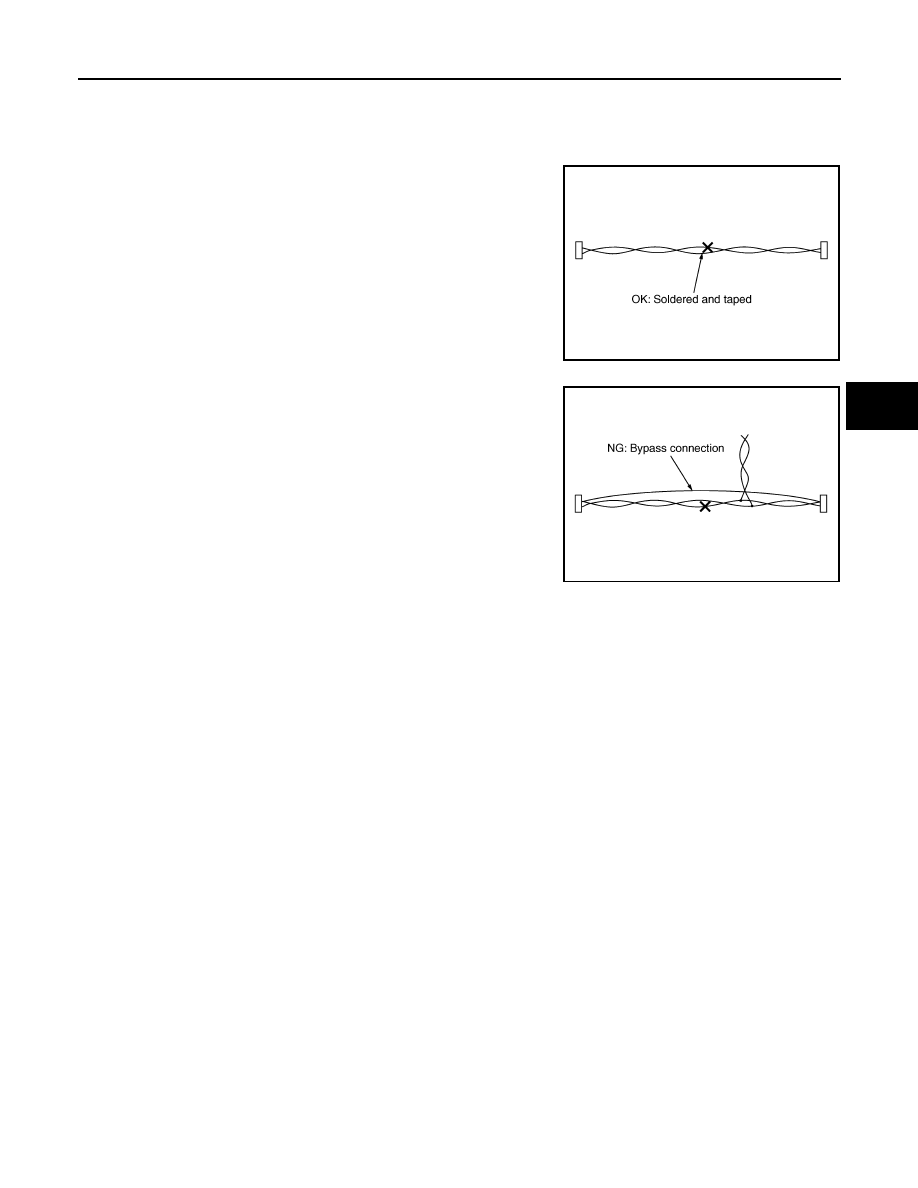

Precaution for Harness Repair

INFOID:0000000012199649

• Solder the repair part, and wrap it with tape. [Twisted wire fray

must be 110 mm (4.33 in) or less.]

• Never bypass the repair point with wire. (If it is bypassed, the turn-

out point cannot be separated and the twisted wire characteristics

are lost.)

SKIB8766E

SKIB8767E

BRC-8

< PREPARATION >

[WITH VDC]

PREPARATION

PREPARATION

PREPARATION

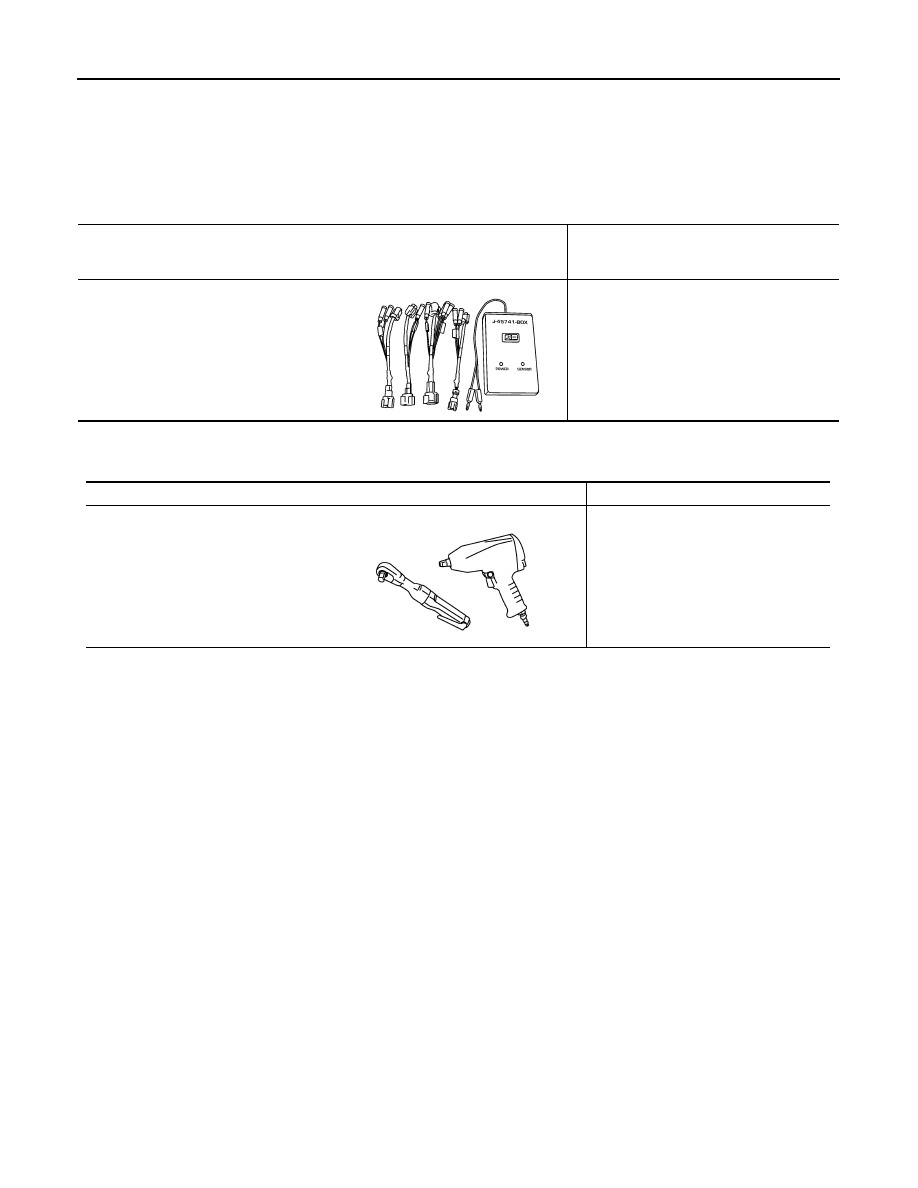

Special Service Tool

INFOID:0000000013400093

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000012199650

Tool number
(TechMate No.)
Tool name

Description

KV991J0080
(J-45741-A)
ABS active wheel sensor tester

Checking operation of wheel sensors

WFIA0101E

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

COMPONENT PARTS

BRC-9

< SYSTEM DESCRIPTION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

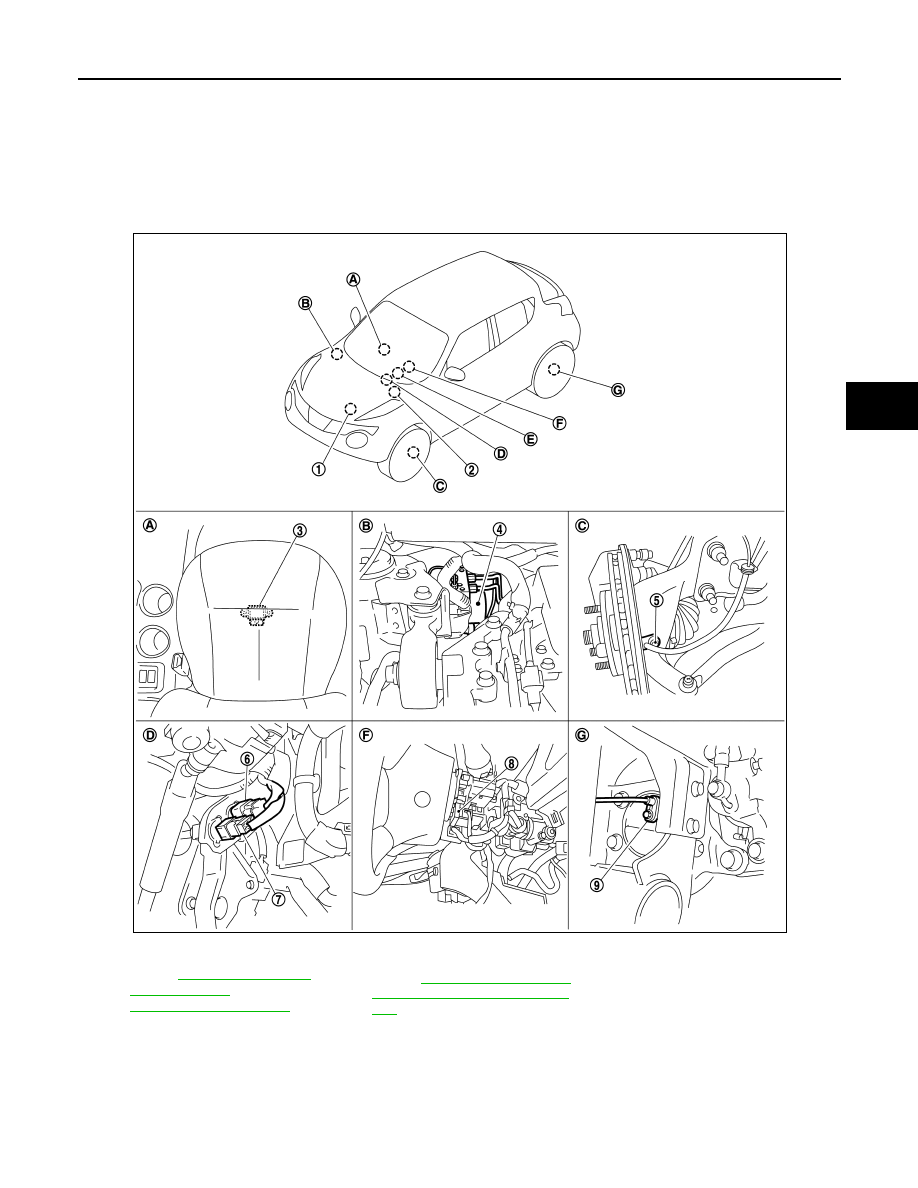

Component Parts Location

INFOID:0000000012199651

2WD

1.

ECM
Refer to

EC-27, "ENGINE CON-

TROL SYSTEM :
Component Parts Location"

.

2.

TCM

*

Refer to

TM-156, "CVT CONTROL

SYSTEM : Component Parts Loca-
tion"

.

3.

Yaw rate/side/decel G sensor

4.

ABS actuator and electric unit (con-
trol unit)

5.

Front wheel sensor

6.

Stop lamp switch

7.

Brake pedal position switch

8.

Steering angle sensor

9.

Rear wheel sensor

A.

Under floor carpet (front seat right
side)

B.

Inside engine room

C.

Steering knuckle

JSFIA0643ZZ

BRC-10

< SYSTEM DESCRIPTION >

[WITH VDC]

COMPONENT PARTS

*: Models with CVT

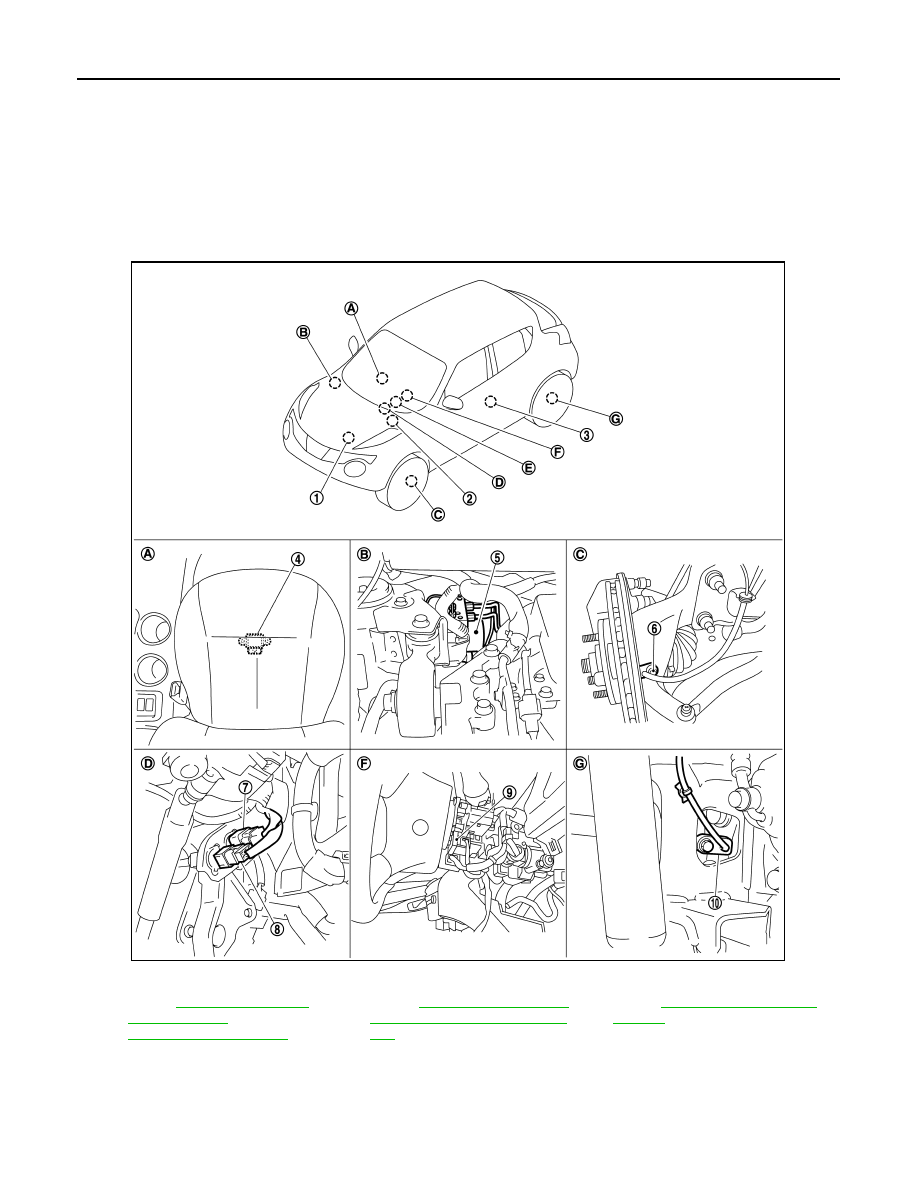

AWD

D.

Brake pedal

E.

ABS warning lamp, brake warning
lamp, VDC warning lamp, VDC OFF
indicator lamp (in combination
meter)

F.

Back of spiral cable assembly

G.

Rear wheel hub and bearing assem-
bly

1.

ECM
Refer to

EC-27, "ENGINE CON-

TROL SYSTEM :
Component Parts Location"

.

2.

TCM
Refer to

TM-156, "CVT CONTROL

SYSTEM : Component Parts Loca-
tion"

.

3.

AWD control module
Refer to

DLN-10, "Component Parts

Location"

.

4.

Yaw rate/side/decel G sensor

5.

ABS actuator and electric unit (con-
trol unit)

6.

Front wheel sensor

7.

Stop lamp switch

8.

Brake pedal position switch

9.

Steering angle sensor

10. Rear wheel sensor

JSFIA0644ZZ
