Nissan Juke F15. Manual - part 1035





PCS-84

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR DOES NOT ILLUMI-

NATE

PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR DOES NOT IL-
LUMINATE

Description

INFOID:0000000012197224

• Before performing the diagnosis in the following table, check “Work Flow”. Refer to

PCS-60, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

Conditions of Vehicle (Operating Conditions)

• “ENGINE START BY I-KEY” in “WORK SUPPORT” is ON when setting on CONSULT.

• One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.

Diagnosis Procedure

INFOID:0000000012197225

1.

CHECK PUSH-BUTTON IGNITION SWITCH INDICATOR

Check push-button ignition switch indicator.

Refer to

PCS-81, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> GO TO 1.

PG

PG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PG

A

O

P

N

CONTENTS

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Procedure without Cowl Top Cover

......

3

Precautions for Removing Battery Terminal  .............

3

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tools ................................................

5

SYSTEM DESCRIPTION  ..............................

6

COMPONENT PARTS  ........................................

6

Circuit Breaker  ..........................................................

6

Battery .......................................................................

6

Harness Connector  ...................................................

6

Standardized Relay ...................................................

9

WIRING DIAGRAM ......................................

12

POWER SUPPLY ROUTING CIRCUIT ..............

12

Wiring Diagram - BATTERY POWER SUPPLY - ....

12

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No.7 - ............................................................

31

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No.13 - ..........................................................

32

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No.34 - ..........................................................

33

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No.43 - ..........................................................

34

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No.47 - ..........................................................

36

Wiring Diagram - ACCESSORY POWER SUP-
PLY -  .......................................................................

38

Wiring Diagram - ACCESSORY POWER SUP-
PLY FUSE No.19 -  ..................................................

42

Wiring Diagram - IGNITION POWER SUPPLY - ....

43

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No.3 -  ............................................................

61

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No.5 -  ............................................................

62

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No.15 -  ..........................................................

63

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No.55 -  ..........................................................

64

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No.61 -  ..........................................................

65

GROUND DISTRIBUTION  ................................

66

Engine Room Harness  ............................................

66

Engine Control Harness  ..........................................

69

Main Harness  ..........................................................

70

Body Harness  ..........................................................

73

Door Harness  ..........................................................

75

OPTION HARNESS  ..........................................

76

Wiring Diagram ........................................................

76

FUSE BLOCK - JUNCTION BOX (J/B)  ............

80

Fuse, Connector and Terminal Arrangement  ..........

80

FUSE, FUSIBLE LINK AND RELAY BOX ........

81

Fuse and Fusible Link Arrangement ........................

81

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

82

Fuse, Connector and Terminal Arrangement  ..........

82

HARNESS LAYOUT  .........................................

83

Outline .....................................................................

83

Engine Room Harness  ............................................

84

Engine Control Harness  ..........................................

86

Main Harness  ..........................................................

88

Body Harness  ..........................................................

89

Door Harness  ..........................................................

91

Room Lamp Harness ...............................................

96

BASIC INSPECTION  ...................................

97

PG

PRECAUTIONS

PG-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012199768

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, it is recommended that all mainte-

nance and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

Ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)

with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly

causing serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery or batteries, and wait at least three minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012998190

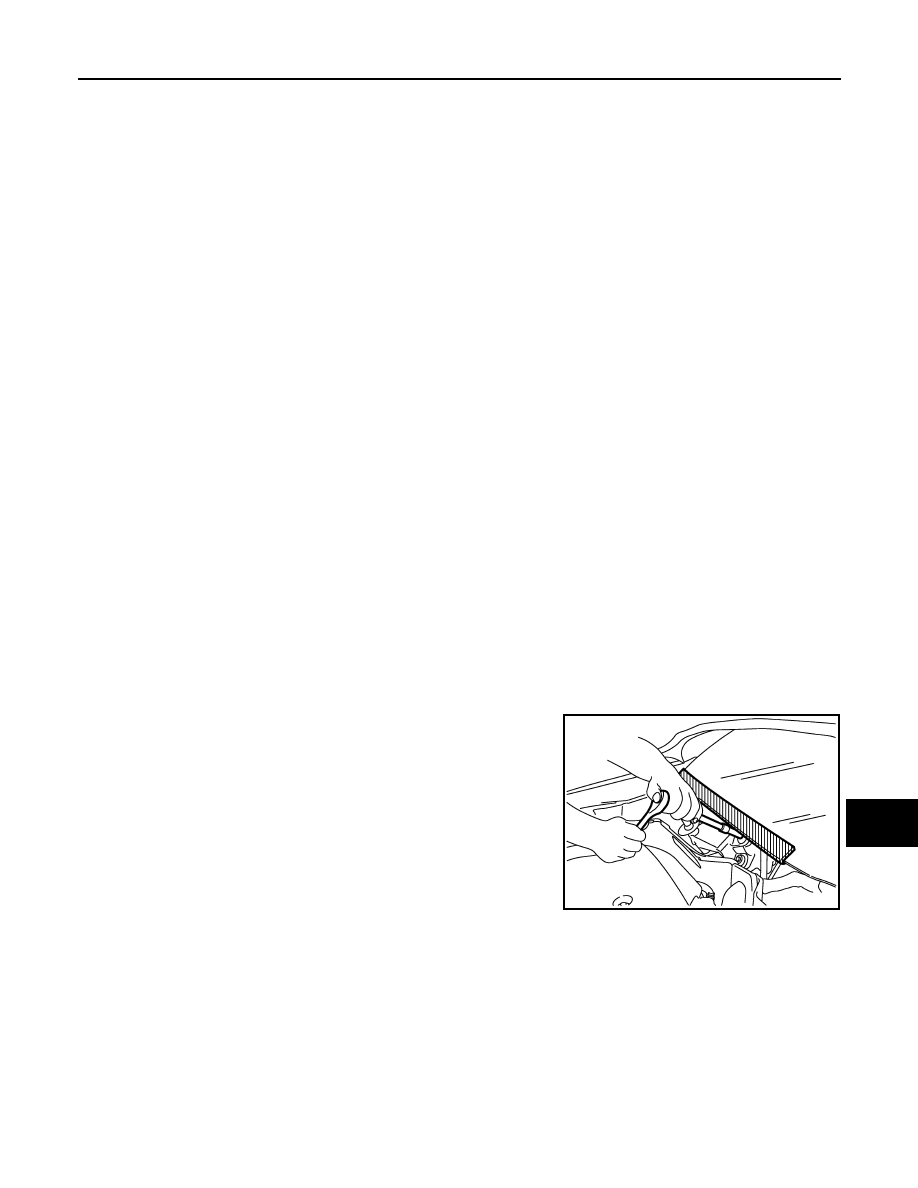

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precautions for Removing Battery Terminal

INFOID:0000000012998091

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

PIIB3706J
