DIAGNOSIS SYSTEM (IPDM E/R)

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 second
intervals.

Fog

Operates the front fog lamp relay.

Test item

Operation

Description

PCS

IPDM E/R

PCS-17

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS INFORMATION

IPDM E/R

Reference Value

INFOID:0000000012197160

VALUES ON THE DIAGNOSIS TOOL

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

RAD FAN REQ

Engine idle speed

Changes depending on engine
coolant temperature, air conditioner
operation status, vehicle speed,
etc.

0 – 100%

AC COMP REQ

Engine running

A/C switch OFF

Off

A/C switch ON
(Compressor is operating)

On

TAIL&CLR REQ

Lighting switch OFF

Off

• Lighting switch 1ST, 2ND or AUTO (Light is illuminated)
• Daytime running light system operated

On

HL LO REQ

Lighting switch OFF

Off

Lighting switch 2ND or AUTO (Light is illuminated)

On

HL HI REQ

Lighting switch 2ND or AUTO (light
is illuminated)

Lighting switch other than HI and
PASS

Off

Lighting switch HI or PASS

On

FR FOG REQ

Lighting switch 1ST, 2ND or
AUTO (Light is illuminated)

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

Stop

Front wiper switch INT

1LOW

Front wiper switch LO

Low

Front wiper switch HI

Hi

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally.

Off

Front wiper stops at fail-safe opera-
tion.

BLOCK

IGN RLY1 -REQ

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN RLY

Ignition switch OFF or ACC

Off

Ignition switch ON

On

PUSH SW

Release the push-button ignition switch

Off

Press the push-button ignition switch

On

INTER/NP SW

Ignition switch ON (CVT models)

Selector lever in any position other
than P or N

Off

Selector lever in P or N position

On

Ignition switch OFF or ACC (M/T models)

Off

Ignition switch ON (M/T models)

On

PCS-18

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R

ST RLY CONT

Ignition switch ON

Off

At engine cranking

On

IHBT RLY -REQ

Ignition switch ON

Off

At engine cranking

On

ST/INHI RLY

Ignition switch ON

Off

At engine cranking

INHI ON

→ ST ON

The status of starter relay or starter control relay cannot be recognized by
the battery voltage malfunction, etc. when the starter relay is ON and the
starter control relay is OFF.

UNKWN

DETENT SW

Ignition switch ON

• Press the selector button with se-

lector lever in P position.

• Selector lever in any position oth-

er than P.

Off

Release the selector button with selector lever in P position.
NOTE:
Status fixed to On for M/T models

On

S/L RLY -REQ

NOTE:
This item is indicated, but not monitored.

Off

S/L STATE

NOTE:
This item is indicated, but not monitored.

UNLOCK

DTRL REQ
NOTE:
This item is monitored only
for the except for NISMO
models.

Daytime running light system is not operated with ignition switch OFF

Off

Any of the condition below
• Daytime running light system is operated
• Light switch 2ND or AUTO (light is illuminated)

On

OIL P SW

NOTE:
This item is indicated, but not monitored.

Open

HOOD SW

NOTE:
This item is indicated, but not monitored.

Off

HL WASHER REQ

NOTE:
This item is indicated, but not monitored.

Off

THFT HRN REQ

Not operation

Off

Theft warning alarm is activated

On

HORN CHIRP

Not operation

Off

Horn reminder is activated

On

Monitor Item

Condition

Value/Status

PCS

IPDM E/R

PCS-19

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

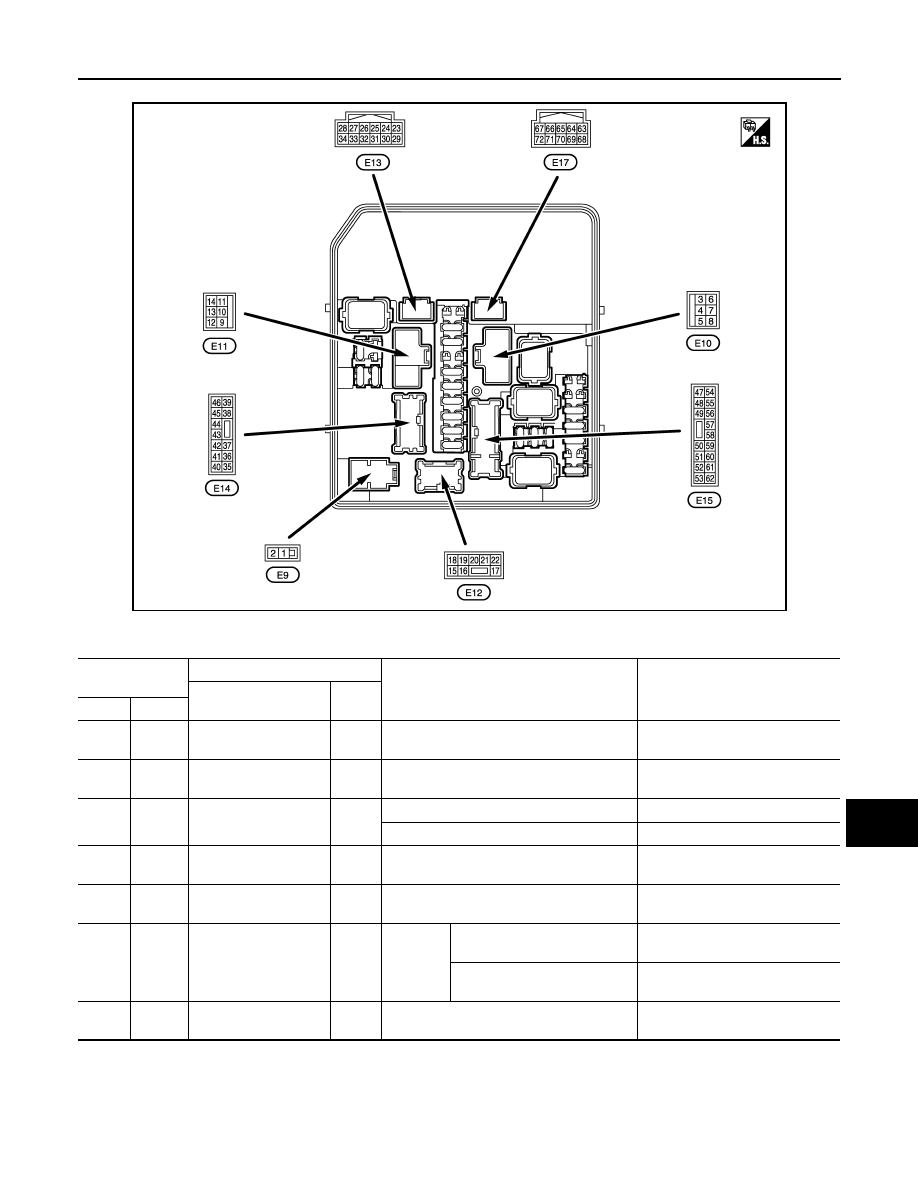

TERMINAL LAYOUT

PHYSICAL VALUES

JPMIA1423ZZ

Terminal NO.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–

1

(R)

Ground

Battery power supply

Input

Ignition switch OFF

6 – 16 V

2

(G)

Ground

Battery power supply

Input

Ignition switch OFF

6 – 16 V

3

(R)

Ground

Starter motor

Output

Other than engine cranking

0 – 1 V

At engine cranking

6 – 16 V

4

(P)

Ground

Battery power supply

Input

Ignition switch OFF

9 – 16 V

9

(B/Y)

Ground

Ground

—

Ignition switch ON

0 – 1 V

14

(R)

Ground

Rear window defogger

Output

Ignition
switch
ON

Rear window defogger switch
OFF

0 – 1 V

Rear window defogger switch
ON

9 – 16 V

18

(GR)

Ground

Ground

—

Ignition switch ON

0 – 1 V
