BCS

DIAGNOSIS SYSTEM (BCM)

BCS-19

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

INT LAMP
INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000012965031

WORK SUPPORT

*: Factory setting

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

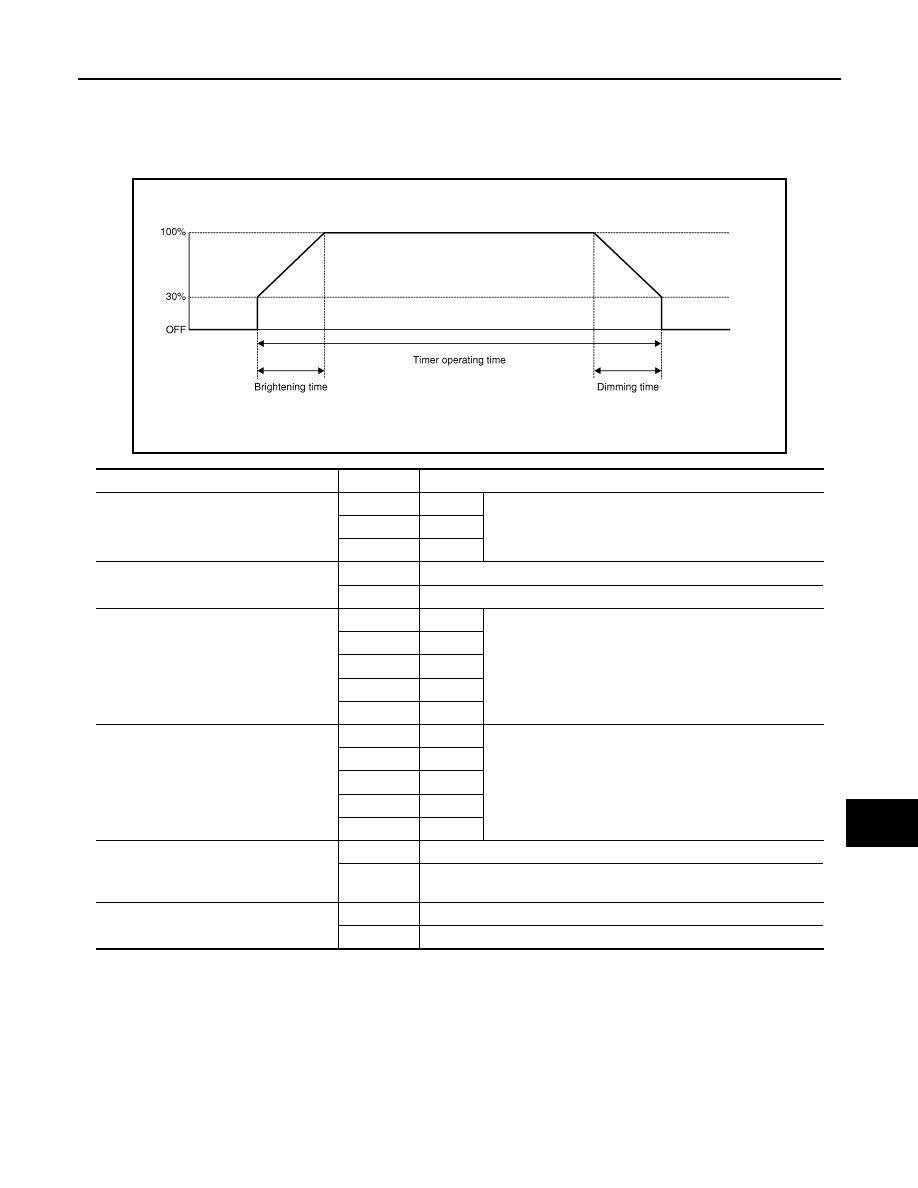

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

FOG LAMP OVERRIDE

On

With front fog override function

Off*

Without front fog override function

BCS-20

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

HEADLAMP
HEADLAMP : CONSULT Function (BCM - HEAD LAMP) (XENON TYPE)

INFOID:0000000012965020

WORK SUPPORT

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

REQ SW-RL
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

UNLK SEN -DR
[On/Off]

Indicates [On/Off] condition of driver door UNLOCK status

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW- RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW- BK
[On/Off]

Indicated [On/Off] condition of back door switch

CDL LOCK SW
[On/Off]

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door lock unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

KEY CYL LK-SW
[On/Off]

Indicated [On/Off] condition of lock signal from door key cylinder

KEY CYL UN-SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door key cylinder

RKE-LOCK
[On/Off]

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK
[On/Off]

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal.

Off

Stops the interior room lamp control signal.

STEP LAMP TEST

On

NOTE:
This item is indicated, but can not tested

Off

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*

1

: For models without auto light system, this item cannot be used.

*

2

: Factory setting

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

Service item

Setting item

Setting

CUSTOM A/LIGHT SETTING*

1

MODE1*

2

Normal

MODE2

More sensitive setting than normal setting (Turns ON earlier than normal operation)

MODE3

More sensitive setting than MODE2 (Turns ON earlier than MODE2)

MODE4

Less sensitive setting than normal setting (Turns ON later than normal operation)

BATTERY SAVER SET

On*

2

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ILL DELAY SET*

1

MODE1*

2

45 sec.

Sets delay timer function timer operation time.
(All doors closed)

MODE2

Without the function

MODE3

30 sec.

MODE4

60 sec.

MODE5

90 sec.

MODE6

120 sec.

MODE7

150 sec.

MODE8

180 sec.

HEAD LIGHT TIMER

MODE1

10 sec.

Sets follow me home function activating time

MODE2*

2

30 sec.

AUTO LIGHT LOGIC SET*

1

MODE1*

2

With twilight ON custom & with wiper INT, LO and HI

MODE2

With twilight ON custom & with wiper LO and HI

MODE3

With twilight ON custom & without

MODE4

Without twilight ON custom & with wiper INT, LO and HI

MODE5

Without twilight ON custom & with wiper LO and HI

MODE6

Without twilight ON custom & without

Monitor item

[Unit]

Description

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

ENGINE STATE
[STOP/STALL/CRANK/RUN]

Indicates [STOP/STALL/CRANK/RUN] condition of engine states

VEH SPEED 1
[km/h]

Display the vehicle speed signal received from combination meter by numerical value [km/h]

BCS-22

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

*

1

: For models without auto light system, this item cannot be monitored.

*

2

: For models without front fog lamp, this item cannot be monitored.

ACTIVE TEST

TURN SIGNAL R
[On/Off]

Each switch status that BCM judges from the combination switch reading function

TURN SIGNAL L
[On/Off]

TAIL LAMP SW
[On/Off]

HI BEAM SW
[On/Off]

HEAD LAMP SW 1
[On/Off]

HEAD LAMP SW 2
[On/Off]

PASSING SW
[On/Off]

AUTO LIGHT SW*

1

[On/Off]

FR FOG SW*

2

[On/Off]

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK
[On/Off]

Indicated [On/Off] condition of back door switch

OPTI SEN (DTCT)
[V]

The value of outside brightness voltage input from the optical sensor

OPTI SEN (FILT)
[V]

The value of outside brightness voltage filtered by BCM

OPTICAL SENSOR
[On/Off/NG]

NOTE:
This item cannot be monitored

Monitor item

[Unit]

Description

Test item

Operation

Description

TAIL LAMP

On

• Transmits the position light request signal to IPDM E/R via CAN communication to

turn the parking, license plate and tail lamps ON

• Transmits the position light request signal to combination meter via CAN commu-

nication to turn the position lamp indicator lamp ON

Off

Stops the position light request signal transmission

HEAD LAMP

HI

• Transmits the high beam request signal to IPDM E/R via CAN communication to

turn the headlamp (HI) ON

• Transmits the high beam request signal to combination meter via CAN communi-

cation to turn the high beam indicator lamp ON

Low

Transmits the low beam request signal to IPDM E/R via CAN communication to turn
the headlamp (LO) ON

Off

Stops the high beam request signal and low beam request signal transmission
