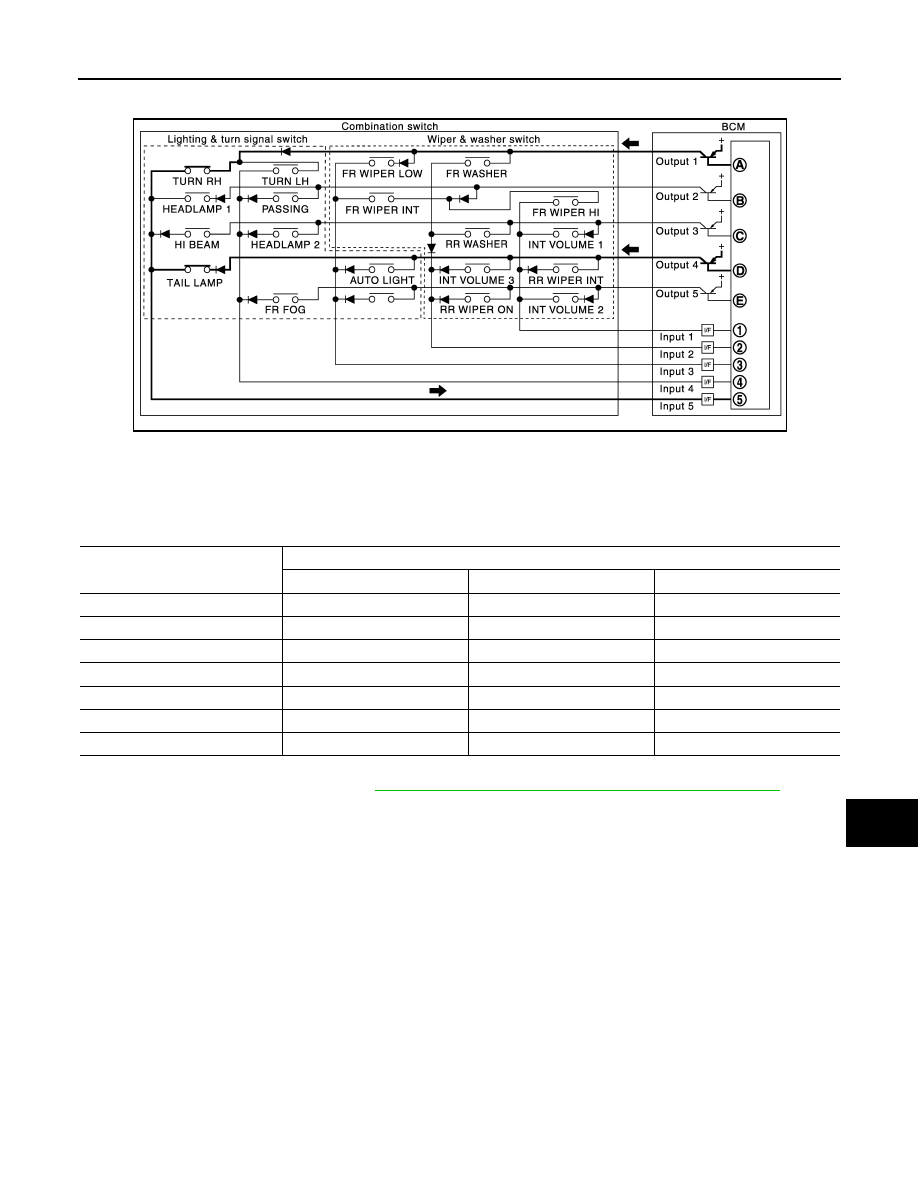

• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the

TURN RH switch and TAIL LAMP switch are turned ON.

• BCM detects the combination switch status signal “5AD” when the signals of OUTPUT 1 and OUTPUT 4 are

input to INPUT 5.

• BCM judges that the TURN RH switch and TAIL LAMP switch are ON when the signal “5AD” is detected.

WIPER INTERMITTENT DIAL POSITION

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.

NOTE:
For details of wiper intermittent dial position, refer to

WW-7, "FRONT WIPER AND WASHER SYSTEM : System Description"

.

SIGNAL BUFFER SYSTEM

JPMIA1546GB

Wiper intermittent

dial position

Switch status

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

1

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

6

OFF

ON

ON

7

OFF

ON

OFF

BCS-12

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

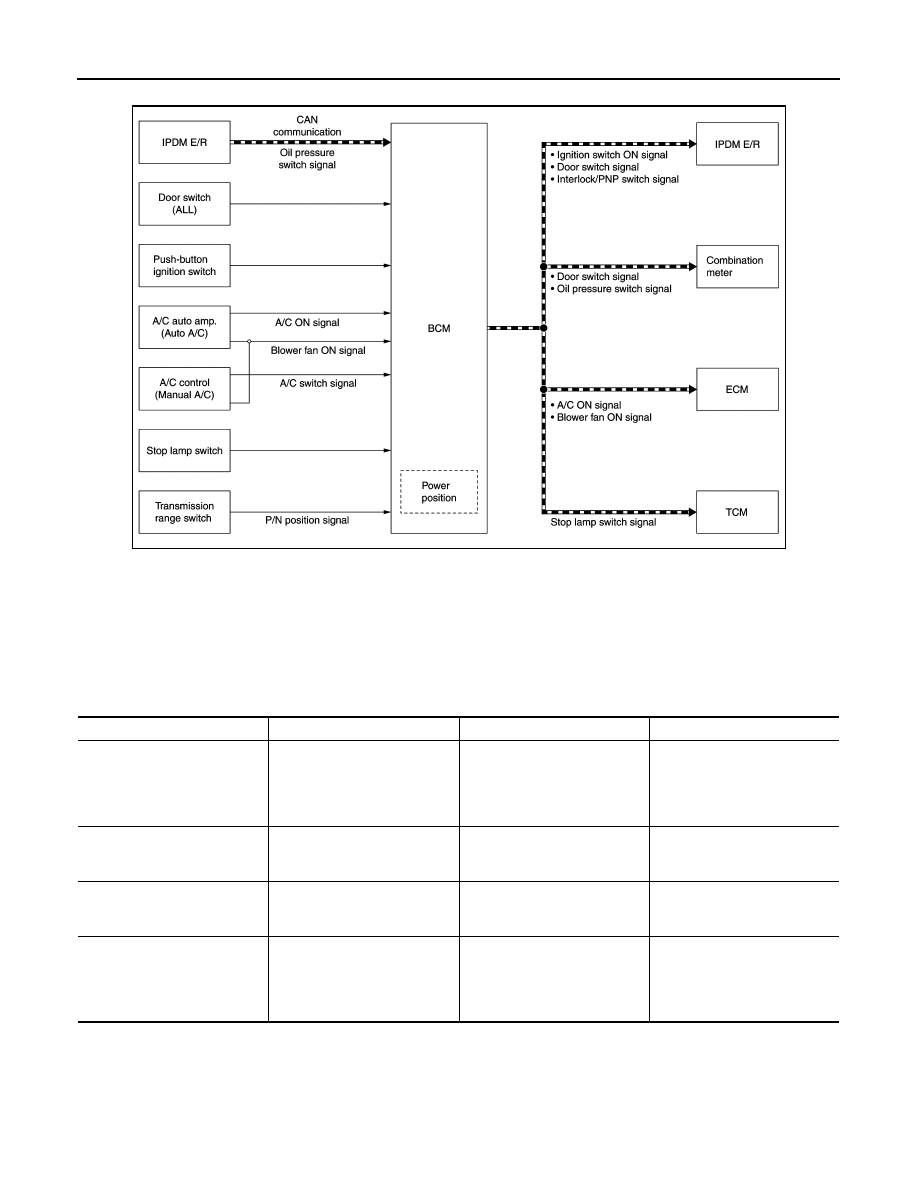

SIGNAL BUFFER SYSTEM : System Diagram

INFOID:0000000012200692

NOTE:

If vehicle models is gasoline engine models, oil pressure switch is not applied.

SIGNAL BUFFER SYSTEM : System Description

INFOID:0000000012200693

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

Signal transmission function list

JMMIA0578GB

Signal name

Input

Output

Description

Ignition switch ON signal

Push-button ignition switch
(Push switch)

IPDM E/R (CAN)

Inputs the push-button ignition
switch (push switch) signal and
transmits the ignition switch sta-
tus judged with BCM via CAN
communication.

Door switch signal

Any door switch

• Combination meter (CAN)
• IPDM E/R (CAN)

Inputs the door switch signal
and transmits it via CAN com-
munication.

Blower fan ON signal

• A/C auto amp. (Auto A/C)
• A/C control (Manual A/C)

ECM (CAN)

Input blower fan switch signal,
and transmit the blower fan ON
signal via CAN communication.

A/C ON signal

• A/C auto amp. (Auto A/C)
• A/C control (Manual A/C)

ECM (CAN)

Input A/C ON signal (automatic
A/C) or A/C switch signal (man-
ual A/C), and transmit the A/C
ON signal via CAN communica-
tion.

BCS

SYSTEM

BCS-13

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER CONSUMPTION CONTROL SYSTEM
POWER CONSUMPTION CONTROL SYSTEM : System Diagram

INFOID:0000000012200694

POWER CONSUMPTION CONTROL SYSTEM : System Description

INFOID:0000000012200695

OUTLINE

• BCM incorporates a power saving control function that reduces the power consumption according to the

vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit (IPDM E/R, combination meter and multi display unit) that operates with the ignition

switch OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units

- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped

- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active

- CAN transmission is stopped

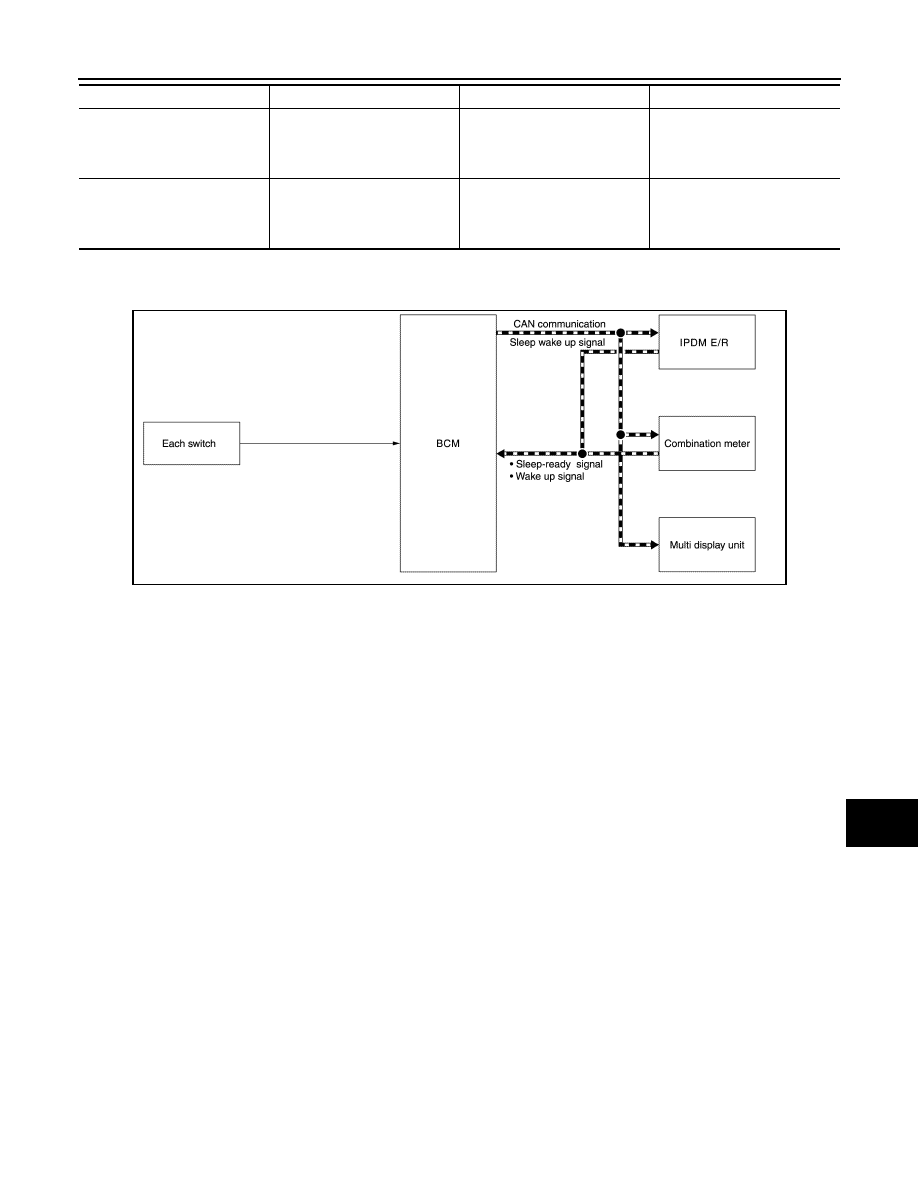

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.

• The reading interval of the each switches changes from 10 ms interval to 60 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-

tion.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-

munication sleep mode.

Stop lamp switch signal

Stop lamp switch

TCM (CAN)

Inputs the stop lamp switch 1
signal and stop lamp switch 2
signal, and transmits it via CAN
communication.

Interlock/PNP switch signal

Transmission range switch

IPDM E/R (CAN)

Inputs the P/N position signal,
and transmits the interlock/PNP
switch signal via CAN commu-
nication.

Signal name

Input

Output

Description

JMMIA0579GB

BCS-14

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

Sleep condition

NOTE:

*: Refer to

INL-8, "INTERIOR ROOM LAMP BATTERY SAVER SYSTEM : System Description"

 for details of

the interior room lamp battery saver time.

Wake-up operation

• BCM transmits sleep wake up signal (wake up) to each unit when any condition listed below is established,

and then goes into normal mode from low power consumption mode.

• Each unit starts transmissions with CAN communication by receiving sleep wake up signals. Each unit trans-

mit wake up signals to BCM with CAN communication to convey the start of CAN communication.

Wake-up condition

CAN sleep condition

BCM sleep condition

• Receiving the sleep-ready signal (ready) from all units
• 1 minute after turning ignition switch OFF
• Theft warning alarm and panic alarm: Not operation
• Warning chime: Not operation
• Intelligent Key system buzzer: Not operation
• Stop lamp switch: OFF
• Turn signal indicator lamp: Not operation
• Exterior lamp: OFF
• Door lock status: No change
• CONSULT communication status: Not communication
• Meter display signal: Non-transmission
• Door switch status: No change

• Interior room lamp battery saver: Time out*
• RAP system: No communication
• Nissan Vehicle Immobilizer System (NVIS) - NATS: Not opera-

tion

• Remote keyless entry receiver communication status: No com-

munication

• Tire pressure monitoring system (TPMS): Stop
• ACC/ON indicator lamp: Not operation

BCM wake-up condition

CAN wake-up condition

Back door opener switch: OFF

→ ON

• Receiving the sleep-ready signal (Not-ready) from any units
• Push-button ignition switch (push switch): OFF

→ ON

• Hazard switch: ON
• HI BEAM switch: OFF

→ ON, ON → OFF

• PASSING switch: OFF

→ ON, ON → OFF

• HEADLAMP 1 switch: OFF

→ ON, ON → OFF

• HEADLAMP 2 switch: OFF

→ ON, ON → OFF

• TAIL LAMP switch: OFF

→ ON

• FR FOG switch: OFF

→ ON, ON → OFF

• TURN RH: OFF

→ ON, ON → OFF

• TURN LH: OFF

→ ON, ON → OFF

• Driver door switch: OFF

→ ON, ON → OFF

• Passenger door switch: OFF

→ ON, ON → OFF

• Rear RH door switch: OFF

→ ON, ON → OFF

• Rear LH door switch: OFF

→ ON, ON → OFF

• Back door switch: OFF

→ ON, ON → OFF

• Driver door request switch: OFF

→ ON

• Passenger door request switch: OFF

→ ON

• Back door request switch: OFF

→ ON

• Stop lamp switch: ON
• Door lock and unlock switch: NEUTRAL

→ LOCK, NEUTRAL →

UNLOCK

• Front door lock assembly (driver side) (door key cylinder switch):

NEUTRAL

→ LOCK, NEUTRAL → UNLOCK

• Remote keyless entry receiver communication: Receiving
• Front door lock assembly (driver side) (unlock sensor): OFF

→

ON, ON

→ OFF
