COMPONENT PARTS

USB connector and AUX jack

• Sound signal of auxiliary input is transmitted to audio unit.
• Sound signal of USB input is transmitted to audio unit.

Rear view camera

• Camera power supply is input from audio unit.
• The image of vehicle rear view is transmitted to audio unit.

Part name

Description

AV

SYSTEM

AV-11

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

System Description

INFOID:0000000012202455

AUDIO SYSTEM

The audio system consists of the following components:

• Audio unit

• Front door speakers

• Rear door speakers

• Tweeters

• Steering wheel audio control switches

• USB  interface

• AUX in jack

• Antenna amp.

• Rod antenna

• Satellite radio.

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the audio unit. The audio unit then sends audio signals to the front door speakers and rear door

speakers.

Refer to Owner's Manual for audio system operating instructions.

USB INTERFACE FUNCTION

• iPod

®

 or music files in USB memory can be played.

• Sound signals are transmitted from USB interface to the audio unit and output to each speaker.
• iPod

®

 is recharged when connected to USB interface.

iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

HANDS-FREE PHONE SYSTEM

• Bluetooth

®

 control is built into audio unit.

• The connection between cellular phone and audio unit is performed with Bluetooth

®

 communication.

• The voice guidance signal is input from the audio unit and output to the front speakers when operating the

cellular phone.

When A Call Is Originated

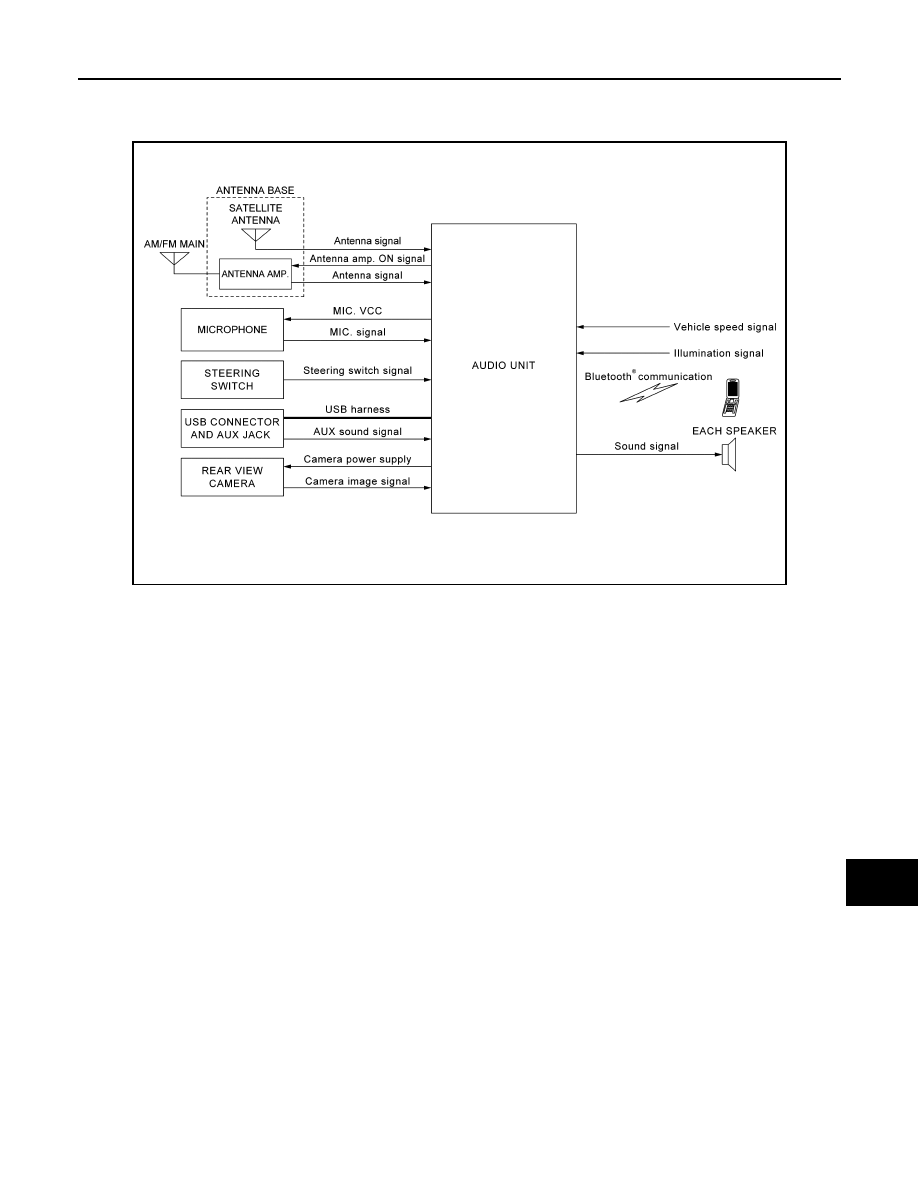

JSNIA8041GB

AV-12

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

SYSTEM

• Spoken voice sound output from the microphone (microphone signal) is input to audio unit.
• Audio unit outputs to cellular phone with Bluetooth

®

 communication as a TEL voice signal.

• Voice sound is then heard at the other party.

When Receiving A Call

• Voice sound is input to own cellular phone from the other party.
• TEL voice signal is input to audio unit by establishing Bluetooth

®

 communication from cellular phone, and

the signal is output to front speakers.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

REAR VIEW MONITOR FUNCTION

Operation Description

• When the selector lever is shifted to the reverse position, the rear view monitor image is displayed.

• When the selector lever is shifted to any position other than the reverse position, the original image (the

image displayed before the rear view monitor image) is displayed.

Camera Image Operation Principle

• The audio unit supplies power to the rear view camera when receiving a reverse signal.

• The rear view camera transmits camera images to the audio unit when power is supplied from the audio unit.

• The audio unit combines a warning message and fixed guide lines with an image received from the rear view

camera to display a rear view camera image on the screen.

Vehicle Width and Distance Guide Lines Display Function at Rear View Monitor Display

• The vehicle width and distance guide lines are displayed at the rear view monitor display to allow the driver

to more easily judge distances between the vehicle and objects and help the driver back into a parking

space.

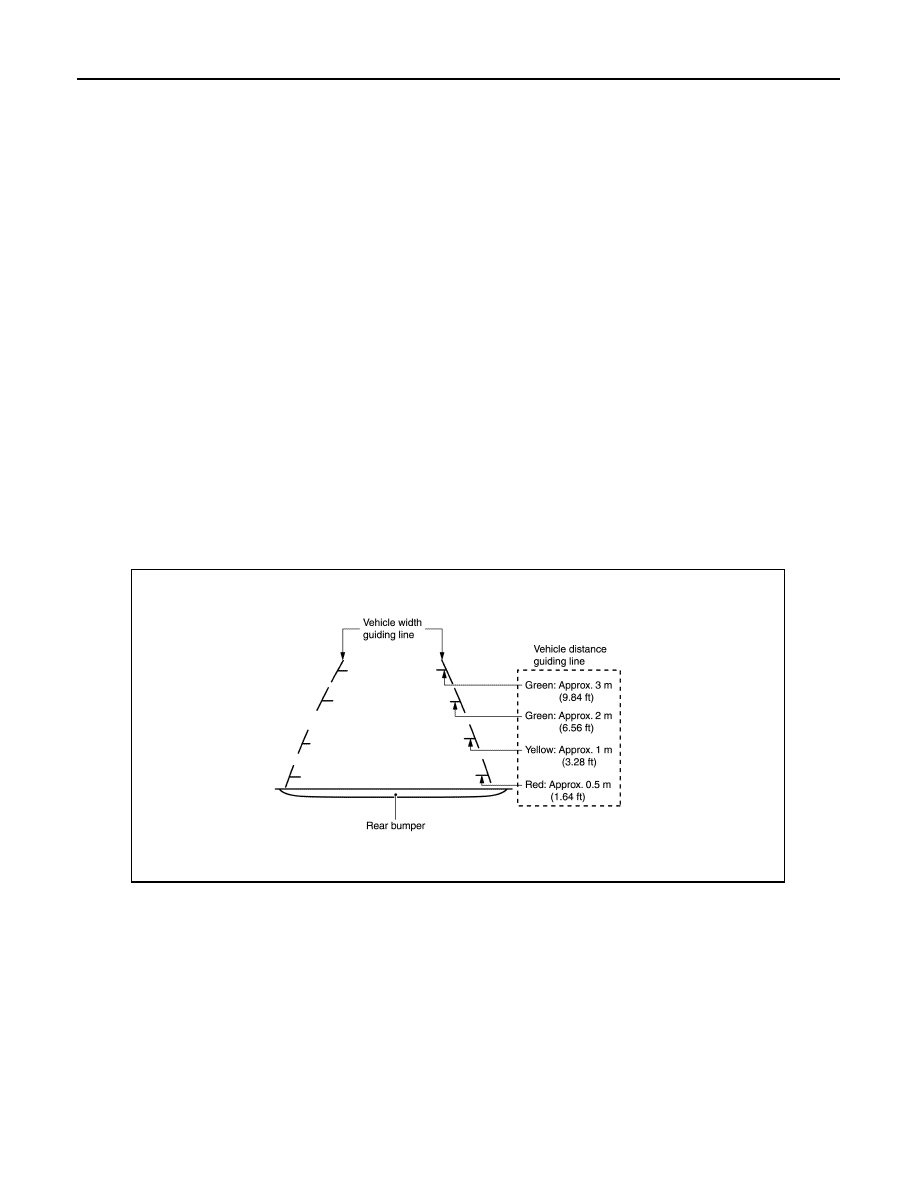

Vehicle Width and Distance Guide Lines Display Function at Rear View Monitor Display

Precautions for Vehicle Width And Distance Guide Lines Display on the Rear View Monitor Display

Vehicle width and distance guide lines on the display may be different from actual lines depending on vehicle

conditions and road conditions.

Precautions for road conditions

JSNIA4330GB

AV

SYSTEM

AV-13

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

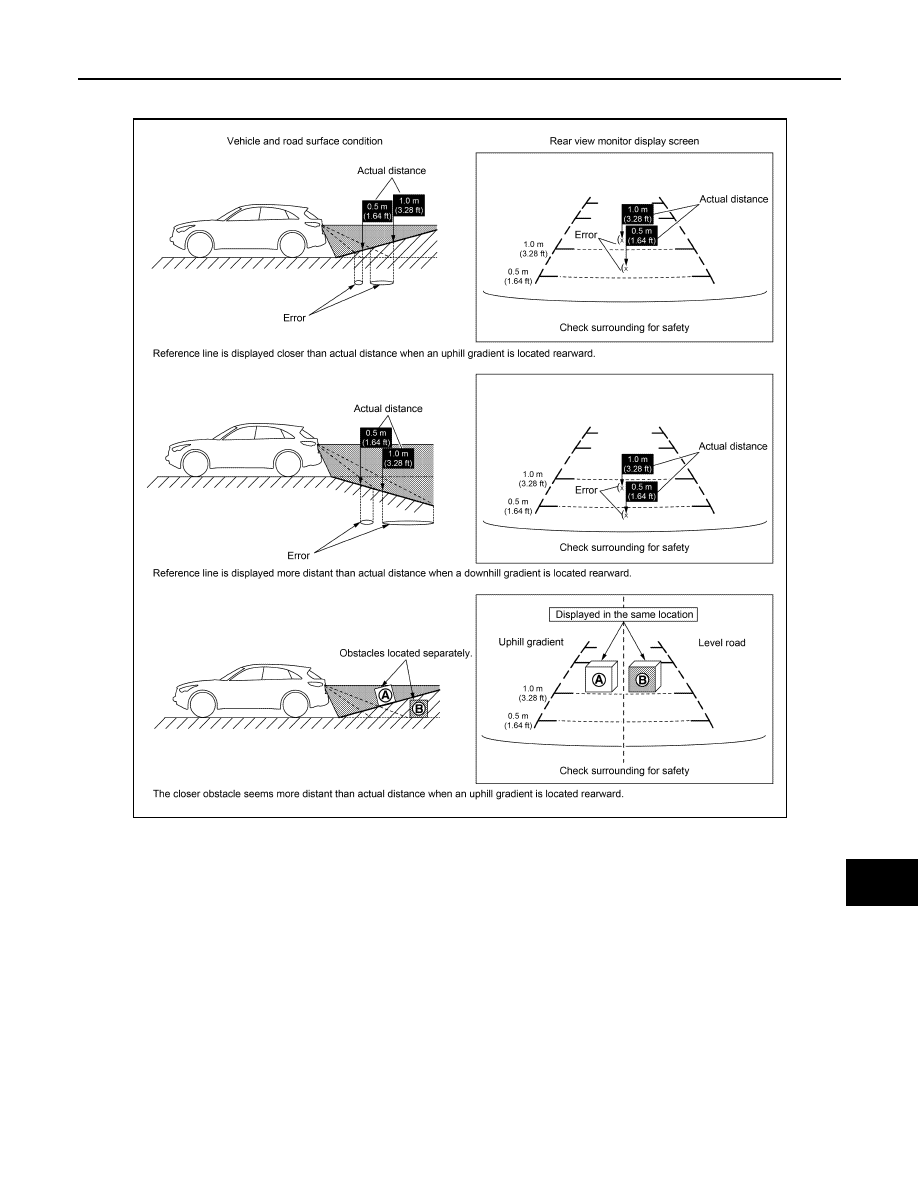

• Since guide lines are drawn based on the road, a different distance may be displayed if a protruding block is

present nearby.

Precautions for block

JSNIA8941GB
