Nissan Juke F15. Manual - part 3





PRECAUTIONS

ACC-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

ACC-4

< REMOVAL AND INSTALLATION >

ACCELERATOR CONTROL SYSTEM

REMOVAL AND INSTALLATION

ACCELERATOR CONTROL SYSTEM

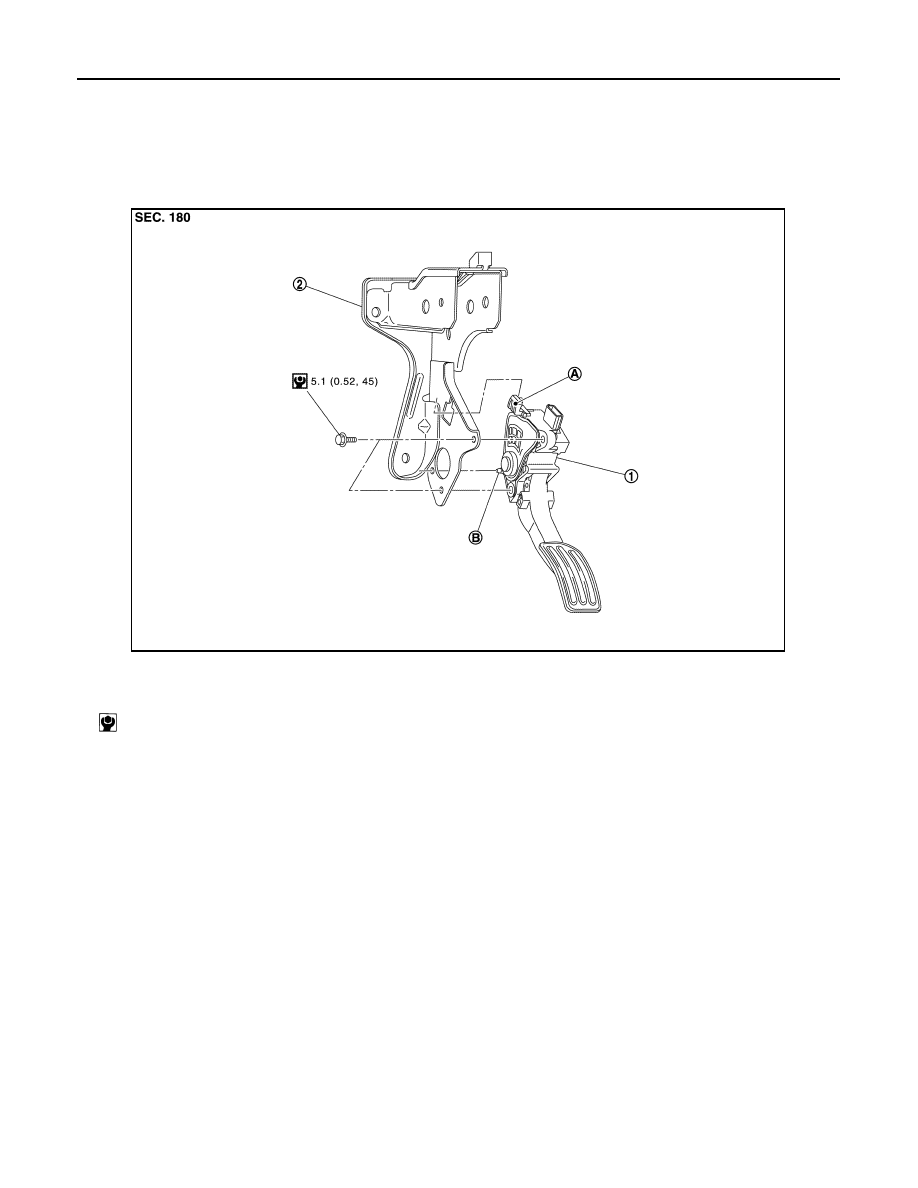

Exploded View

INFOID:0000000012199343

Removal and Installation

INFOID:0000000012199344

REMOVAL

1. Remove instrumentpanel lower cover driver side.
2. Disconnect accelerator pedal position sensor harness connector.
3. Loosen mounting bolts, and remove accelerator pedal assembly.

CAUTION:

• Never disassemble accelerator pedal assembly. Never remove accelerator pedal position sensor

from accelerator pedal assembly.

• Avoid impact from dropping etc. during handling.

• Be careful to keep accelerator pedal assembly away from water.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Insert the locating pin while inserting the locating hook in to the break pedal bracket. Tighten mounting bolts

to accelerator pedal assembly.

CAUTION:

Never squeeze the locating hook into the break pedal bracket when inserting the locating pin into the

hole on the brake pedal bracket side.

1.

Accelerator pedal assembly

2.

Brake pedal bracket

A. Locating hook

B. Locating pin

: N·m (kg-m, in-lb)

JPBIA5259GB

ACCELERATOR CONTROL SYSTEM

ACC-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

Inspection

INFOID:0000000012199345

INSPECTION AFTER INSTALLATION

• Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and

released.

• Check accelerator pedal securely returns to the fully released position.

• For the electrical inspection of accelerator pedal position sensor. Refer to

EC-518, "Component Inspection"

,

EC-522, "Component Inspection"

 and

EC-528, "Component Inspection"

.

CAUTION:

When harness connector of accelerator pedal position sensor is disconnected, perform “ACCELERA-

TOR PEDAL RELEASED POSITION LEARNING”. Refer to following. Refer to

EC-160, "Work Proce-

dure"

.

AV

AV-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

AV

A

O

P

CONTENTS

AUDIO, VISUAL & NAVIGATION SYSTEM

DISPLAY AUDIO

PRECAUTION ...............................................

6

PRECAUTIONS ...................................................

6

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

6

Precautions for Removing Battery Terminal  .............

6

PREPARATION ............................................

8

PREPARATION ...................................................

8

Commercial Service Tools  ........................................

8

SYSTEM DESCRIPTION  ..............................

9

COMPONENT PARTS  ........................................

9

Component Parts Location ........................................

9

Component Description .............................................

9

SYSTEM .............................................................

11

System Description  .................................................

11

DIAGNOSIS SYSTEM (AUDIO UNIT) ................

15

Description ..............................................................

15

On Board Diagnosis Function  .................................

15

ECU DIAGNOSIS INFORMATION  ..............

18

AUDIO UNIT  .......................................................

18

Reference Value  .....................................................

18

WIRING DIAGRAM ......................................

22

DISPLAY AUDIO ................................................

22

Wiring Diagram  .......................................................

22

BASIC INSPECTION  ...................................

33

DIAGNOSIS AND REPAIR WORKFLOW  .........

33

Work Flow  ...............................................................

33

DTC/CIRCUIT DIAGNOSIS  .........................

35

POWER SUPPLY AND GROUND CIRCUIT  ....

35

AUDIO UNIT ...............................................................

35

AUDIO UNIT : Diagnosis Procedure  .......................

35

MICROPHONE SIGNAL CIRCUIT ....................

36

Diagnosis Procedure  ...............................................

36

STEERING SWITCH SIGNAL A CIRCUIT  .......

38

Description ...............................................................

38

Diagnosis Procedure  ...............................................

38

Component Inspection .............................................

38

STEERING SWITCH SIGNAL B CIRCUIT  .......

40

Description ...............................................................

40

Diagnosis Procedure  ...............................................

40

Component Inspection .............................................

40

STEERING SWITCH SIGNAL GND CIRCUIT ...

42

Description ...............................................................

42

Diagnosis Procedure  ...............................................

42

Component Inspection .............................................

42

CAMERA IMAGE SIGNAL CIRCUIT  ................

44

Description ...............................................................

44

Diagnosis Procedure  ...............................................

44

SYMPTOM DIAGNOSIS  ..............................

46

AUDIO SYSTEM  ...............................................

46

Symptom Table  .......................................................

46

NORMAL OPERATING CONDITION  ...............

48

Description ...............................................................

48

REMOVAL AND INSTALLATION ...............

50

AUDIO UNIT ......................................................

50

Removal and Installation  .........................................

50

FRONT DOOR SPEAKER  ................................

51
