Nissan Tiida C11. Manual - part 956

LAN

CAN COMMUNICATION CIRCUIT

LAN-81

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAN COMMUNICATION CIRCUIT

Diagnosis Procedure

INFOID:0000000001334444

INSPECTION PROCEDURE

1.

CONNECTOR INSPECTION

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect all the unit connectors on CAN communication system.

4.

Check terminals and connectors for damage, bend and loose connection.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector terminals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check the harness and repair the root cause.

3.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector and the ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Check the harness and repair the root cause.

4.

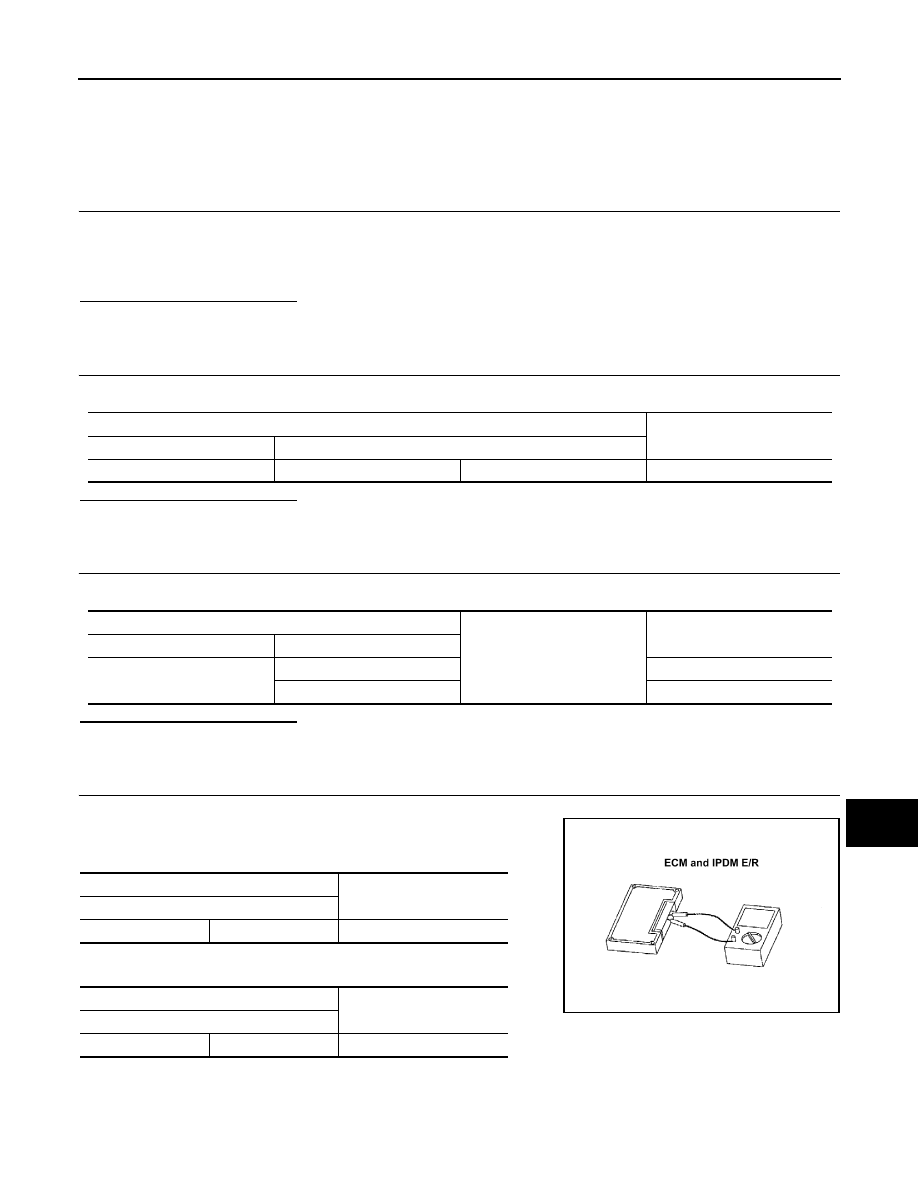

CHECK ECM AND IPDM E/R TERMINATION CIRCUIT

1.

Remove the ECM and the IPDM E/R.

2.

Check the resistance between the ECM terminals.

-

Diesel engine models

-

Gasoline engine models

3.

Check the resistance between the IPDM E/R terminals.

Data link connector

Continuity

Connector No.

Terminal No.

M22

6

14

Not existed

Data link connector

Ground

Continuity

Connector No.

Terminal No.

M22

6

Not existed

14

Not existed

ECM

Resistance (

Ω

)

Terminal No.

100

99

Approx. 108 – 132

ECM

Resistance (

Ω

)

Terminal No.

84

83

Approx. 108 – 132

LKIA0037E

LAN-82

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 2)]

CAN COMMUNICATION CIRCUIT

Is the measurement value within the specification?

YES

>> GO TO 5.

NO

>> Replace the ECM and/or the IPDM E/R.

5.

CHECK SYMPTOM

Connect all the connectors. Check if the symptoms described in the “Symptom (Results from interview with
customer)” are reproduced.

Inspection result

Reproduced>>GO TO 6.
Non-reproduced>>Start the diagnosis again. Follow the trouble diagnosis procedure when past error is

detected.

6.

CHECK UNIT REPRODUCTION

Perform the reproduction test as per the following procedure for each unit.
1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect one of the unit connectors of CAN communication system.
NOTE:
ECM and IPDM E/R have a termination circuit. Check other units first.

4.

Connect the battery cable to the negative terminal. Check if the symptoms described in the “Symptom
(Results from interview with customer)” are reproduced.
NOTE:
Although unit-related error symptoms occur, do not confuse them with other symptoms.

Inspection result

Reproduced>>Connect the connector. Check other units as per the above procedure.
Non-reproduced>>Replace the unit whose connector was disconnected.

IPDM E/R

Resistance (

Ω

)

Terminal No.

41

40

Approx. 108 – 132

LAN

MAIN LINE BETWEEN DLC AND ABS CIRCUIT

LAN-83

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 3)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMPONENT DIAGNOSIS

MAIN LINE BETWEEN DLC AND ABS CIRCUIT

Diagnosis Procedure

INFOID:0000000001334394

INSPECTION PROCEDURE

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).

-

Harness connector M69

-

Harness connector E7

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.

Disconnect the harness connectors M69 and E7.

2.

Check the continuity between the data link connector and the harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the data link connector and the harness connector M69.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.

Disconnect the connector of ABS actuator and electric unit (control unit).

2.

Check the continuity between the harness connector and the ABS actuator and electric unit (control unit)
harness connector.

Is the inspection result normal?

YES (Present error)>>Check CAN system type decision again.
YES (Past error)>>Error was detected in the main line between the data link connector and the ABS actuator

and electric unit (control unit).

NO

>> Repair the main line between the harness connector E7 and the ABS actuator and electric unit

(control unit).

Data link connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M22

6

M69

32A

Existed

14

31A

Existed

Harness connector

ABS actuator and electric unit (control unit)

harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

E7

32A

E33

26

Existed

31A

15

Existed

LAN-84

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 3)]

ECM BRANCH LINE CIRCUIT

ECM BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000001334403

1.

CHECK CONNECTOR

1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the following terminals and connectors for damage, bend and loose connection (unit side and con-
nector side).

-

ECM

-

Harness connector E7

-

Harness connector M69

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect the connector of ECM.

2.

Check the resistance between the ECM harness connector terminals.

-

Diesel engine models

-

Gasoline engine models

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the ECM branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the ECM. Refer to the following.
• K9K:

EC-1106, "Diagnosis Procedure"

• HR16DE (With EURO-OBD):

EC-124, "Diagnosis Procedure"

• HR16DE (Without EURO-OBD):

EC-477, "Diagnosis Procedure"

• MR18DE:

EC-789, "Diagnosis Procedure"

Is the inspection result normal?

YES (Present error)>>Replace the ECM. Refer to the following.

• K9K:

EC-1054, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

• HR16DE (With EURO-OBD):

EC-25, "ADDITIONAL SERVICE WHEN REPLACING CONTROL

UNIT : Special Repair Requirement"

• HR16DE (Without EURO-OBD):

EC-388, "ADDITIONAL SERVICE WHEN REPLACING CON-

TROL UNIT : Special Repair Requirement"

• MR18DE:

EC-692, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special

Repair Requirement"

YES (Past error)>>Error was detected in the ECM branch line.
NO

>> Repair the power supply and the ground circuit.

ECM harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

E16

100

99

Approx. 108 – 132

ECM harness connector

Resistance (

Ω

)

Connector No.

Terminal No.

E16

84

83

Approx. 108 – 132
