INL-10

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001728866

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

INT LAMP

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000001728867

WORK SUPPORT

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

XX-XX, "*****"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

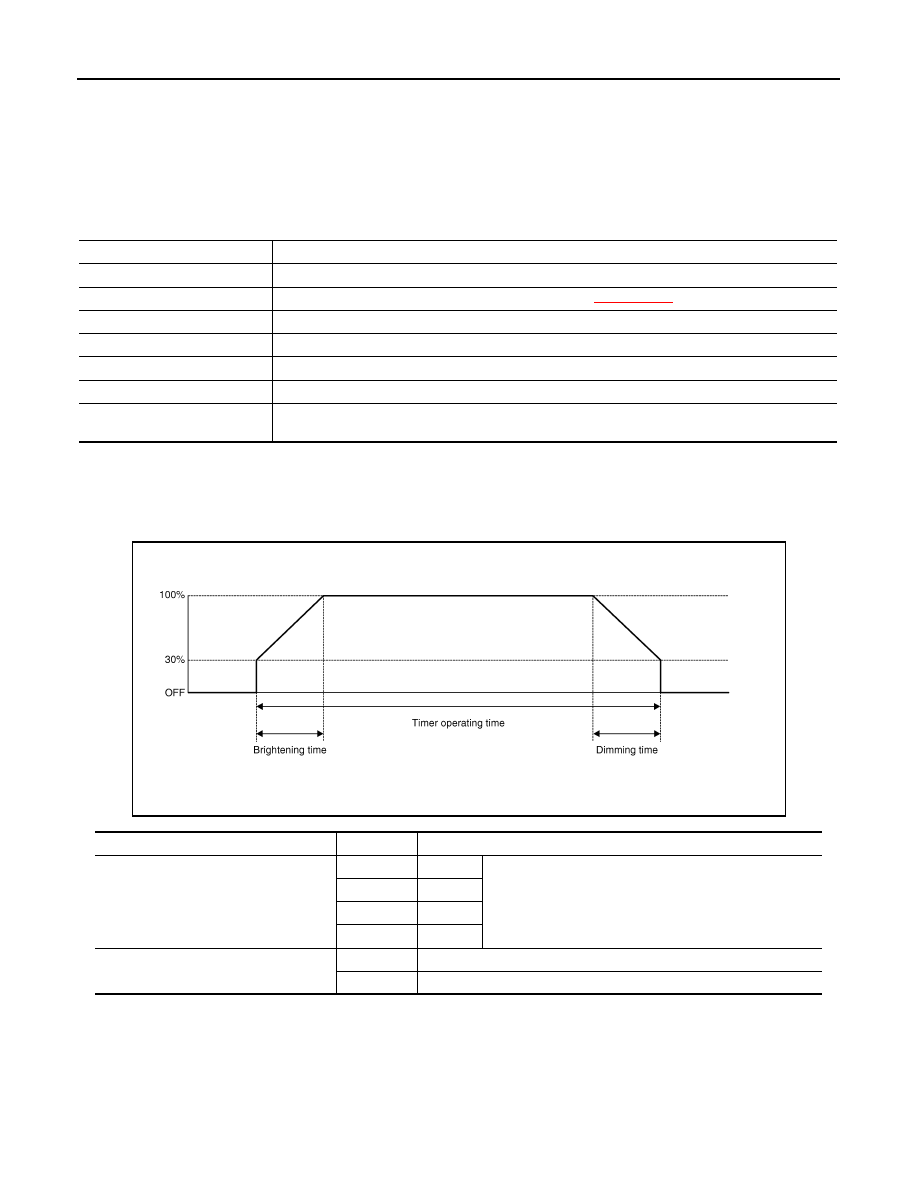

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

0 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 2

7.5 sec.

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

ON*

With the interior room lamp timer function

OFF

Without the interior room lamp timer function

DIAGNOSIS SYSTEM (BCM)

INL-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

*: Initial setting

DATA MONITOR

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Service item

Setting item

Setting

Monitor item

[Unit]

Description

IGN ON SW
[ON/OFF]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

ACC SW
[ON/OFF]

Ignition switch (ACC) status judges from ACC signal (ACC power supply)

KEY ON SW
[ON/OFF]

The switch status input from key switch

PUSH SW
[ON/OFF]

Push switch status received from Intelligent Key unit by CAN communication

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch (driver side)

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL
[ON/OFF]

The switch status input from rear door switch LH

BACK DOOR SW
[ON/OFF]

The switch status input from back door switch

CDL LOCK SW
[ON/OFF]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[ON/OFF]

Unlock switch status input from door lock and unlock switch

I-KEY LOCK
[ON/OFF]

Lock signal status received from Intelligent Key unit by CAN communication

I-KEY UNLOCK
[ON/OFF]

Unlock signal status received from Intelligent Key unit by CAN communication

INL-12

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000001728868

WORK SUPPORT

*: Initial setting

DATA MONITOR

KEYLESS LOCK
[ON/OFF]

Lock signal status received from remote keyless entry receiver (integrated in the
BCM)

KEYLESS UNLOCK
[ON/OFF]

Unlock signal status received from remote keyless entry receiver (integrated in the
BCM)

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

ON

Outputs the interior room lamp control signal to turn the interior room lamps ON.
 [Map lamp, personal lamp, room lamp, luggage room lamp (when applicable lamps
switch is in DOOR position.)]

OFF

Stops the interior room lamp control signal to turn the interior room lamps.

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1*

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

Monitor item

[Unit]

Description

IGN ON SW
[ON/OFF]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

ACC SW
[ON/OFF]

Ignition switch (ACC) status judges from ACC signal (ACC power supply)

KEY ON SW
[ON/OFF]

The switch status input from key switch

PUSH SW
[ON/OFF]

Push switch status received from Intelligent Key unit by CAN communication

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch (driver side)

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL
[ON/OFF]

The switch status input from rear door switch LH

BACK DOOR SW
[ON/OFF]

The switch status input from back door switch

CDL LOCK SW
[ON/OFF]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[ON/OFF]

Unlock switch status input from door lock and unlock switch

I-KEY LOCK
[ON/OFF]

Lock signal status received from Intelligent Key unit by CAN communication

DIAGNOSIS SYSTEM (BCM)

INL-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ACTIVE TEST

*: Each lamp switch is in ON position.

I-KEY UNLOCK
[ON/OFF]

Unlock signal status received from Intelligent Key unit by CAN communication

KEYLESS LOCK
[ON/OFF]

Lock signal status received from remote keyless entry receiver (integrated in the
BCM)

KEYLESS UNLOCK
[ON/OFF]

Unlock signal status received from remote keyless entry receiver (integrated in the
BCM)

Monitor item

[Unit]

Description

Test item

Operation

Description

BATTERY SAVER

OFF

Cuts the interior room lamp power supply to turn interior room lamps OFF.

ON

Outputs the interior room lamp power supply to turn interior room lamps ON.*
