INL-6

< FUNCTION DIAGNOSIS >

INTERIOR ROOM LAMP CONTROL SYSTEM

• a signal is received from an Intelligent Key or main power window and door lock/unlock switch, or when the

front door LH lock assembly (key cylinder switch) is locked or unlocked

• a door is opened or closed
• the Intelligent Key is removed from or inserted into the key slot.
The Interior lamp battery saver control time period can be changed with the function setting of CONSULT-III.

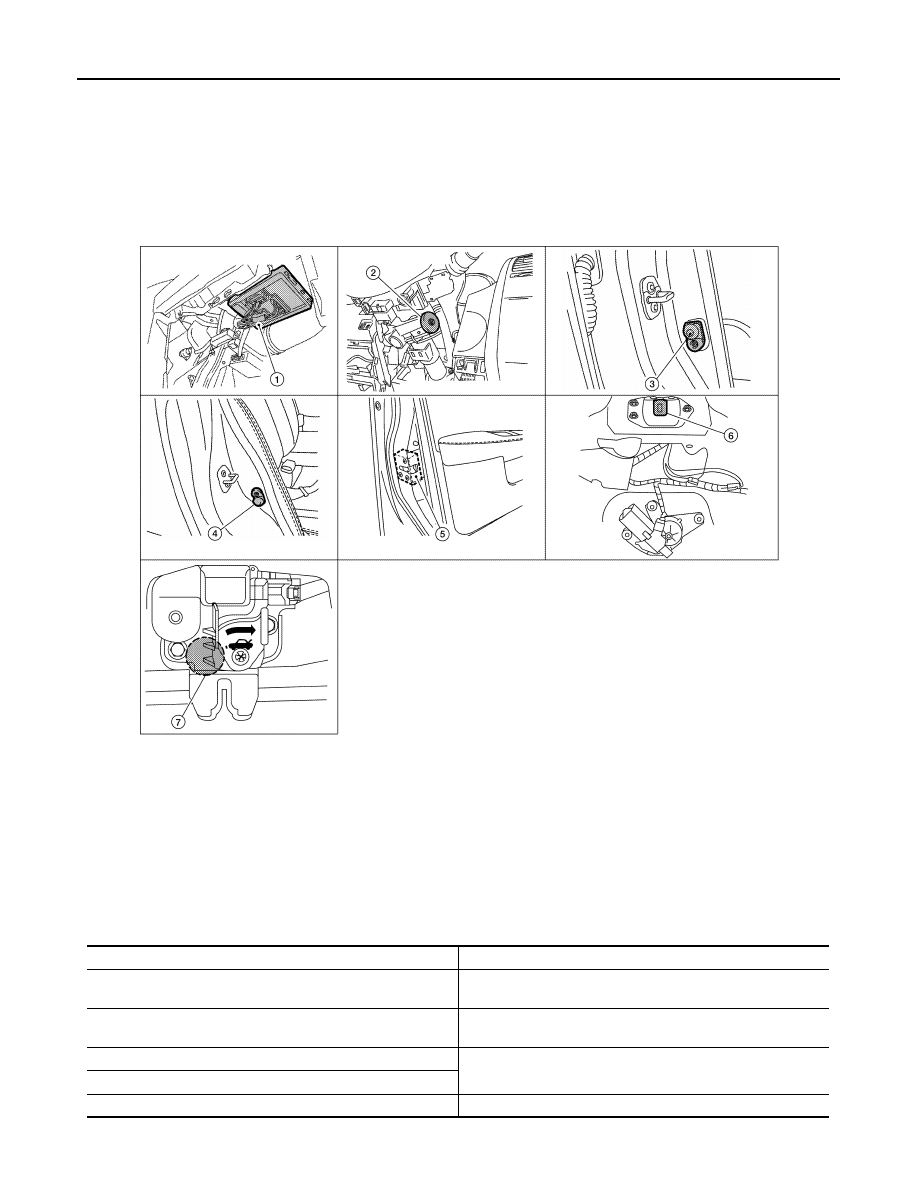

Component Parts Location

INFOID:0000000001728856

Component Description

INFOID:0000000001728857

1.

BCM M18, M19, M20 (view with
glove box removed)

2.

Key switch and key lock solenoid
M27

3.

Front door switch
Driver side B34
Passenger side B27

4.

Rear door switch
Driver side B53
Passenger side B71

5.

Front door key cylinder switch

6.

Back door lock assembly D405
(hatchback)

7.

Trunk lid opener switch B61 (sedan)

LIIA2942E

Part name

Description

BCM

Provides power and ground and controls timer functions for the
interior room lamps, step lamps and cargo lamp.

Intelligent key unit

Transmits the lock/unlock signal to the BCM via CAN communi-
cation.

Key switch and ignition knob switch (with I-Key)

Provides key in ignition status to the BCM.

Key switch and lock solenoid (without I-Key)

Door switches

Provides door OPEN/CLOSED status to the BCM.

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Back door lock assembly (hatchback)

Provides back door OPEN/CLOSED status to the BCM.

Back door opener switch (hatchback)

Trunk lid opener switch (sedan)

Provides trunk lid OPEN/CLOSED status to the BCM.

Main power window and door lock/unlock switch [front door lock
assembly LH (key cylinder switch)].

Provides door lock/unlock position switch LH status to the BCM.

INL-8

< FUNCTION DIAGNOSIS >

ILLUMINATION CONTROL SYSTEM

ILLUMINATION CONTROL SYSTEM

System Diagram

INFOID:0000000001730918

System Description

INFOID:0000000001730919

The illumination lamps operation is dependent upon the position of the lighting switch (combination switch).
When the lighting switch is placed in the 1ST or 2ND position (or if the auto light system is activated) the BCM
(body control module) receives input requesting the parking lamps to illuminate. This input is communicated to
the IPDM E/R (intelligent power distribution module engine room) via the CAN communication lines. The CPU
(central processing unit) of the IPDM E/R controls the tail lamp relay coil. When energized, this relay directs
power to the parking and illumination lamps, which then illuminate.

BATTERY SAVER CONTROL

When the lighting switch (combination switch) is in the 1ST or 2ND position and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated. Under this condition, the illumination
lamps remain illuminated for 30 minutes unless the lighting switch position is changed. If the lighting switch
position is changed, then the illumination lamps are turned off after a 30 second delay. When the lighting
switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after illumination lamps
have been turned off by the battery saver control, the illumination lamps illuminate again.

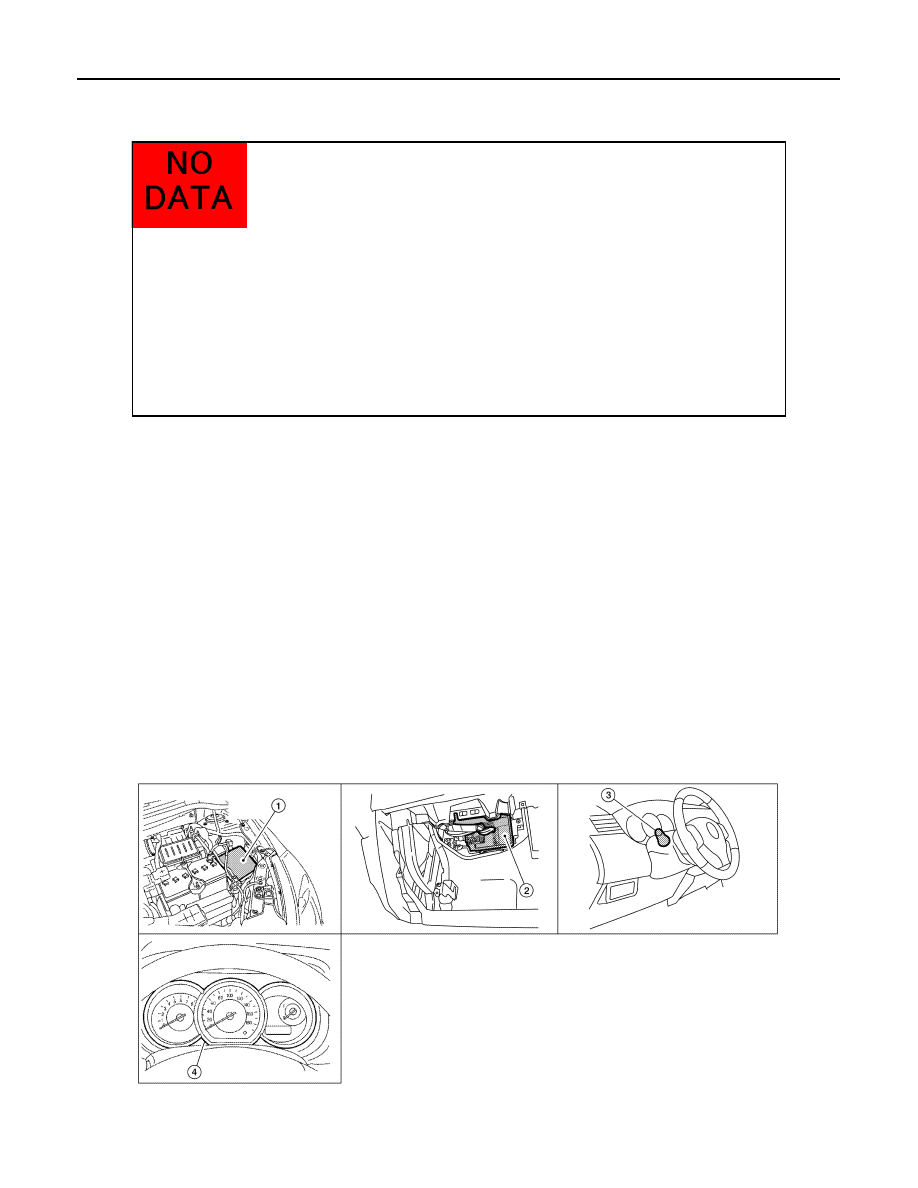

Component Parts Location

INFOID:0000000001730920

ALNIA0894GB

WKIA5674E

ILLUMINATION CONTROL SYSTEM

INL-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Component Description

INFOID:0000000001730921

1.

IPDM E/R E46, E47, E48

2.

BCM M18, M19, M20 (view with glove
box removed)

3.

Combination switch M28

4.

Combination meter

Part name

Description

BCM

The BCM monitors the lighting switch position with the combina-
tion switch reading function.  The BCM requests, via CAN com-
munication, that the IPDM E/R activate the tail lamp relay.

IPDM E/R

The IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication network.

Combination switch

The combination switch provides input to the BCM about the light-
ing switch position.
