HAC-12

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

AIR CONDITIONER CONTROL

Switches And Their Control Function

INFOID:0000000001547286

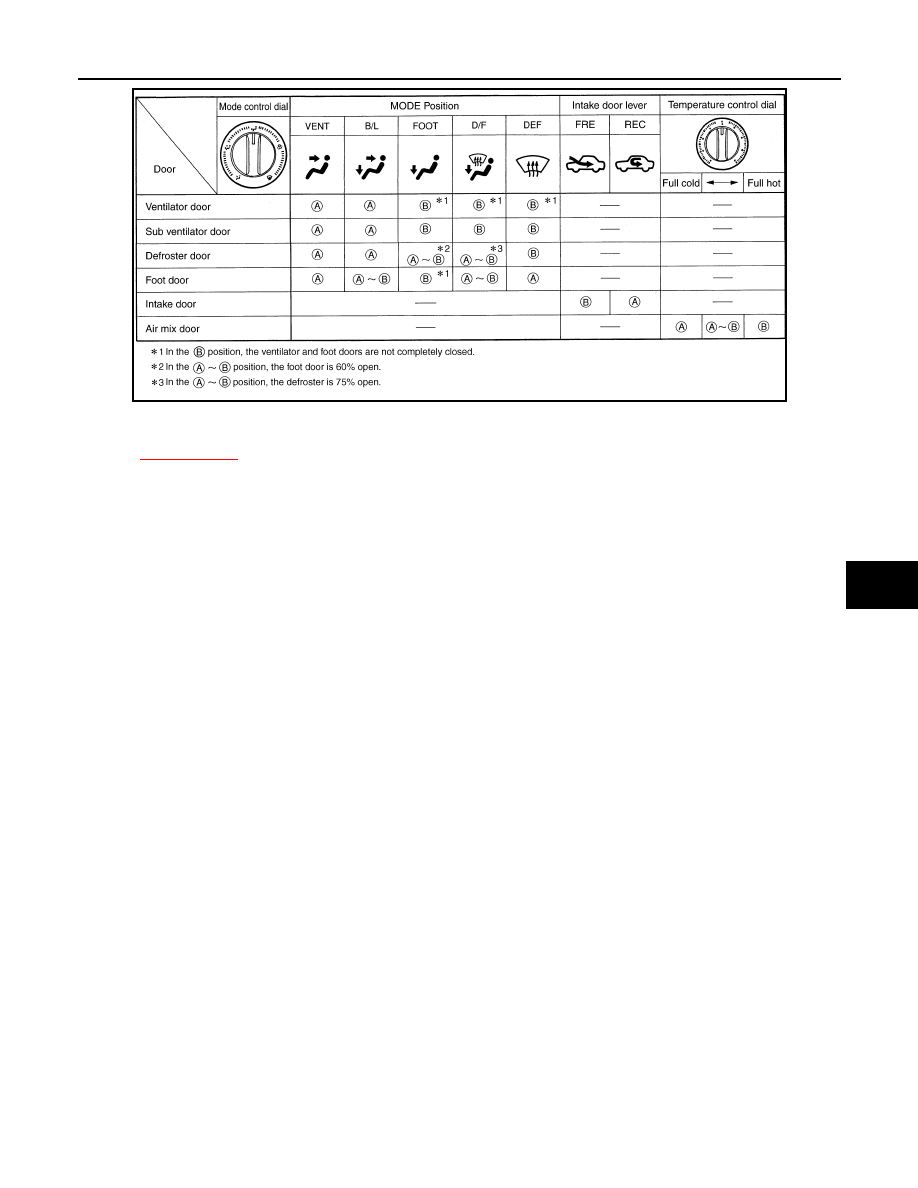

SWITCHES AND THEIR CONTROL FUNCTION

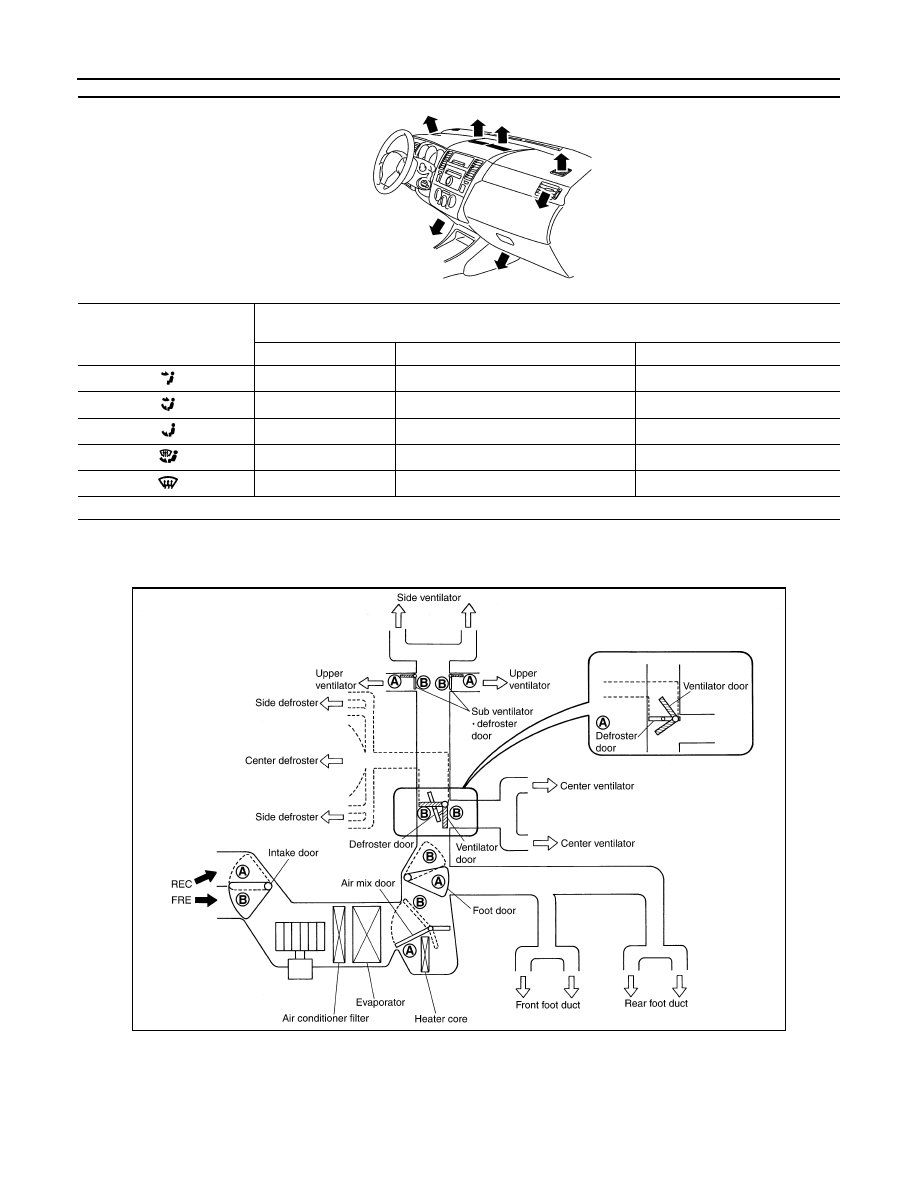

Mode door position

Air outlet/distribution

Vent

Foot

Defroster

100%

—

—

56%

44%

—

16%

64%

20%

16%

53%

31%

17%

—

83%

Airflow always present at driver and passenger side demisters

WJIA2190E

WJIA2249E

AIR CONDITIONER CONTROL

HAC-13

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component Description

INFOID:0000000001203058

Refer to

XX-XX, "*****"

.

WJIA2234E

HAC-14

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

CAN COMMUNICATION SYSTEM

CAN COMMUNICATION SYSTEM

System Description

INFOID:0000000001203059

Refer to

XX-XX, "*****"

.

DIAGNOSIS SYSTEM (BCM)

HAC-15

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DIAGNOSIS SYSTEM (BCM)

CONSULT-III Function (BCM)

INFOID:0000000001203060

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

DATA MONITOR

Display Item List

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM for
setting the status suitable for required operation, input/output signals are received
from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

Monitor item name

 “operation or unit”

Contents

IGN ON SW

“ON/OFF”

Displays “IGN Position (ON)/OFF, ACC Position (OFF)” status as judged from ignition switch signal
through the CAN communication.

FAN ON SIG

“ON/OFF”

Displays “FAN (ON)/FAN (OFF)” status as judged from blower fan motor switch signal through CAN
communication.

AIR COND SW

“ON/OFF”

Displays “COMP (ON)/COMP (OFF)” status as judged from air conditioner switch signal through the
CAN communication.
