Nissan Tiida C11. Manual - part 836

HAC-8

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

FUNCTION INFORMATION

FUNCTION DIAGNOSIS

FUNCTION INFORMATION

Component Part Location

INFOID:0000000001203053

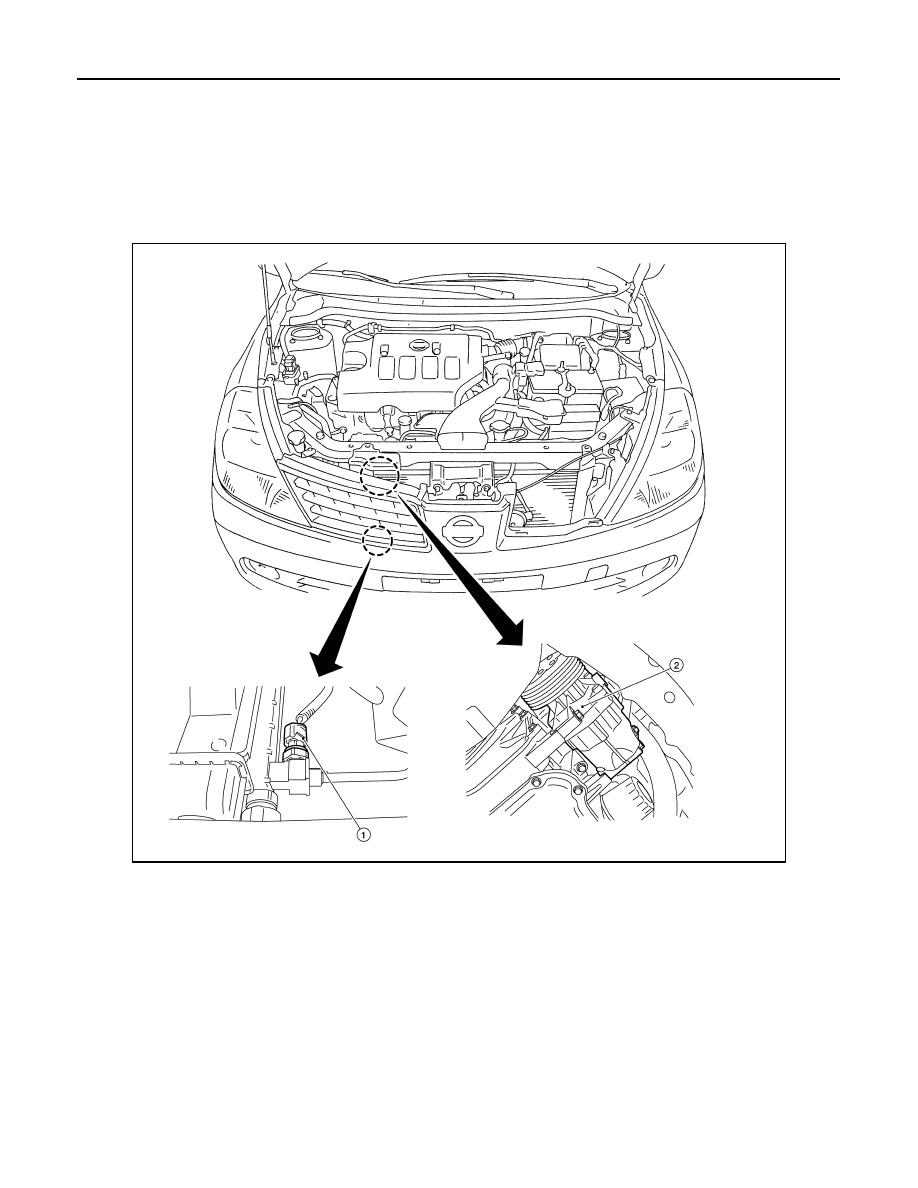

ENGINE COMPARTMENT

PASSENGER COMPARTMENT

WJIA2235E

1.

Refrigerant pressure sensor E17 (if
equipped)

2.

A/C compressor F3 (if equipped)

FUNCTION INFORMATION

HAC-9

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

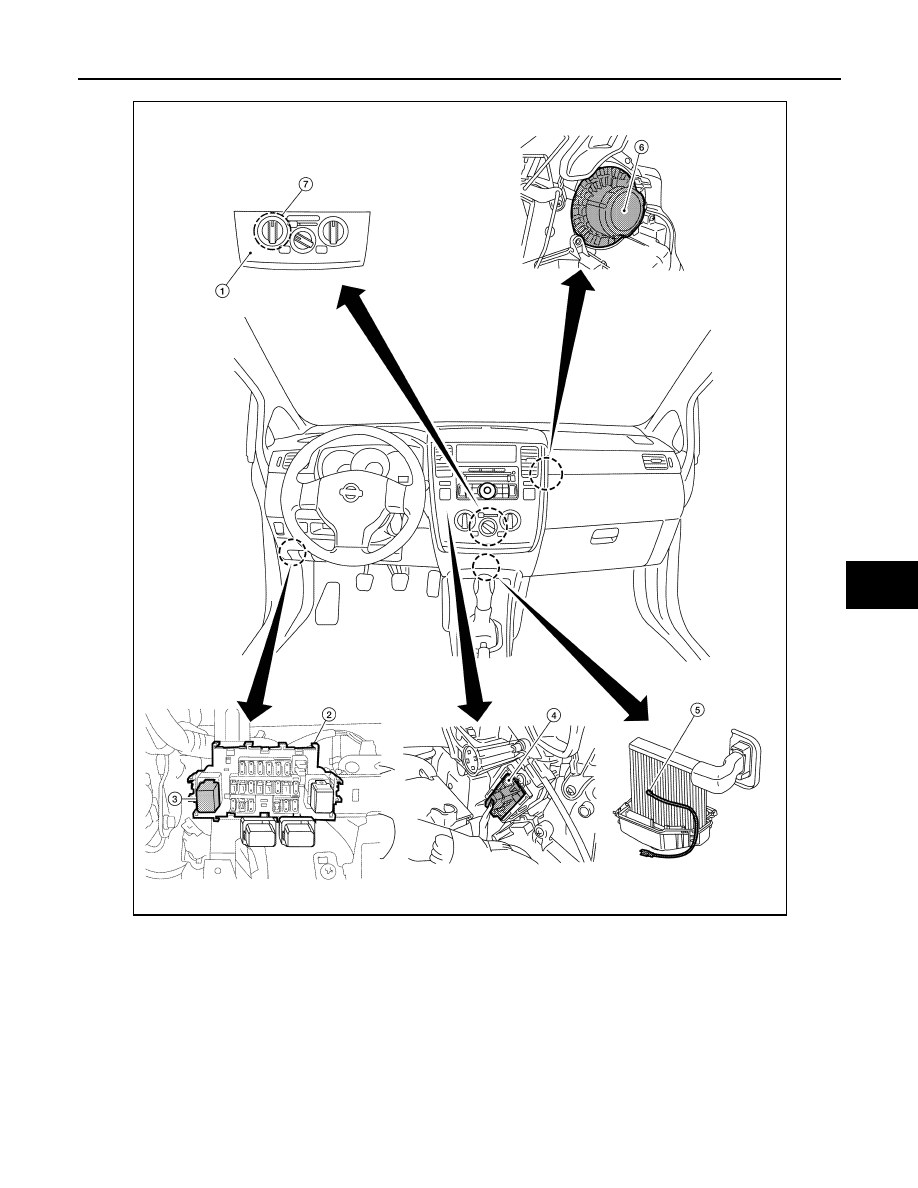

1.

Front air control M33, M49

2.

Fuse Block (J/B)

3.

Blower relay J-1

4.

Front blower motor resistor M95

5.

Intake sensor M42

6.

Front blower motor M62

7.

Defrost A/C switch M49

WJIA2258E

HAC-10

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

REFRIGERATION SYSTEM

REFRIGERATION SYSTEM

Refrigerant Cycle

INFOID:0000000001547091

Refer to

HA-16, "Refrigerant Cycle"

.

Refrigerant System Protection

INFOID:0000000001547092

Refer to

HA-16, "Refrigerant System Protection"

.

AIR CONDITIONER CONTROL

HAC-11

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AIR CONDITIONER CONTROL

System Diagram

INFOID:0000000001203055

System Description

INFOID:0000000001203056

BLOWER CONTROL DIAL

This dial turns the fan ON and OFF, and controls fan speed.

TEMPERATURE CONTROL DIAL

This dial allows you to adjust the temperature of the discharge air.

MODE DOOR CONTROL DIAL

This dial controls the outlet air flow.

INTAKE DOOR LEVER

• Recirculation (REC) position: Interior air is recirculated inside the vehicle.
• Fresh (FRE) position: Outside air is drawn into the passenger compartment.

REAR WINDOW DEFOGGER SWITCH

When illumination is ON, rear window is defogged.

A/C SWITCH (IF EQUIPPED)

The A/C switch controls the air conditioner system. When the switch is depressed with the fan ON, the com-
pressor will turn ON. The indicator lamp also illuminates.

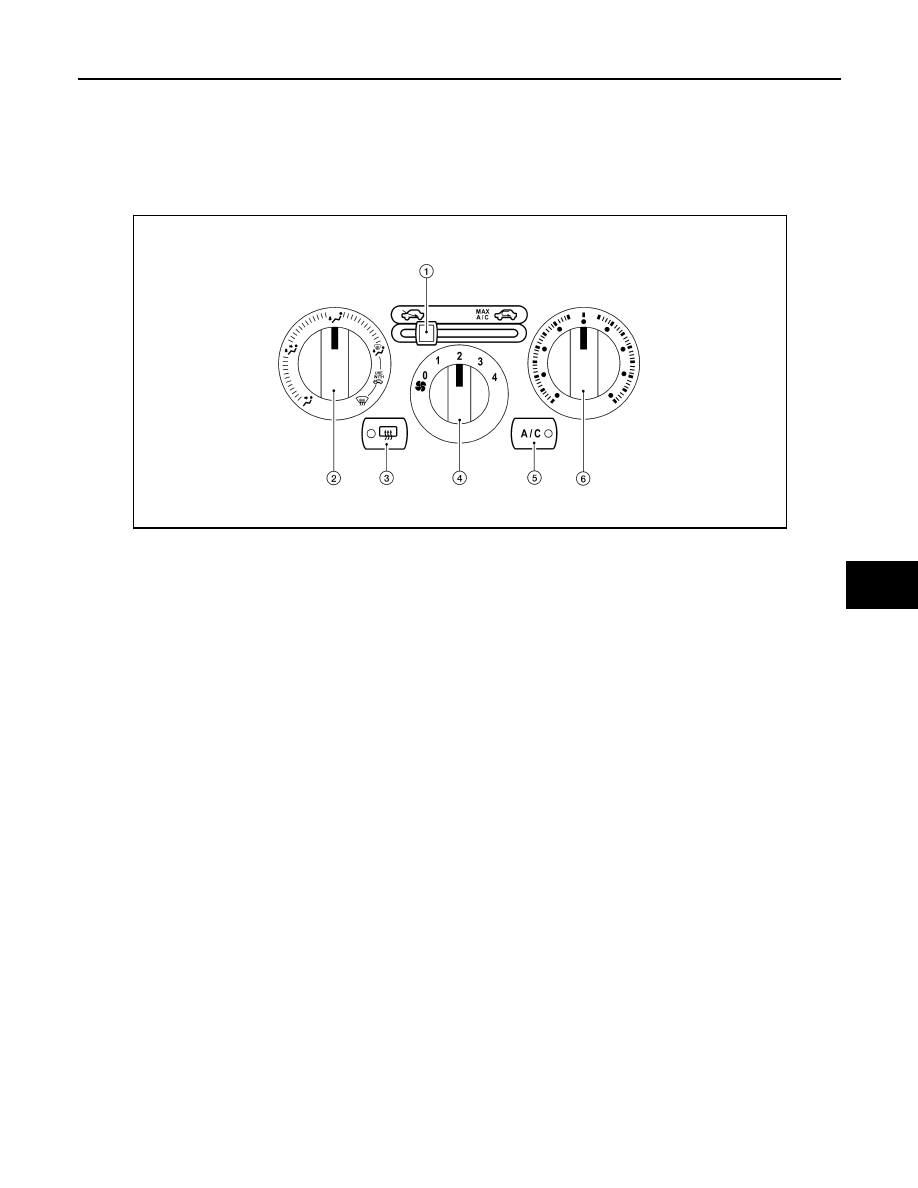

Discharge Air Flow

INFOID:0000000001547285

1.

Intake door lever

2.

Mode door control dial

3.

Rear window defogger switch

4.

Blower control dial

5.

A/C switch (if equipped)

6.

Temperature control dial

WJIA2189E
