REAR DOOR GLASS AND REGULATOR

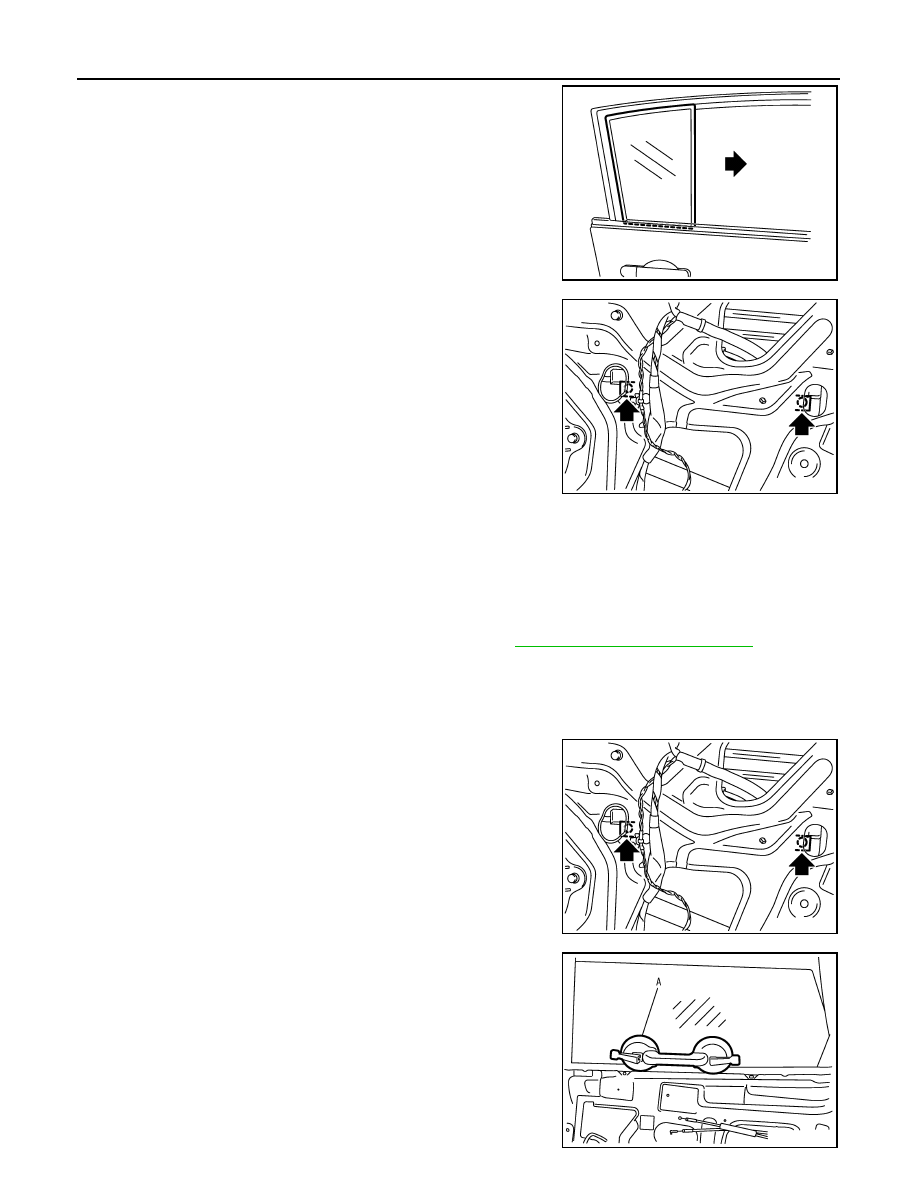

5.

Pull out the partition glass in the direction as shown.

6.

If equipped, operate the power window switch to raise/lower the
door window until the glass bolts can be seen.
NOTE:
Connect the harness connector to the power window switch.

7.

Remove the rear door glass bolts.

8.

Pull out the rear door glass toward the outside of the door to
remove.

9.

Remove the door glass run from the door panel.

Installation

Installation is in the reverse order of removal.

REGULATOR ASSEMBLY

Removal

1.

Remove and position aside the rear door finisher. Refer to

INT-13, "Removal and Installation"

.

2.

Disconnect the harness connector of rear speaker.

3.

Position aside the sealing screen.

NOTE:
If the sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.

4.

If equipped, operate the power window switch to raise/lower the
door window until the glass bolts can be seen.
NOTE:
Connect the harness connector to the power window switch.

5.

Remove the rear door glass bolts.

6.

Raise up the door glass and hold with a suction lifter A.

PIIB2636J

PIIB2637J

PIIB2637J

PIIB3511J

REAR DOOR GLASS AND REGULATOR

GW-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

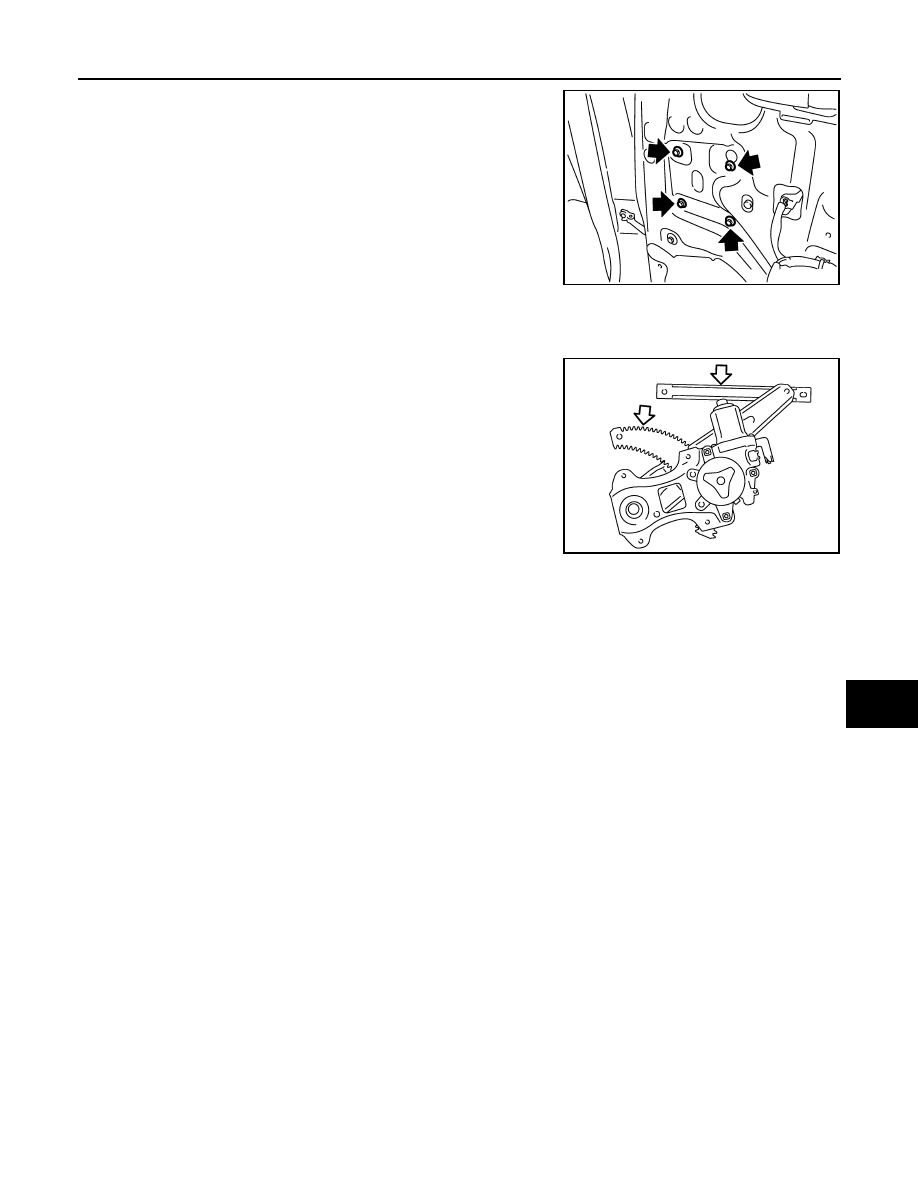

7.

Remove the regulator bolts, and then remove the regulator
assembly from the door panel.

Installation

Installation is in the reverse order of removal.

Inspection after Removal

Check the regulator assembly for the following. [If a problem is
detected, grease or replace it as shown].
• Gear wear
• Regulator deformation
• Grease condition for each sliding part

Disassembly and Assembly

INFOID:0000000001716847

POWER WINDOW REGULATOR ASSEMBLY

Disassembly

Remove the power window motor from the regulator assembly.

Assembly

Assembly is in the reverse order of disassembly.

Inspection after Installation

INFOID:0000000001716848

FITTING INSPECTION

• Make sure the glass is securely fit into the glass run groove.
• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and make sure the clearance to the sash is

parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide rail
bolts, and glass and carrier plate bolts to correct the glass position.

PIIB6315E

SIIA1787J
