Nissan Tiida C11. Manual - part 721





EM-236

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

HOW TO SELECT PISTON AND BEARING

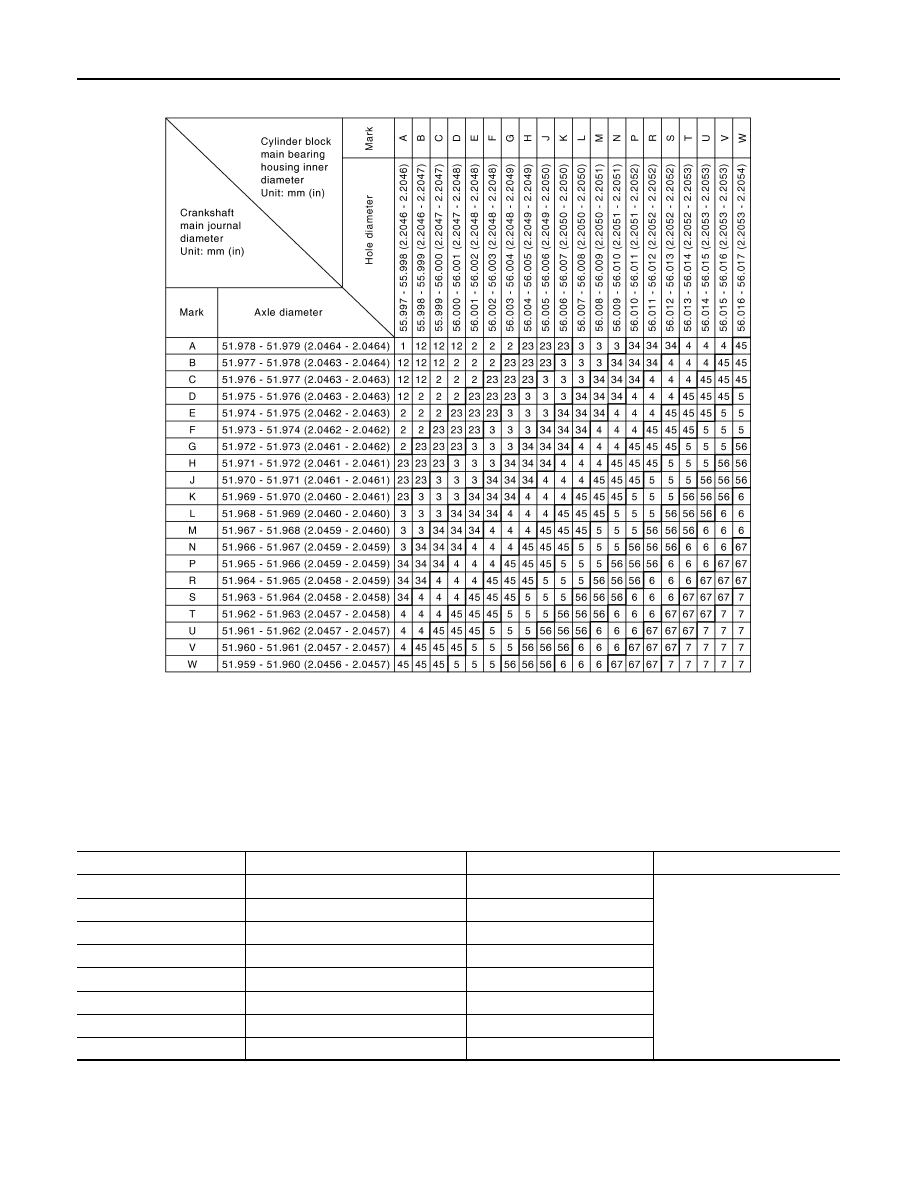

Main Bearing Selection Table (No. 2 and 3 journals)

Main Bearing Grade Table (All Journals)

Unit: mm (in)

PBIC4079E

Grade number

Thickness

Identification color

Remarks

0

1.996 - 1.999 (0.0786 - 0.0787)

Black

Grade and color are the same
for upper and lower bearings.

1

1.999 - 2.002 (0.0787 - 0.0788)

Brown

2

2.002 - 2.005 (0.0788- 0.0789)

Green

3

2.005 - 2.008 (0.0789 - 0.0791)

Yellow

4

2.008 - 2.011 (0.0791 - 0.0792)

Blue

5

2.011 - 2.014 (0.0792 - 0.0793)

Pink

6

2.014 - 2.017 (0.0793 - 0.0794)

Purple

7

2.017 - 2.020 (0.0794 - 0.0795)

White

HOW TO SELECT PISTON AND BEARING

EM-237

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

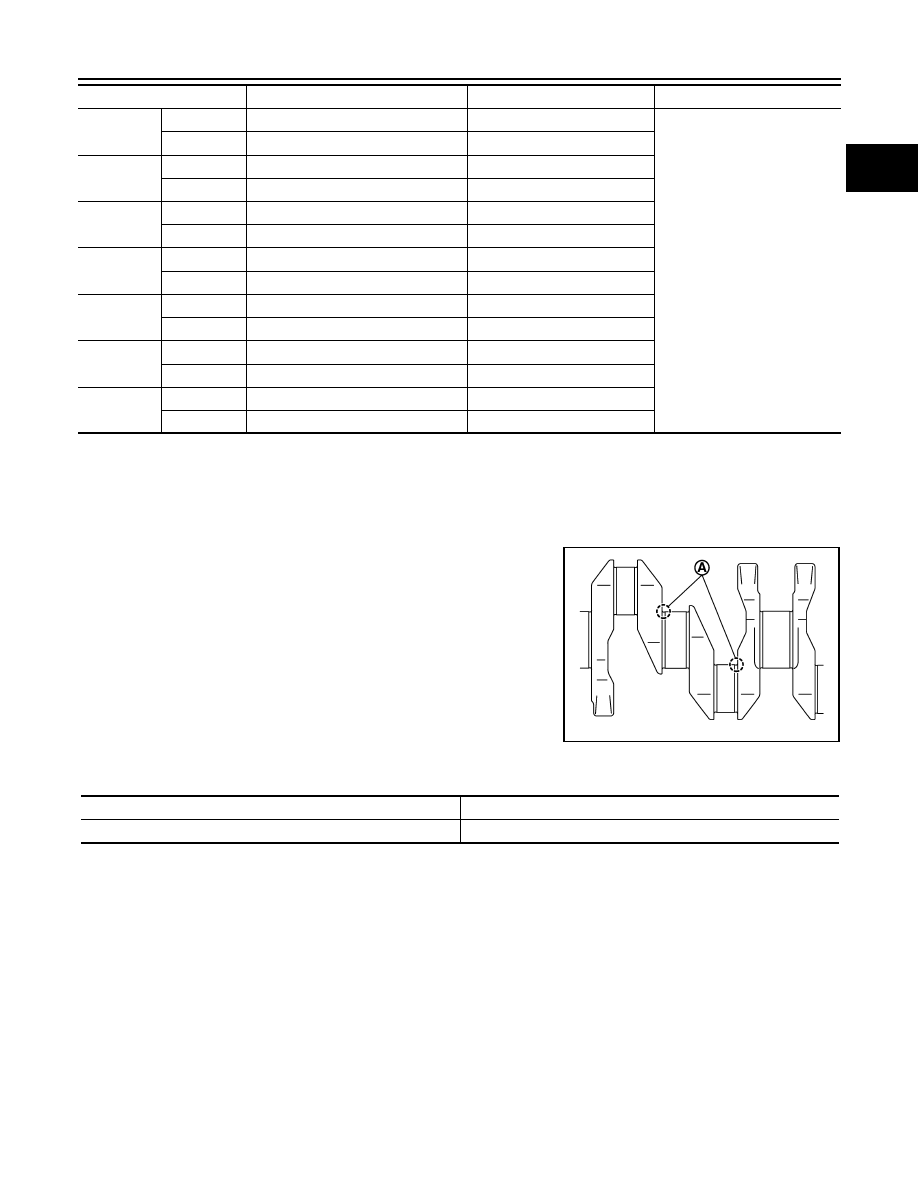

Use Undersize Bearing Usage Guide

• When the specified main bearing oil clearance is not obtained with standard size main bearings, use under-

size (US) bearing.

• When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and

grind main journal so that the main bearing oil clearance satisfies the standard.

CAUTION:

In grinding crankshaft main journal to use undersize bearings,
keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)] (A).

Bearing undersize table

Unit: mm (in)

01

UPR

1.996 - 1.999 (0.0786 - 0.0787)

Black

Grade and color are different
between upper and lower bear-
ings.

LWR

1.999 - 2.002 (0.0787 - 0.0788)

Brown

12

UPR

1.999 - 2.002 (0.0787 - 0.0788)

Brown

LWR

2.002 - 2.005 (0.0788 - 0.0789)

Green

23

UPR

2.002 - 2.005 (0.0788- 0.0789)

Green

LWR

2.005 - 2.008 (0.0789 - 0.0791)

Yellow

34

UPR

2.005 - 2.008 (0.0789 - 0.0791)

Yellow

LWR

2.008 - 2.011 (0.0791 - 0.0792)

Blue

45

UPR

2.008 - 2.011 (0.0791 - 0.0792)

Blue

LWR

2.011 - 2.014 (0.0792 - 0.0793)

Pink

56

UPR

2.011 - 2.014 (0.0792 - 0.0793)

Pink

LWR

2.014 - 2.017 (0.0793 - 0.0794)

Purple

67

UPR

2.014 - 2.017 (0.0793 - 0.0794)

Purple

LWR

2.017 - 2.020 (0.0794 - 0.0795)

White

Grade number

Thickness

Identification color

Remarks

PBIC3263J

Size

Thickness

US 0.25 (0.0098)

2.126 - 2.134 (0.0837 - 0.0840)

EM-238

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR18DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000001337815

GENERAL SPECIFICATIONS

DRIVE BELT

WATER CONTROL VALVE

EXHAUST MANIFOLD

Unit: mm (in)

THERMOSTAT

SPARK PLUG

Unit: mm (in)

CYLINDER HEAD

Engine type

MR18DE

Cylinder arrangement

In-line 4

Displacement

cm

3

    (cu in)

1,798 (109.71)

Bore and stroke

mm (in)

84.0 x 81.1 (3.307 x 3.192)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.9

Compression pressure

kPa (bar, kg/cm

2

 , psi) / 250 rpm

Standard

1,500 (15.0, 15.3, 217.6)

Minimum

1,200 (12.0, 12.2, 174)

Differential limit between cylinders

100 (1.0, 1.0, 15)

Tension of drive belt

                         Auto adjustment by auto-tensioner

Valve opening temperature

93.5 - 96.5

°

C (200 - 206

°

F)

Maximum valve lift

 8 mm/ 108

°

C (0.315 in/ 226

°

F)

Valve closing temperature

More than 90

°

C (194

°

F)

Items

                                Limit

Surface distortion

Each exhaust port

0.3 (0.012)

Entire part

0.7 (0.028)

Valve opening temperature

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum valve lift

 8 mm/ 95

°

C (0.315 in/ 203

°

F)

Valve closing temperature

More than 77

°

C (171

°

F)

Plug type

Platinum-tipped TYPE

Make

NGK

Standard type

PLZKAR6A-11

Spark plug gap

Nominal: 1.1 (0.043)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-239

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

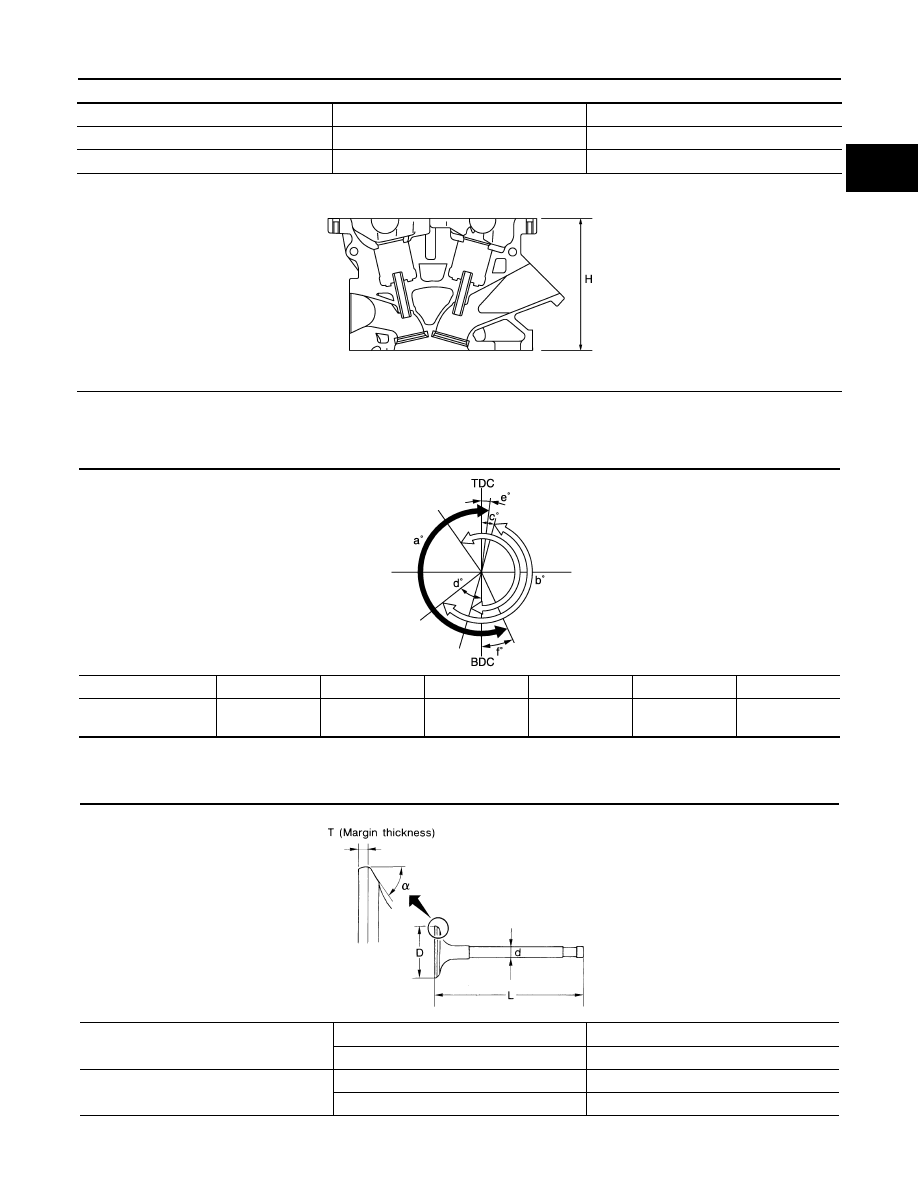

Unit: mm (in)

VALVE

Valve Timing

Unit: degree

(

): Valve timing control “ON”

Valve Dimensions

Unit: mm (in)

Items

Standard

Limit

Head surface distortion

0.1 (0.004)

Normal cylinder head height “H”

130.9 (5.15)

PBIC0924E

Position

a

b

c

d

e

f

Valve timing

212

224

8 (-32)

ATDC

52 (12)

ABDC

7

25

PBIC5304E

Valve head diameter “D”

Intake

33.8 - 34.1 (1.331 - 1.343)

Exhaust

27.6 - 27.9 (1.087 - 1.098)

Valve length “L”

Intake

 106.27 (4.184)

Exhaust

105.26 (4.144)

SEM188A
