EM-228

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

ENGINE UNIT

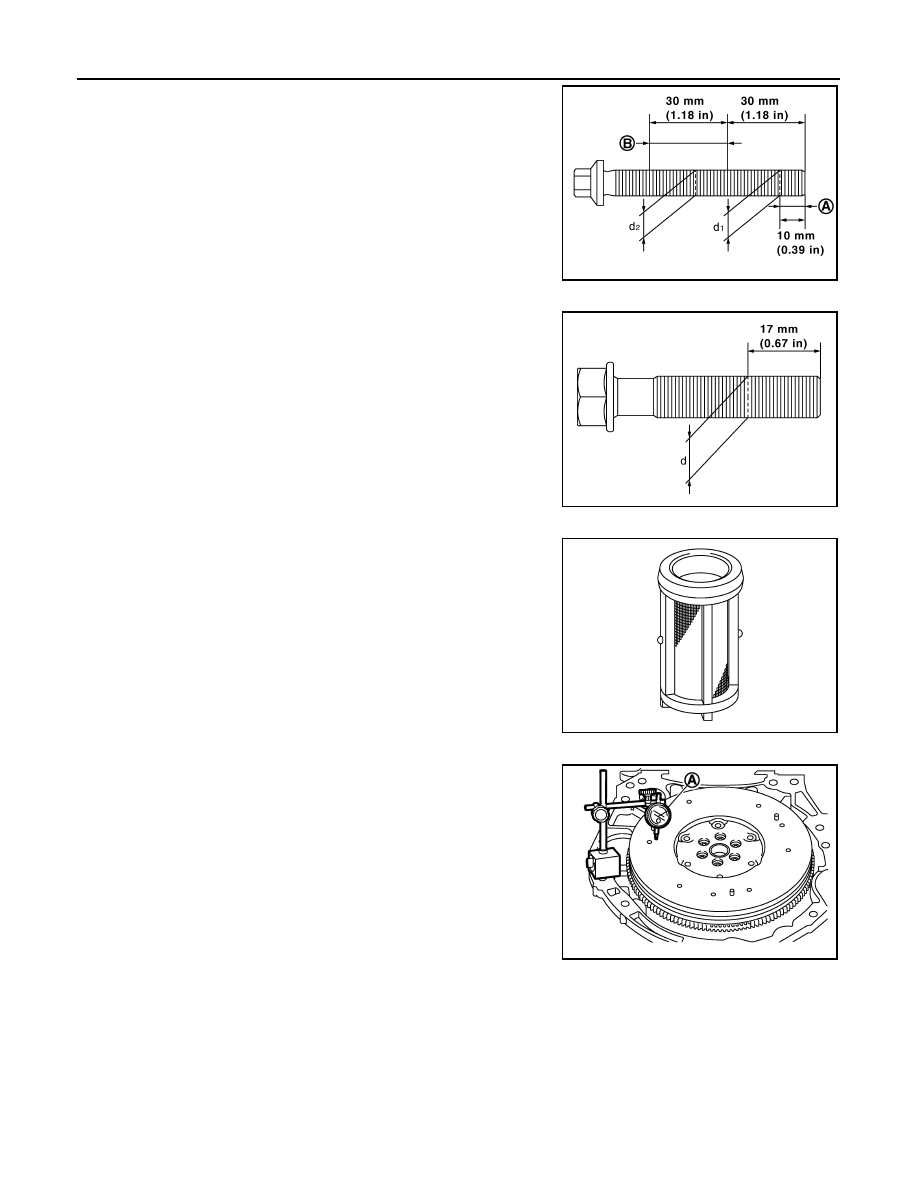

• Measure the outer diameters (“d

1

”, “d

2”

) at two positions as shown.

• If reduction appears in places other than “B” range, regard it as

“d

2

”.

• If it exceeds the limit (a large difference in dimensions), replace

main bearing cap bolt with a new one.

CONNECTING ROD BOLT OUTER DIAMETER

• Measure the outer diameter “d” at position as shown.
• If reduction appears in a position other than “d”, regard it as “d”.

• When “d” exceeds the limit (when it becomes thinner), replace

connecting rod bolt with a new one.

CLOGGED OR DAMAGED OIL FILTER (FOR INTAKE VALVE TIMING CONTROL)

• Make sure that there is no foreign material on the oil filter and

check it for clogging.

- Clean it if necessary.
• Check the oil filter for damage.
- Replace it if necessary.

FLYWHEEL DEFLECTION (M/T MODELS)

• Measure the deflection of flywheel contact surface to clutch with a

dial indicator (A).

• Measure the deflection at 210 mm (8.27 in) diameter.

• If measured value is out of the standard, replace flywheel.
• If a trace of burn or discoloration is found on the surface, repair it

with sandpaper.

CAUTION:

When measuring, keep magnetic fields (such as dial indicator
stand) away from signal plate of the rear end of crankshaft.

MOVEMENT AMOUNT OF FLYWHEEL (M/T MODELS)

CAUTION:

Never disassemble double mass flywheel.

Movement Amount of Thrust (Fore-and-Aft) Direction

• Measure the movement amount of thrust (fore-and-aft) direction when 100 N (10.2 kg, 22 lb) force is added

at the portion of 125 mm (4.92 in) radius from the center of flywheel.

A

: “d1” measuring position

B

: “d2” measuring position

Limit (“d

1

” – “d

2

”): 0.15 mm (0.0059 in)

PBIC4015E

Limit: 7.75 mm (0.3051 in)

PBIC4016E

PBIC3273J

Limit

: 0.45 mm (0.0177 in) or less.

PBIC4006E

Standard

: 1.8 mm (0.071 in) or less

ENGINE UNIT

EM-229

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• If measured value is out of the standard, replace flywheel.

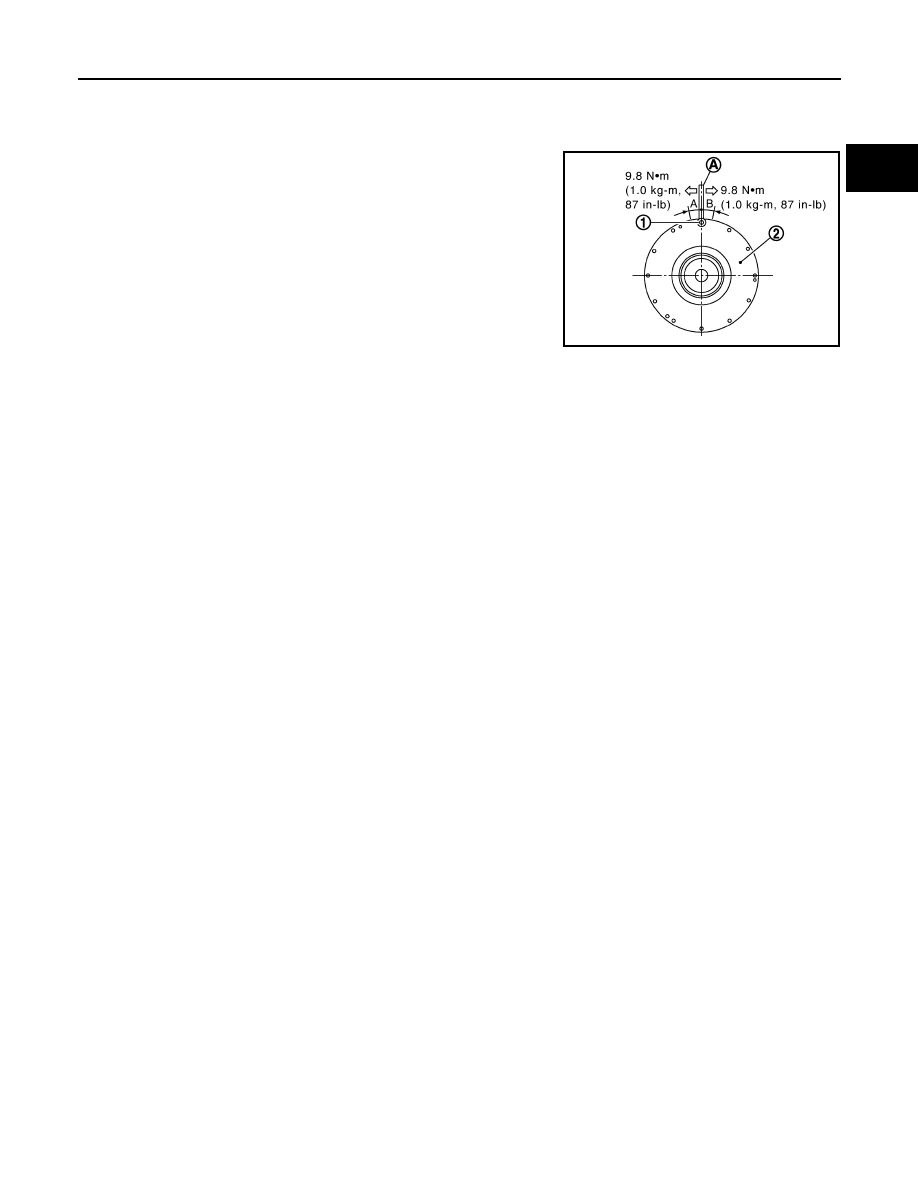

Movement Amount in Radial (Rotation) Direction

Check the movement amount of radial (rotation) direction with the following procedure:
1.

Install clutch cover bolt (1) to clutch cover mating hole, and
place a torque wrench (A) on the extended line of the flywheel
(2) center line.
• Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it

from loosening.

2.

Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).

3.

Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transaxle
side.

4.

Measure the dimensions of movement amounts “A” and “B” on
circumference of the flywheel on the transaxle side.

• If measured value is out of the standard, replace flywheel.

Limit: 33.2 mm (1.307 in) or less.

PBIC4007E

EM-230

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

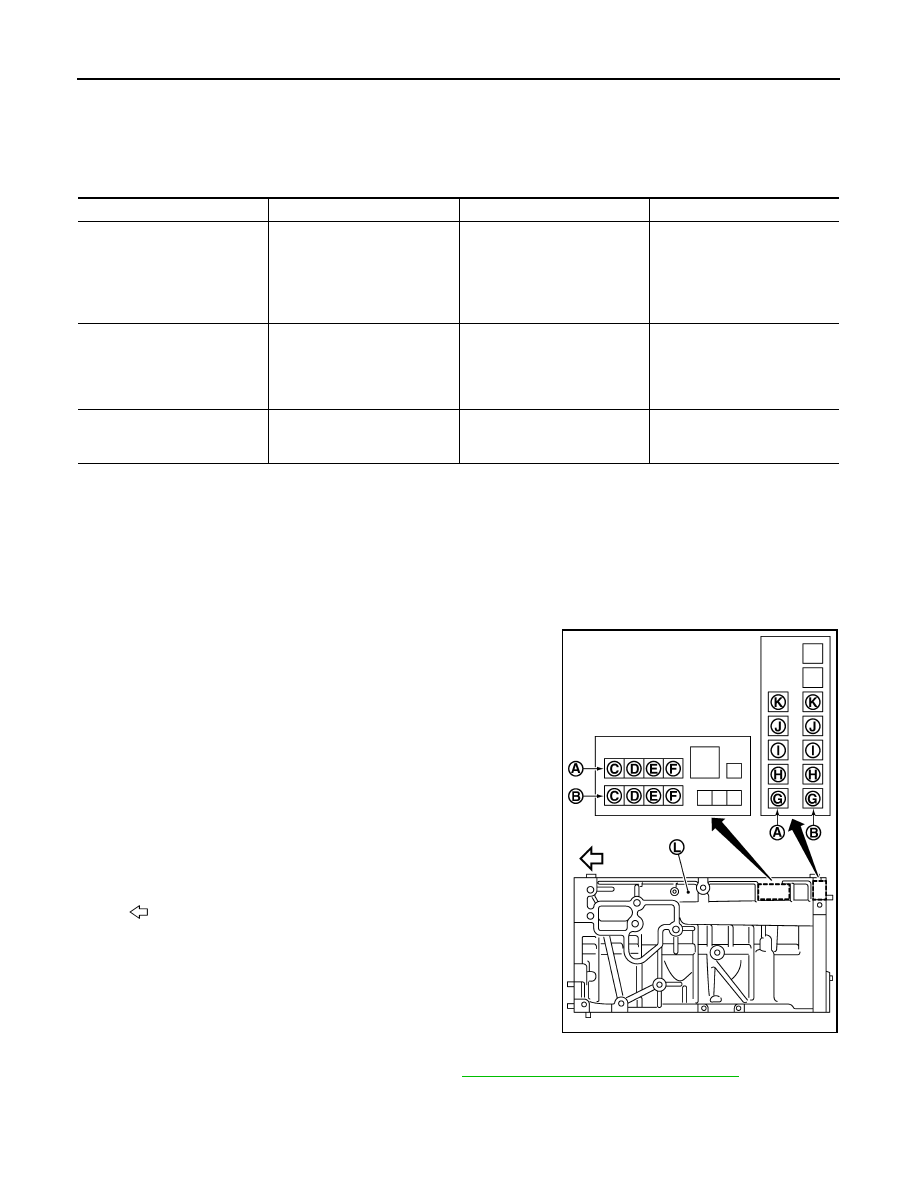

HOW TO SELECT PISTON AND BEARING

HOW TO SELECT PISTON AND BEARING

How to Select Piston and Bearing

INFOID:0000000001337813

DESCRIPTION

• The identification grade stamped on each part is the grade for the dimension measured in new condition.

This grade cannot apply to reused parts.

• For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the

measurement with the values of each selection table.

• For details of the measurement method of each part, the reuse standards and the selection method of the

selective fitting parts, follow the procedures.

HOW TO SELECT PISTON

When New Cylinder Block is Used

• Check the cylinder bore grade on rear left side of cylinder block (L),

and select piston of the same grade.

• If there is a correction stamp mark on the cylinder block, use it as a

correct reference.

When Cylinder Block is Reused

1.

Measure the cylinder bore inner diameter. Refer to

EM-219, "Inspection After Disassembly"

.

2.

Determine the bore grade by comparing the measurement with the values under the cylinder bore inner
diameter of the “Piston Selection Table”.

Selection points

Selection parts

Selection items

Selection methods

Between cylinder block and
crankshaft

Main bearing

Main bearing grade (bearing
thickness)

Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)

Between crankshaft and con-
necting rod

Connecting rod bearing

Connecting rod bearing grade
(bearing thickness)

Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer di-
ameter determine connecting
rod bearing selection.

Between cylinder block and pis-
ton

Piston and piston pin assembly
(piston is available together with
piston pin as an assembly.)

Piston grade (piston outer diam-
eter)

Piston grade = cylinder bore
grade (inner diameter of bore)

A

: Correction stamp

B

: Standard stamp

C

: Cylinder No. 1 bore grade

D

: Cylinder No. 2 bore grade

E

: Cylinder No. 3 bore grade

F

: Cylinder No. 4 bore grade

G

: No. 1 main bearing housing grade

H

: No. 2 main bearing housing grade

I

: No. 3 main bearing housing grade

J

: No. 4 main bearing housing grade

K

: No. 5 main bearing housing grade

: Engine front

PBIC3264J

HOW TO SELECT PISTON AND BEARING

EM-231

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

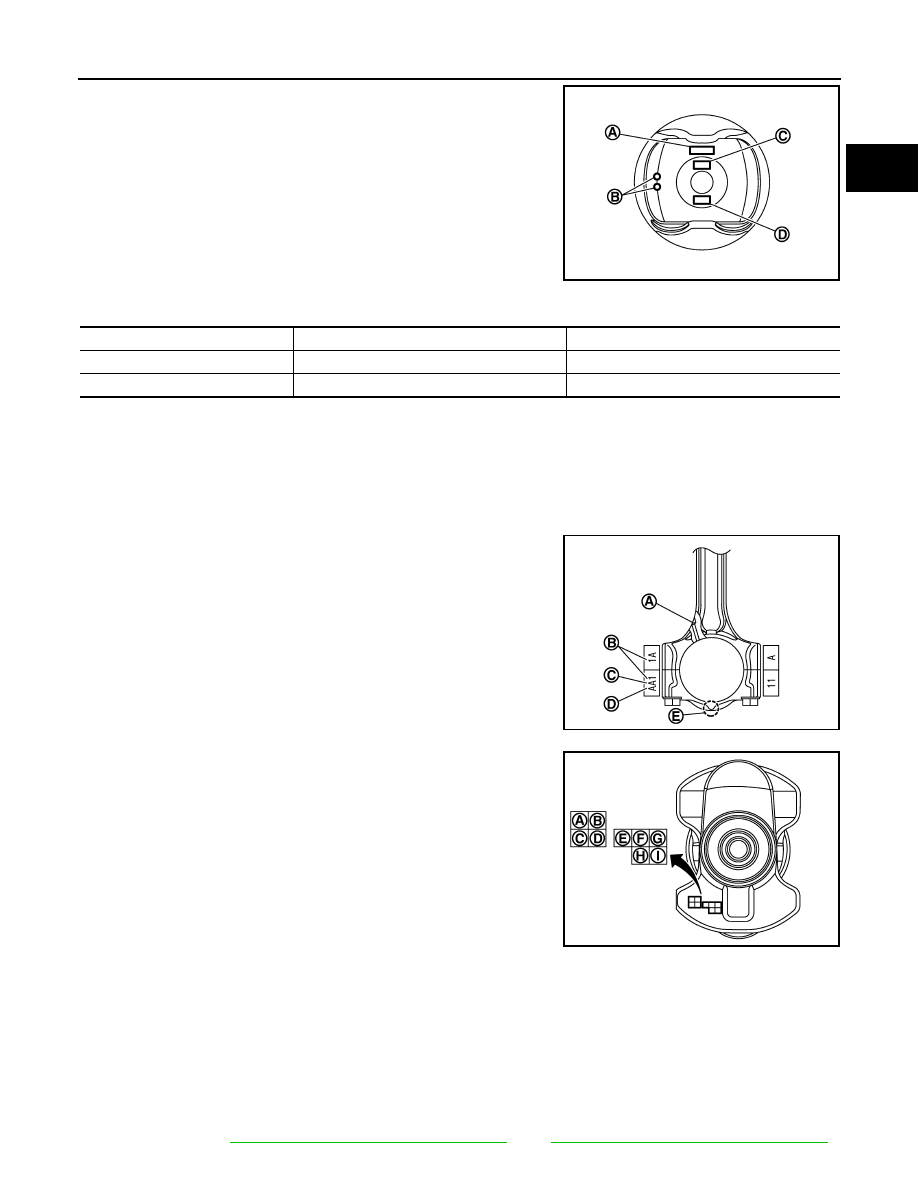

3.

Select piston of the same grade.

Piston Selection Table

Unit: mm (in)

NOTE:
• Piston is available together with piston pin as an assembly.
• There is no piston pin (piston pin hole) grade.

HOW TO SELECT CONNECTING ROD BEARING

When New Connecting Rod and Crankshaft are Used

1.

Apply connecting rod big end diameter grade stamped (C) on
connecting rod side face to the row in the “Connecting Rod
Bearing Selection Table”.

2.

Apply crankshaft pin journal diameter grade stamped on crank-
shaft front side to the column in the “Connecting Rod Bearing
Selection Table”.

3.

Read the symbol at the cross point of selected row and column in the “Connecting Rod Bearing Selection
Table”.

4.

Apply the symbol obtained to the “Connecting Rod Bearing Grade Table” to select connecting rod bearing.

When Crankshaft and Connecting Rod are Reused

1.

Measure the dimensions of the connecting rod big end diameter and crankshaft pin journal diameter indi-
vidually. Refer to

EM-219, "Inspection After Disassembly"

   and

EM-219, "Inspection After Disassembly"

.

A

: Identification code

B

: Front mark

C

: Piston grade number

D

: Sub grade number

PBIC3589J

Grade number (Mark)

1

2 [or no mark (piston only)]

Cylinder bore Inner diameter

84.000 - 84.010 (3.3071 - 3.3075)

84.010 - 84.020 (3.3075 - 3.3079)

Piston skirt diameter

83.970 - 83.980 (3.3059 - 3.3063)

83.980 - 83.990 (3.3063 - 3.3067)

A

: Oil hole

B

: Cylinder number

D

: Small end diameter grade

E

: Front mark

PBIC3262J

A

: No. 1 pin journal diameter grade

B

: No. 2 pin journal diameter grade

C

: No. 3 pin journal diameter grade

D

: No. 4 pin journal diameter grade

E

: No. 1 main journal diameter grade

F

: No. 2 main journal diameter grade

G

: No. 3 main journal diameter grade

H

: No. 4 main journal diameter grade

I

: No. 5 main journal diameter grade

PBIC3261J
