EM-212

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

ENGINE UNIT

Disassembly and Assembly

INFOID:0000000001337812

DISASSEMBLY

1.

Remove engine and transaxle assembly from vehicle, separate transaxle from engine. Refer to

EM-207

.

2.

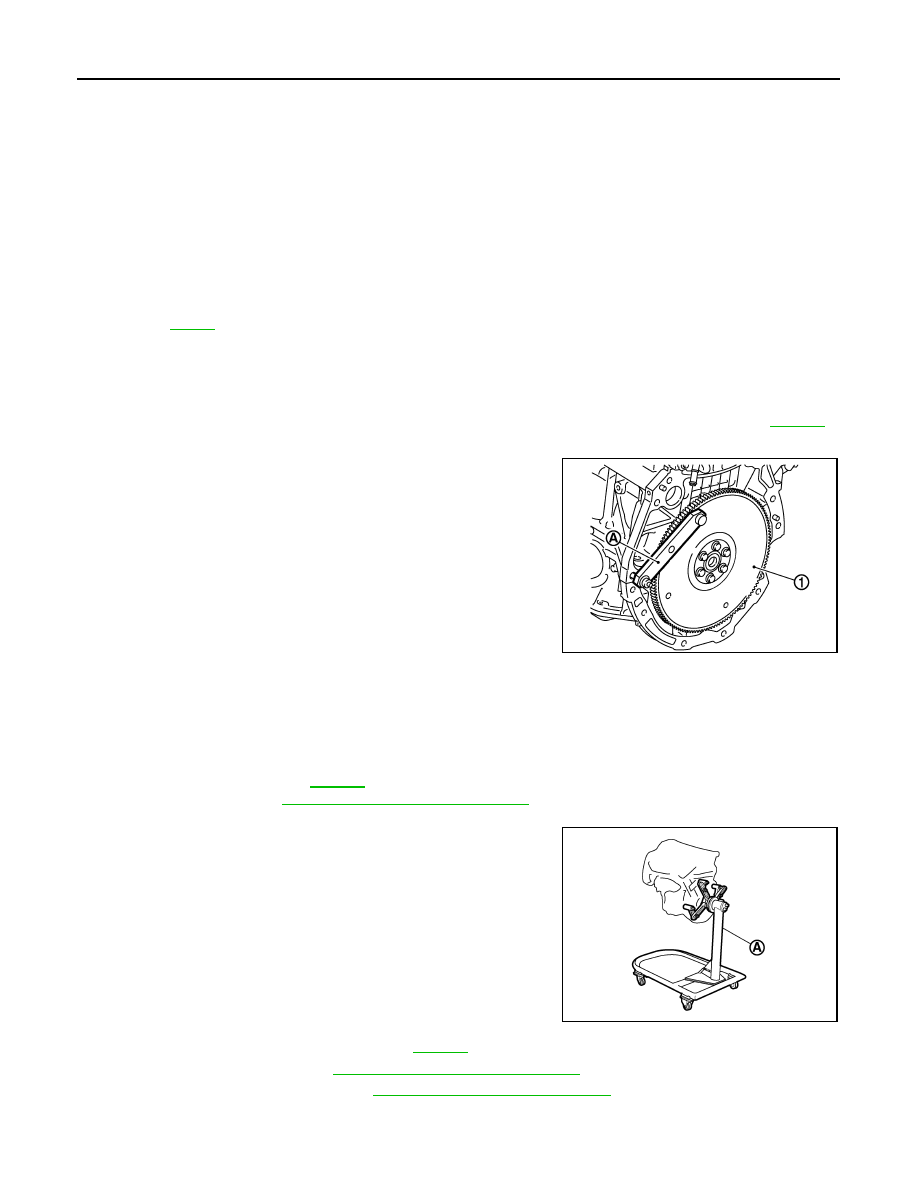

Install engine to engine stand as follows;

a.

Remove flywheel.
• Secure flywheel using Tool (A), and remove bolts.

CAUTION:

Be careful not to damage or scratch contact surface for
clutch disc of flywheel.

b.

Lift the engine with a hoist to install it onto widely use engine stand.

CAUTION:

• Use the engine stand that has a load capacity [approximately 135 kg (298 lb) or more] large

enough for supporting the engine weight.

• If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the poten-

tial risk of overturning stand.

- Exhaust manifold; Refer to

EM-159

.

- Rocker cover; Refer to

EM-173, "Removal and Installation"

.

NOTE:
The figure shows an example of widely used engine stand (A)
that can support mating surface of transaxle with flywheel
removed.

CAUTION:

Before removing the hanging chains, make sure the engine
stand is stable and there is no risk of overturning.

3.

Remove oil pan (upper and lower). Refer to

EM-166

.

4.

Remove cylinder head. Refer to

EM-198, "Removal and Installation"

.

5.

Remove thermostat housing. Refer to

CO-45, "Removal and Installation"

.

6.

Remove knock sensor.

CAUTION:

1.

Cylinder block

2.

O-ring

3.

Crankshaft position sensor (POS)

4.

Crankshaft position sensor (POS)
cover

5.

Oil filter (for intake valve timing con-
trol)

6.

Knock sensor

7.

Oil pressure switch

8.

Top ring

9.

Second ring

10. Oil ring

11.

Snap ring

12.

Piston

13. Piston pin

14.

Connecting rod

15.

Thrust bearing

16. Connecting rod bearing upper

17.

Main bearing upper

18.

Crankshaft key

19. Main bearing lower

20.

Connecting rod bearing lower

21.

Connecting rod bearing cap

22. Connecting rod bolt

23.

Main bearing cap

24.

Main bearing cap bolt

25. Crankshaft

26.

Signal plate

27.

Rear oil seal

28. Flywheel

A.

Refer to

EM-212

Tool number

: KV 11105210 (J-44716)

AWBIA0117ZZ

PBIC3227J

ENGINE UNIT

EM-213

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

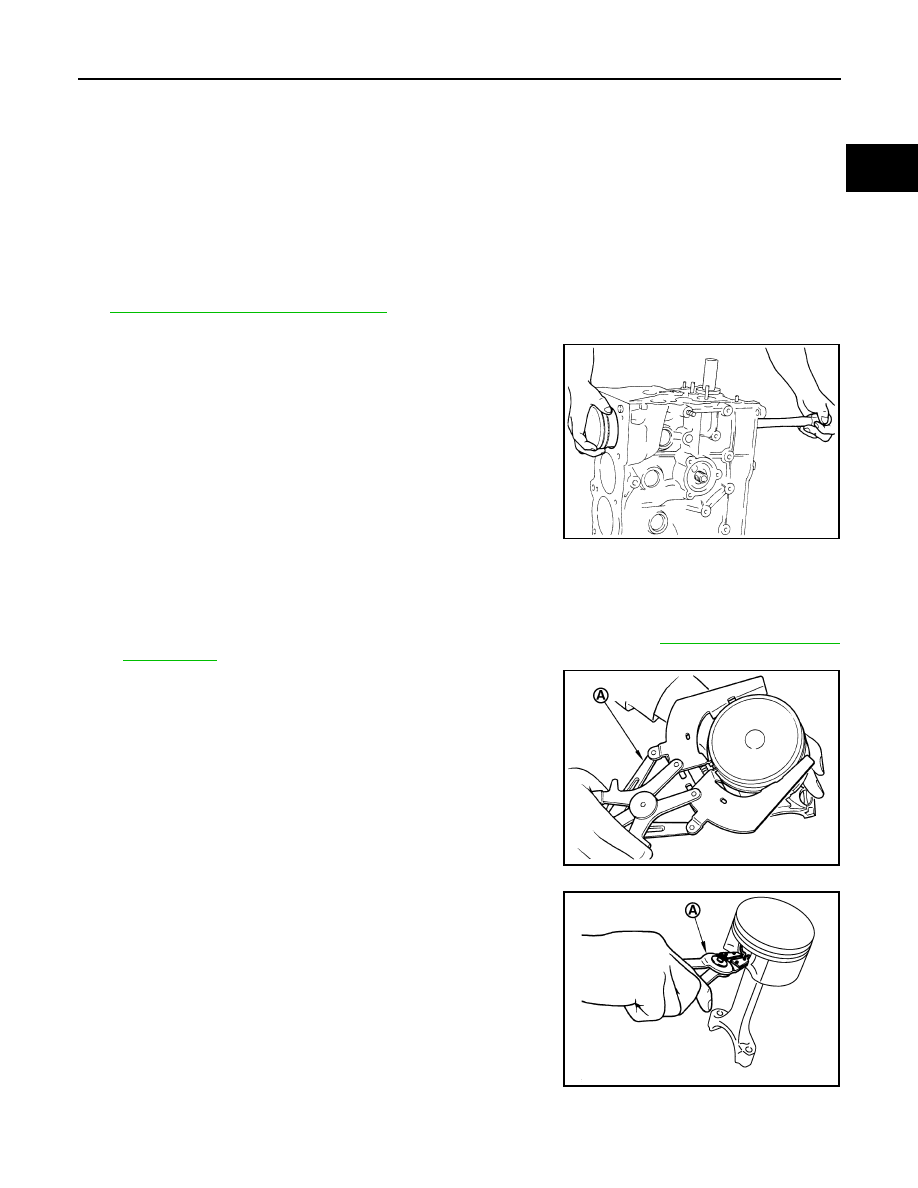

Carefully handle knock sensor avoiding shocks.

7.

Remove crankshaft position sensor (POS) cover and crankshaft position sensor (POS).

CAUTION:

• Avoid impacts such as a dropping.
• Never disassemble.
• Keep it away from metal particles.
• Never place sensor in a location where it is exposed to magnetism.

8.

Remove oil filter (for intake valve timing control).

9.

Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
NOTE:
Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to

EM-219, "Inspection After Disassembly"

.

10. Remove connecting rod cap.
11. Using a suitable tool, push piston and connecting rod assembly

out to the cylinder head side.

CAUTION:

• Be careful not to damage matching surface with connect-

ing rod cap.

• Be careful not to damage the cylinder wall and crankshaft

pin, resulting from an interference of the connecting rod
big end.

12. Remove connecting rod bearings.

CAUTION:

When removing them, note the installation position. Keep them in the correct order.

13. Remove piston rings form piston.

• Before removing piston rings, check the piston ring side clearance. Refer to

EM-219, "Inspection After

Disassembly"

.

14. Using a suitable tool (A) remove piston rings.

CAUTION:

• When removing piston rings, be careful not to damage the

piston.

• Be careful not to damage piston rings by expanding them

excessively.

15. Using snap ring pliers (A), remove snap rings.

PBIC0259E

PBIC3233J

PBIC3230J

EM-214

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

ENGINE UNIT

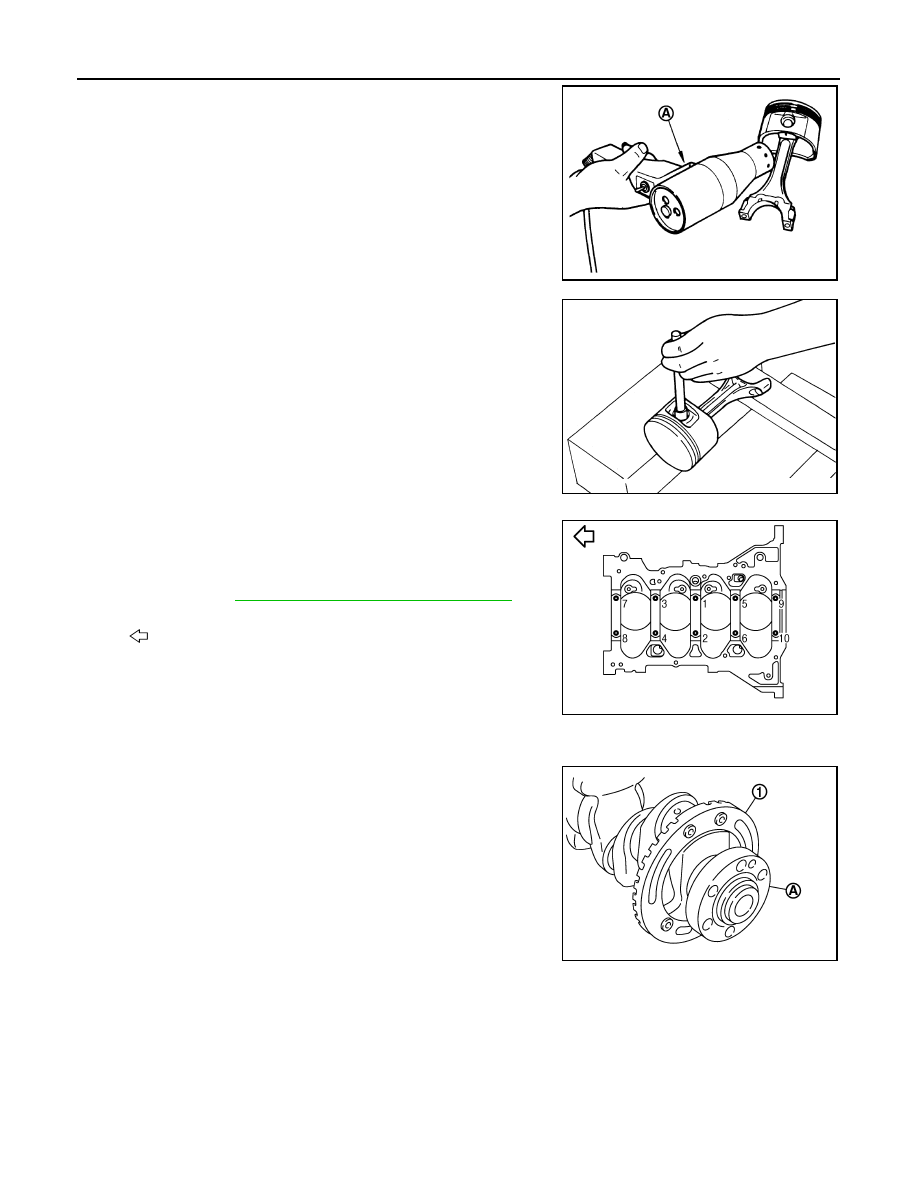

16. Heat piston to 60

°

 to 70

°

C (140

°

 to 158

°

F) using a suitable tool

(A).

17. Push out piston pin using a suitable tool of an outer diameter

approximately 18 mm (0.71 in).

18. Loosen main bearing cap bolts in reverse order as shown, and

remove them.
NOTE:
Before loosening main bearing cap bolts, measure crankshaft
end play. Refer to

EM-219, "Inspection After Disassembly"

.

19. Remove main bearing caps.

• Tap main bearing caps lightly using a suitable tool for removal.

CAUTION:

Be careful not to damage the mounting surface.

20. Remove crankshaft.

CAUTION:

• Be careful not to damage or deform signal plate (1)

mounted on rear end of crankshaft (A).

• When setting crankshaft on a flat floor surface, use a

block of wood to avoid interference between signal plate
and the floor surface.

• Never remove signal plate unless it is necessary to do so.

21. Pull rear oil seal out from rear end of crankshaft.
22. Remove main bearings and thrust bearings from cylinder block

and main bearing caps.

CAUTION:

Identify installation positions, and store them without mix-
ing them up.

ASSEMBLY

1.

Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to
remove any foreign material.

CAUTION:

Use a goggles to protect your eye.

PBIC3231J

PBIC0262E

: Engine front

PBIC3235J

PBIC3234J

ENGINE UNIT

EM-215

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

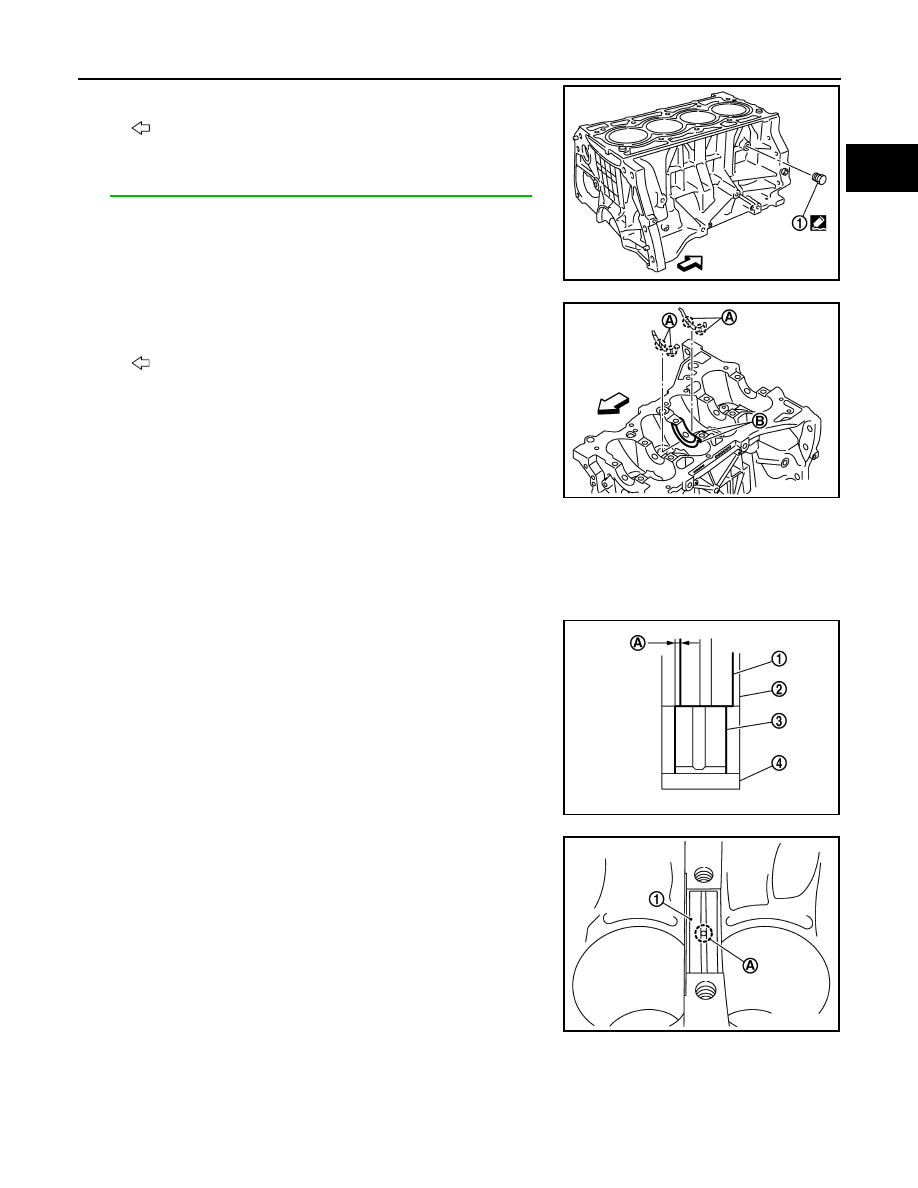

Install water drain plug (1) to cylinder block.

• Apply liquid gasket to the drain plug thread.
Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-27, "Recommended Chemical Products and Sealants"

.

3.

Remove dust, dirt, and engine oil on the bearing mating sur-
faces of cylinder block and main bearing cap.

4.

Install thrust bearings to the both sides of the No. 3 journal hous-
ing (B) on cylinder block.

• Install thrust bearings with the oil groove (A) facing crankshaft

arm (outside).

5.

Install the main bearings paying attention to the direction.

CAUTION:

• Before installing main bearings, apply new engine oil to the bearing surface (inside). Do not

apply new engine oil to the back surface, but thoroughly clean it.

• When installing, align main bearing to the center position of cylinder block and main bearing

cap.

• The difference (A) between main bearing upper (1) and

main bearing lower (3) should be 0.85 mm (0.033 in) or
less when installing.

• Ensure the oil holes on cylinder block and oil holes (A) on

the main bearings (1) are aligned.

6.

Install signal plate to crankshaft if removed.

7.

Set the signal plate with the flange facing toward the counter weight side (engine front side) to the crank-
shaft rear surface.

8.

Apply new engine oil to threads and seat surfaces of bolts.

: Engine front

9.8 N·m (1.0 kg-m, 87 in-lb)

PBIC3228J

: Engine front

PBIC3258J

2

: Cylinder block

4

: Main bearing cap

PBIC3237J
