IDLE SPEED CONTROL

1.

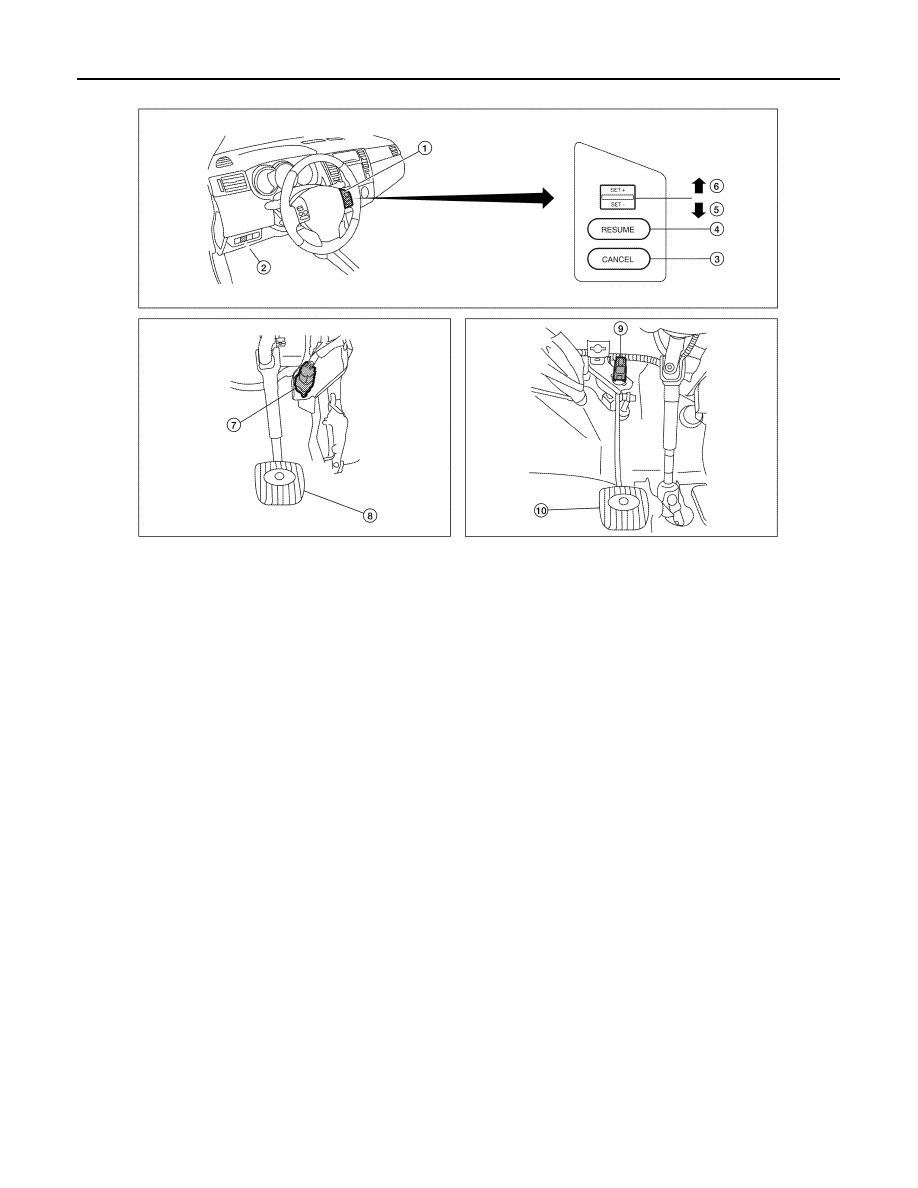

ASCD steering switch

2.

ASCD switch

3.

CANCEL switch

4.

RESUME switch

5.

SET - switch

6.

SET + switch

7.

Stop lamp switch

8.

Brake pedal

9.

ASCD clutch switch

10. Clutch pedal

AWBIA0056ZZ

ENGINE TORQUE CONTROL

EC-1087

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ENGINE TORQUE CONTROL

System Description

INFOID:0000000001162540

The torque structure is the system which translates the driver's request into a torque supplied by the engine. It
is required for certain functions such as the electronic stability program (ESP), the automatic gearbox or the
sequentialgearbox if fitted).
Each inter-system (ESP, automatic gearbox, sequential gearbox) sends the ECM a torque request viathe CAN
communication. The computer arbitrates between the inter-system torque requests and the driver's request
(comprised of the accelerator pedal or the cruise control/speed limiter function). The result of the arbitration
gives thetorque setpoint.
From this torque setpoint, the computer determines the quantity of fuel to be injected (injection duration and
numberof injections) and the amount of air required (turbocharging pressure and EGR rate) so that the engine
is able toprovide the torque required in the best possible conditions (in terms of smooth running performance,
pollutantemissions, etc.).

Component Parts Location

INFOID:0000000001611148

ALBIA0296ZZ

EC-1088

< FUNCTION DIAGNOSIS >

[K9K]

ENGINE TORQUE CONTROL

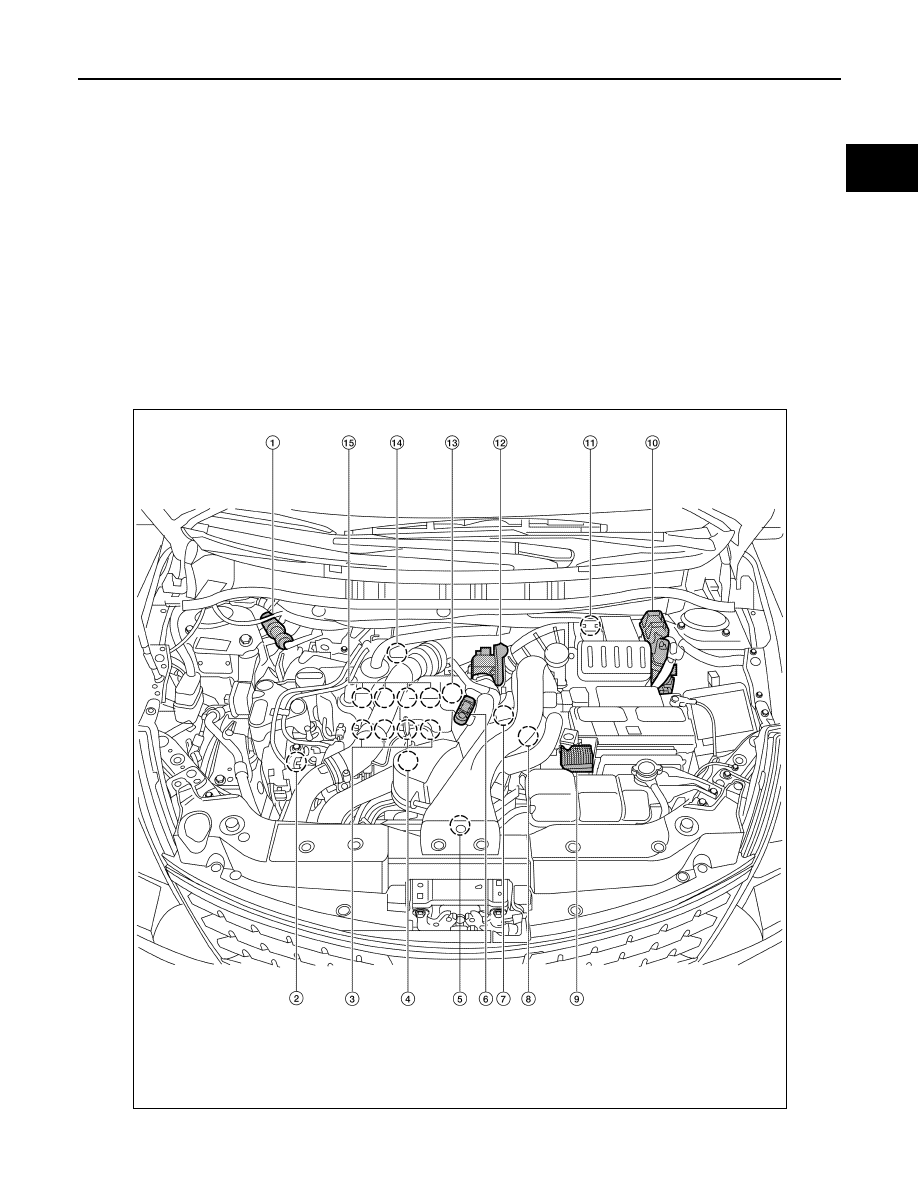

1.

Priming pump

2.

Fuel pump

3.

Glow plug

4.

Fuel rail

5.

Turbocharger boost control solenoid
valve

6.

Turbocharger boost sensor

7.

Engine coolant temperature sensor

8.

Crankshaft position sensor

9.

Glow relay

10. ECM

11.

Mass air flow sensor

12. Electric throttle control actuator

13. Camshaft position sensor

14. EGR volume control valve

15. Fuel injector

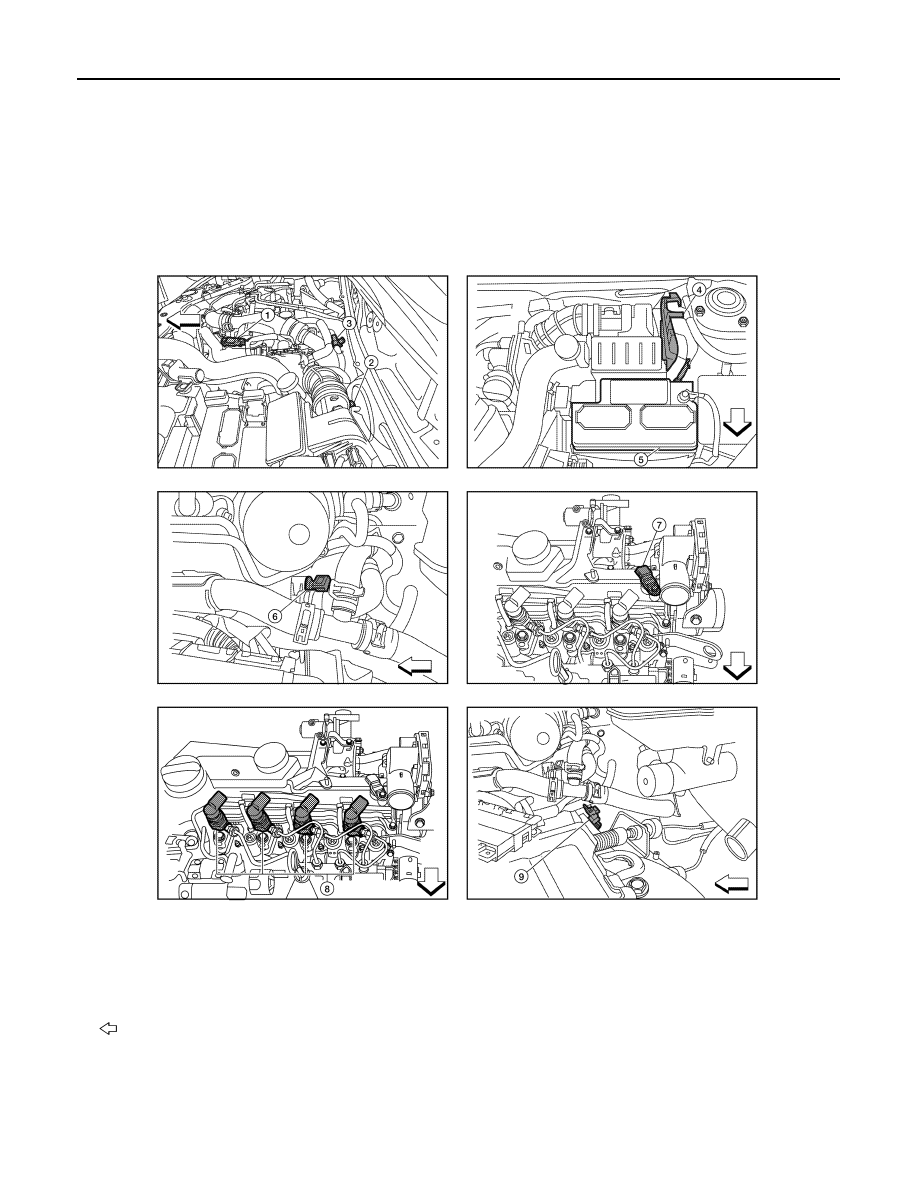

1.

Turbocharger boost sensor

2.

Mass air flow sensor

3.

EGR volume control valve

4.

ECM

5.

Battery

6.

Engine coolant temperature sensor

7.

Camshaft position sensor

8.

Fuel injector

9.

Crankshaft position sensor

: Vehicle front

ALBIA0297ZZ

ENGINE TORQUE CONTROL

EC-1089

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

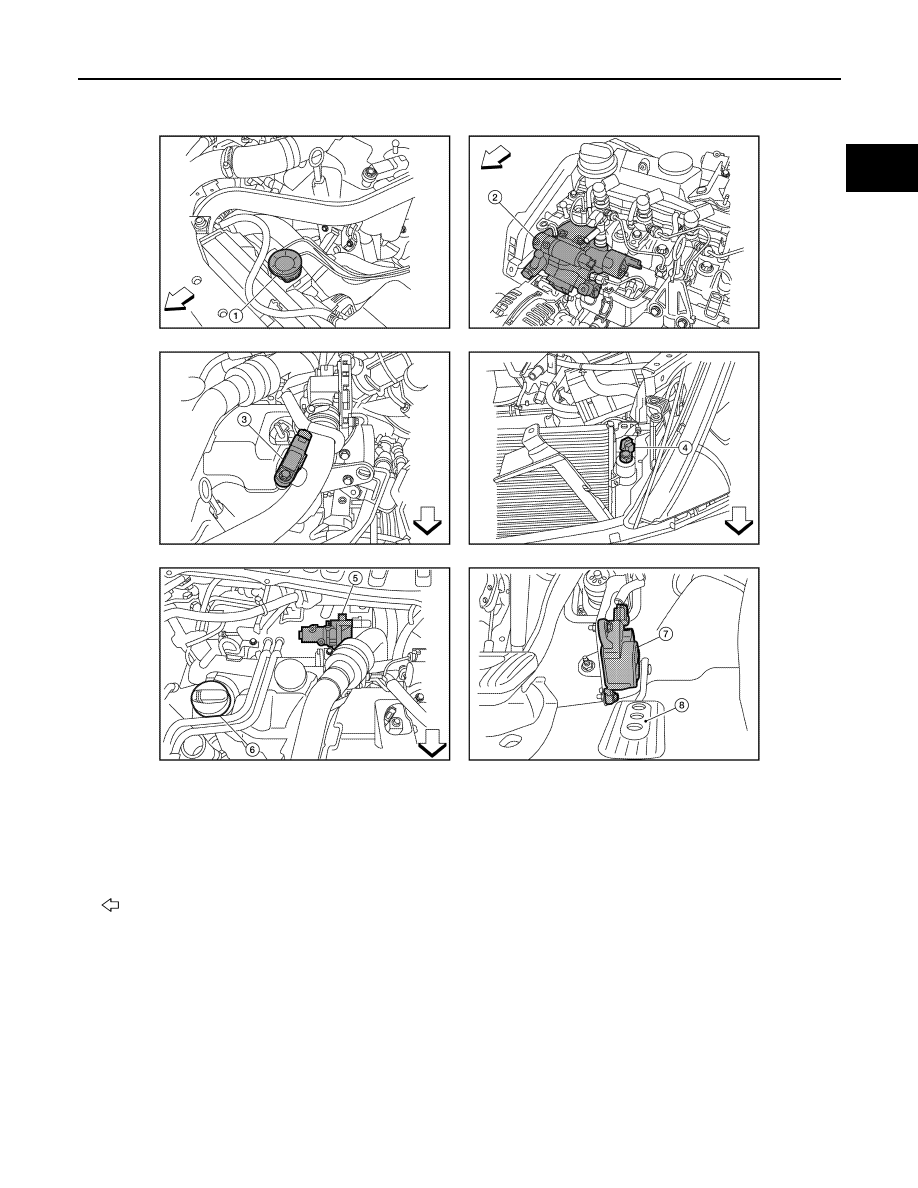

1.

Turbocharger boost control solenoid
valve

2.

Fuel pump

3.

Turbocharger boost sensor

4.

Refrigerant pressure sensor

5.

EGR volume control valve

6.

Engine oil filler cap

7.

Accelerator pedal position sensor

8.

Accelerator pedal

: Vehicle front
